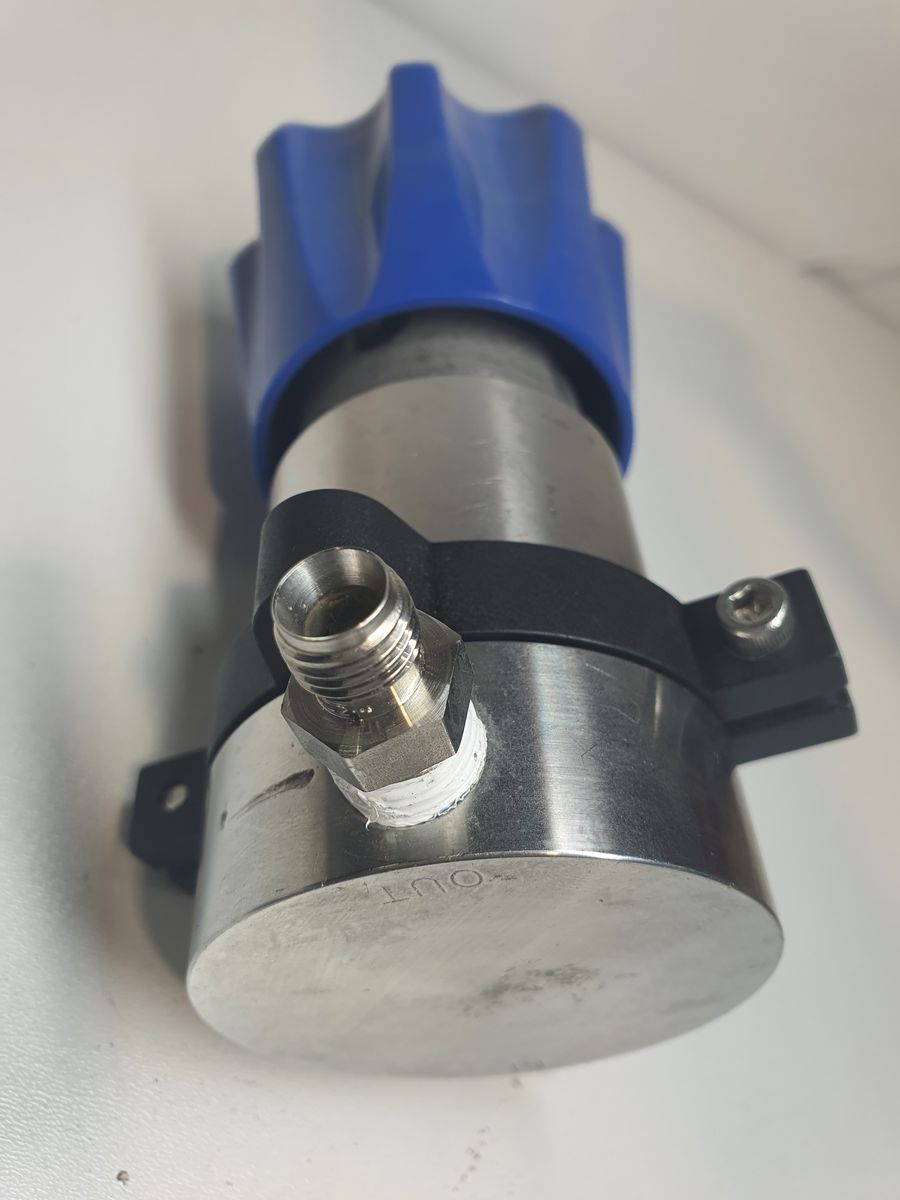

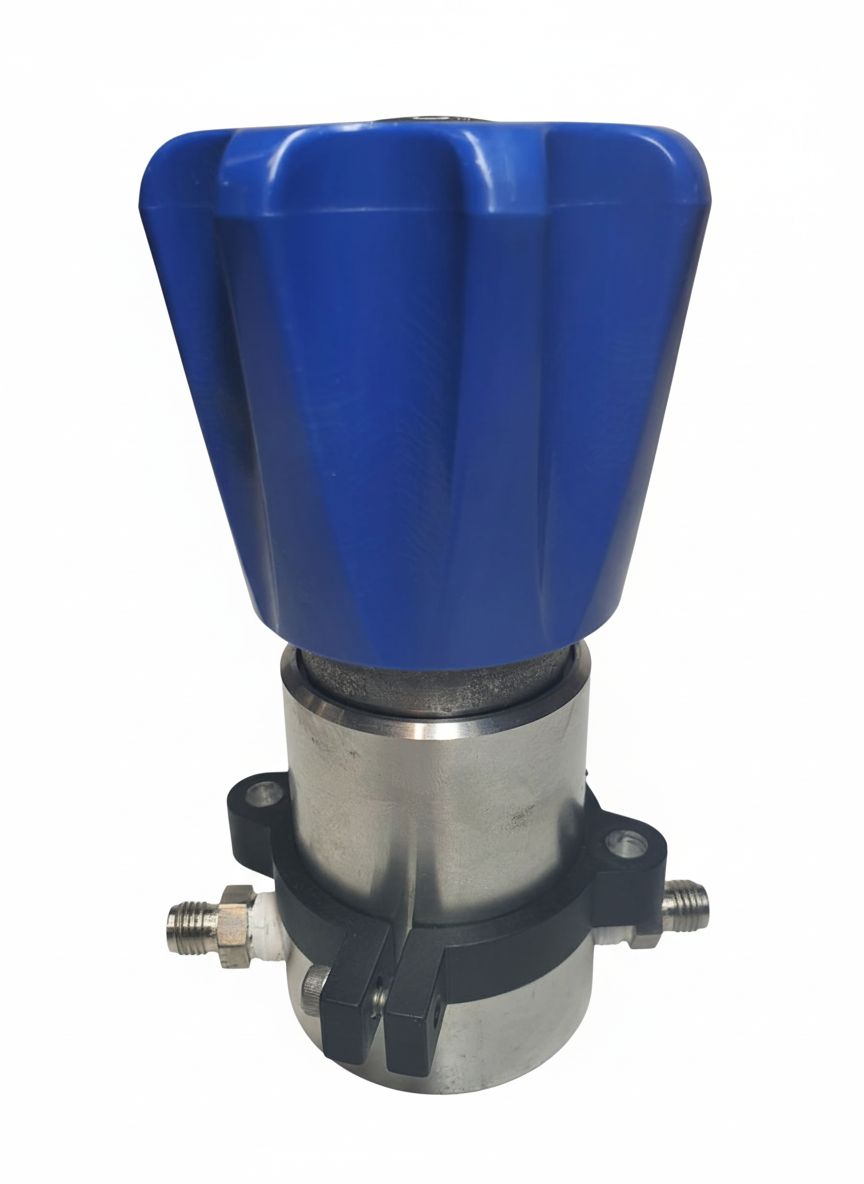

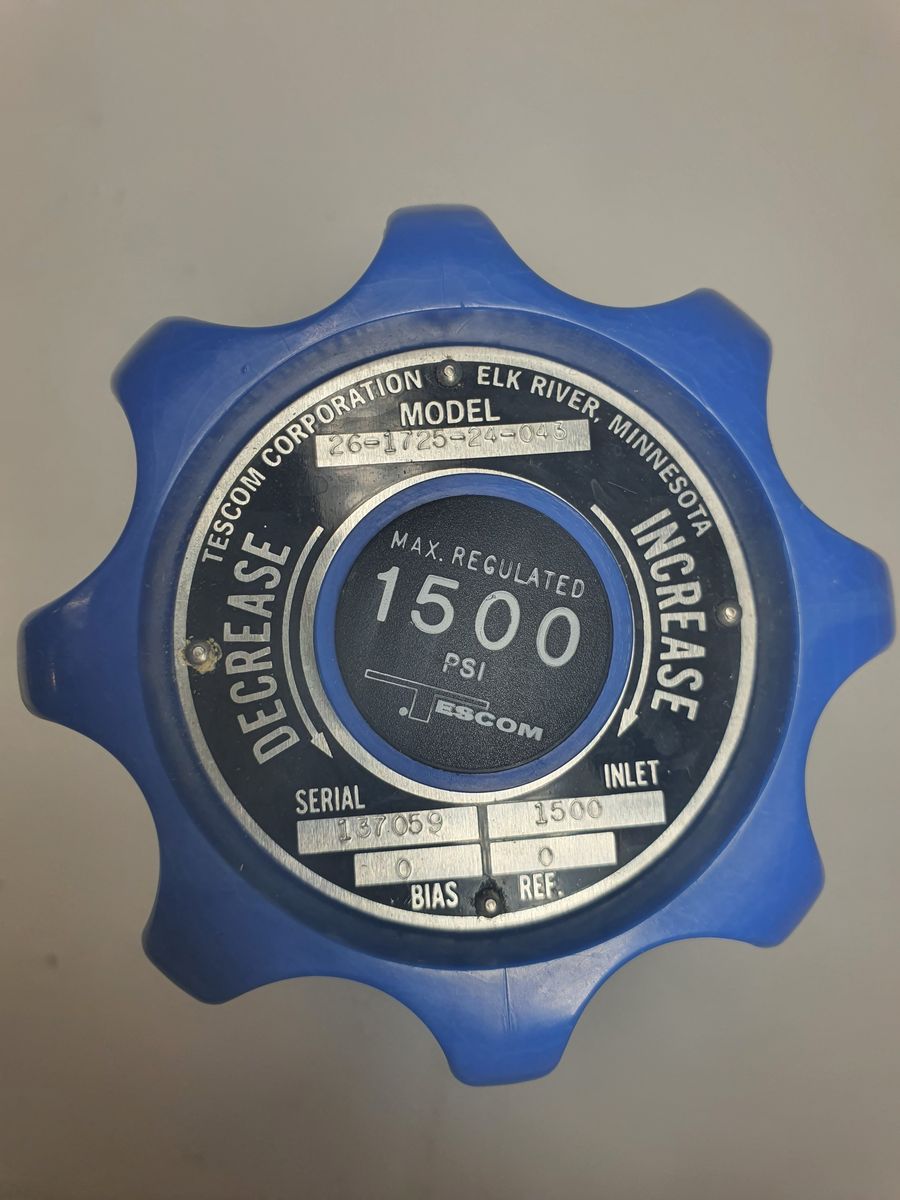

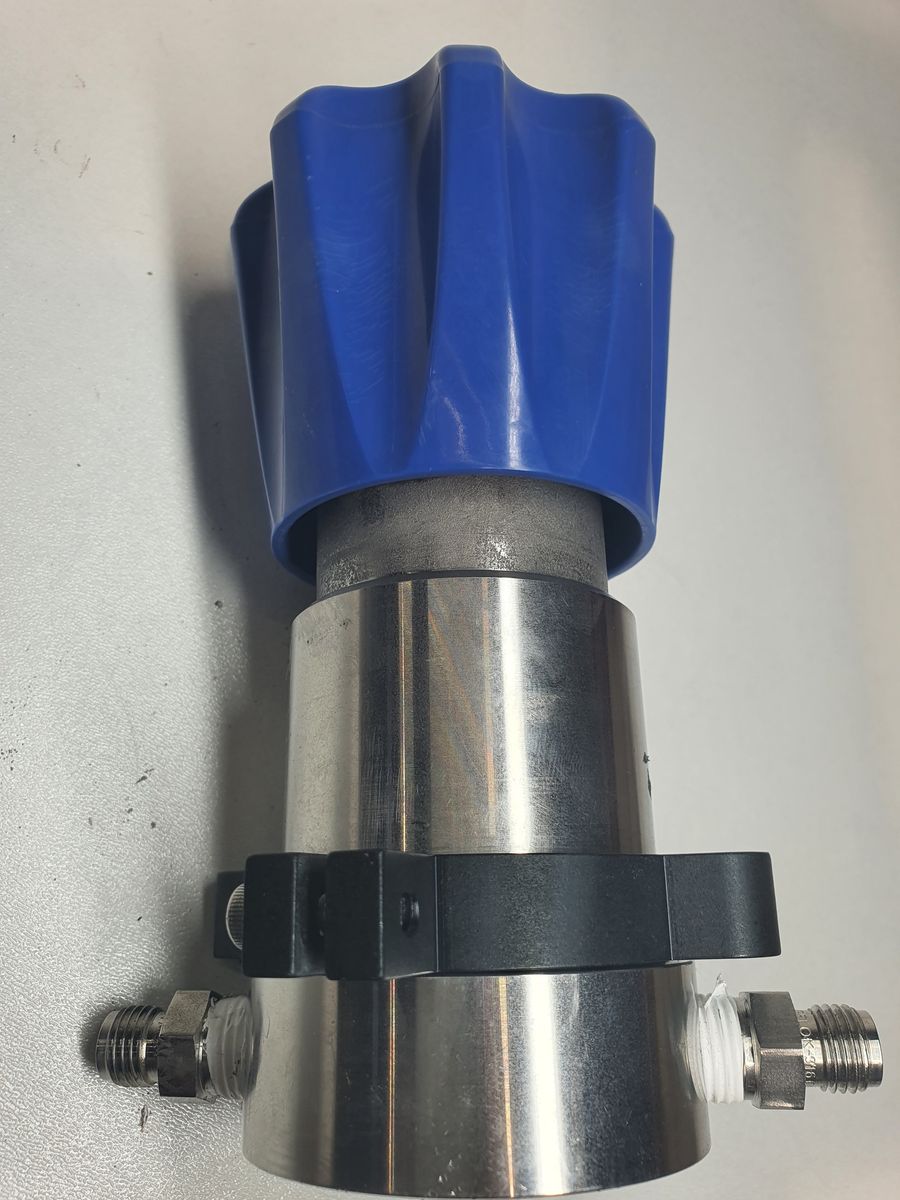

TESCOM Elk River Minnesota 26-1725-24-043 Pressure Regulator

Description:
The product is a high-pressure, piston-sensed regulator designed to precisely control pressures up to 1500 psig (103 bar). It is suitable for gas or liquid service and is engineered for demanding industrial and process control applications where accuracy, reliability, and tight shutoff are critical. The regulator features a robust stainless steel construction, bubble-tight shutoff, and compatibility with TESCOM air actuators and electropneumatic controllers.

Key Features:
- High pressure capability
- High accuracy: ± 1% of the central pressure range
- Wide application flexibility
- Bubble-tight shutoff
- Ensures zero leakage at all reseat pressures
- Safe and reliable design
- Piston-style sensor for stable and repeatable control
- Mounting and integration
- Panel mounting is standard
- Compatible with TESCOM Air Actuators and ER5000 Electropneumatic Controllers
- Industry compliance
- NACE-compatible design available for sour or corrosive service

Specifications:
- Pressure Rating: Per ANSI/ASME B31.3
- Maximum Inlet Pressure: 10-1500 psig (0.69-103 bar)
- Design Proof Pressure: 150% of maximum rated pressure
- Leakage: Bubble-tight
- Operating Temperature: −40°F to 165°F (−40°C to 74°C)
- Flow Capacity: Cv = 0.14
- Maximum Operating Torque: 40 in-lb / 4.5 N·m
- Body: 316 Stainless Steel
- Trim: 300 Series Stainless Steel
- Remaining Parts: 300 Series Stainless Steel
- Seal: CTFE
- Seat: Teflon®
- O-Rings: Buna-N
- Back-up Ring: Teflon®
- Cleaning: CGA 4.1 and ASTM G93
- Weight: 5 lb / 2.2 kg

Typical Applications:
Pump discharge pressure control
Reactor pressure control
Over-pressurization relief
High-pressure gas or liquid process systems
Industrial pressure control panels
Chemical, petrochemical, and energy applications requiring precise high-pressure regulation
