Valves
SS-83XPS4
SKU: 2010
In Stock
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

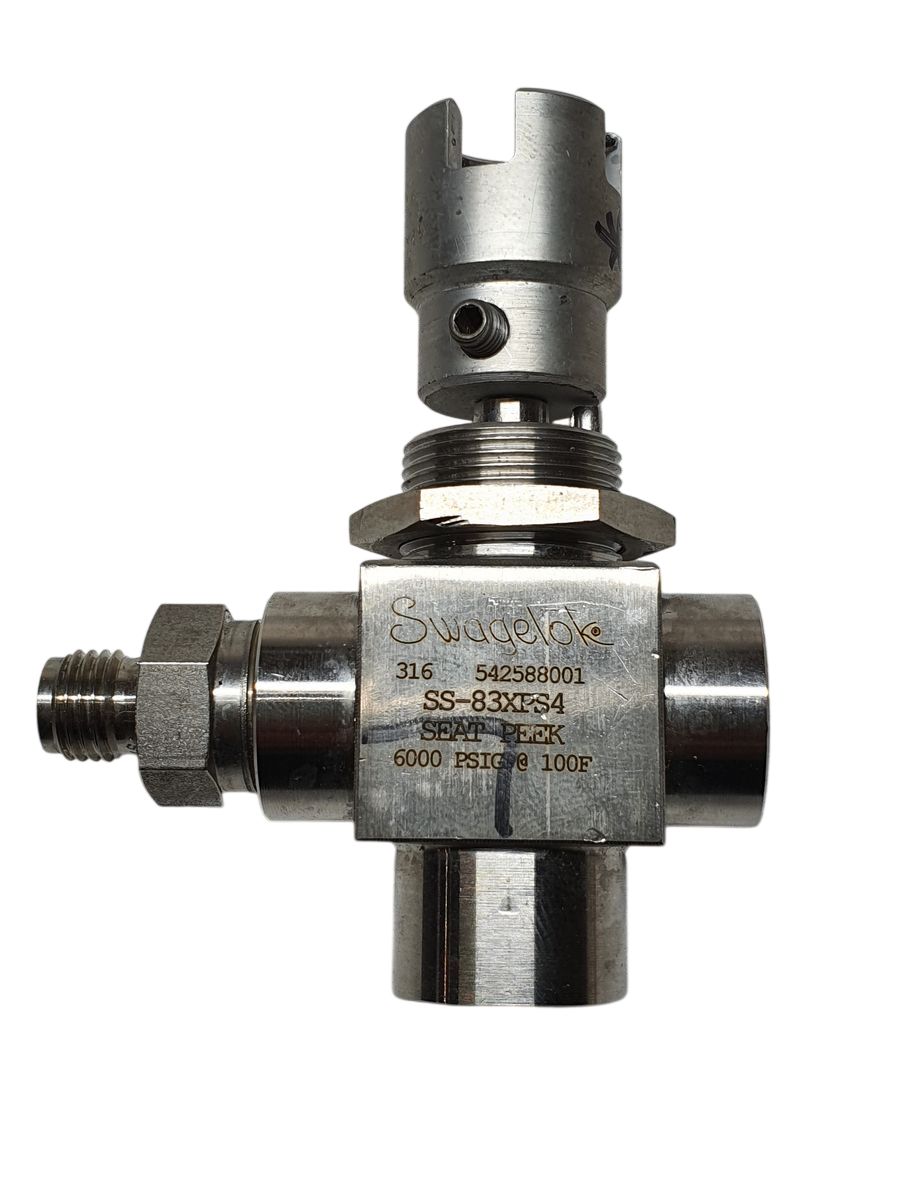

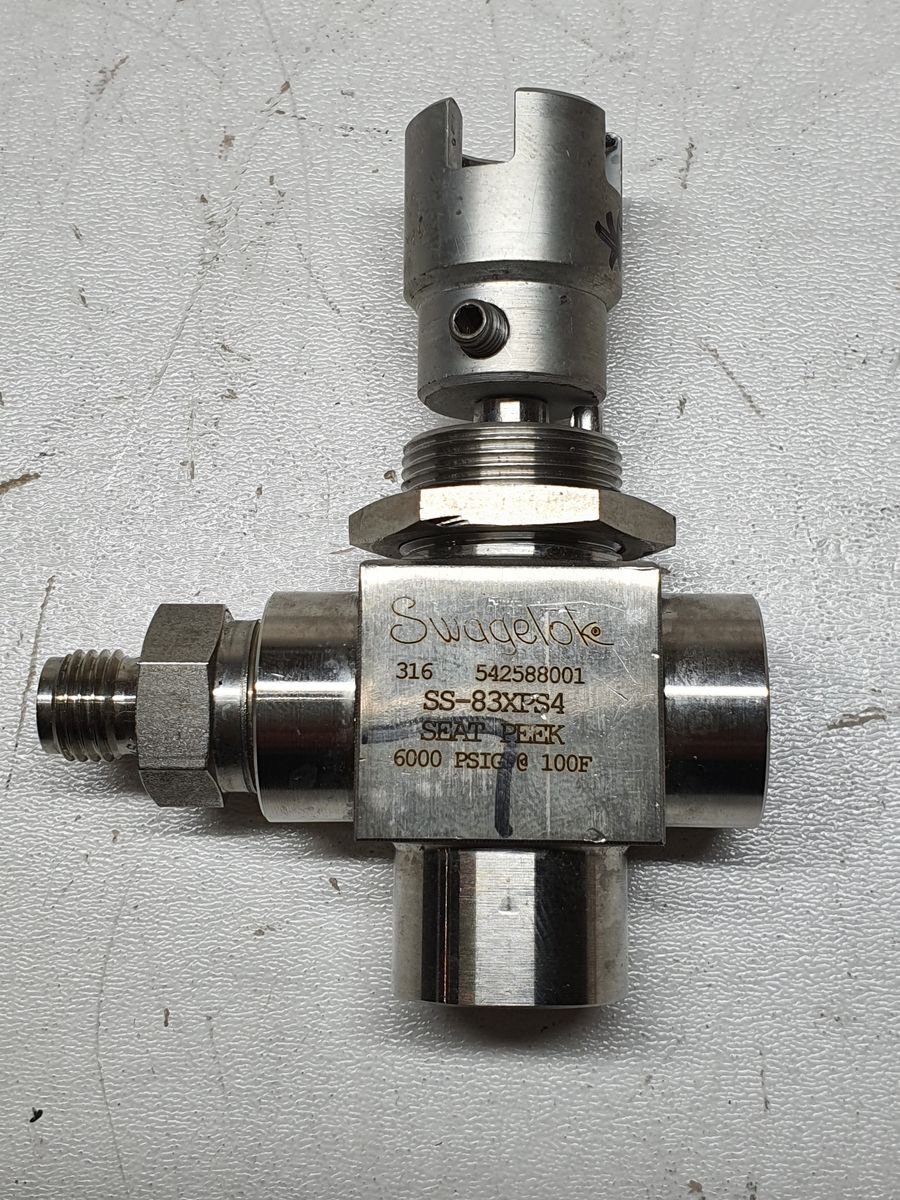

Swagelok 3-Way Ball Valve – SS-83XPS4-53S-L1
| Specification | Detail |
|---|---|
| Product Name | Stainless Steel 3-Way High-Pressure Ball Valve |
| Model / Part No. | SS-83XPS4-53S-L1 |
| Valve Series | 83 Series Trunnion-Style Ball Valve |
| Flow Configuration | 3-Way, Switching |
| Body Material | 316 Stainless Steel |
| Seat Material | PEEK |
| Connections | 1/4 in.Tube Fitting × 1/4 in. Tube Fitting × 1/4 in. Female NPT |
| Maximum CV | 0.75 |
| Handle Style | Phenolic handle, black (manual override on unactuated version) |
| Low Emissions Certified | Yes |
| Cleaning | Standard Cleaning and Packaging (SC-10) |
| Valve Pressure/Temp Ratings | 6000 psi, 100F |
| Actuation | Spring-return pneumatic interface for MS-153-SR |
| Limit Switches | Two SPDT (L1 configuration) for position feedback (installed with actuator) |
| Applications | 3-way flow switching in high-pressure instrument & process systems |
×
![]()
