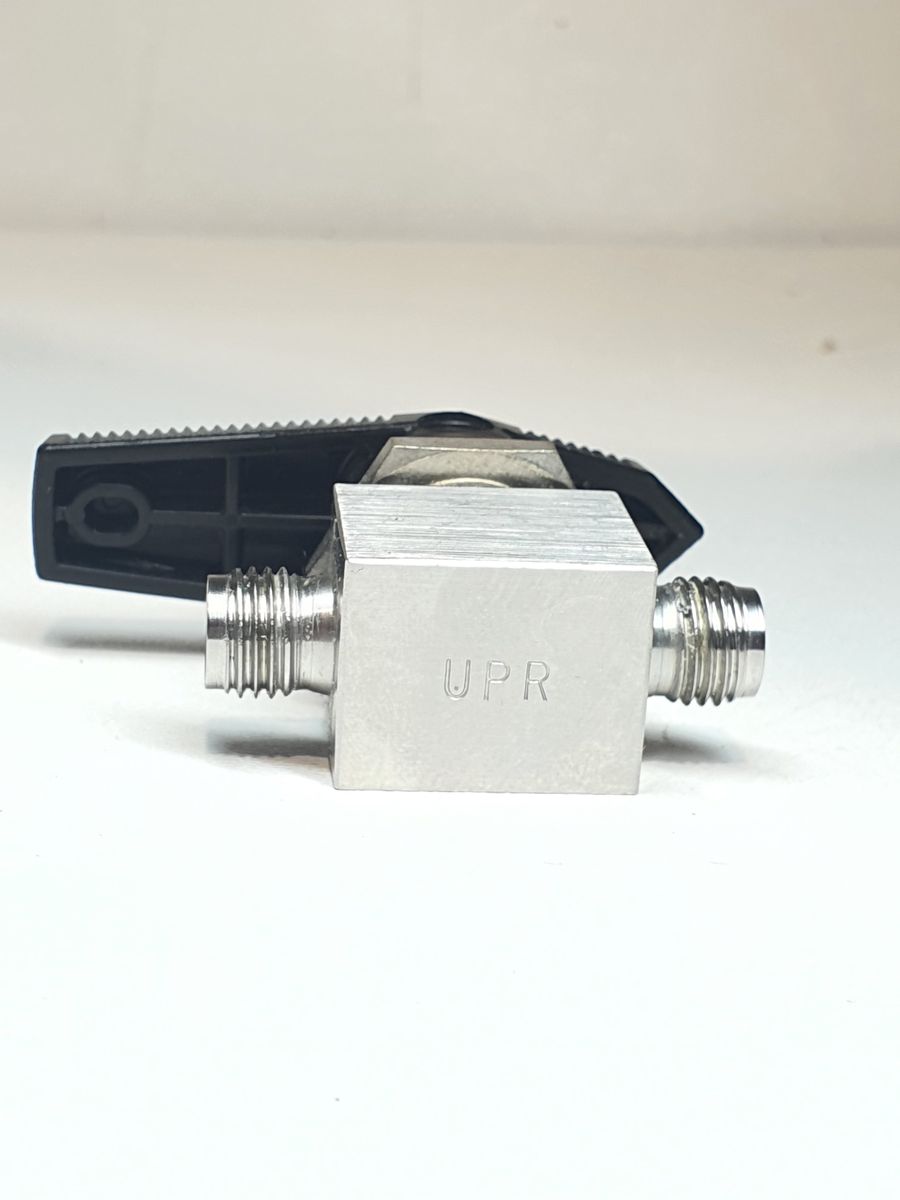

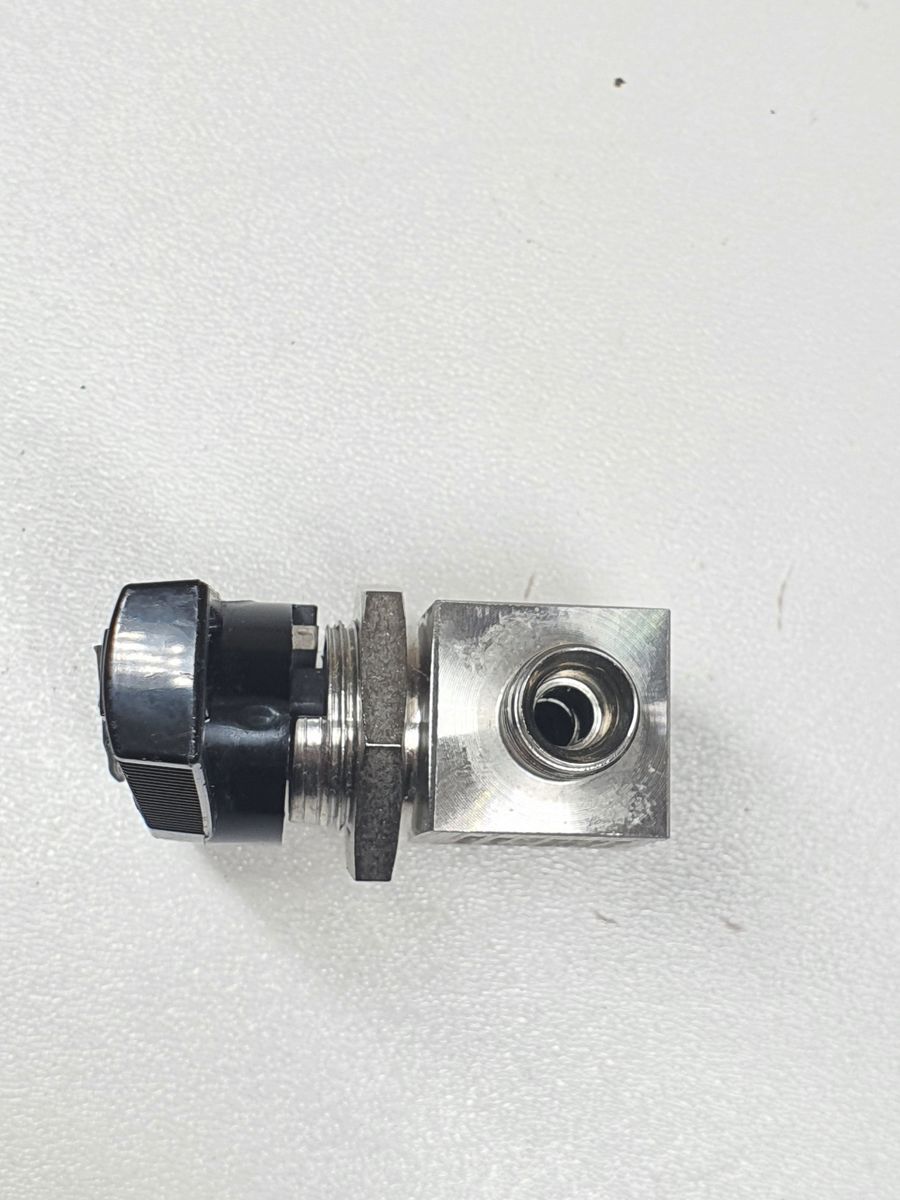

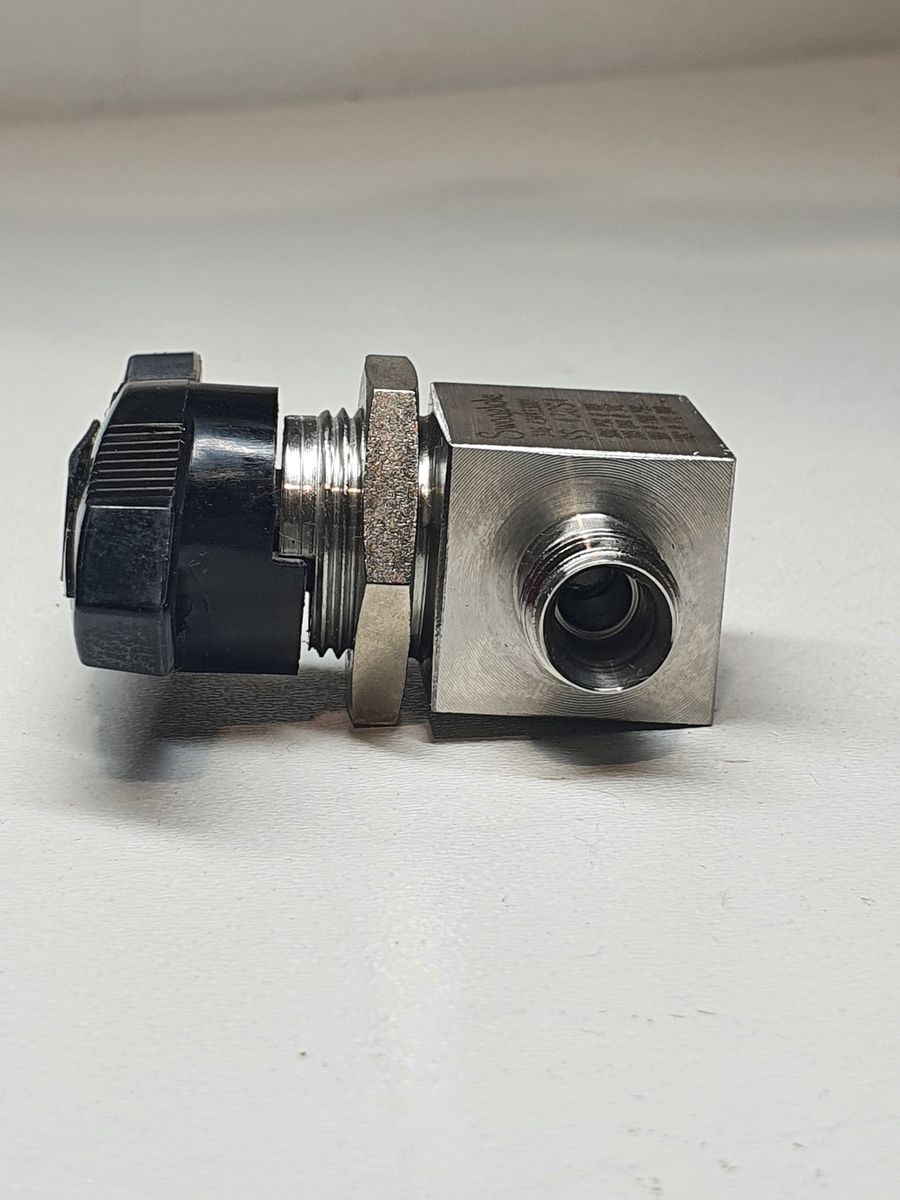

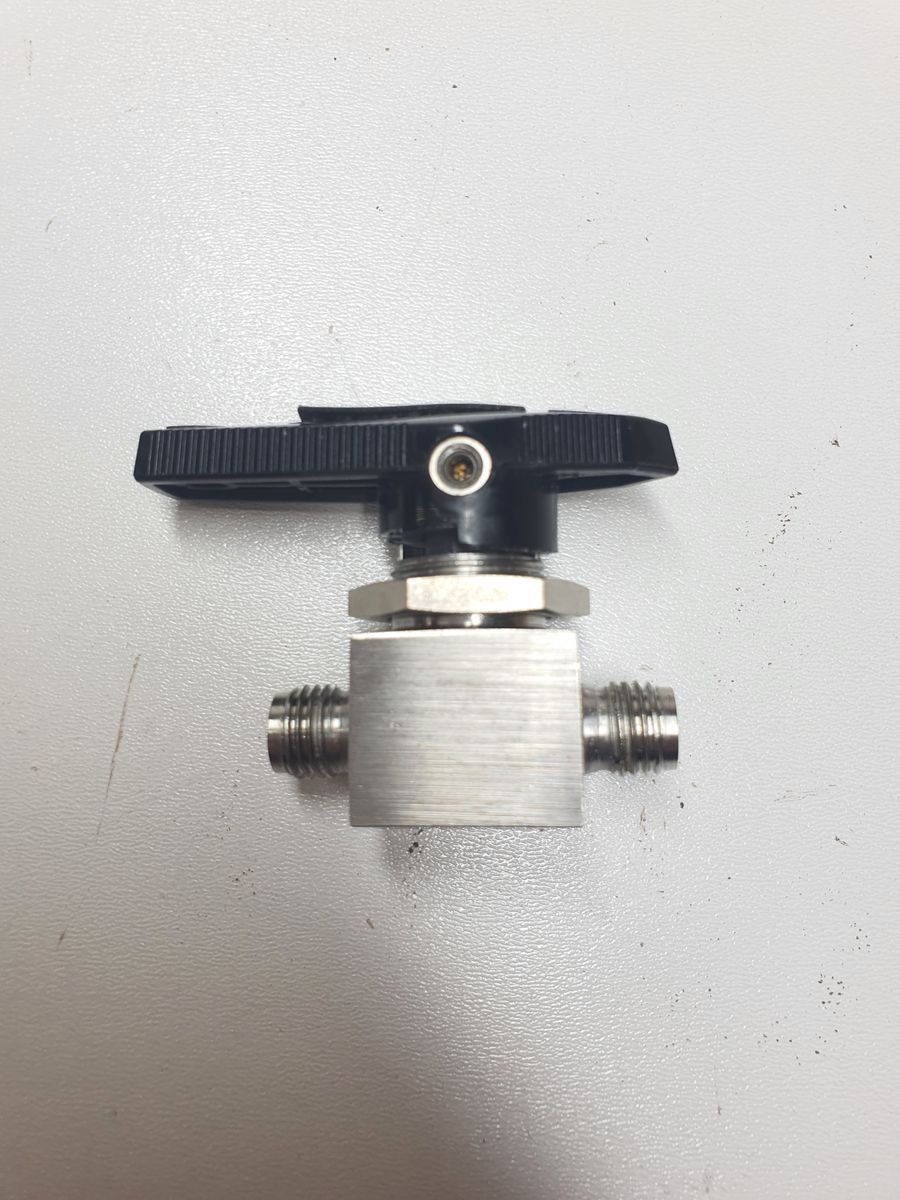

Swagelok SS-43GS4 Stainless Steel Ball Valve - Manual Actuator

Description:
The product is a compact, high-pressure, manually operated ball valve designed for reliable on/off flow control in instrumentation and process systems. Manufactured from 316 stainless steel, the valve provides excellent corrosion resistance and long service life in demanding environments. The valve features a quarter-turn manual lever handle for quick operation and Swagelok tube fitting end connections for secure, leak-tight installation.

Key Features:
- 316 stainless steel body for corrosion resistance
- Manual quarter-turn lever handle for fast, positive shutoff
- Compact straight-through, 2-way ball valve design
- High pressure rating suitable for instrumentation service
- Swagelok tube fitting end connections for reliable sealing

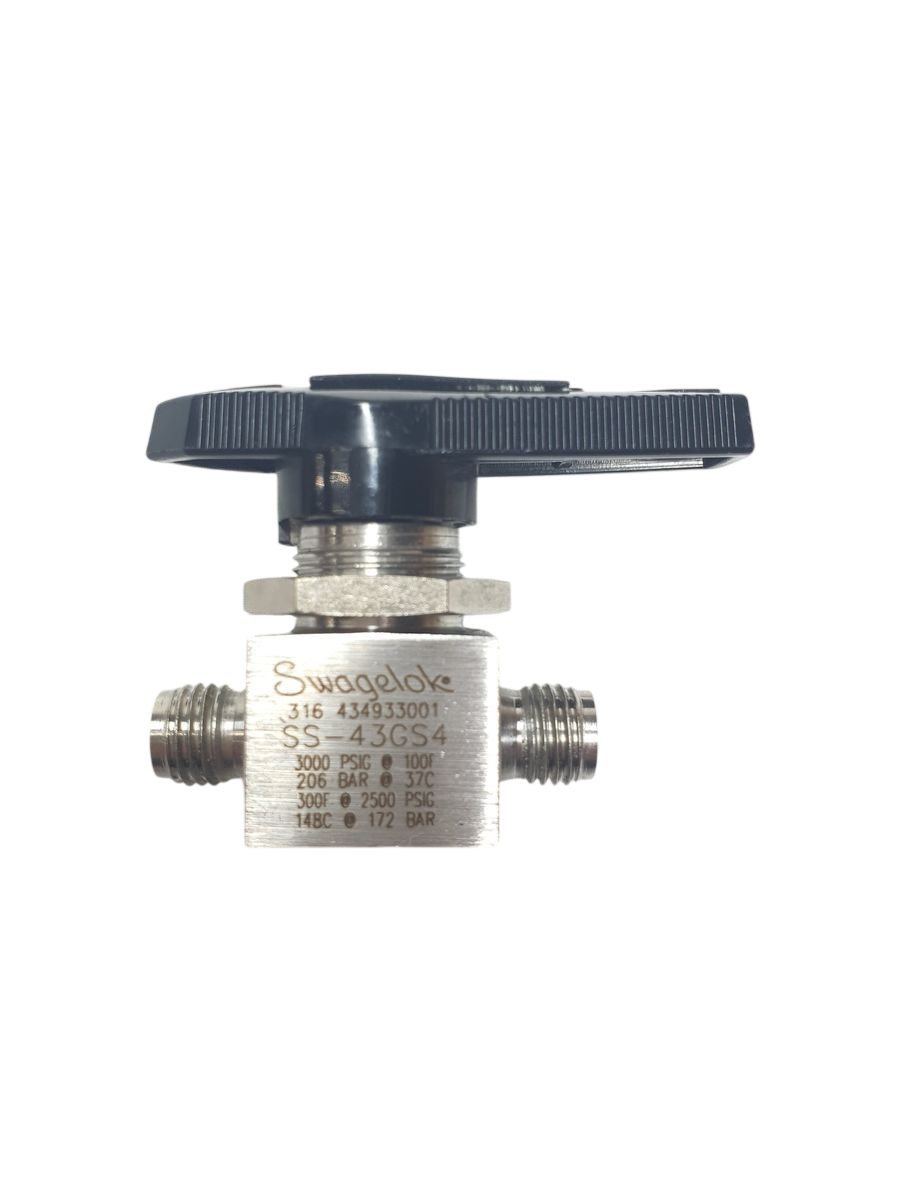

- Clearly engraved pressure and temperature ratings on body

Specifications:
- Manufacturer: Swagelok
- Part Number: SS-43GS4
- Valve Type: 2-way, straight-pattern ball valve
- Actuation: Manual lever handle
- Body Material: 316 Stainless Steel
- End Connections: Swagelok tube fittings
- Tube Size: 1/4 in
- Maximum Pressure Rating:
3000 psig (206 bar) at 100°F (37°C)
2500 psig (172 bar) at 300°F (148°C)
- Operation: Quarter-turn (90°) open/close

Typical applications:
Instrumentation and control systems
Analytical and sampling systems
Process isolation and shutoff
Gas and liquid handling lines
Chemical and petrochemical processing
Hydraulic and pneumatic systems
Laboratory and test equipment
