Pneumatische actuatoren
Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN / SS-43GS6-NHS
SKU: 4019
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

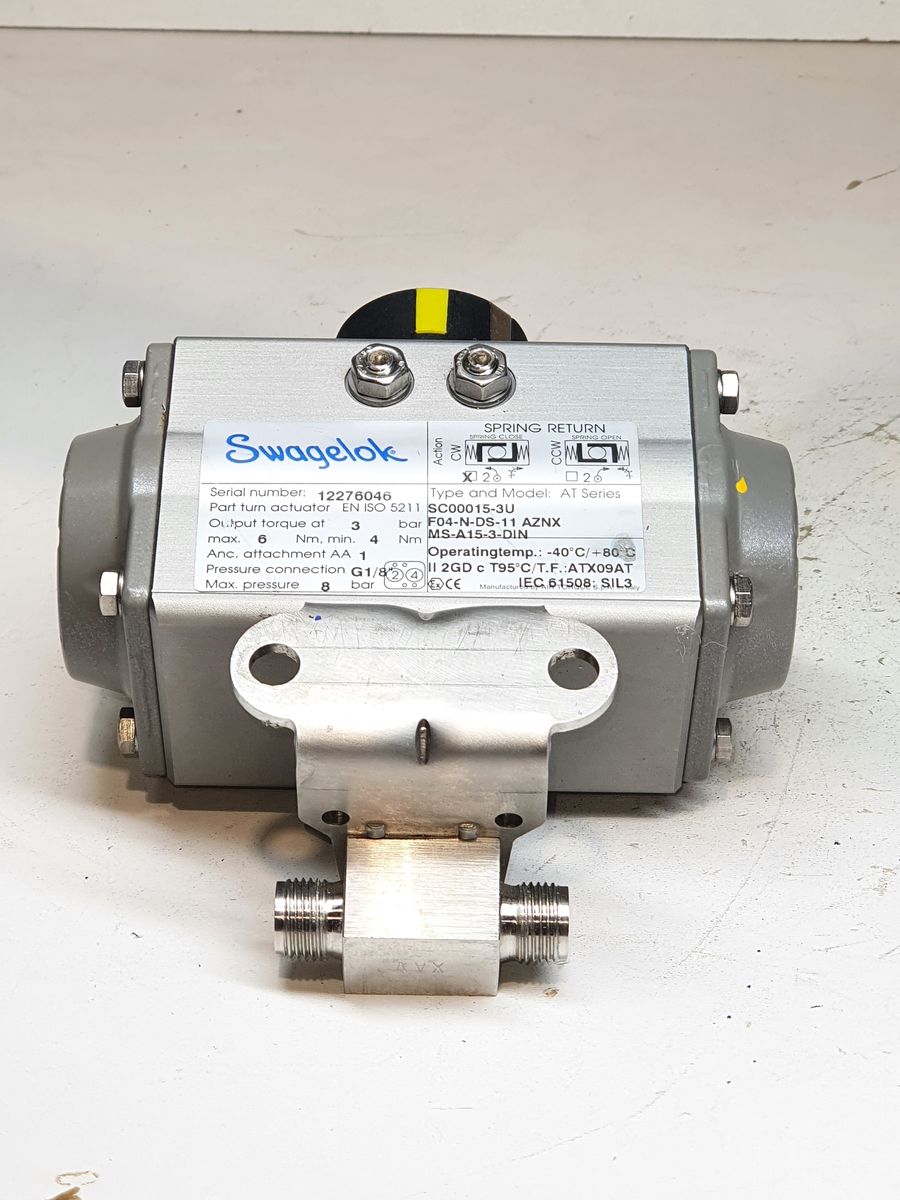

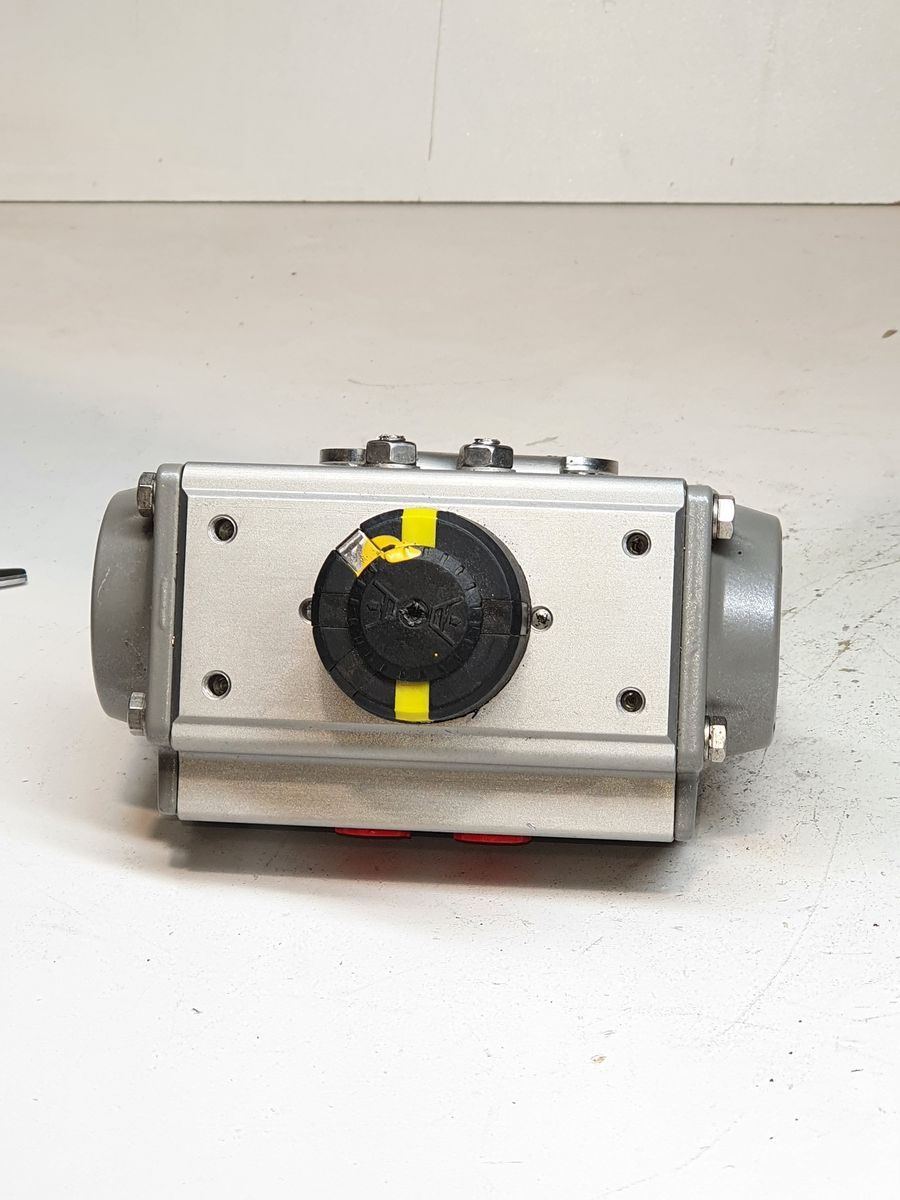

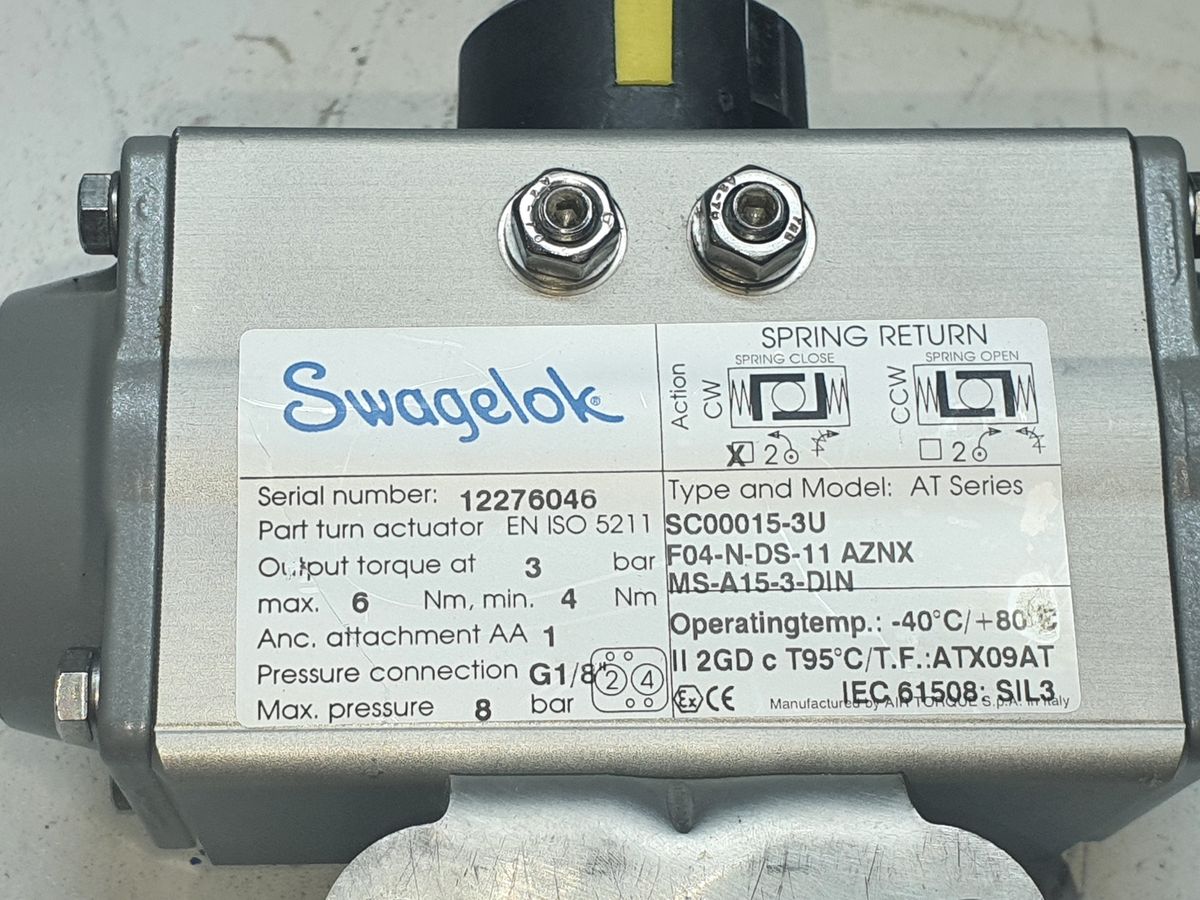

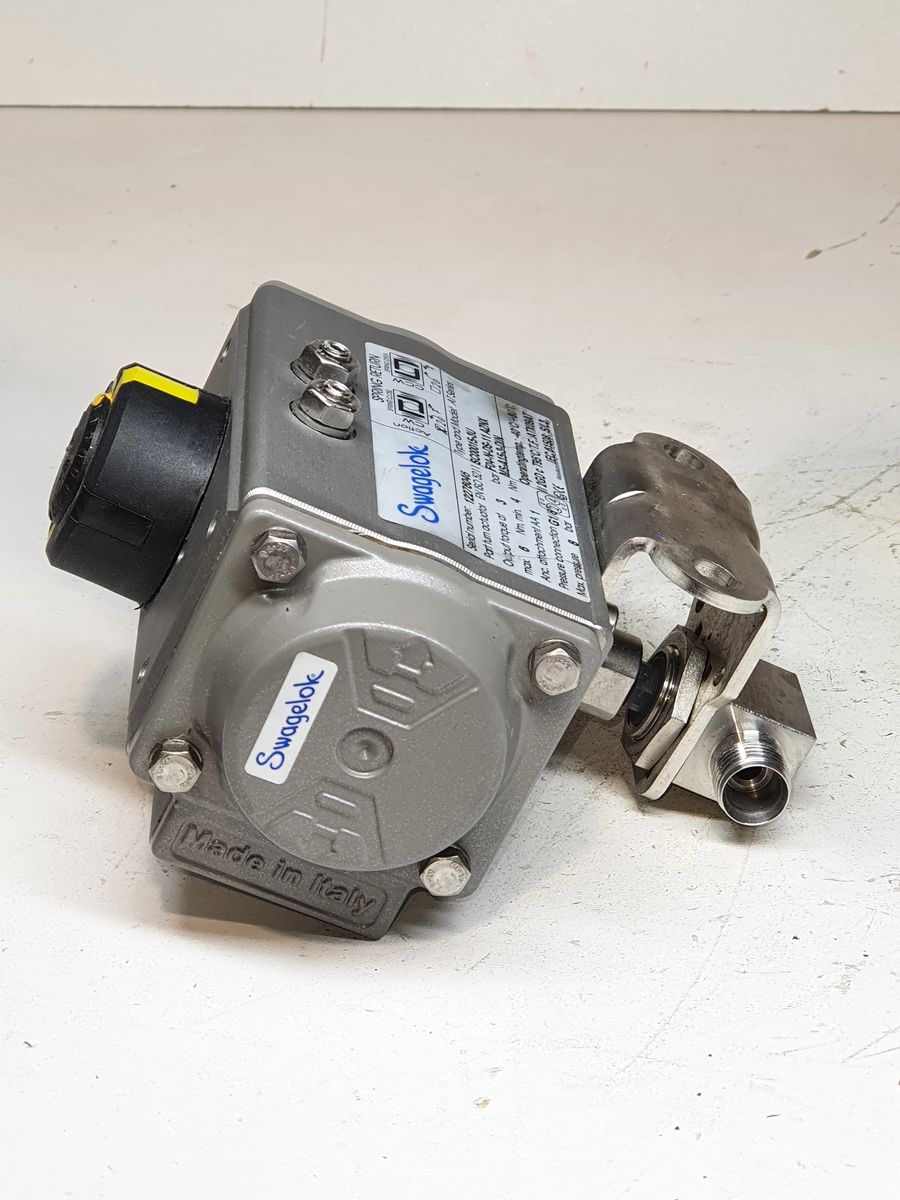

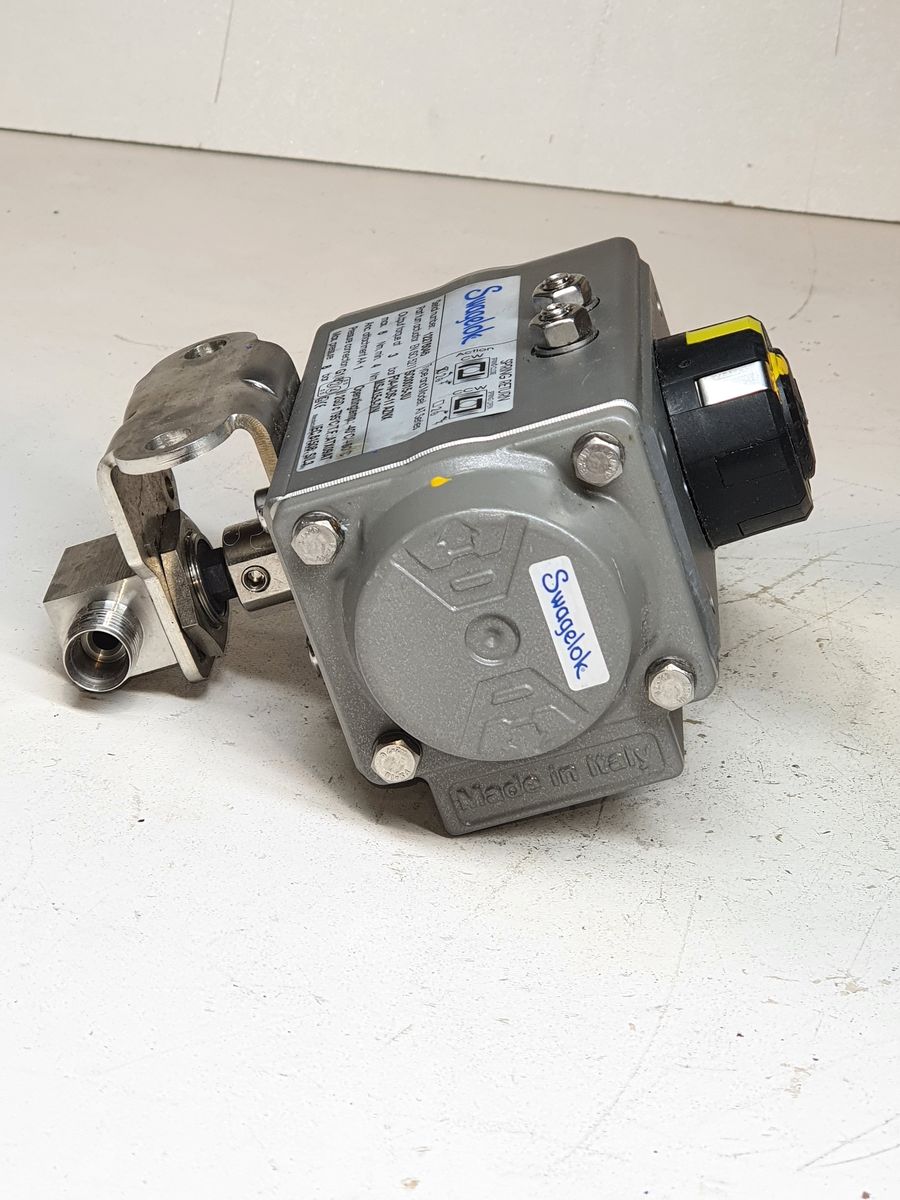

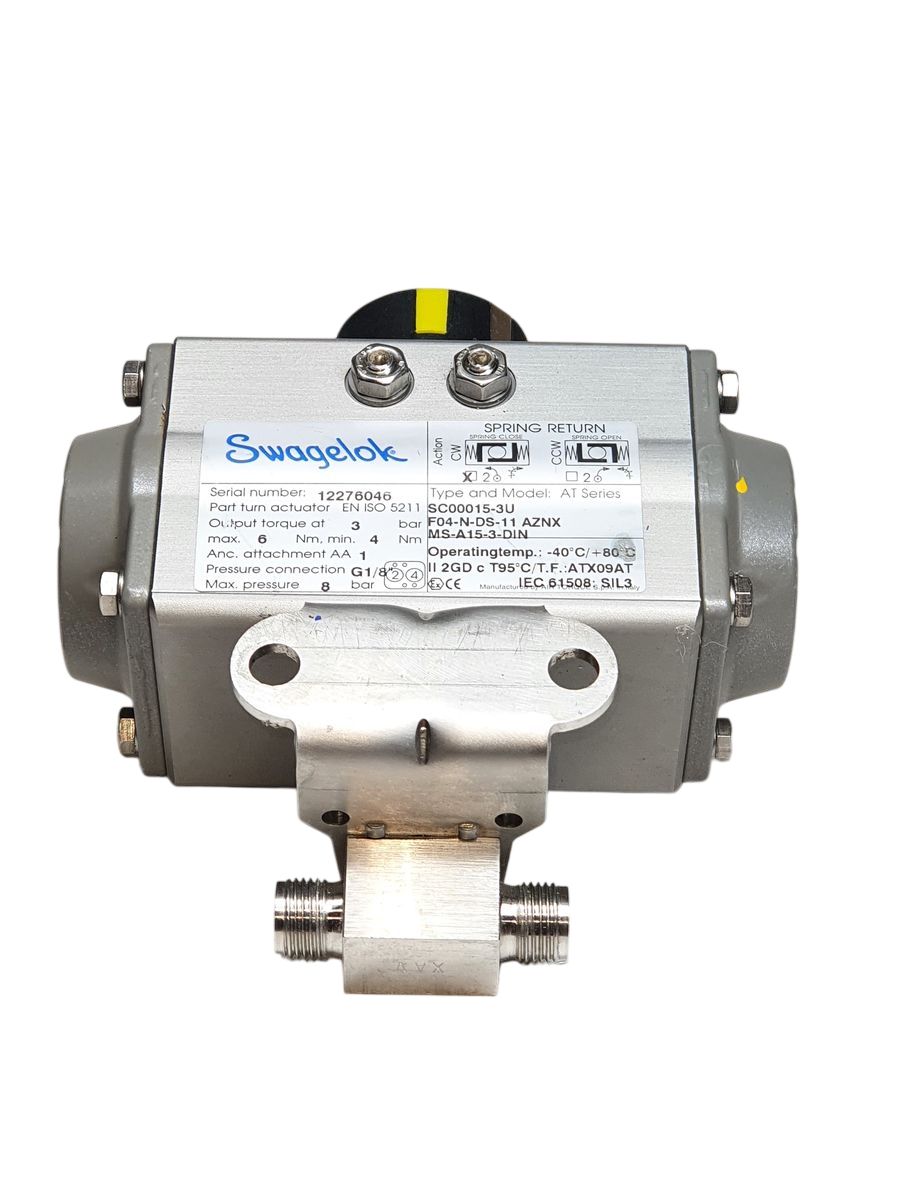

Swagelok SC00015-3U Pneumatic Actuator
| Category | Parameter |
|---|---|
| Manufacturer | Air Torque S.p.A. (Italy) |
| Brand / Series | Swagelok AT Series |
| Type | Pneumatic part-turn actuator |
| Operation | Spring return (spring close / spring open) |
| Rotation Angle | 90° (quarter turn) |
| Output Torque | Minimum: 4 NmMaximum: 6 Nm |
| Maximum Operating Pressure | 8 bar |
| Air Connection | G 1/8" |
| Mounting Standard | EN ISO 5211 |
| Ambient Temperature Range | −40 °C to +80 °C |
| ATEX Classification | II 2GD c T95°C / T.F. ATX09 AT |
| Safety Integrity Level | IEC 61508 – SIL 3 |

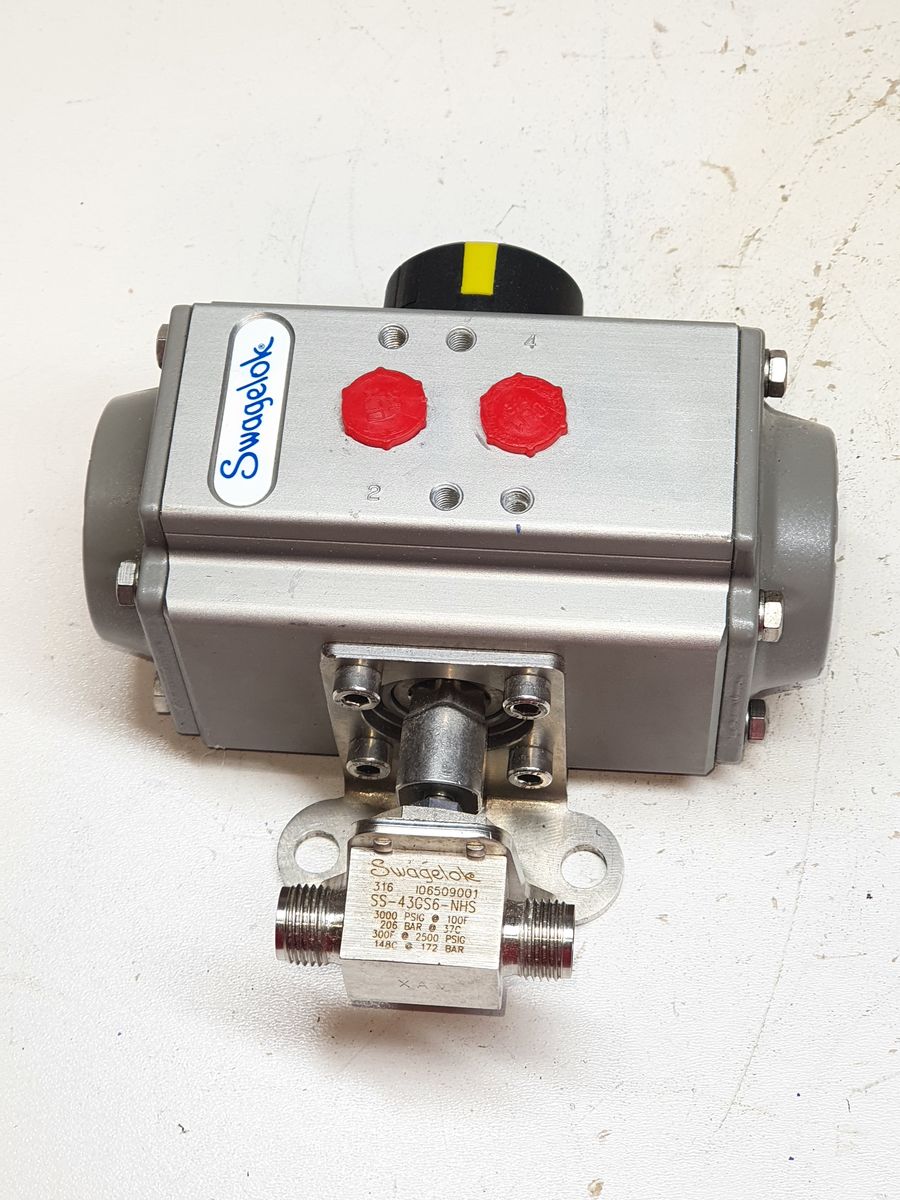

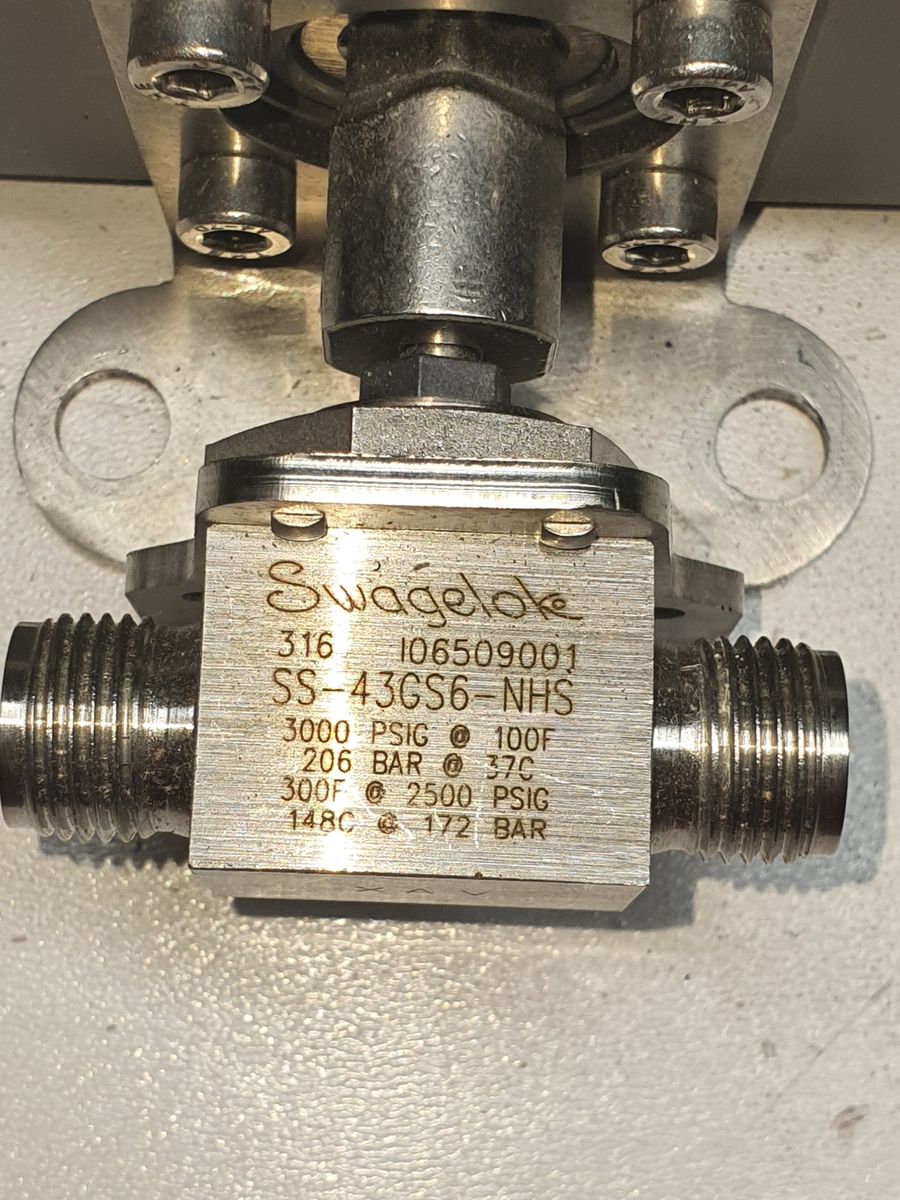

Swagelok SS-43GS6-NHS Valve
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Tube Fitting |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Tube Fitting |
| CV Maximum | 1.5 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Low Emissions Certified | Yes |
| Orifice | 0.187 in /4.7 mm |
| Packing Material | Modified PTFE UHMWPE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating |
3000 PSIG @ 100°F /206 BAR @ 37°C 2500 PSIG @ 300°F/ 172 BAR @ 148°C |
| Testing | Testing according to WS-22 |
×
![]()
