Drukmeter

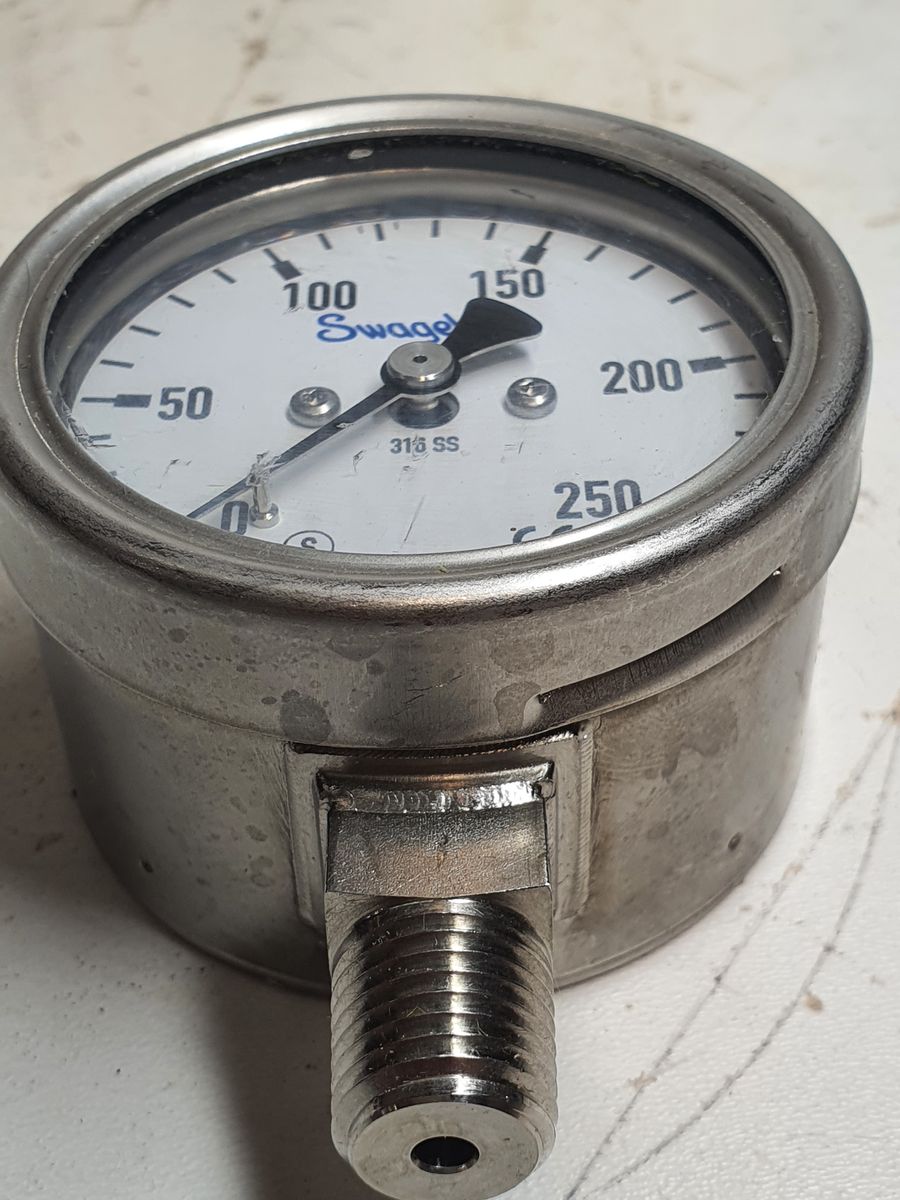

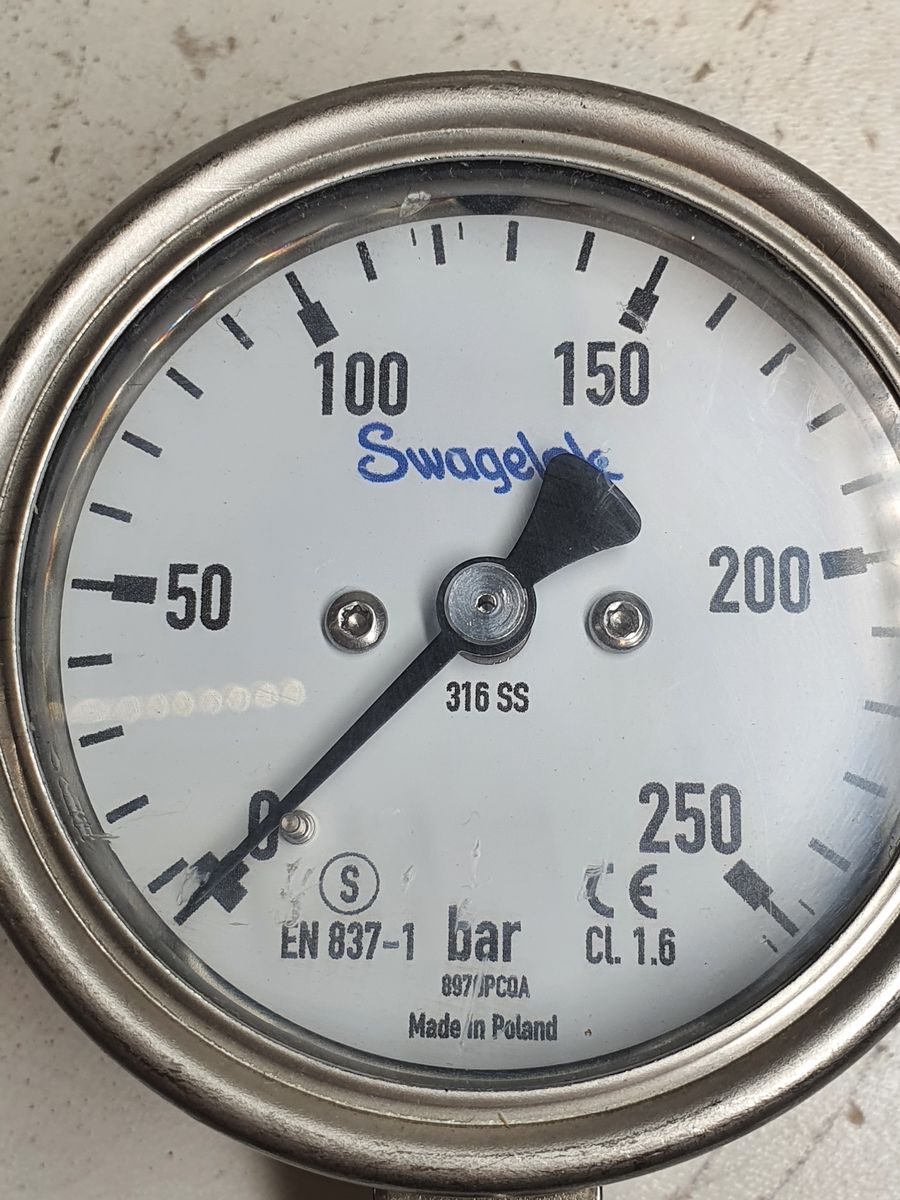

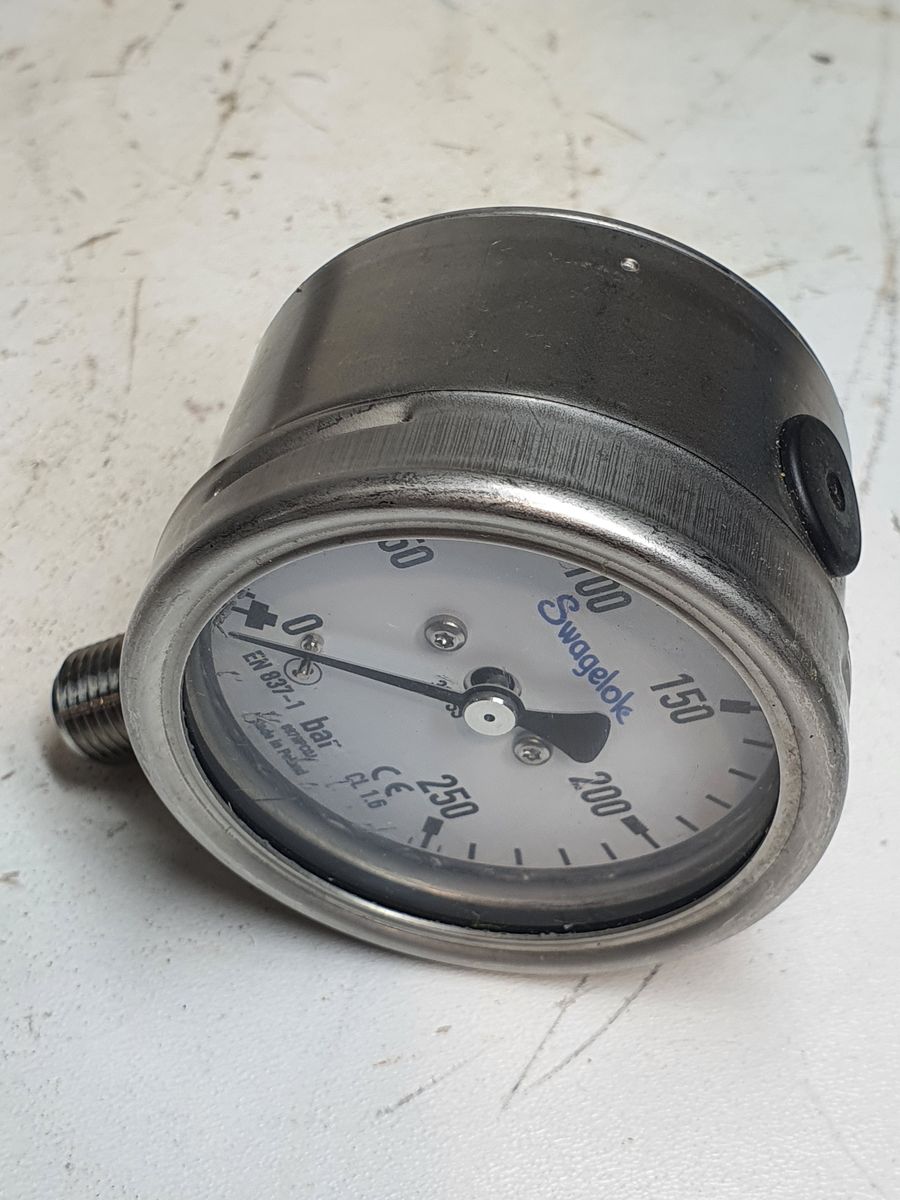

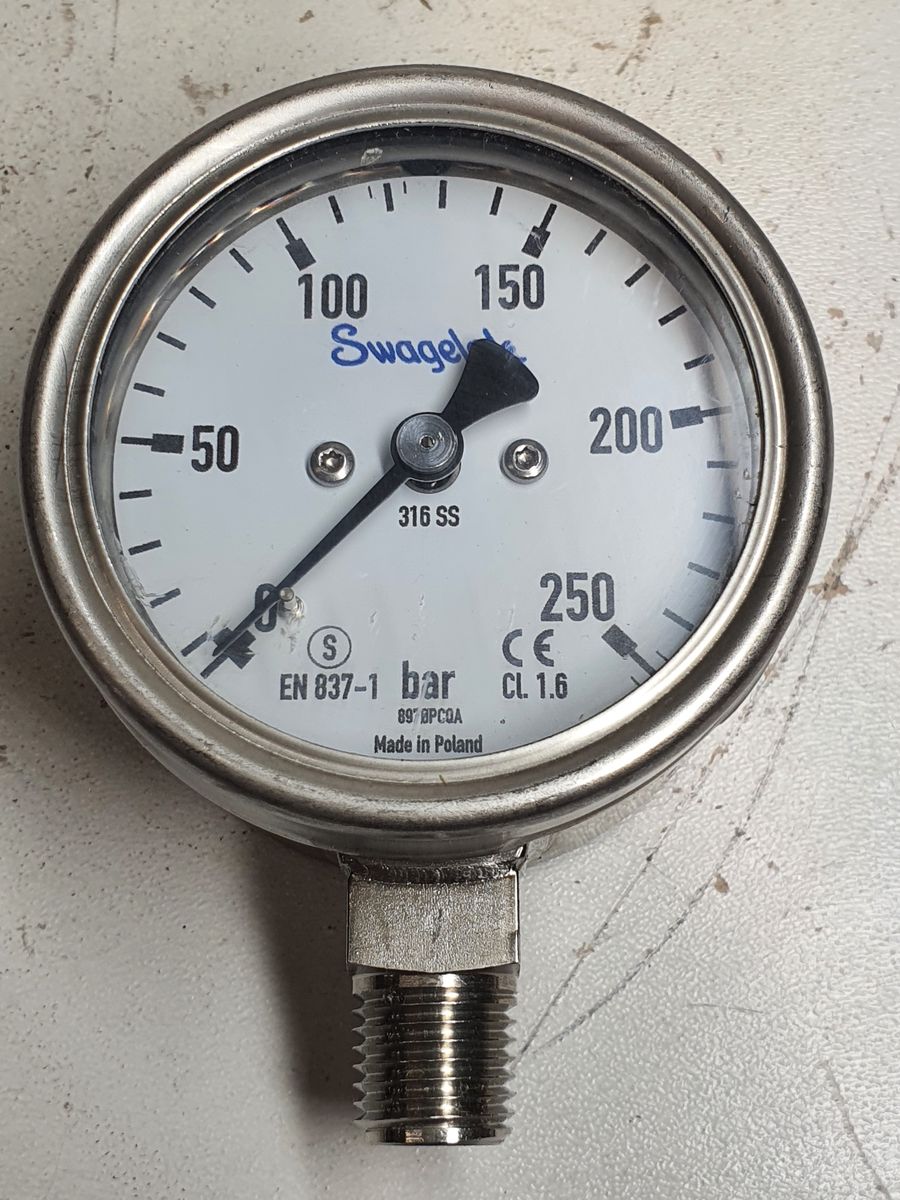

Swagelok PGI Pressure Gauge 0-250 bar 1/4 NPT Male 63mm
SKU: 6020
Niet op voorraad
The Swagelok Pressure Gauge 0-250 bar, CL 1.6, 316SS
| Specification | Details |
|---|---|
| Standard Compliance | EN 837-1 (EU mechanical pressure gauge standard) |
| Dial Size | 63 mm (2.5 in) |
| Pressure Range | 0-250 bar |
| Construction / Case Material | Stainless steel |
| Wetted Materials | 316 stainless steel |
| Safety Glass Type | Type C |
| Window | Polycarbonate or tempered glass (variant dependent) |
| Internals | Bourdon tube mechanism for stable, repeatable measurement |
| Performance Accuracy | ±1.6% of full scale (accuracy class for PGI 63 mm) |
| Temperature Range | -20°C to +60°C (depends on fill and configuration) |
| Vibration Resistance | Optional liquid-filled case for enhanced stability |
| Process Connection | 1/4" NPT Male |
| Mounting | Lower mount (code “C” = center back or bottom connection, variant dependent) |
×
![]()
