Pressure Gauge

PGI Industrial Pressure Gauge 0-400 bar

SKU: 6006

In Stock

24/7 DELIVERY POSSIBLE

Used

Excl. VAT: €60.00 (1 available)

Incl. VAT: €72.60

Used
Sourced from working environment

Excl. VAT: €60.00 (1 available)

Incl. VAT: €72.60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 12 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

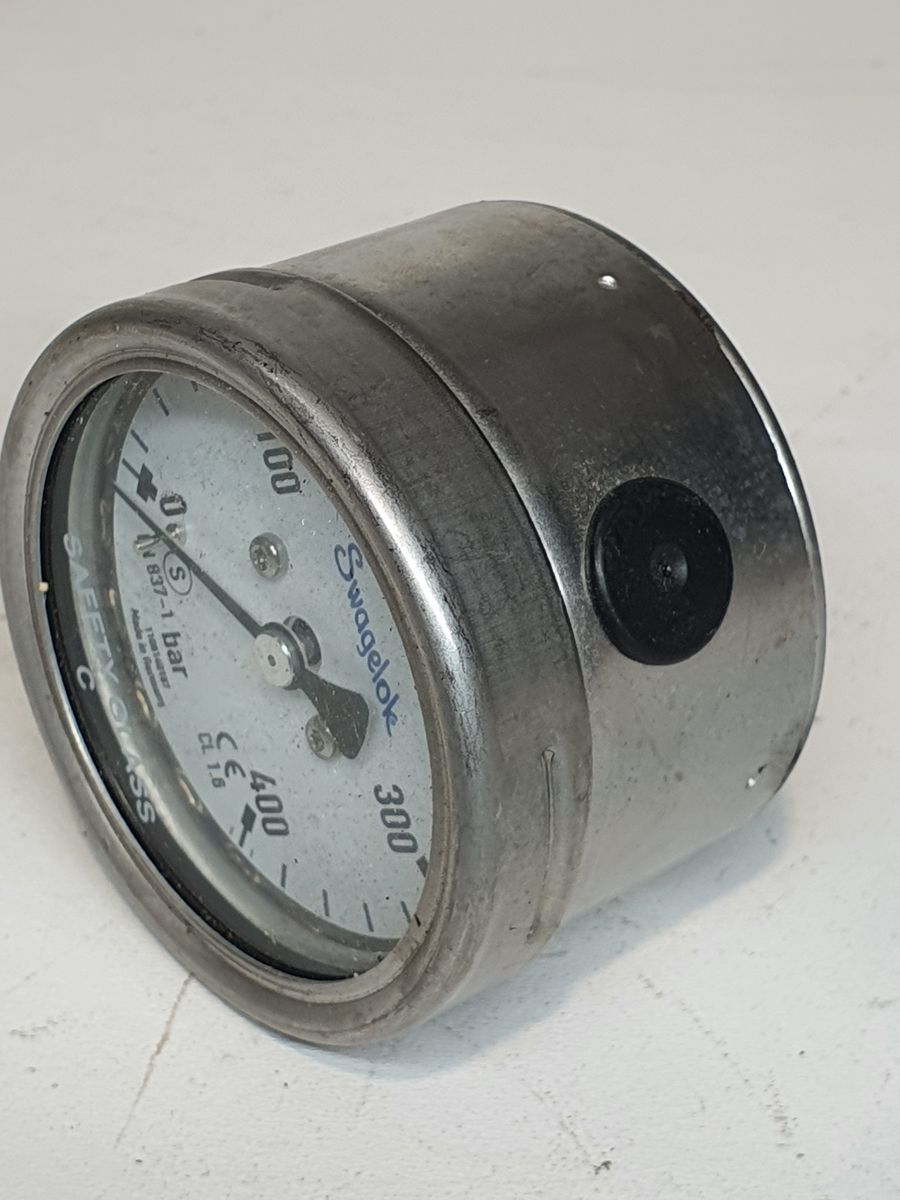

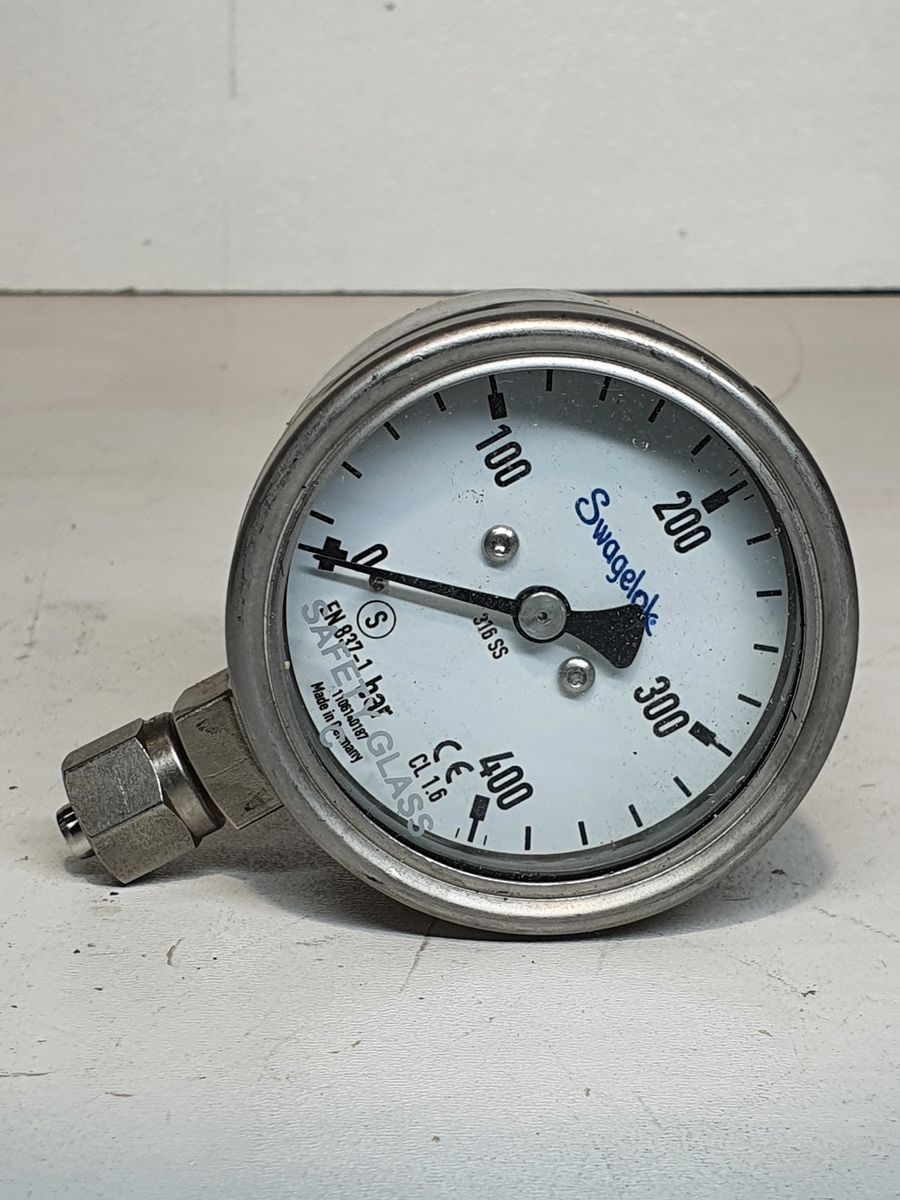

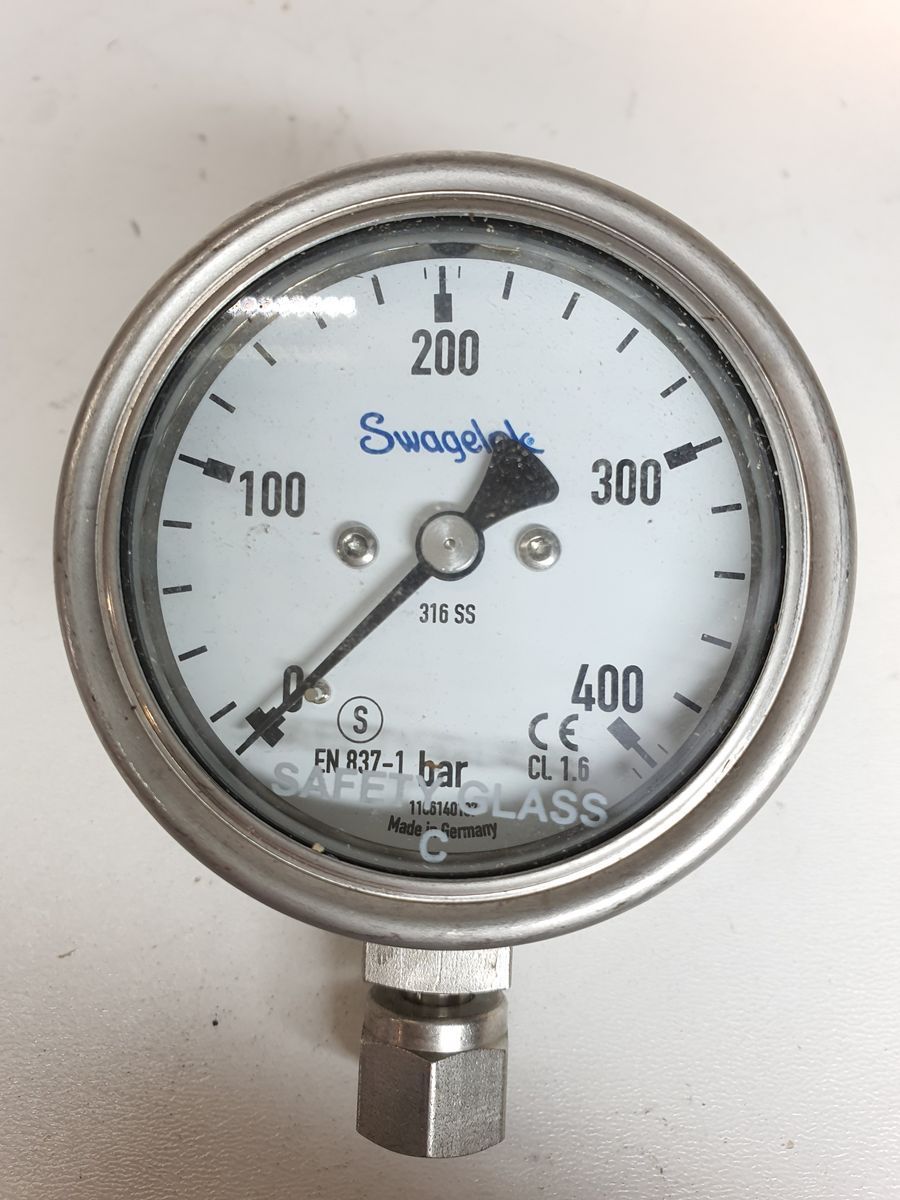

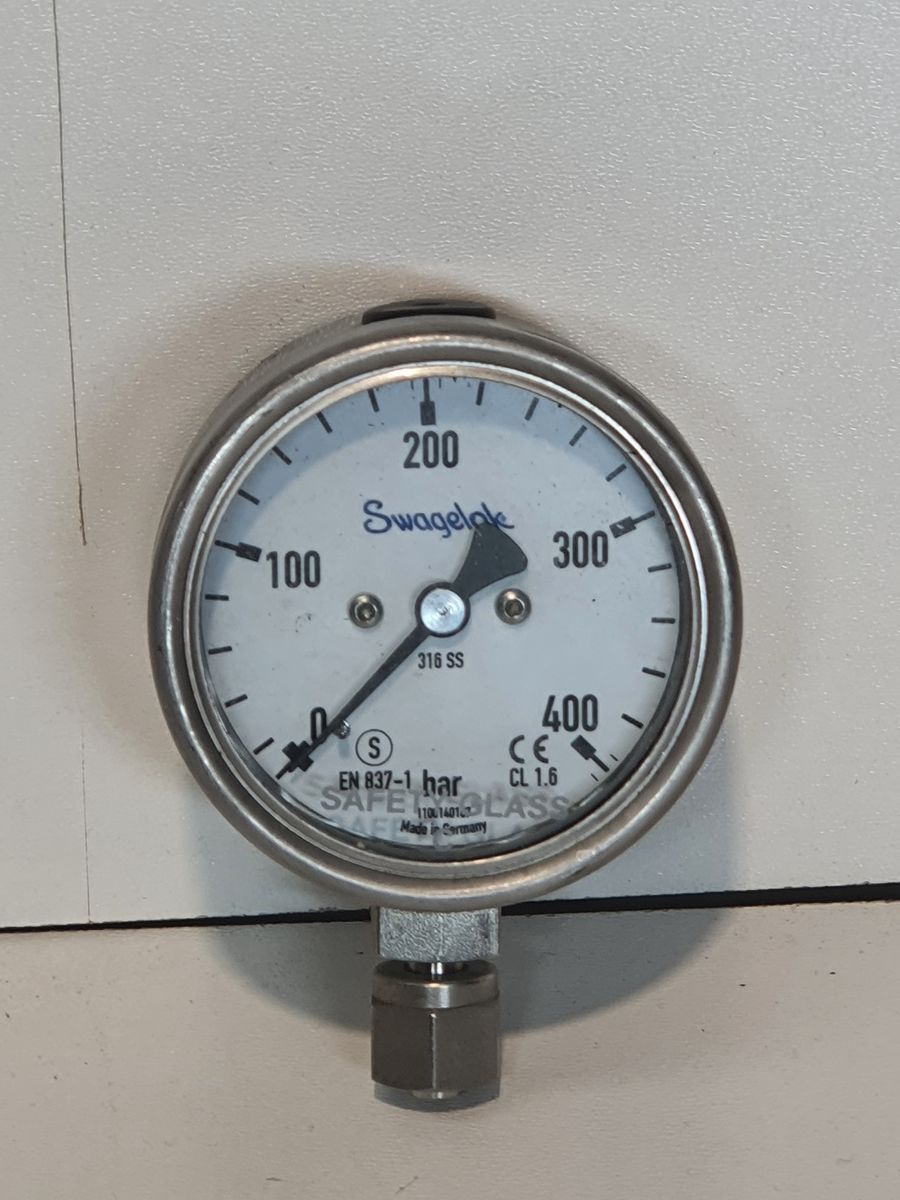

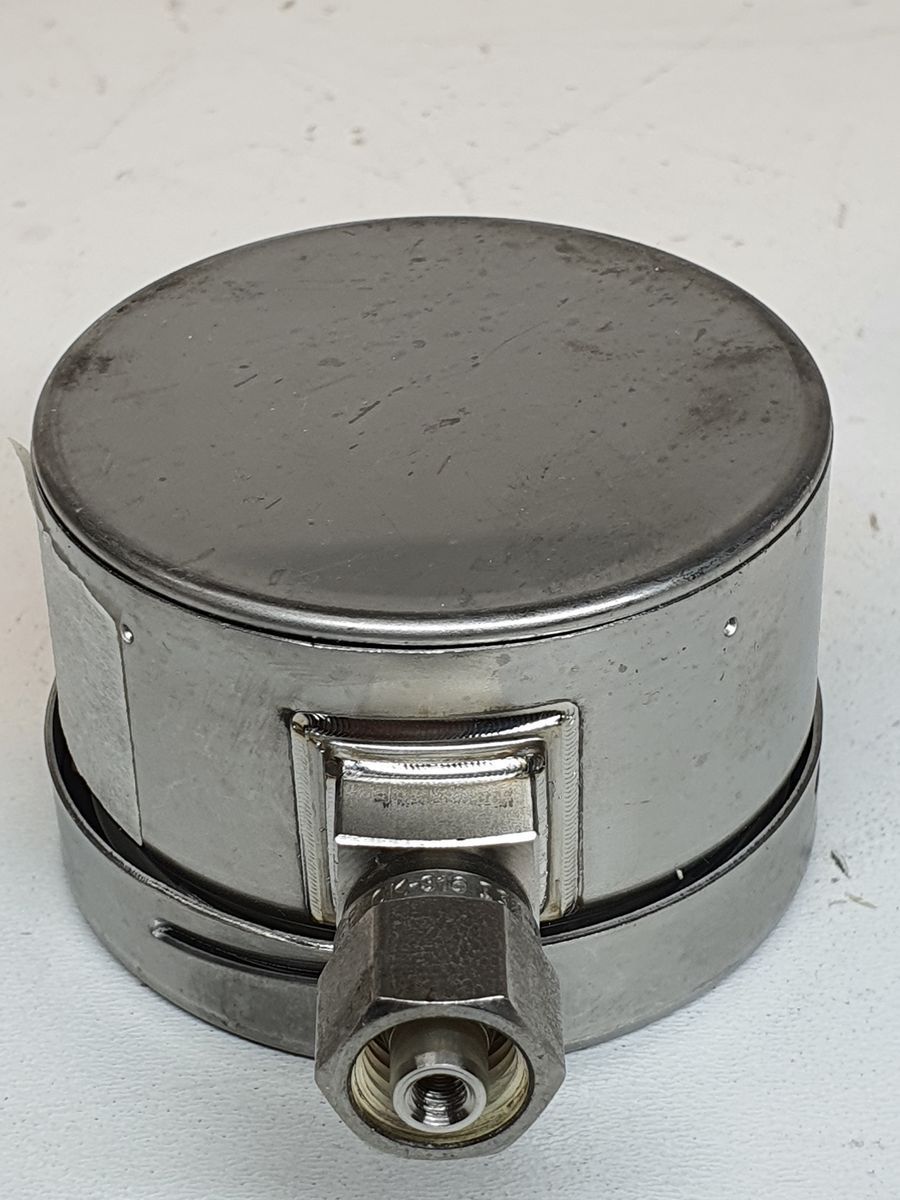

The Swagelok Pressure Gauge 0-400 bar, CL 1.6, 316SS

Specification	Details
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–400 bar (0–5800 psi)
Construction / Case Material	Stainless steel
Wetted Materials	316 stainless steel
Safety Glass Type	Type C
Window	Polycarbonate or tempered glass (variant dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Performance Accuracy	±1.6% of full scale (accuracy class for PGI 63 mm)
Temperature Range	-20°C to +60°C (depends on fill and configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability
Process Connection	1/4" NPT
Mounting	Lower mount (code “C” = center back or bottom connection, variant dependent)
