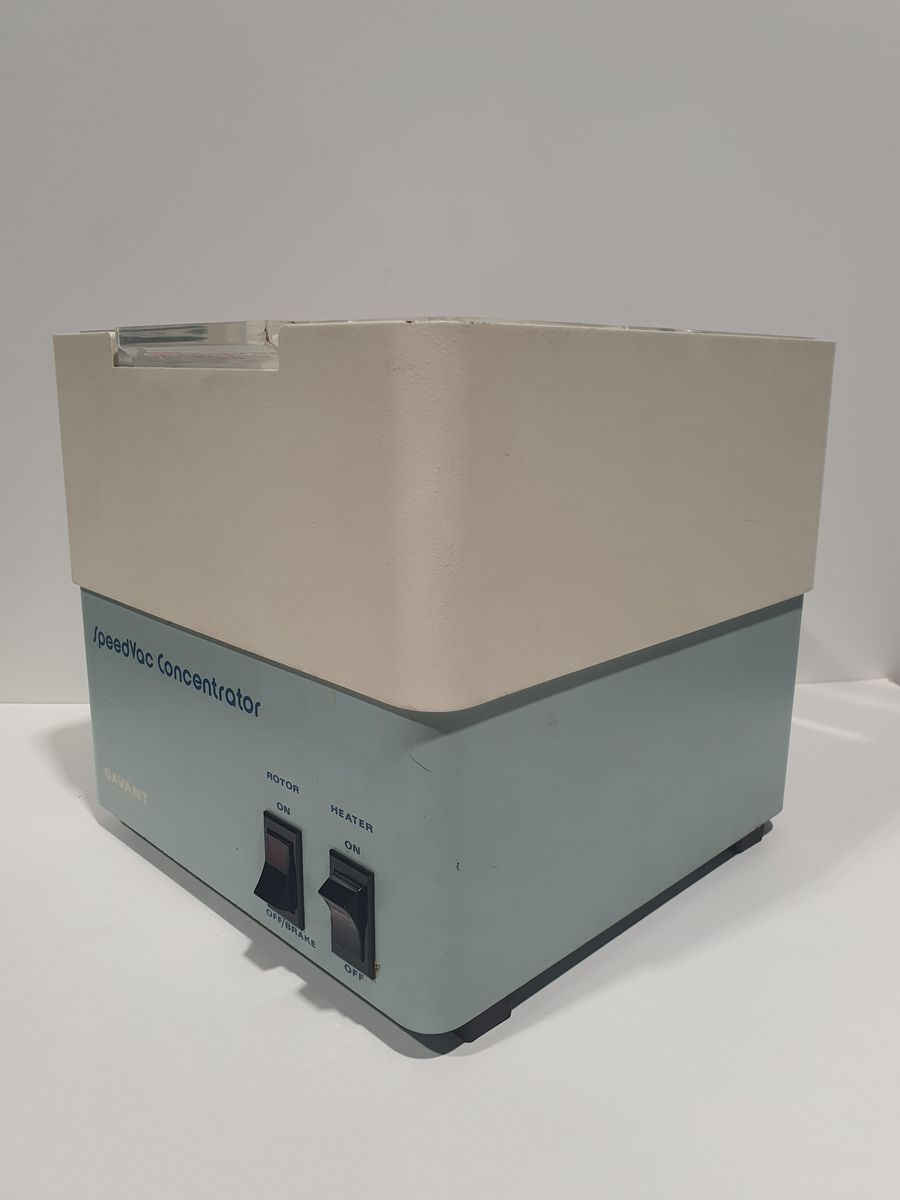

Savant SpeedVac Concentrator SVC-100H

Description:

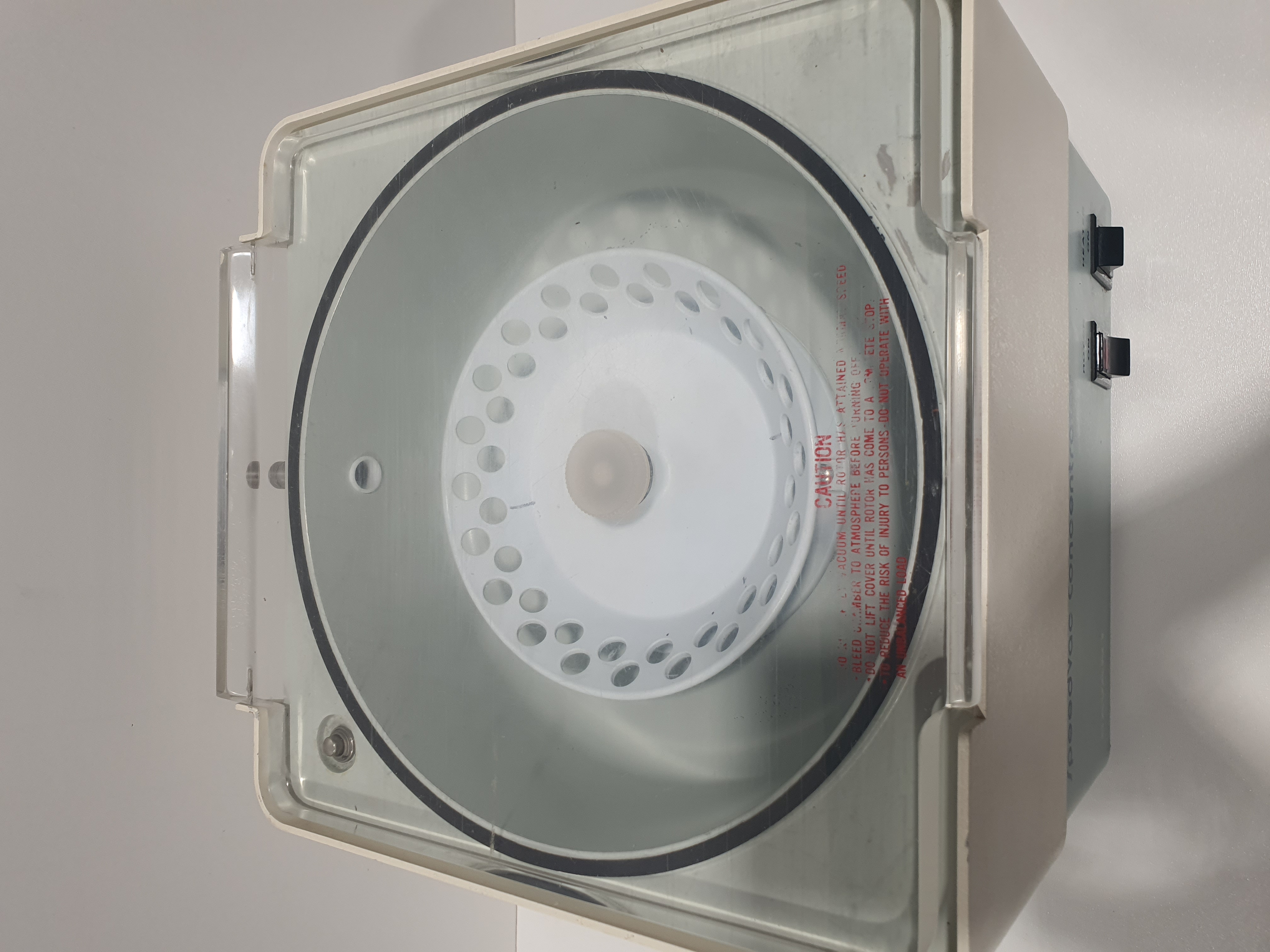

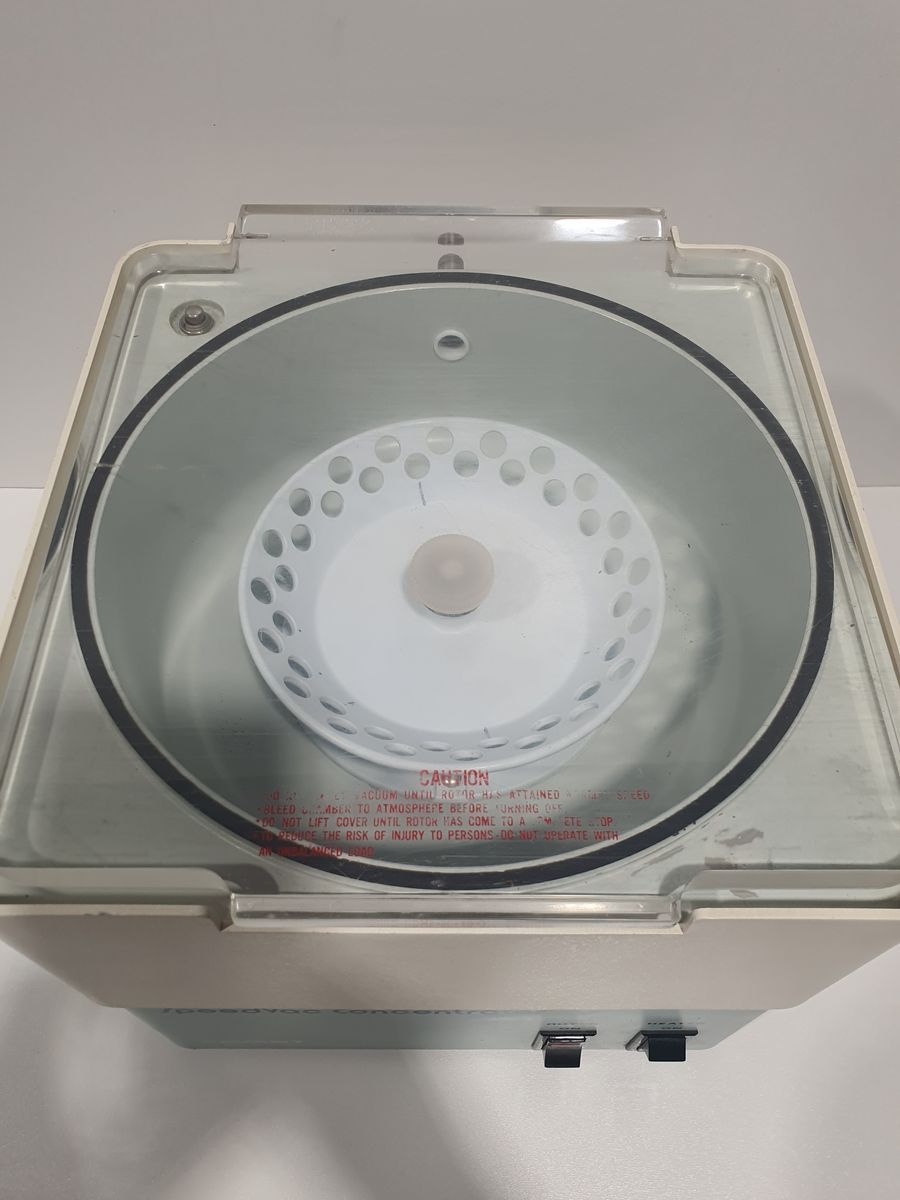

The product is a compact vacuum centrifuge designed for the rapid evaporation and solidification of biological solutions in microtubes. By combining centrifugal force, vacuum, and controlled heat, the system efficiently removes solvents while protecting sensitive biological samples. The integrated cold trap supports evaporation via a freeze-drying process, reducing solvent vapors and improving sample integrity. With a robust, chemically resistant construction and simple front-panel controls, the SVC-100H is well suited for routine laboratory sample preparation.

Key Features:
- Rapid evaporation and concentration of biological samples under vacuum
- Centrifugal drying prevents sample loss and bumping
- Internal chamber temperature control regulated at 45 °C
- Integrated cold trap for efficient freeze-drying evaporation
- Chemically resistant die-cast aluminum vacuum chamber
- Chemically resistant steel-coated outer casing

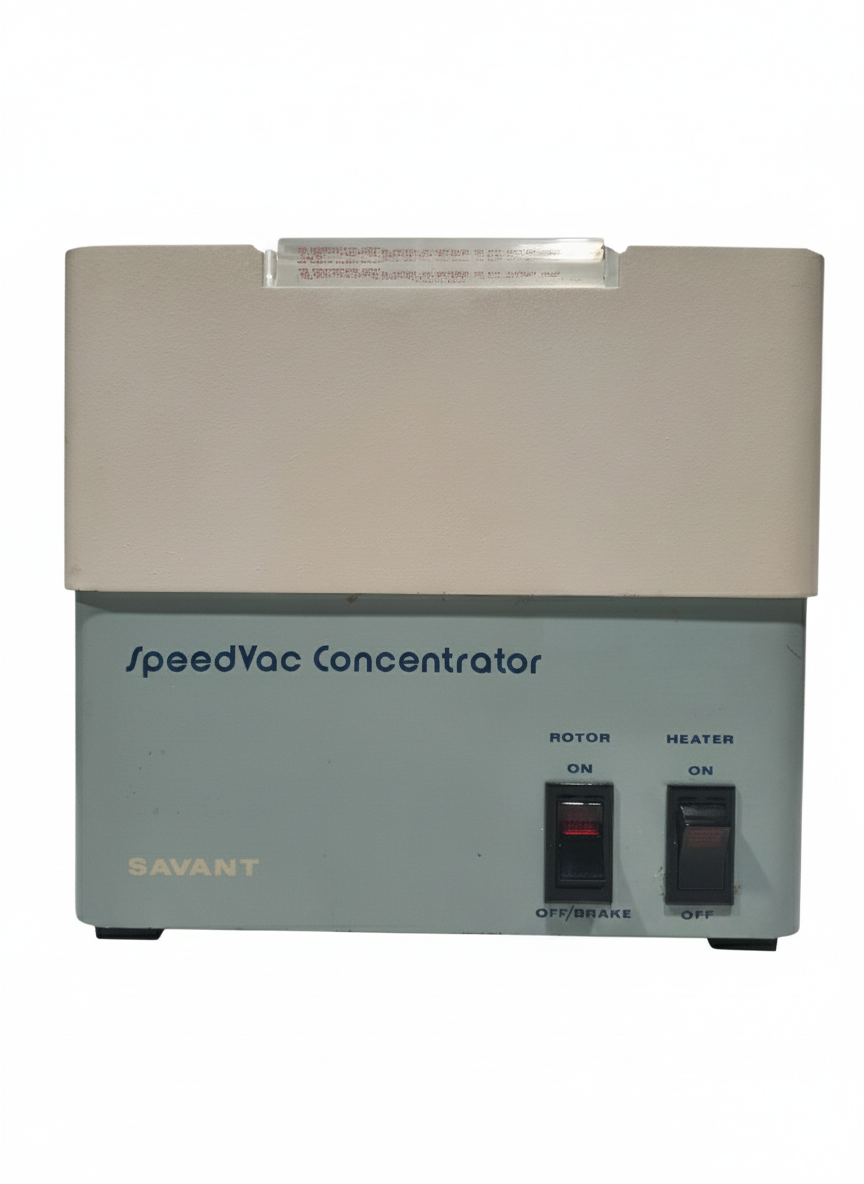

- Two front control switches for simple operation

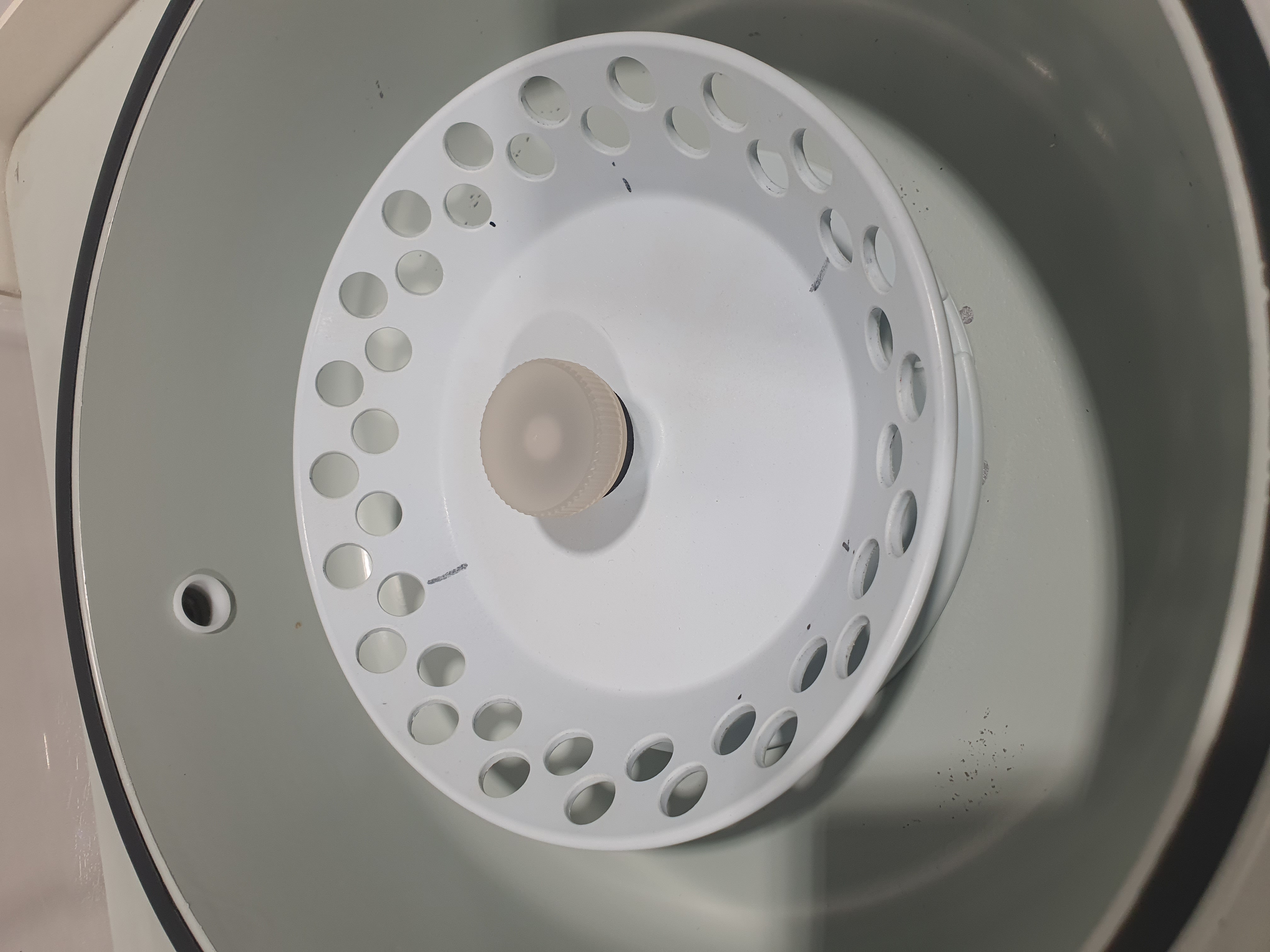

- Rotor with on / off / brake function
- Heater with on / off control and overheat protection
- Compact benchtop design

Specifications:

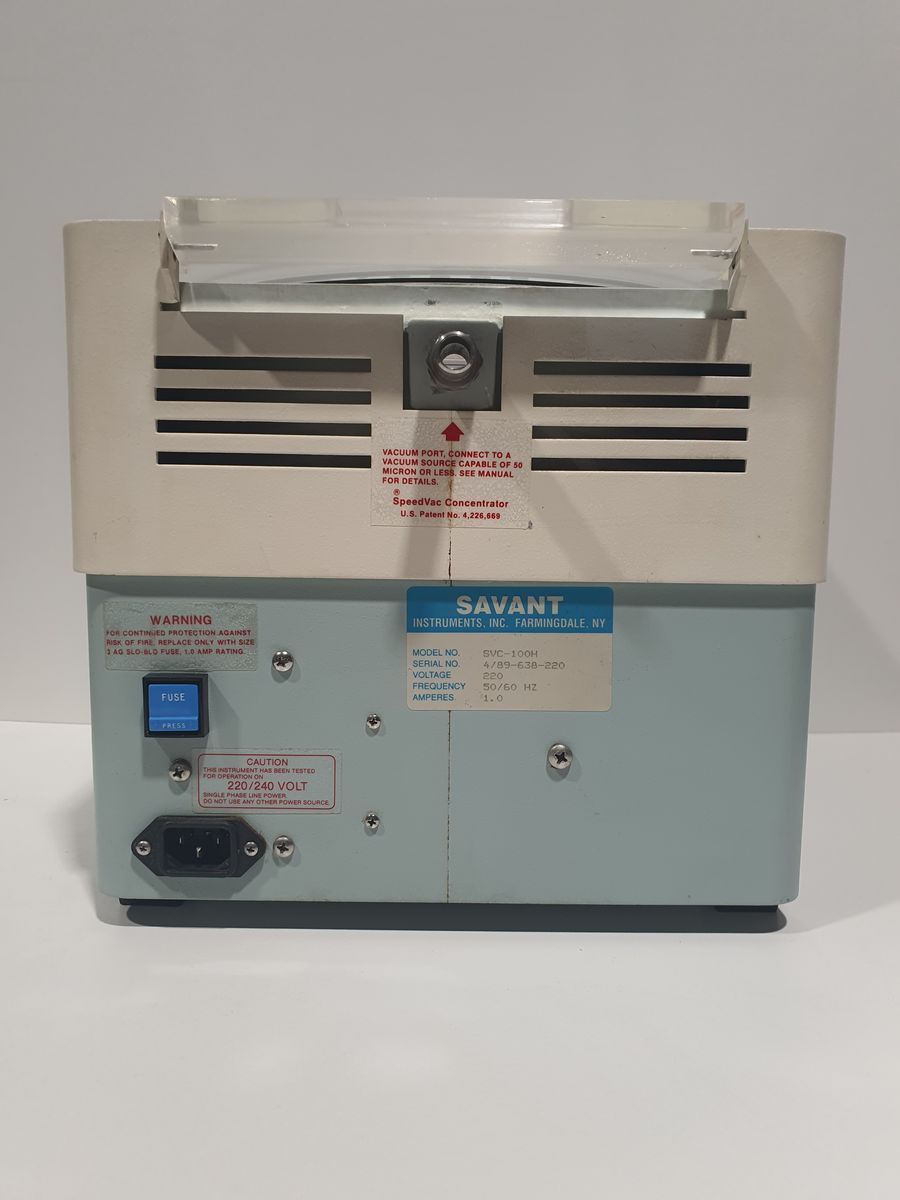

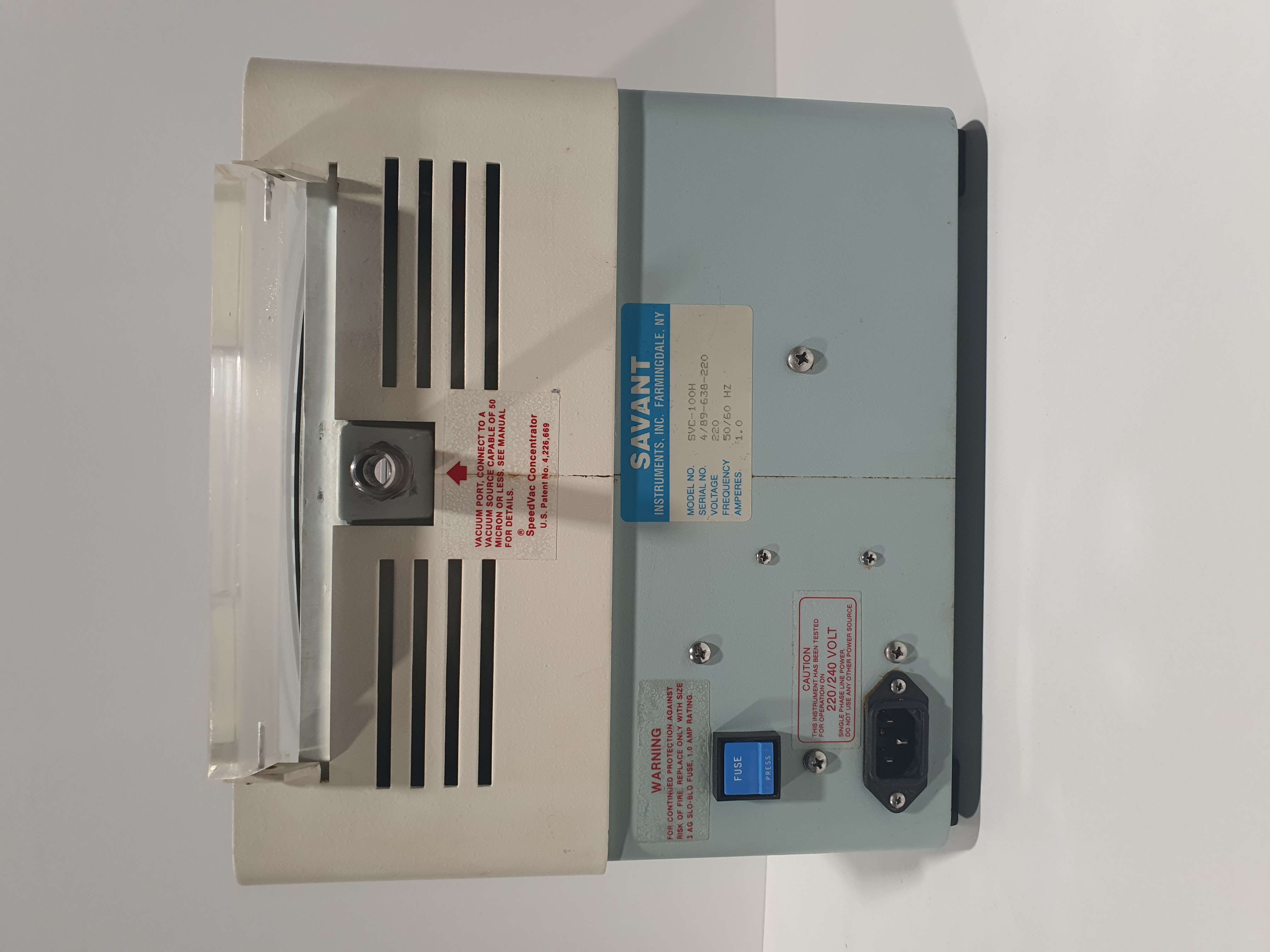

- Model: Savant SpeedVac Concentrator SVC-100H
- Type: Vacuum centrifuge / SpeedVac concentrator
- Voltage: 220 V
- Frequency: 50/60 Hz
- Current: 1 A
- Drive Motor: AC motor with permanent split capacitor
- Motor Speed: 1725 RPM
- Temperature Control: Thermostatically regulated
- Operating Temperature: 45 °C
- Heater Protection: Overheating protection included
- Vacuum Chamber: Chemically resistant die-cast aluminum coating
- Casing: Chemically resistant steel coating
- Controls: Two front switches (rotor and heater control)
- Dimensions (W × D × H): 30 × 33 × 29 cm
- Weight: 18 kg

Typical Applications:
Evaporation and concentration of biological solutions
Drying samples in microtubes
Preparation of DNA, RNA, and protein samples
Solvent removal prior to analysis
Molecular biology and biochemistry laboratory workflows
Freeze-drying assisted evaporation of sensitive samples
