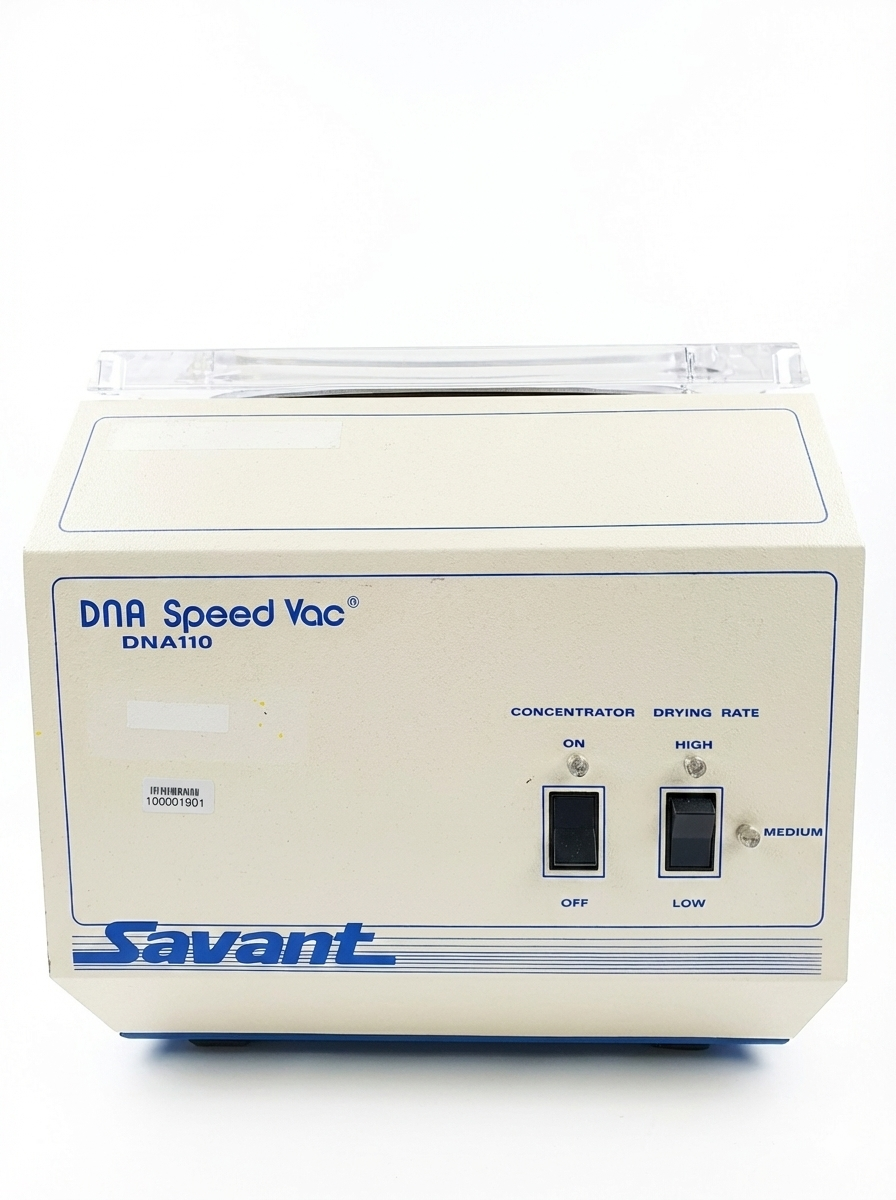

Savant DNA110‑230 SpeedVac™ vacuum concentrator

Description:
The Savant DNA110‑230 is a compact, bench‑top SpeedVac™ vacuum concentrator designed for gentle and efficient drying or concentration of DNA, RNA, and other small-volume biological samples. It combines centrifugal force, vacuum, and controlled heating to remove solvents like ethanol or water without damaging sensitive biomolecules. The oil-free, maintenance-free vacuum pump and durable Teflon®-coated chamber ensure reliable operation for routine molecular biology workflows in research and clinical labs.

Key Features:
Combines centrifugal force, vacuum, and controlled heating for efficient sample concentration
Oil-free vacuum pump for maintenance-free operation
Teflon®-coated chamber resists corrosion and simplifies cleaning
Transparent acrylic safety cover with interlock
Adjustable drying conditions for different sample types and solvents
Compact bench-top design for laboratory installation
Compatible with various rotors for microtubes

Specifications:

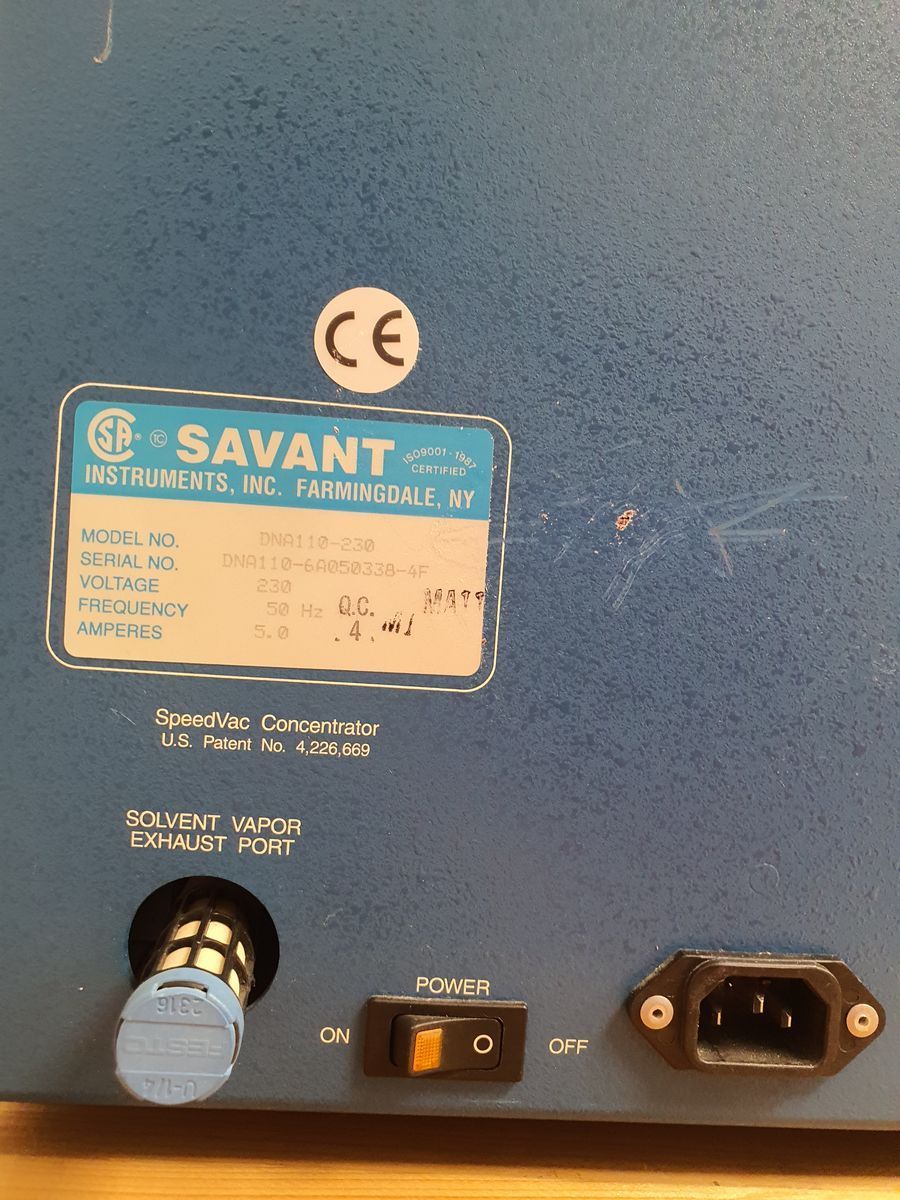

Model: Savant DNA110‑230
Type: SpeedVac™ Vacuum Concentrator System
Voltage: 230 V AC
Frequency: 50 Hz
Current: 5.0 A
Dimensions (External): 290 × 630 × 290 mm (W × D × H)
Capacity: 24 × 1.5 mL microtubes (~36 mL total)
Vacuum Pump: Oil-free, maintenance-free
Chamber Material: Teflon®-coated aluminum
Cover: Transparent acrylic with safety interlock
Drying Mechanism: Centrifugal force + vacuum + controlled heating
Typical Rotor Options: Compatible with microtube rotors as above
Sample Type: DNA/RNA precipitates, low-volume biological samples

Typical Applications:
Concentration of DNA/RNA samples prior to down
Drying nucleic acid precipitates after solvent removal (ethanol, water)
Sample preparation for PCR, sequencing, or electrophoresis
Gentle drying of small-volume biological samples in research labs
Routine molecular biology workflows requiring reliable, reproducible evaporation
