Flow Meter
Promass 80A
SKU: 13006
In Stock
24/7 DELIVERY POSSIBLE
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

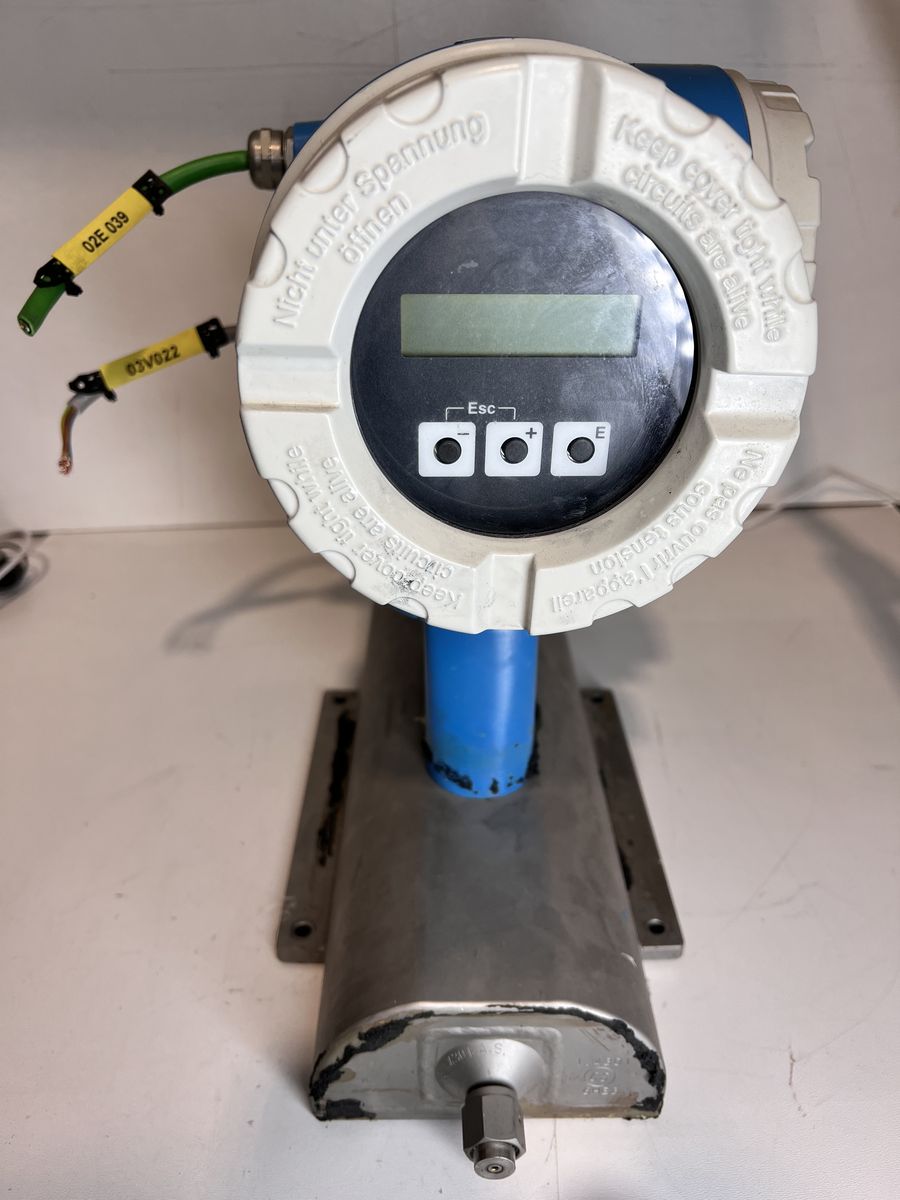

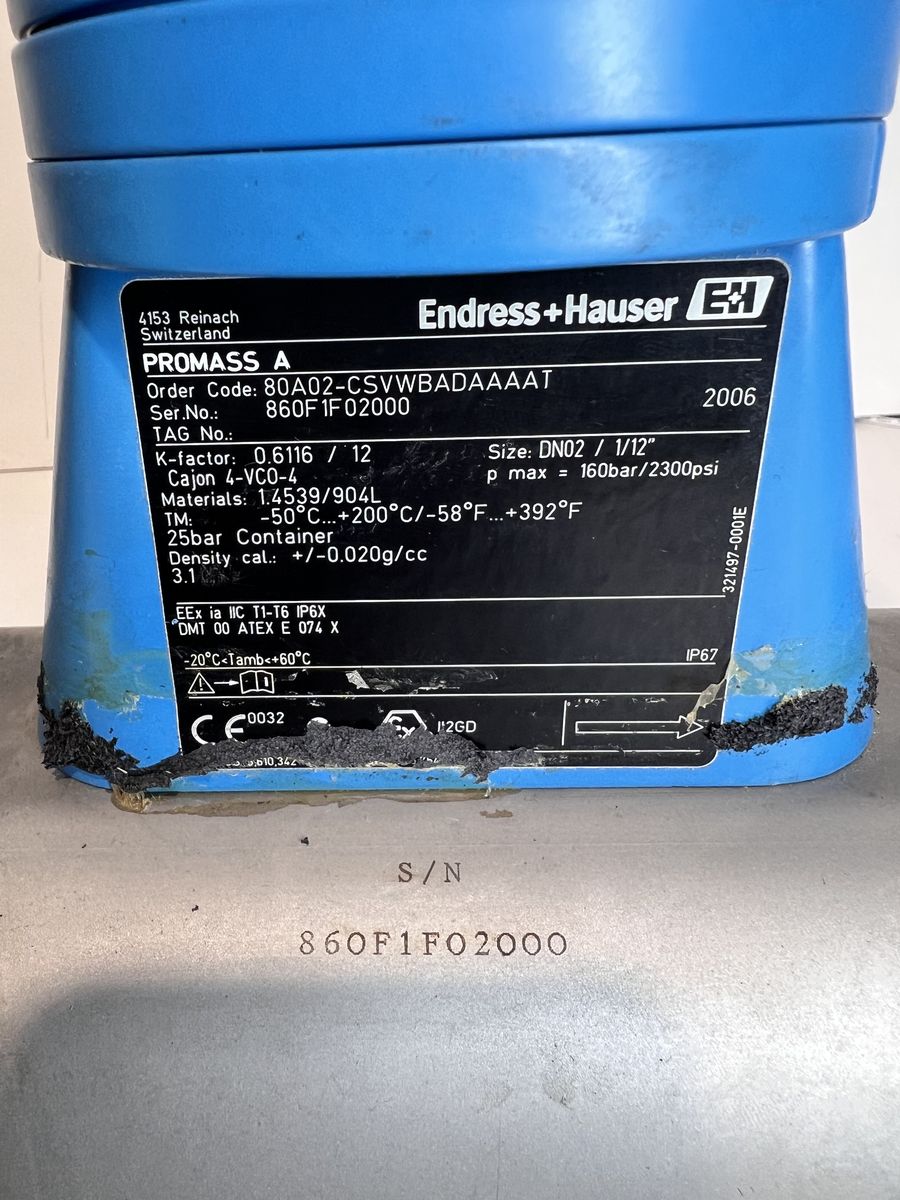

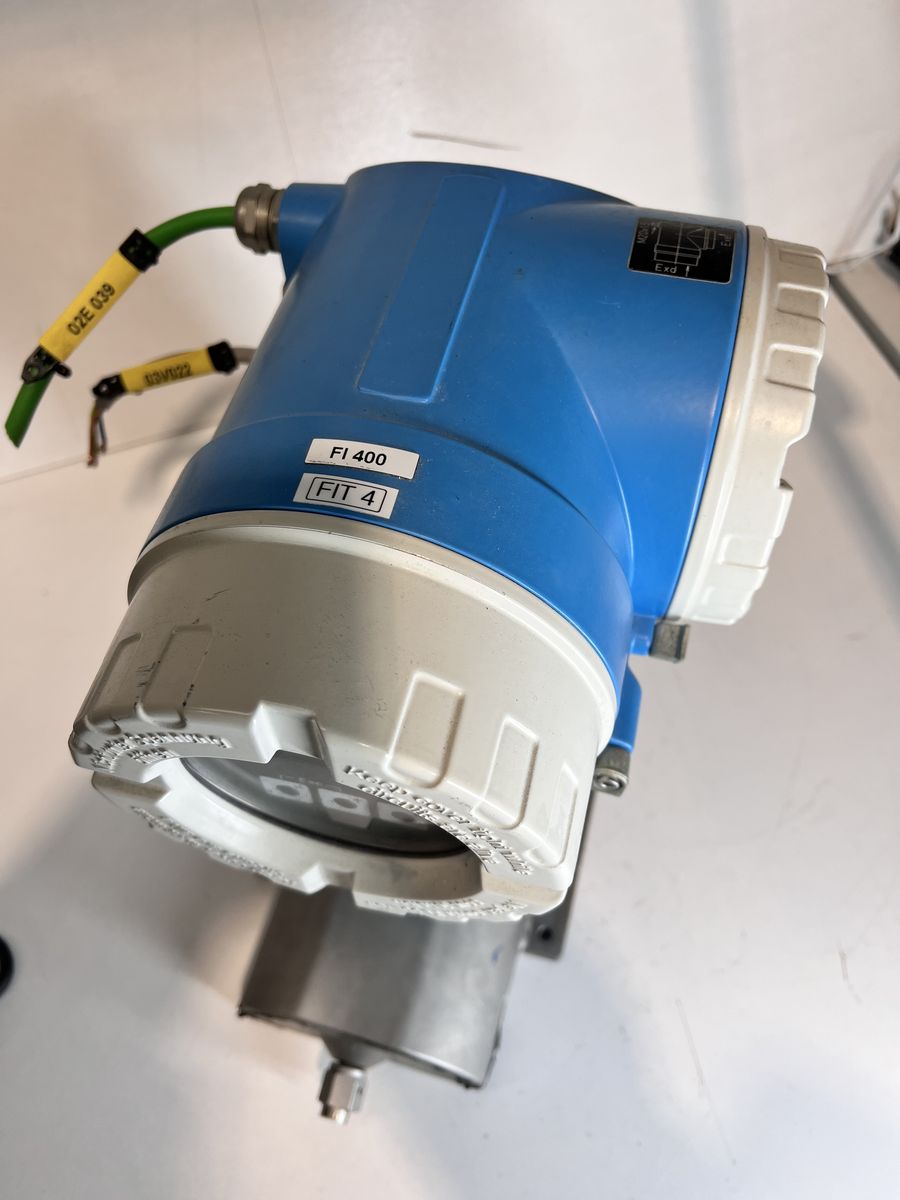

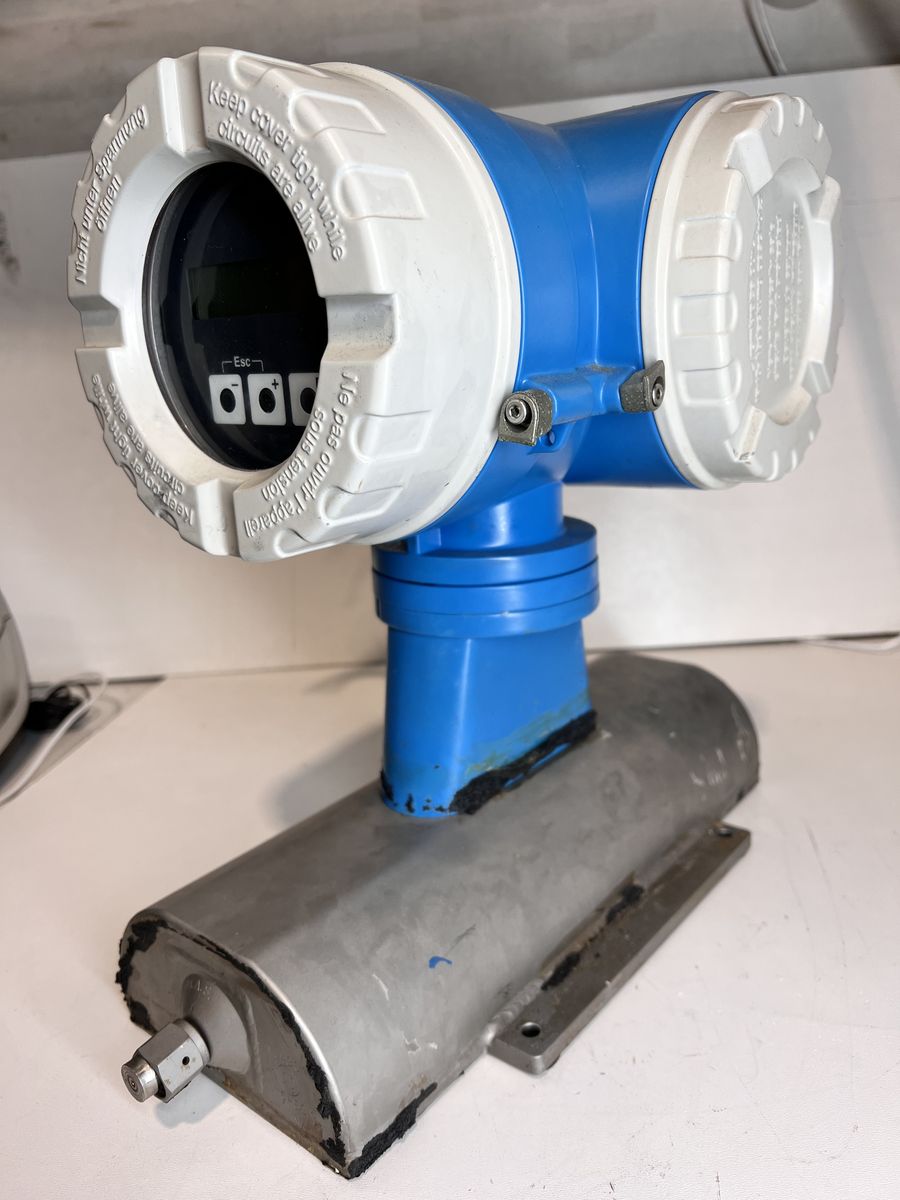

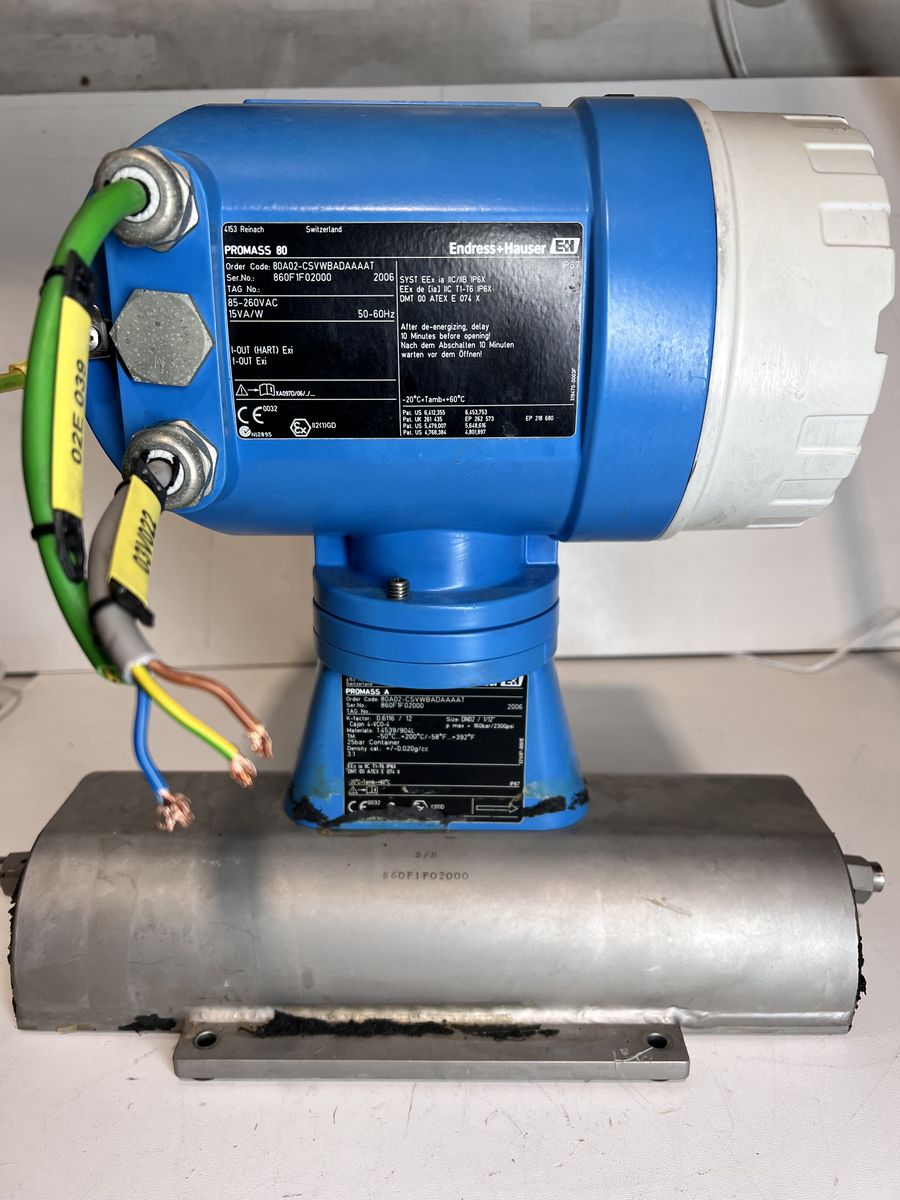

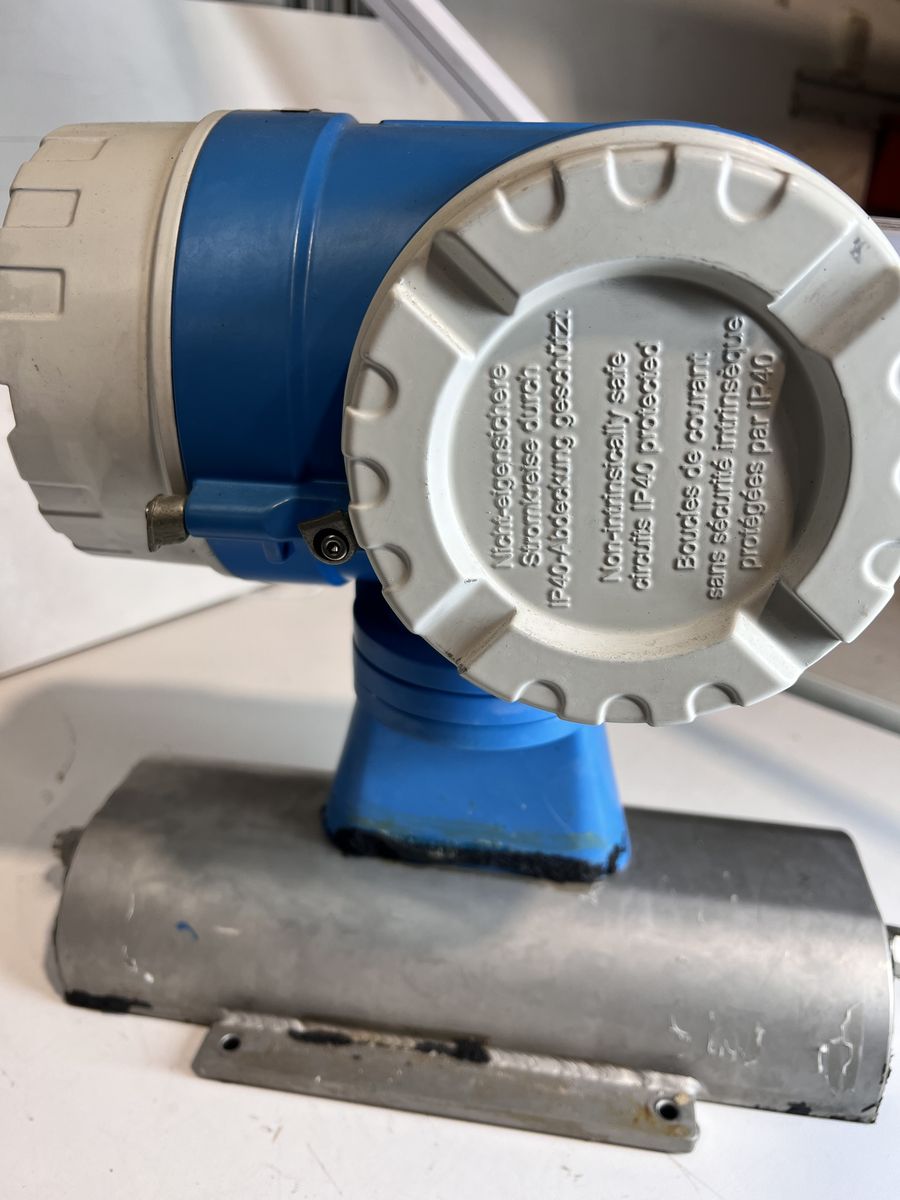

Endress+Hauser Promass 80 / 80A (Order Code 80A02-CSVWBADAAAAT)
| Specification | Detail |
|---|---|
| Model Family | Promass 80 |
| Body Type | 80A |
| Product Type | Coriolis Mass Flowmeter |
| Manufacturer | Endress+Hauser |
| Measuring Principle | Coriolis effect (mass flow) |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow |
| Nominal Diameter (Typical Range) | Small DN sizes (varies by specific order) |
| Measuring Range | Model & size dependent (typically up to hundreds of kg/h) |
| Maximum Process Pressure | Up to 160 bar / 2300 psi (typical Promass 80 values) |
| Medium Temperature Range | Typically –50 to +200 °C (varies by seals/materials) |
| Ambient Temperature Range | –20 °C to +60 °C typical |
| Wetted Materials | Stainless steels (e.g., 1.4539/904L) and optionally Alloy C22 or 316L (depending on order) |
| Transmitter Housing Material | Aluminium/steel or stainless housing options |

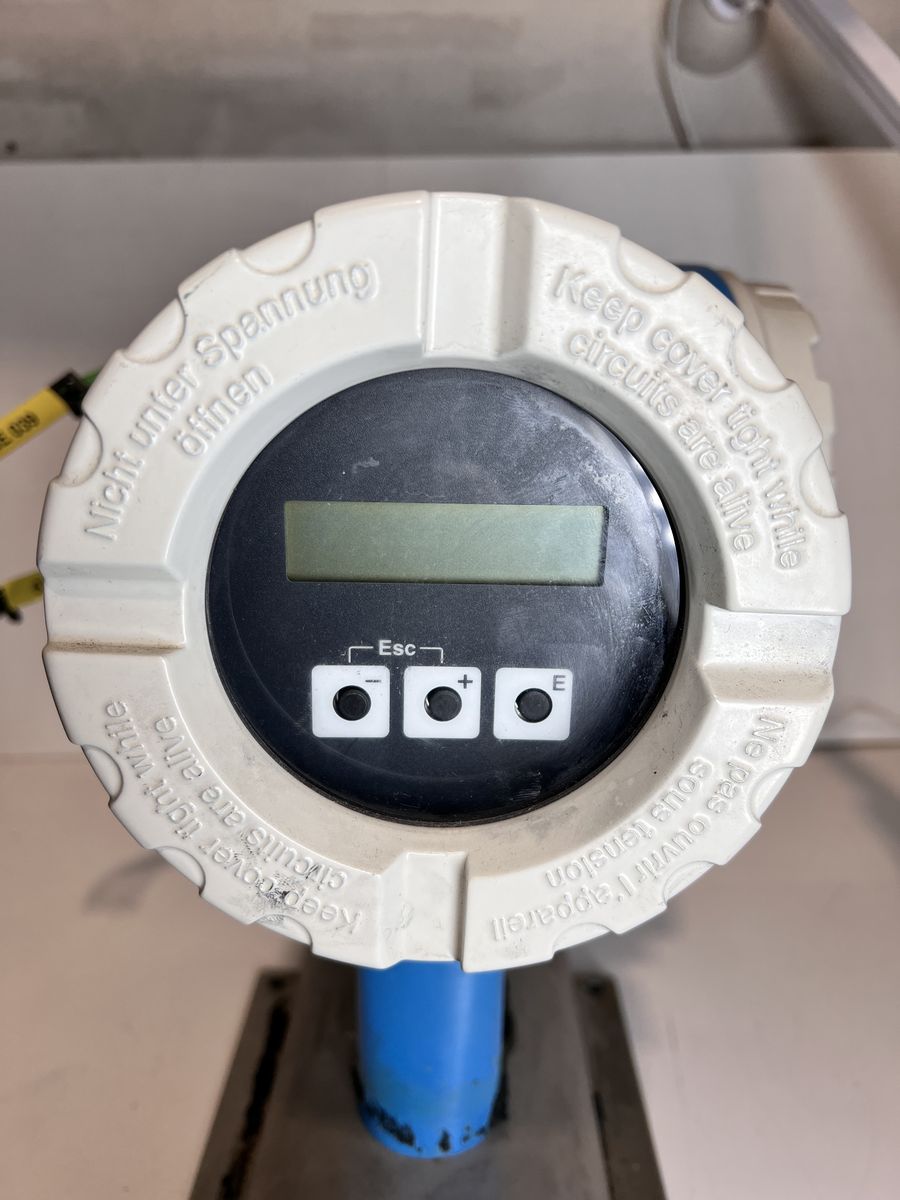

| Display/Operation | LCD display with push-button configuration |
| Analog Outputs | 4–20 mA active/passive, current output(s) (e.g., mass) |
| Pulse/Frequency Outputs | Passive pulse/frequency outputs available |
| Digital Communication | HART (typical on 4–20 mA channel) |

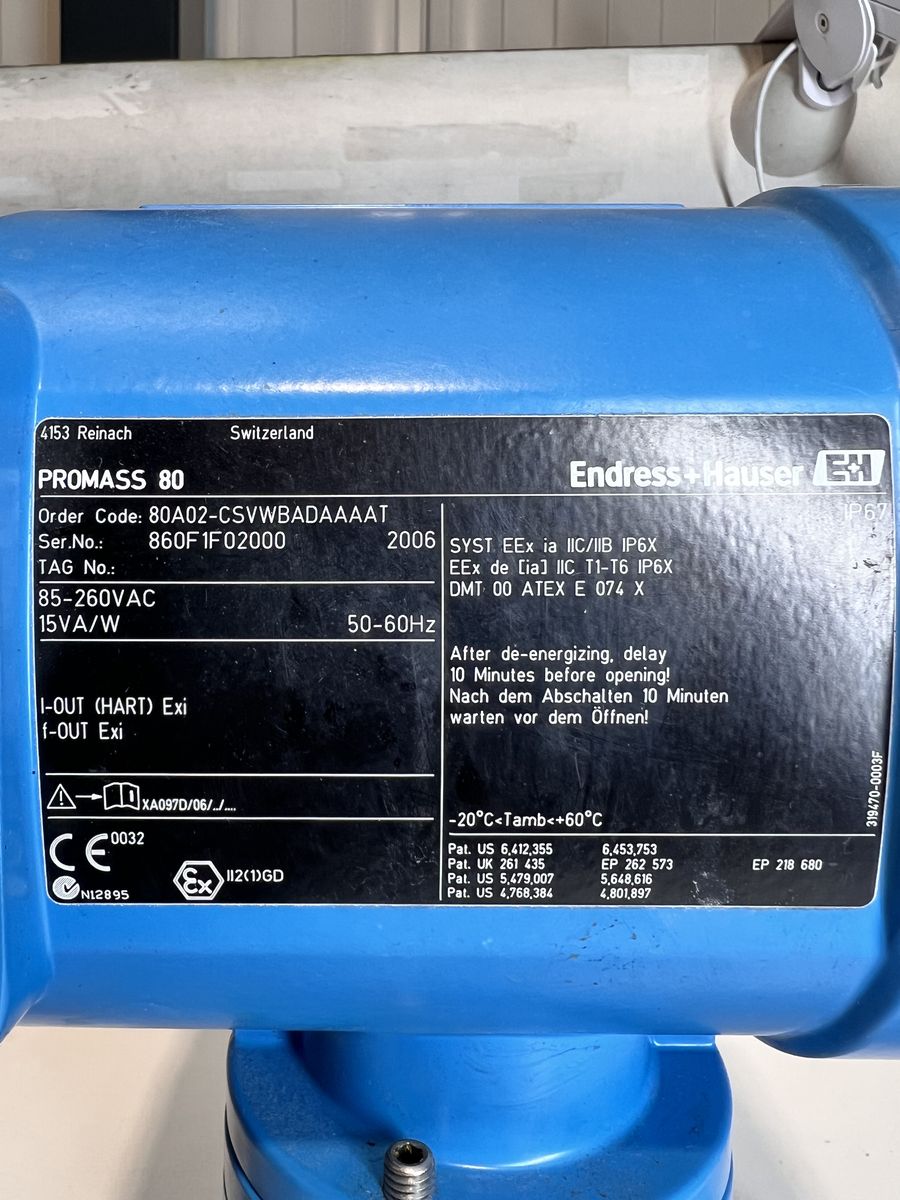

| Power Supply – AC | 85–260 VAC, 50–60 Hz, <15 VA/W (incl. sensor) |
| Power Supply – AC Alternative | 20–55 VAC accepted |
| Power Supply – DC Option | 16–62 VDC (if configured) |
| Power Consumption | <15 VA (AC); <15 W (DC) |
| Protection/Enclosure | Typically IP67 / Type 4X for sensor & transmitter |
| Approvals & Certifications | ATEX, IECEx, FM, CSA, NEPSI, CE marking (varies with configuration) |
| Typical Applications | Continuous process measurement of liquids & gases (mass, density, temperature) ) |
×
![]()
