Phoenix Contact QUINT PS-230AC/24DC/1
SKU: 37005
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

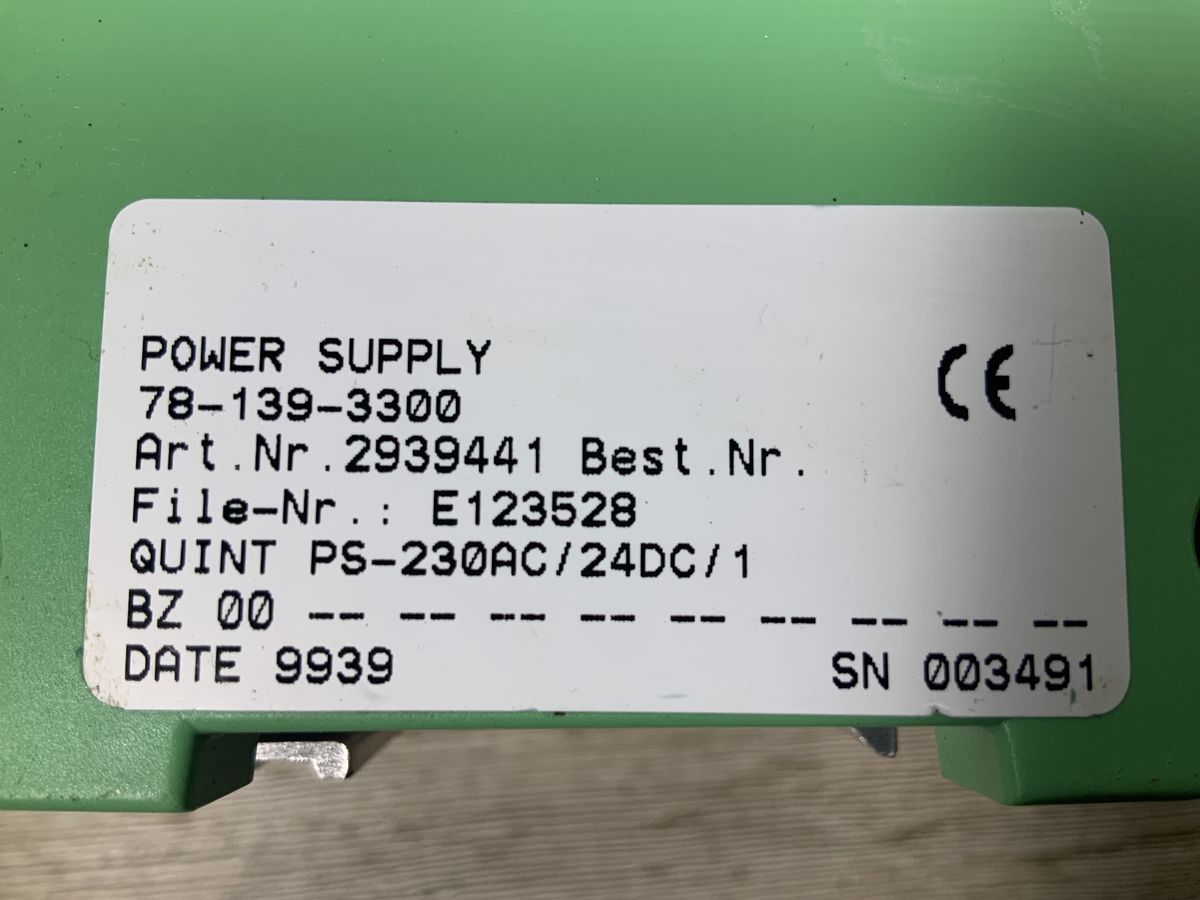

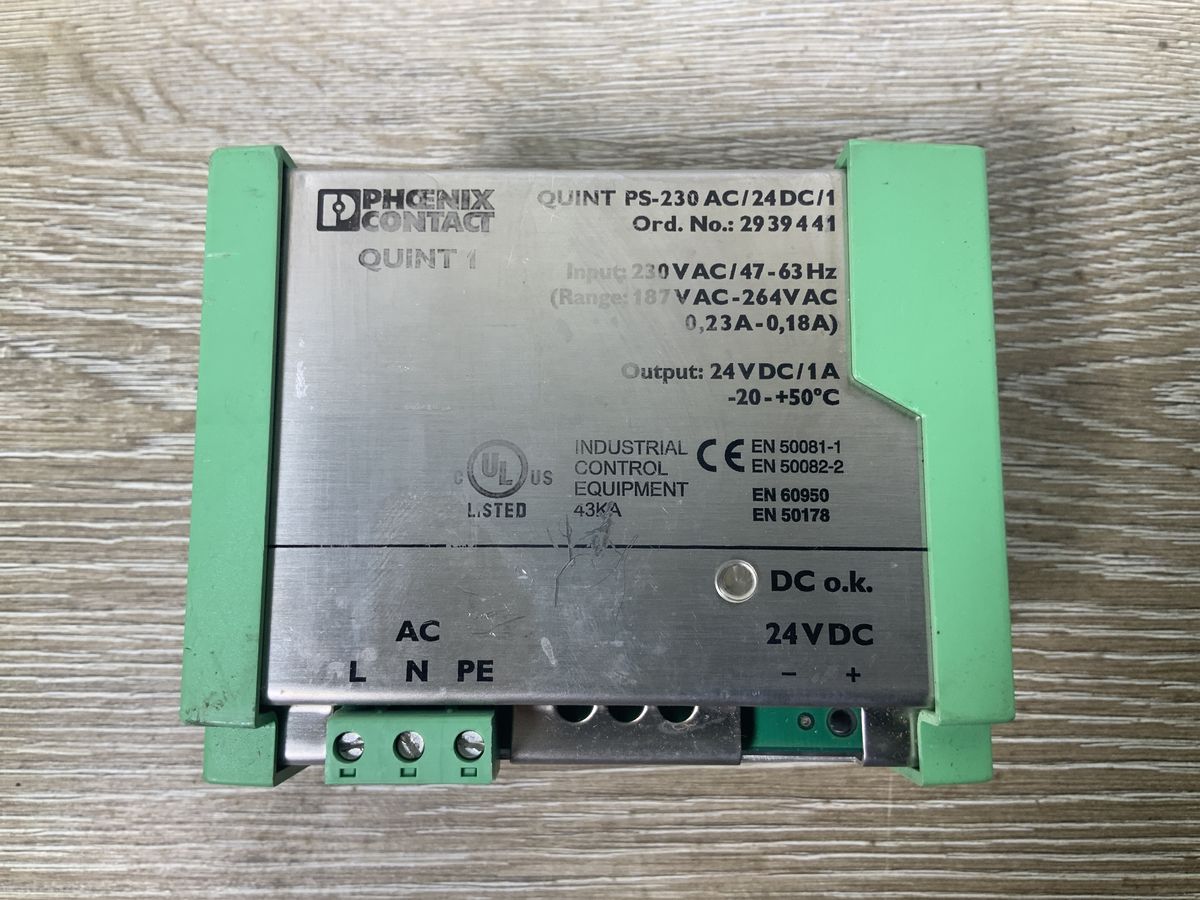

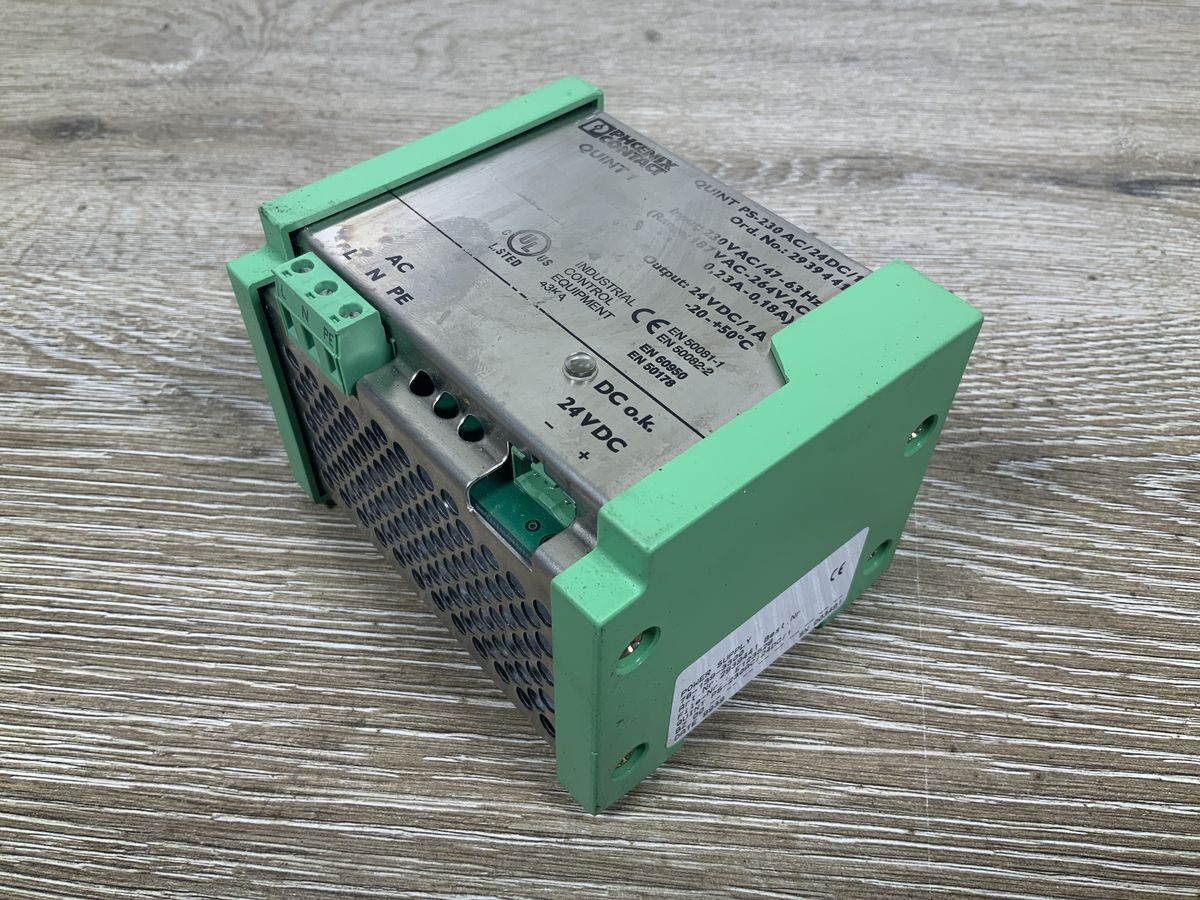

The Phoenix Contact QUINT PS-230AC/24DC/1 (Order No. 2939441) is a compact primary switched-mode power supply designed for industrial enclosure and DIN rail mounting. It converts a single-phase 230 V AC input into a regulated 24 V DC output at 1 A. The unit includes front-accessible screw terminals and a DC OK visual LED indicator for status monitoring.
Specifications – QUINT PS-230AC/24DC/1
| Parameter | Specification |
|---|---|
| Input Voltage | 230 V AC (Range: 187 - 264 V AC) |
| Input Frequency | 47 - 63 Hz |
| Input Current | 0.23 A - 0.18 A |
| Output Voltage | 24 V DC |
| Output Current | 1 A |
| Operating Temperature Range | -20 to +50 °C |
| Input Voltage Range | 187 V AC ... 264 V AC (datasheet) |
| AC Frequency Range | 47 Hz ... 63 Hz (datasheet) |
| Current Consumption | approx. 0.18 A (datasheet) |
| Input Fuse | 1 A (slow-blow, soldered internally) (datasheet) |
| Nominal Output Voltage | 24 V DC ±1.5 % (datasheet) |
| Nominal Output Current | 1 A (datasheet) |
| Efficiency | > 84 % (datasheet) |
| Power Loss Nominal Load Max. | < 5 W (datasheet) |
| Connection Method | Pluggable screw connection (datasheet) |
| Conductor Cross Section Rigid | 0.2 mm² ... 2.5 mm² (datasheet) |
| Conductor Cross Section Flexible | 0.2 mm² ... 2.5 mm² (datasheet) |
| Conductor Cross Section AWG | 24 ... 14 (datasheet) |
| Width | 107 mm (datasheet) |
| Height | 78 mm (datasheet) |
| Depth | 87 mm (datasheet) |
| Weight | 450 g (datasheet) |
×
![]()
