Chillers

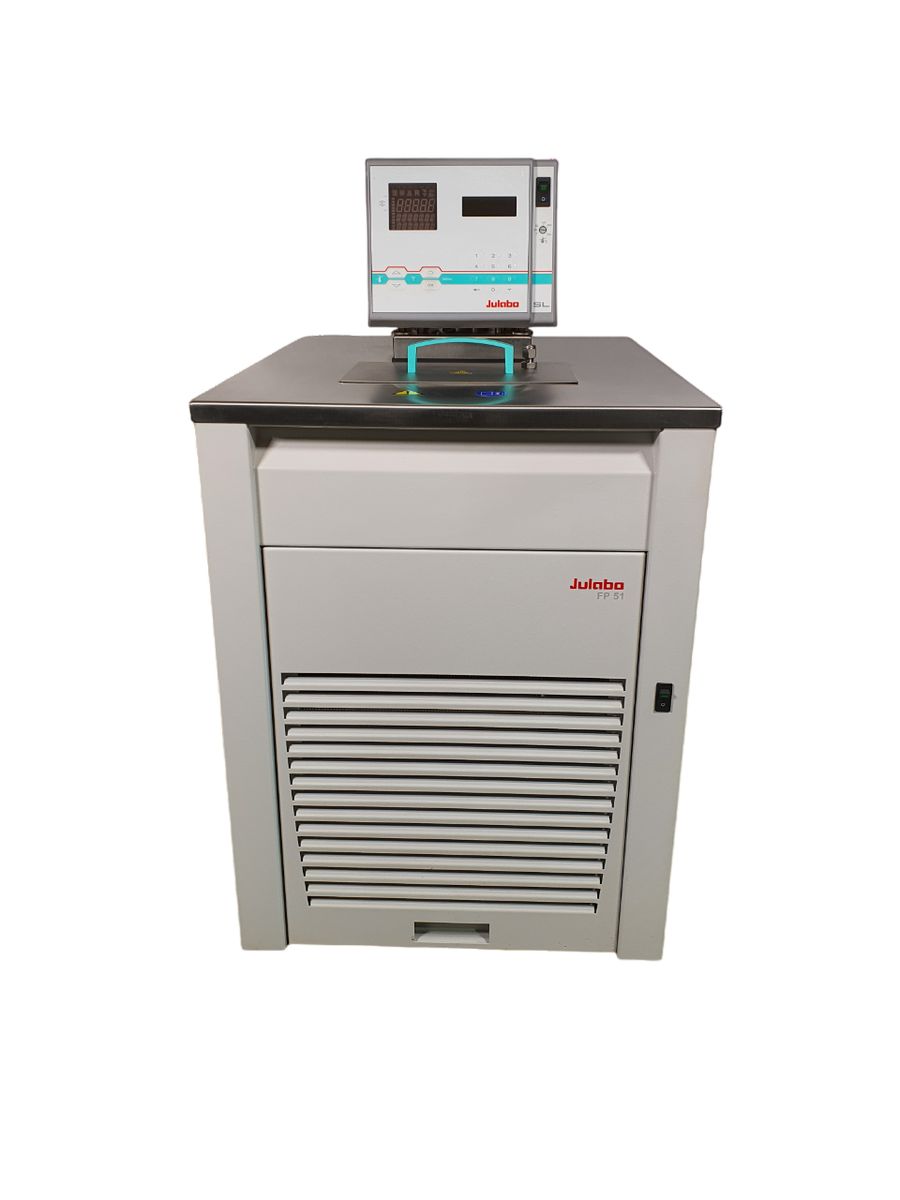

FP51-SL
SKU: 11001
In Stock
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Ultra-Low Refrigerated Circulator
| Specification | Value |
|---|---|
| Model series | HighTech |
| Category | Ultra-Low Refrigerated-Heating Circulators |
| Working temperature range (°C) | -51... 200 |
| Temperature stability (°C) | ±0.05 |
| Setting / display resolution | 0.01 °C |
| Integrated programmer | 6x60 steps |

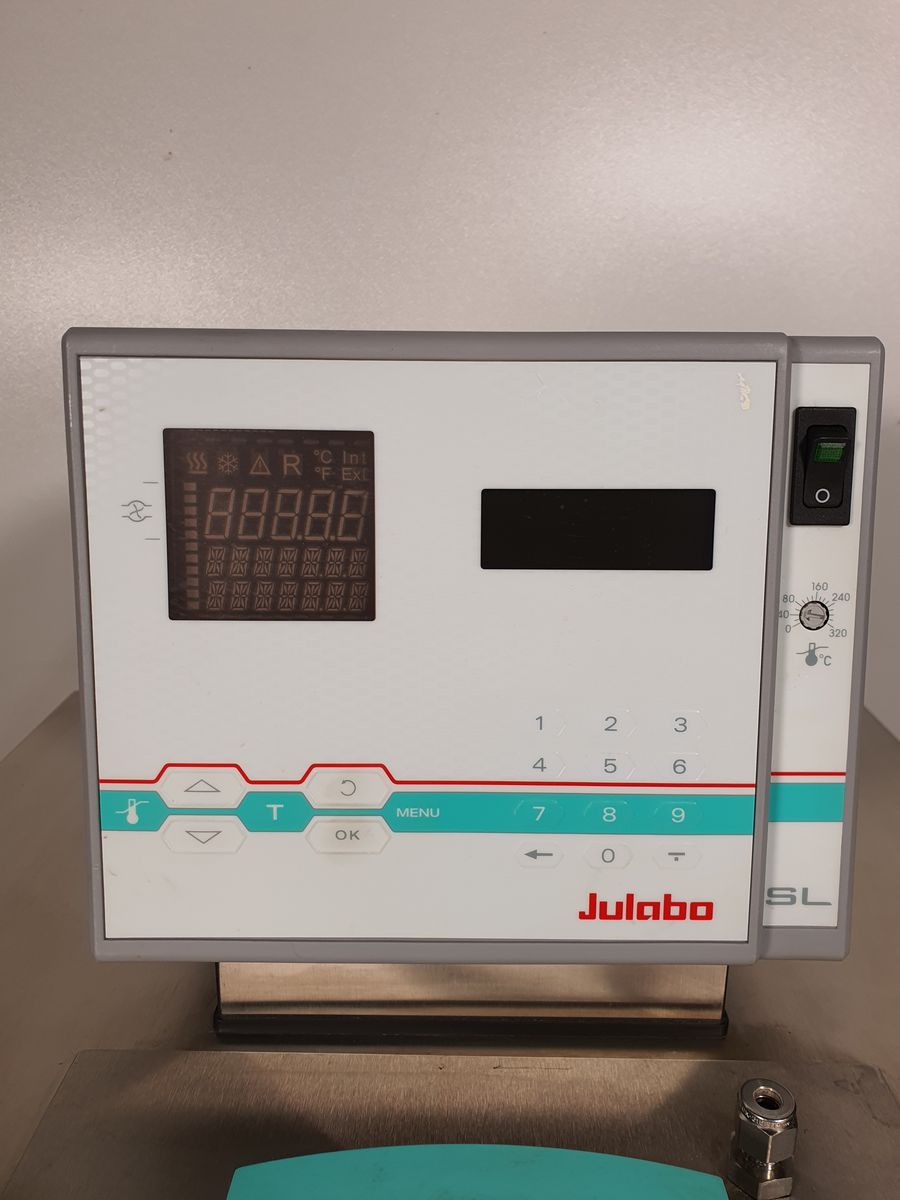

| Temperature Display | VFD, LCD |
| Heating capacity (kW) | 3 |
| Cooling capacity (Medium Ethanol) | 20°C 2 kW, 0°C 1.5 kW, -20°C 1 kW, -40°C 0.26 kW |
| Pump capacity flow rate (l/min) | 22-26 |
| Pump capacity flow pressure (bar) | 0.4-0.7 |
| Pump capacity flow suction (bar) | 0.2-0.4 |

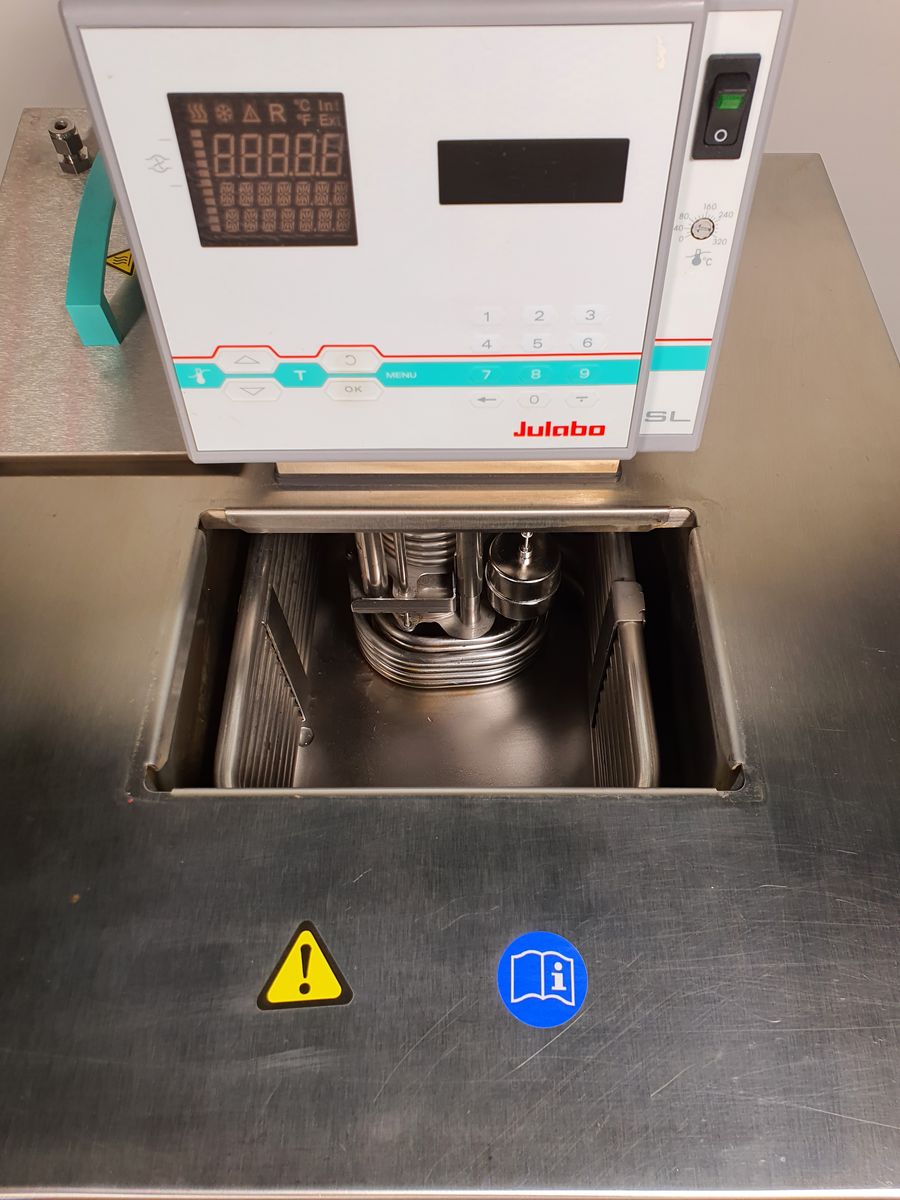

| Bath opening / bath depth (W x L / D cm) | 18 x 12 / 20 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| Filling volume liters | 11 |
| Refrigerant | R507 |
| External Pt100 sensor connection | integrated |
| Digital interface | RS232, RS485, Optional Profibus |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (cm) | 46 x 55 x 89 |
| Weight (kg) | 90 |
| Classification according to DIN12876-1 | Classification III (FL) according to DIN 12876-1 |
| Included with each unit | 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connecti...) |
×
![]()
