Chillers

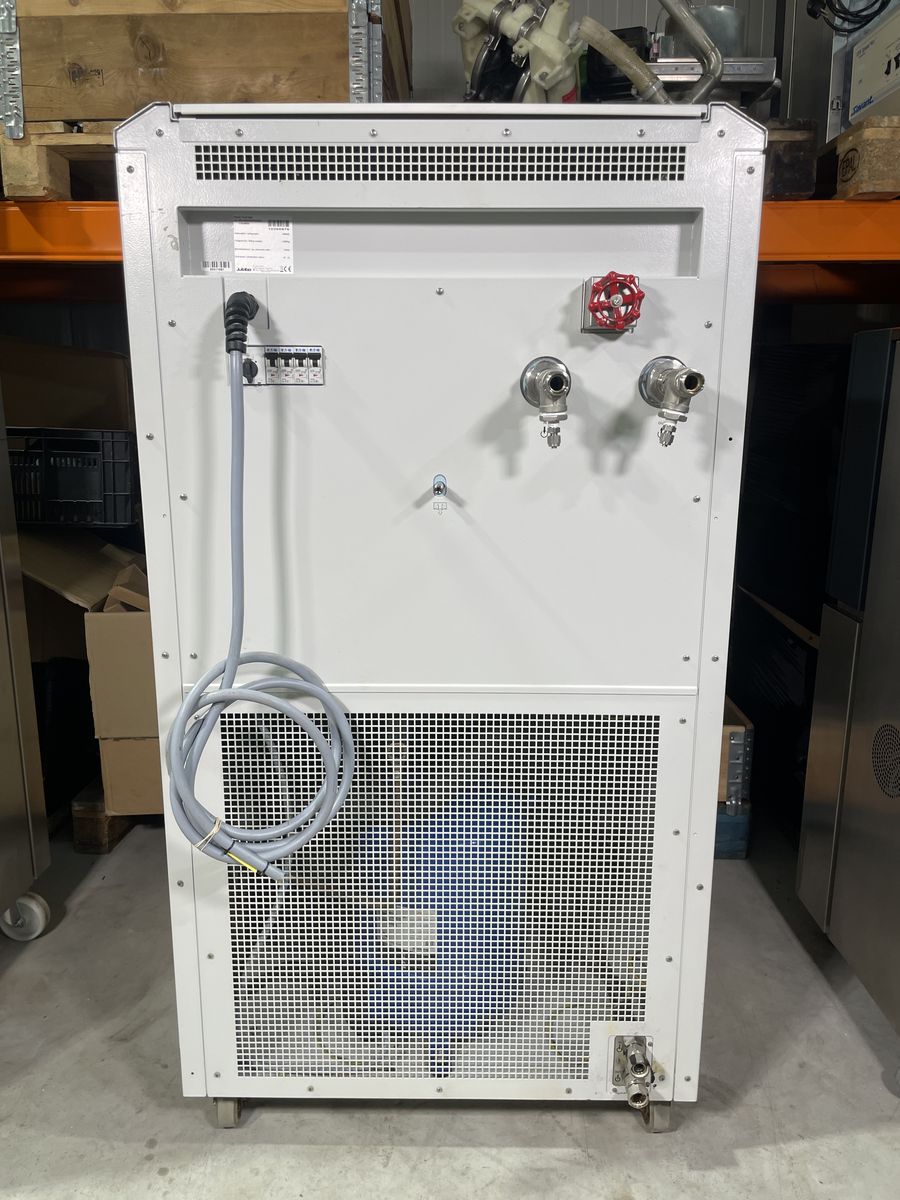

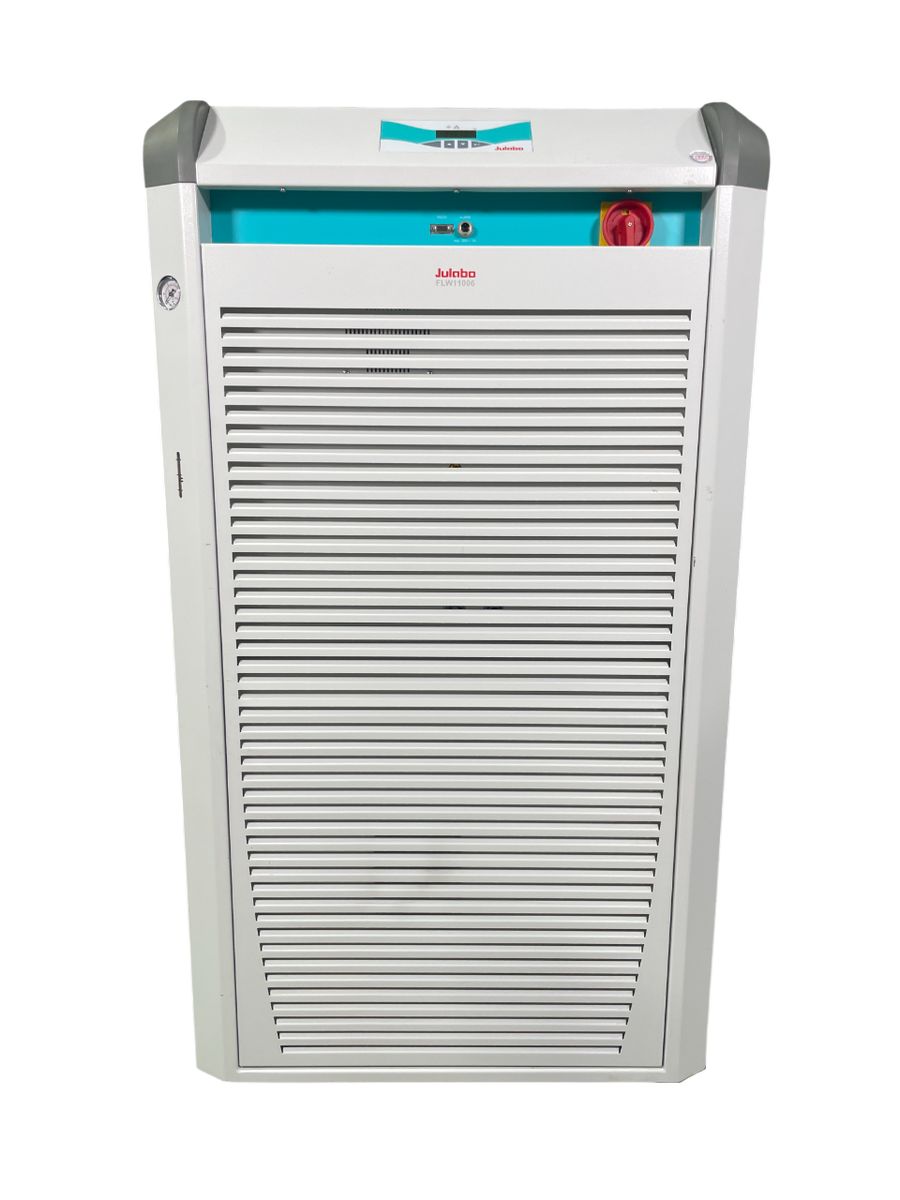

Julabo FLW11006
SKU: 11003
In Stock
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

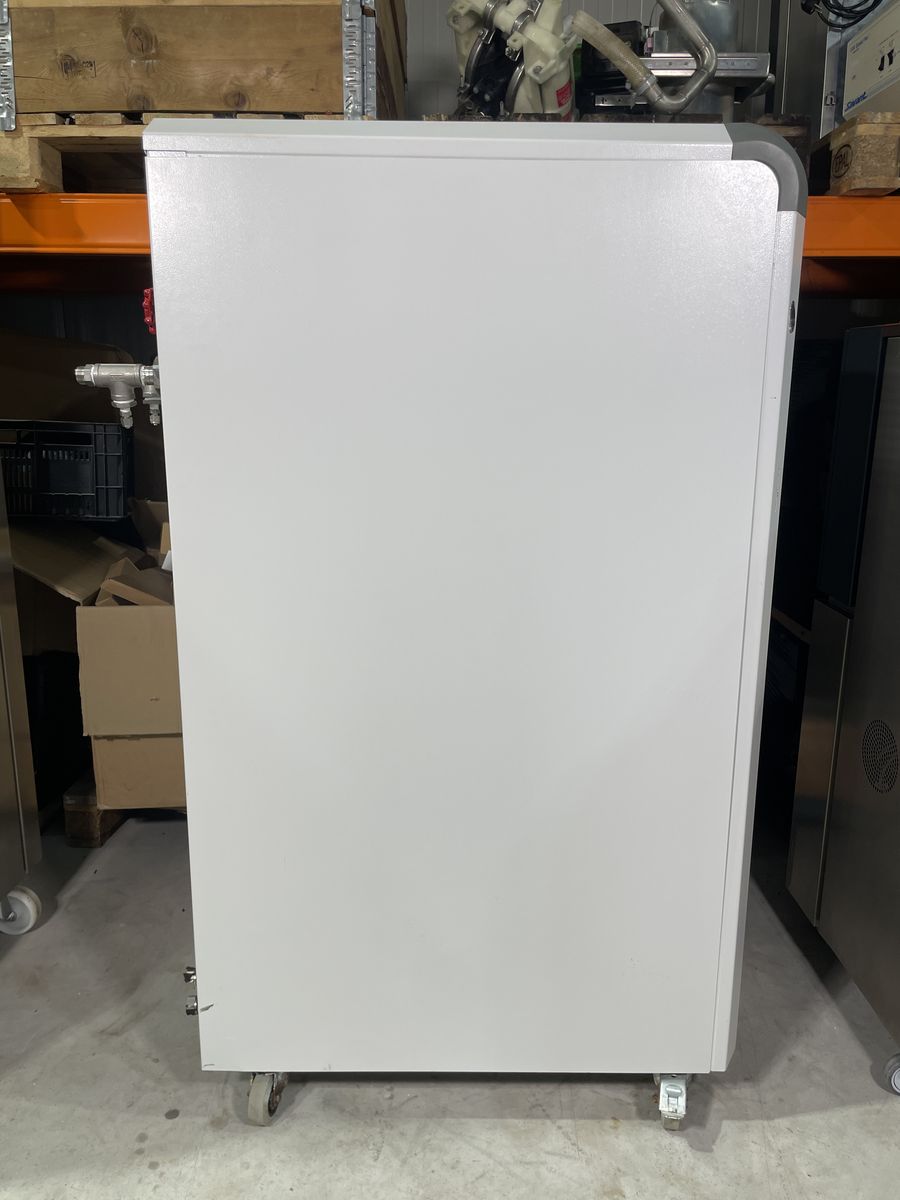

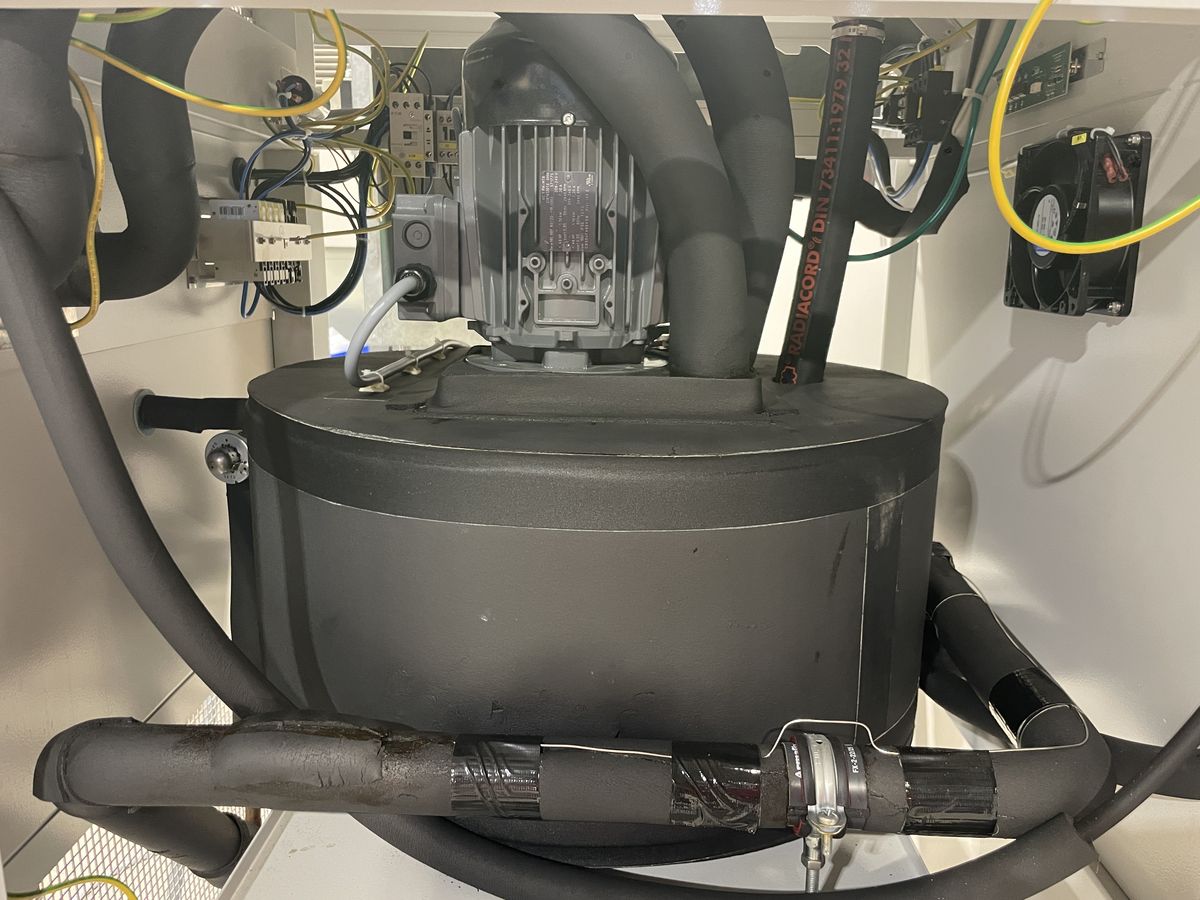

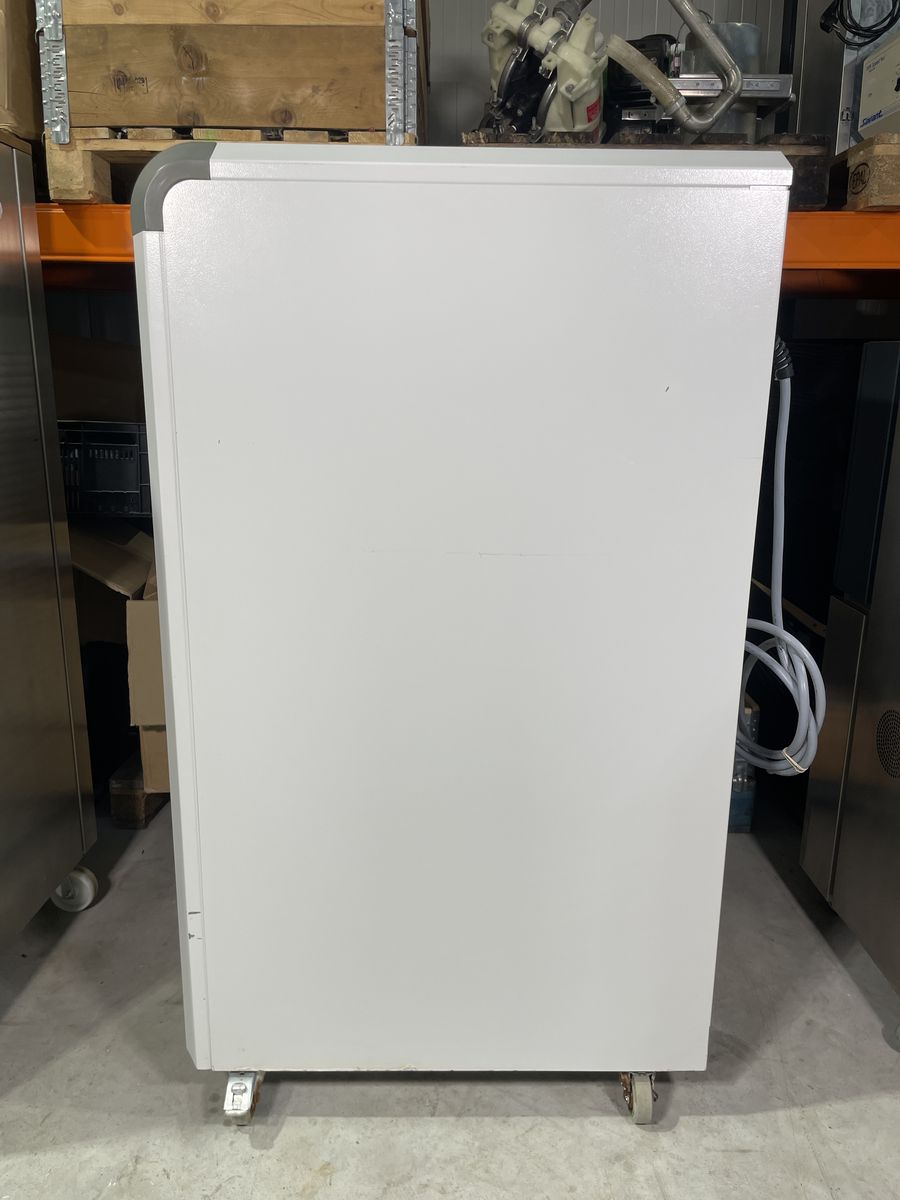

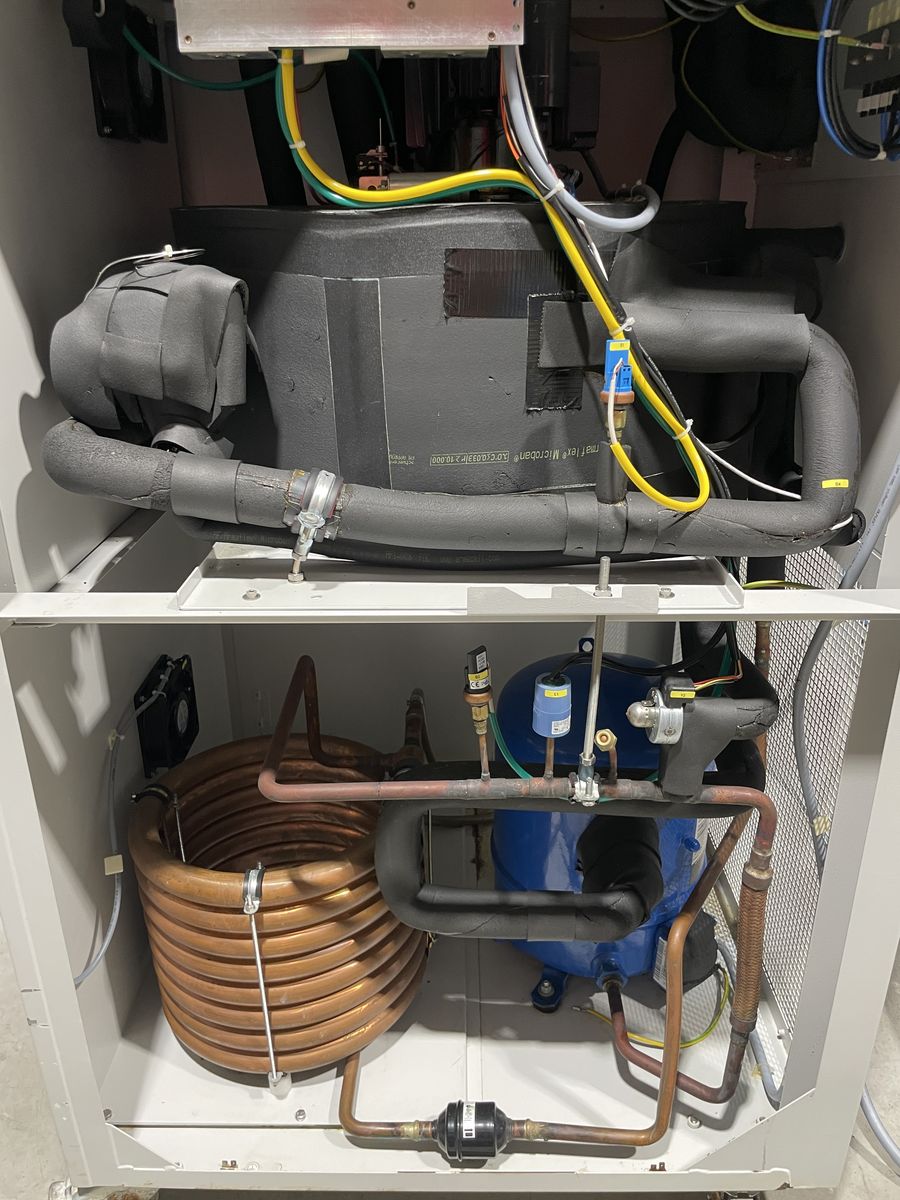

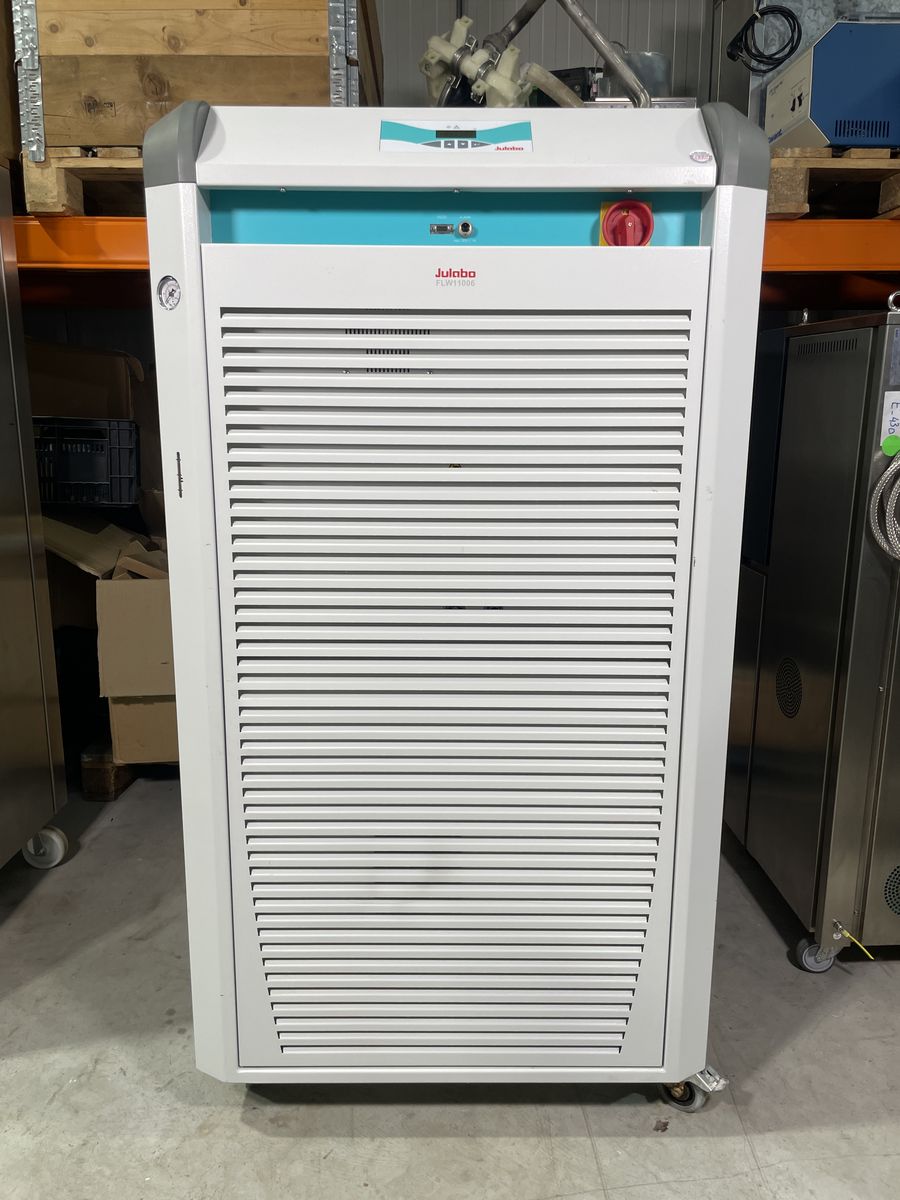

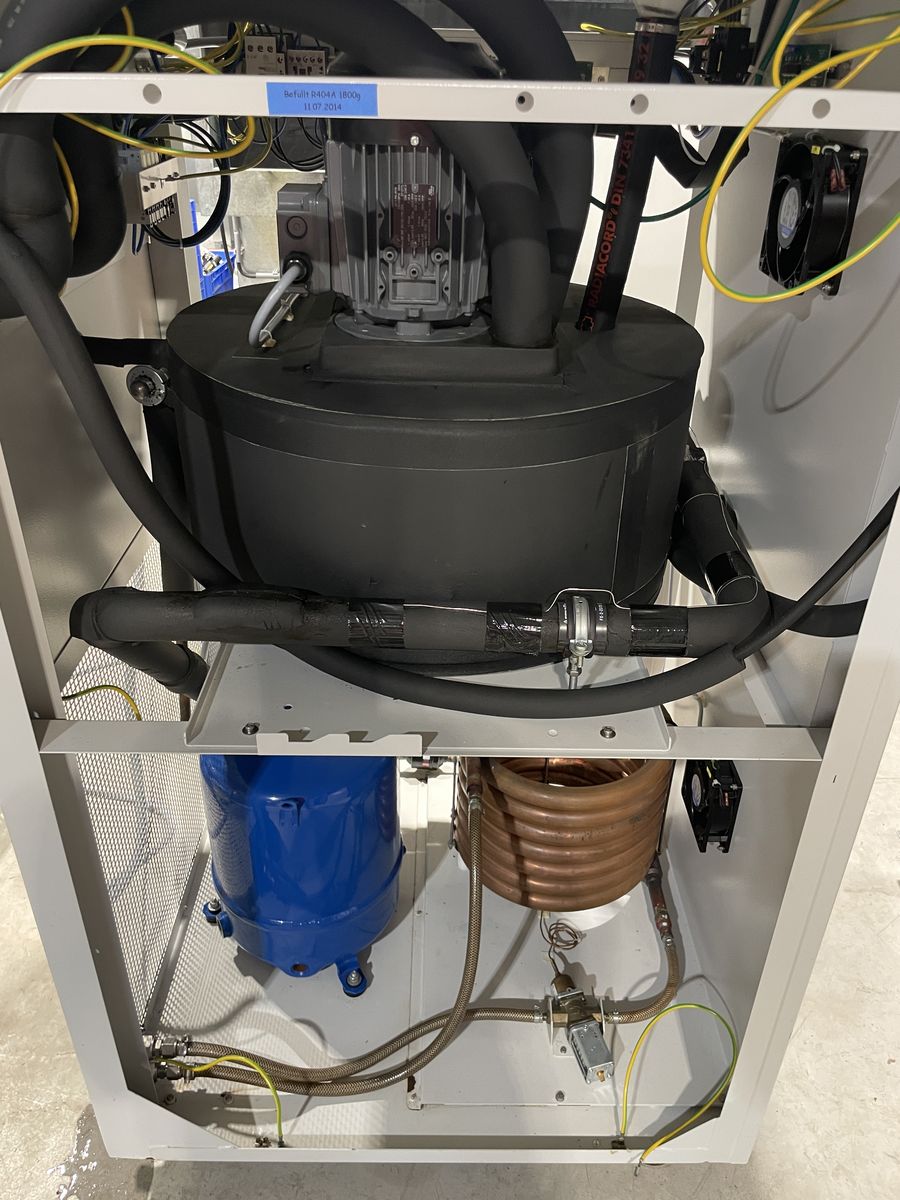

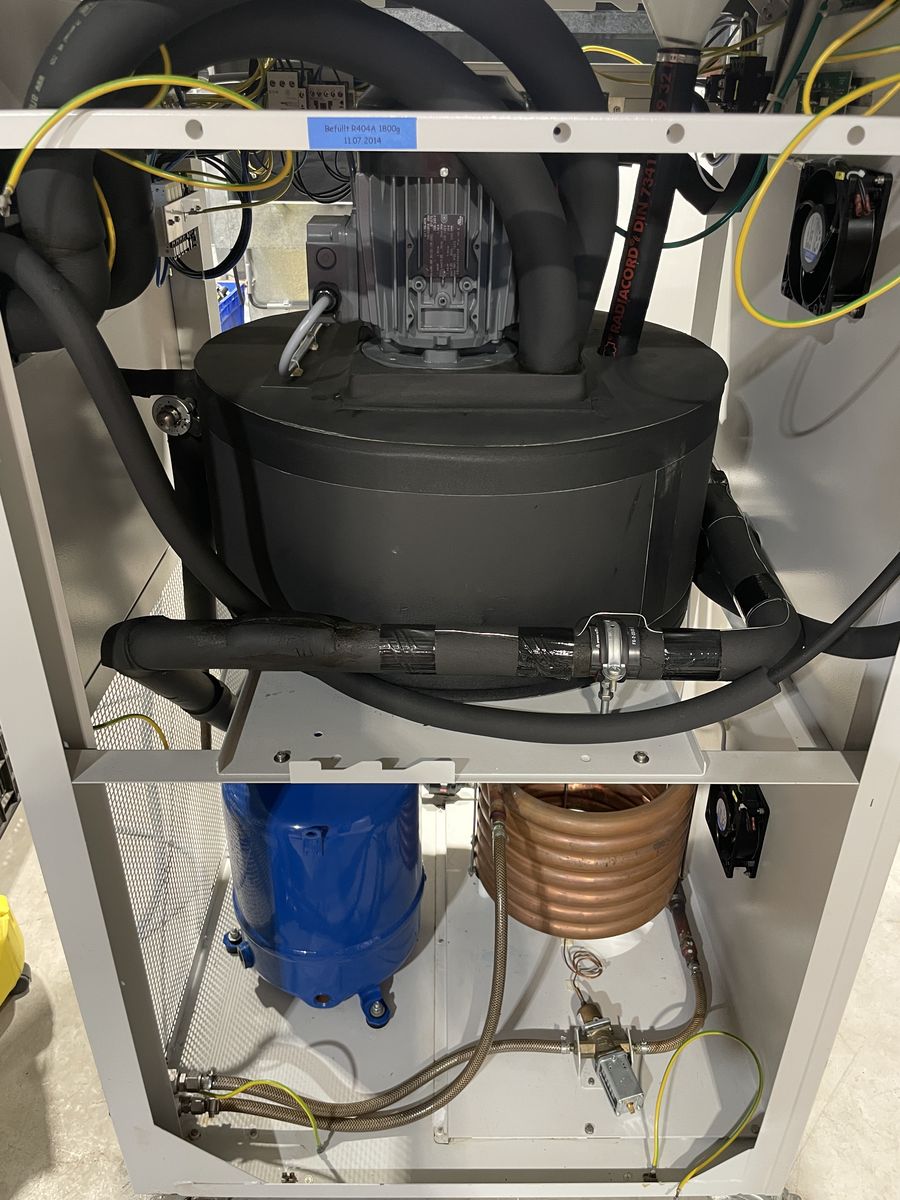

About this Julabo FLW11006
his particular unit was recently decommissioned from a renowned global laboratory facility where it was maintained under a strict professional service contract.
Technical data for FLW11006
| Total dimensions (W × L × H) |
78 x 85 x 148 cm |
|---|---|
| Filling volume | 39 ... 47 l |
| Weight | 250 kg |
| Pump connections | G1¼" male |
| Cooling Water Connection | G¾ in |
| Barbed fittings inner diameter | 1" |
| Working temperature range | -20 ... +40 °C |
|---|---|
| Temperature stability | ±0.5 °C |
| Setting the resolution of the temperature display | 0.1 °C |
| Temperature display resolution | 0.1 °C |
| Ambient temperature | +5 ... +40 °C |
| Return flow temperature max. | 80 °C |
Performance data depends on the mains voltage in the country of use. Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
Netherlands | 400V/3PNPE/50Hz | Plug 32A CEE
Cooling capacity
1 Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids. |
||||||||||||||||||||||
| Pump capacity flow pressure | 60 l/min | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pump capacity pressure | 0.5 ... 6 bar | |||||||||||||||||||||
| Power consumption | 17 A | |||||||||||||||||||||
| Bath tank | Stainless steel |
|---|
| Cooling of compressor | 1-stage Water |
|---|---|
| Cooling water pressure max. | 6 bar |
| to provide full cooling capacity according to catalog values | |
| Cooling water temperature range | 20 °C |
|---|---|
| Cooling water difference pressure | 2 bar |
| Cooling water consumption | 18.2 l/min |
| Sound pressure level | 74 dbA |
|---|---|
| Classification according to DIN12876-1 |
Classification I (NFL) |
| IP Code according to IEC 60529 |
IP 21 |
| Pump type | Immersion Pump |
| Interfaces | Alarm output / RS232 / Stakei |
|---|---|
| Temperature control | PID1 |
| Temperature display | LED |
| Temperature setting | Keypad |
×
![]()
