Honeywell 12CX200
SKU: 7003
Niet op voorraad

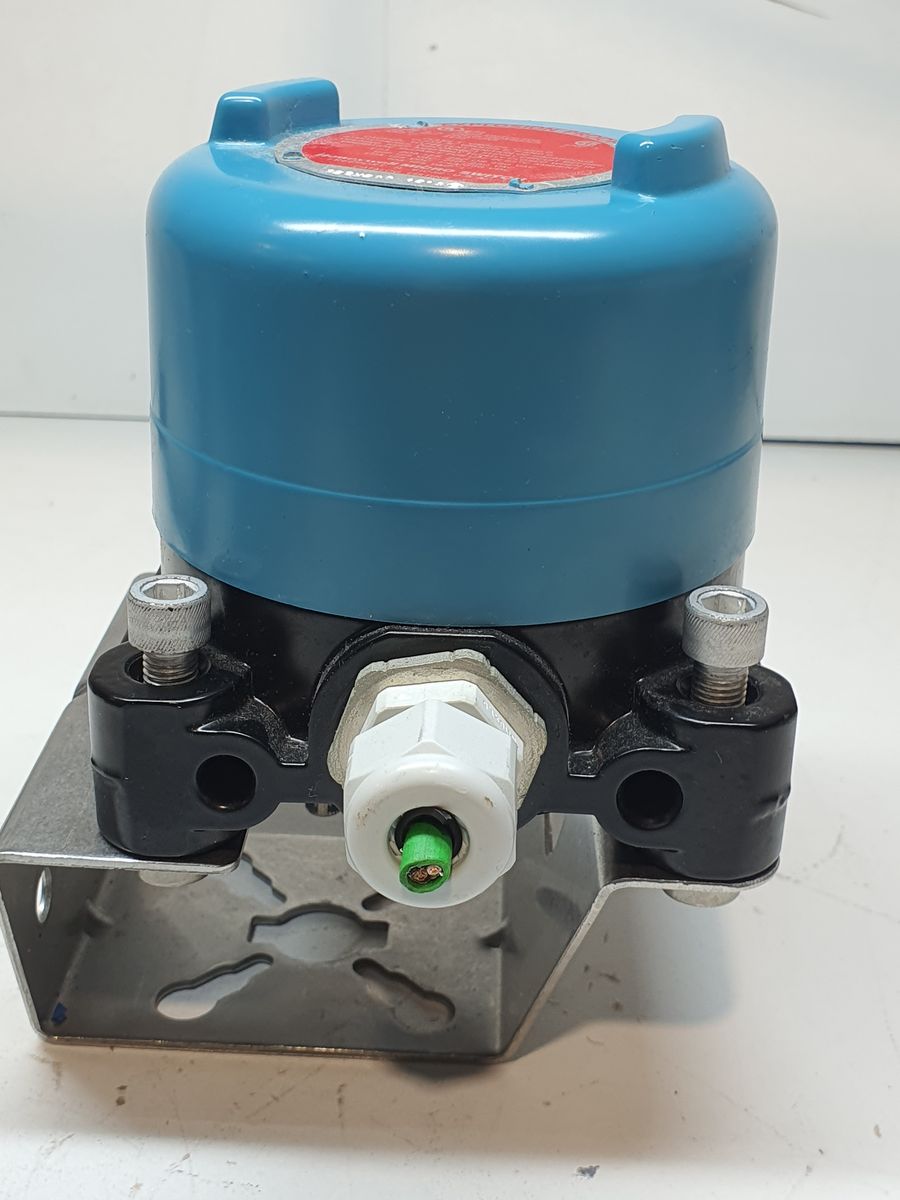

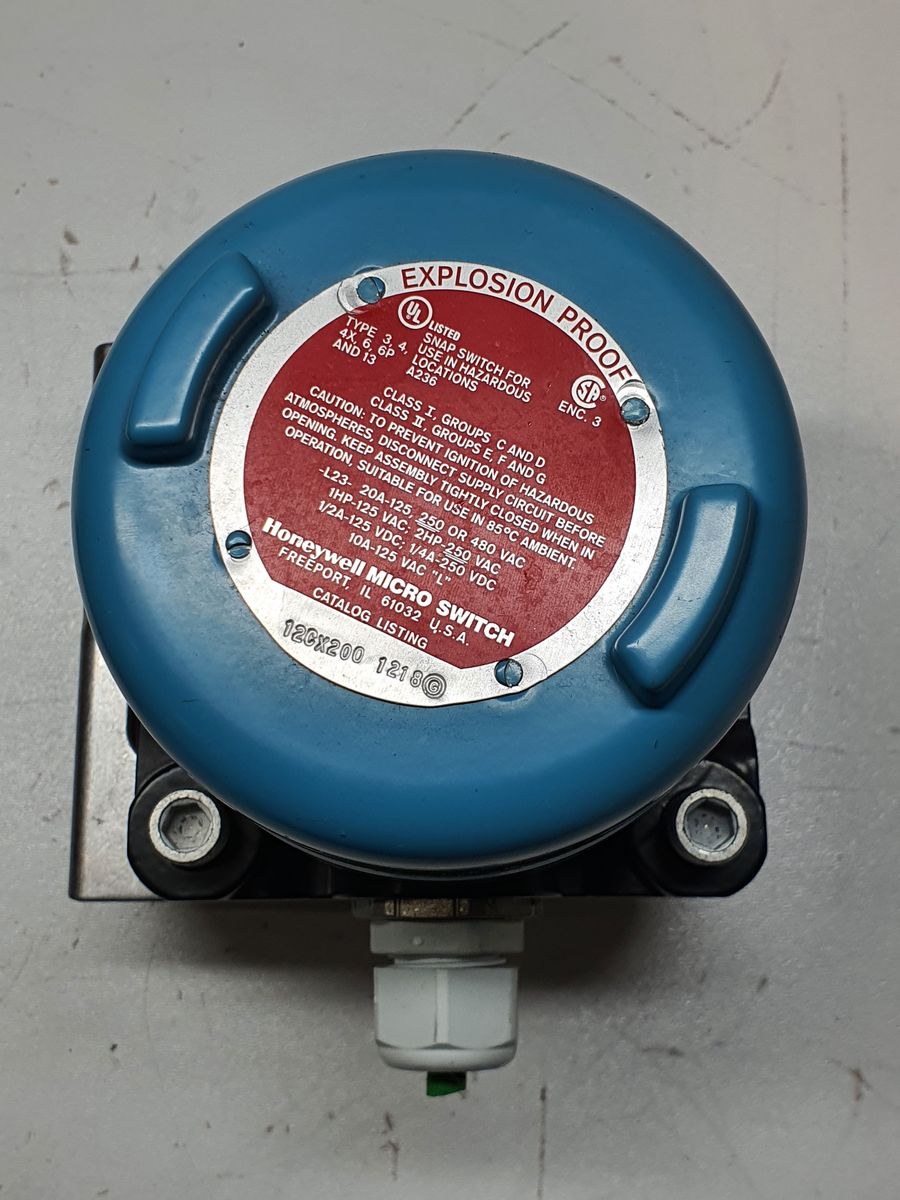

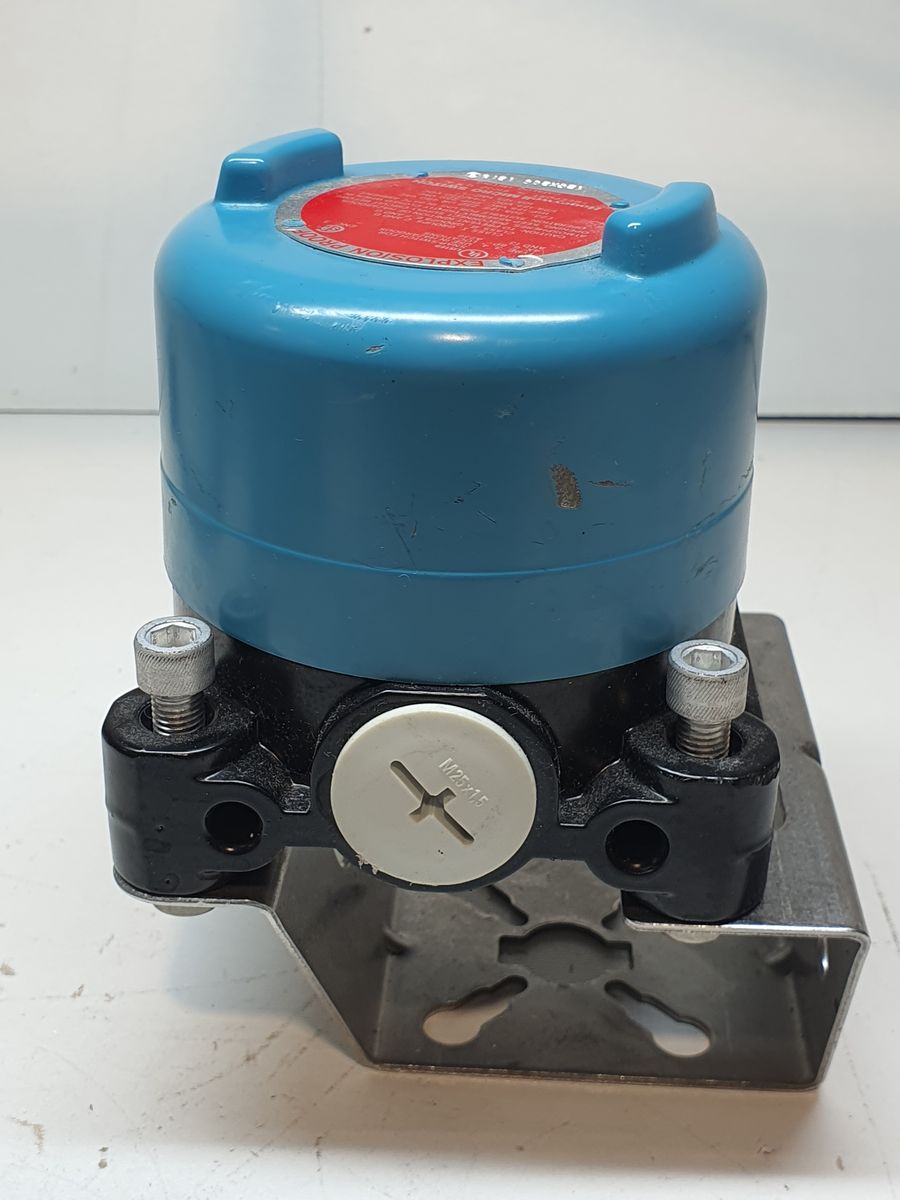

Honeywell 12CX200 IP66 Momentary Action Limit Switch, Rotary Lever, Aluminum, NC, NO, 480V
Overview
CX hazardous area switches are weatherproof, water-tight, dust-tight, highly reliable and rugged switches often used in control valves, petrochemical, conveyors, grain elevators, and material handling.
Product Specifications
Product Attribute |
Attribute Value |
|---|---|
| Actuator Type | No Actuator |
| Brand | HONEYWELL |
| Contact Form | 1 CO |
| Current Rating | 20 A |
| Head Type | Side Rotary Head |
| IP Rating | IP66 |
| Manufacturer Part Number | 12CX200 |
| Mounting Hole Size | 8.5 mm |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 1.25 N |
| Operation | Side-Actuated |
| Series | CX |
| Special Features | Explosion-Proof |
| Standards | UL CSA |
| Temperature Rating | -25 to +85 °C °C |
| Termination | screw |
| Type | Limit |
| Voltage Rating | 250 V |
×
![]()
