Pneumatische actuators

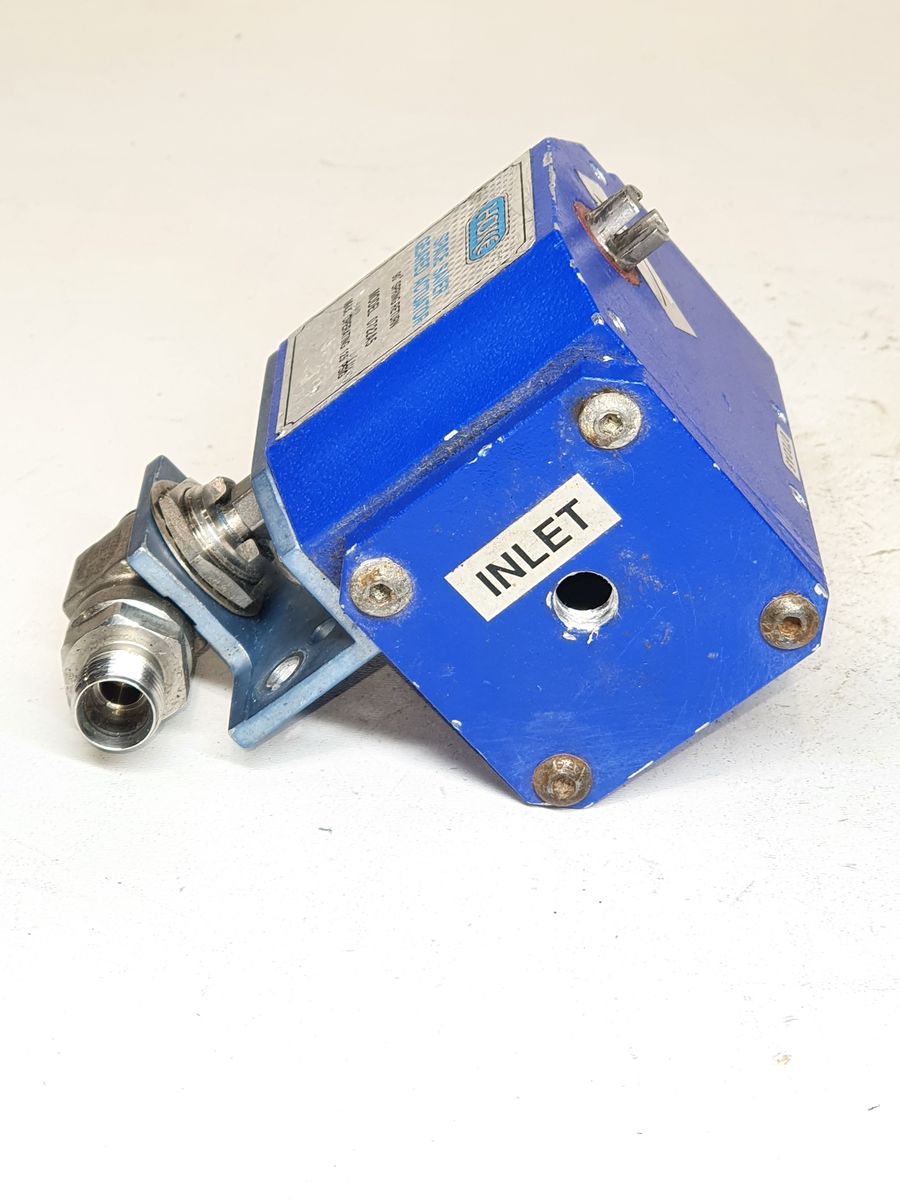

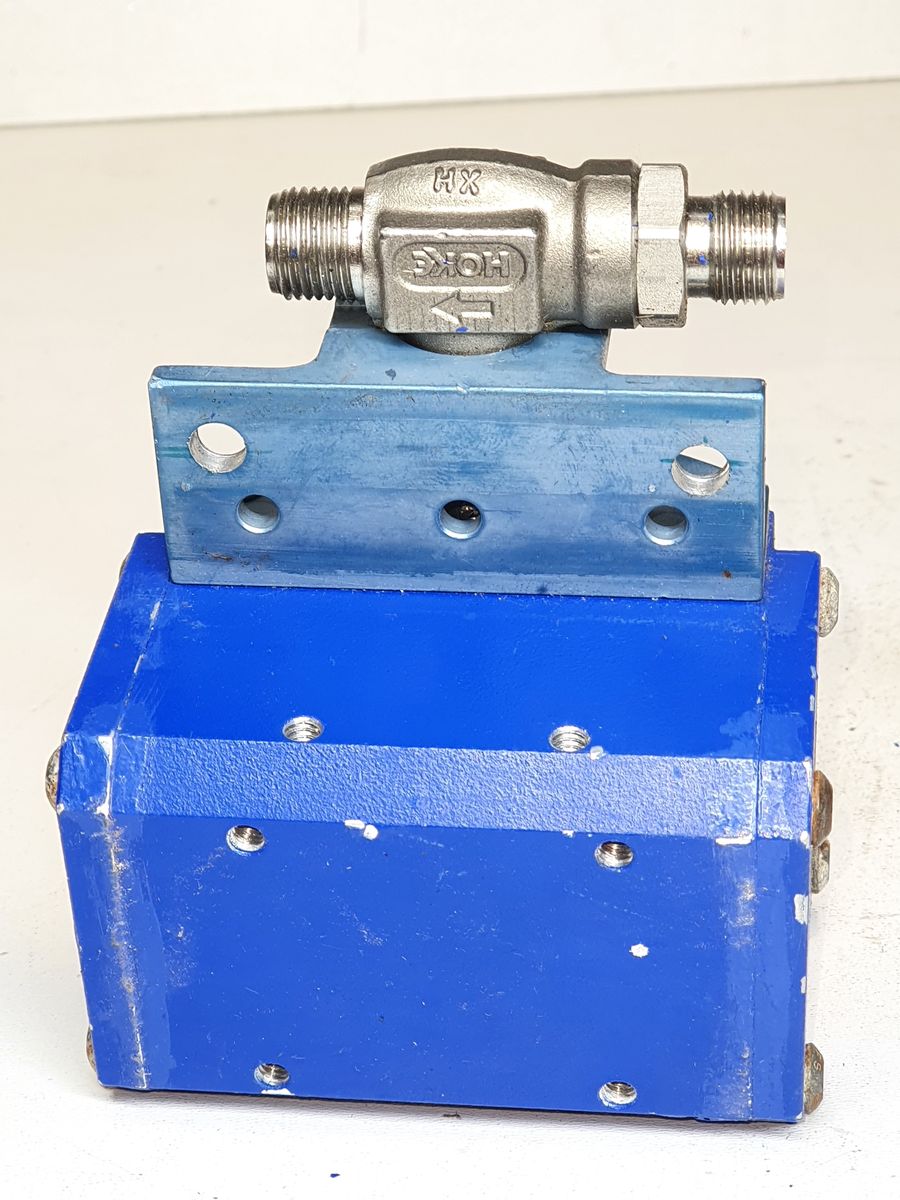

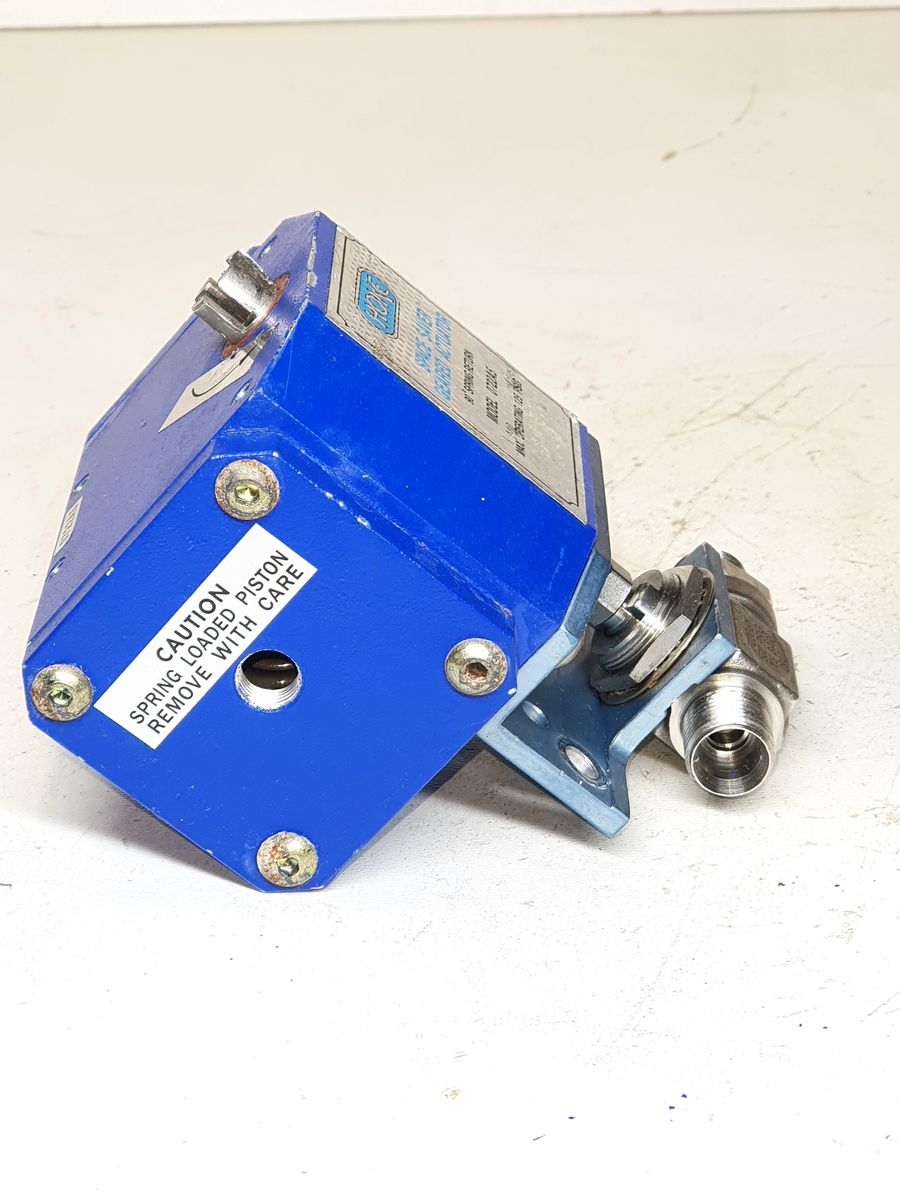

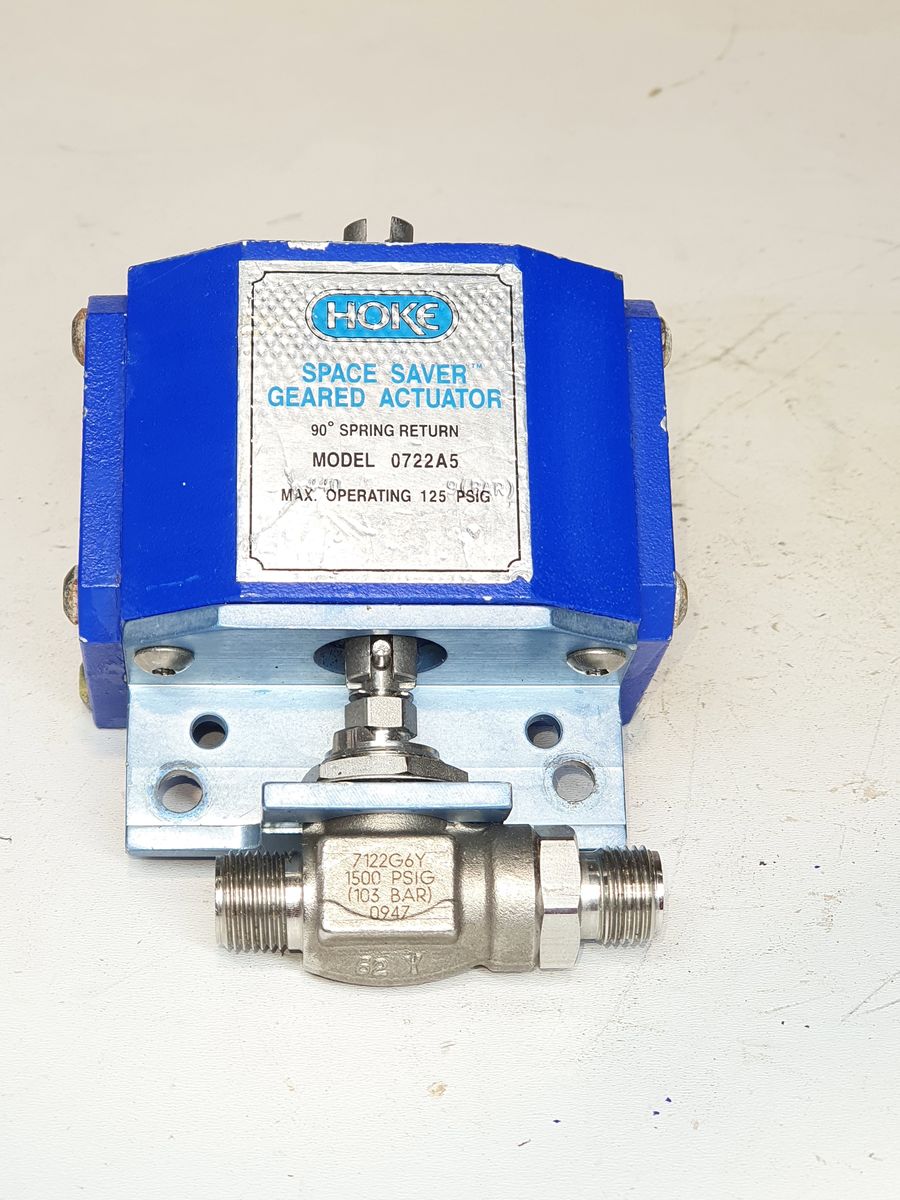

Hoke 0722A5/ 7122G6Y

SKU: 4022

Op voorraad

Gebruikt
Werkend gedemonteerd

Prijs op aanvraag

Prijzen zijn exclusief BTW. Neem contact met ons op voor groothandel prijzen of aangepaste configuraties.

Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

Garantieperiodes per Conditie

Nieuw 12 maanden

Gereviseerd DOA

Gebruikt DOA

Wij zijn geen geautoriseerde distributeur, vertegenwoordiger of partner van enig fabrikant of merk dat op deze website wordt vermeld

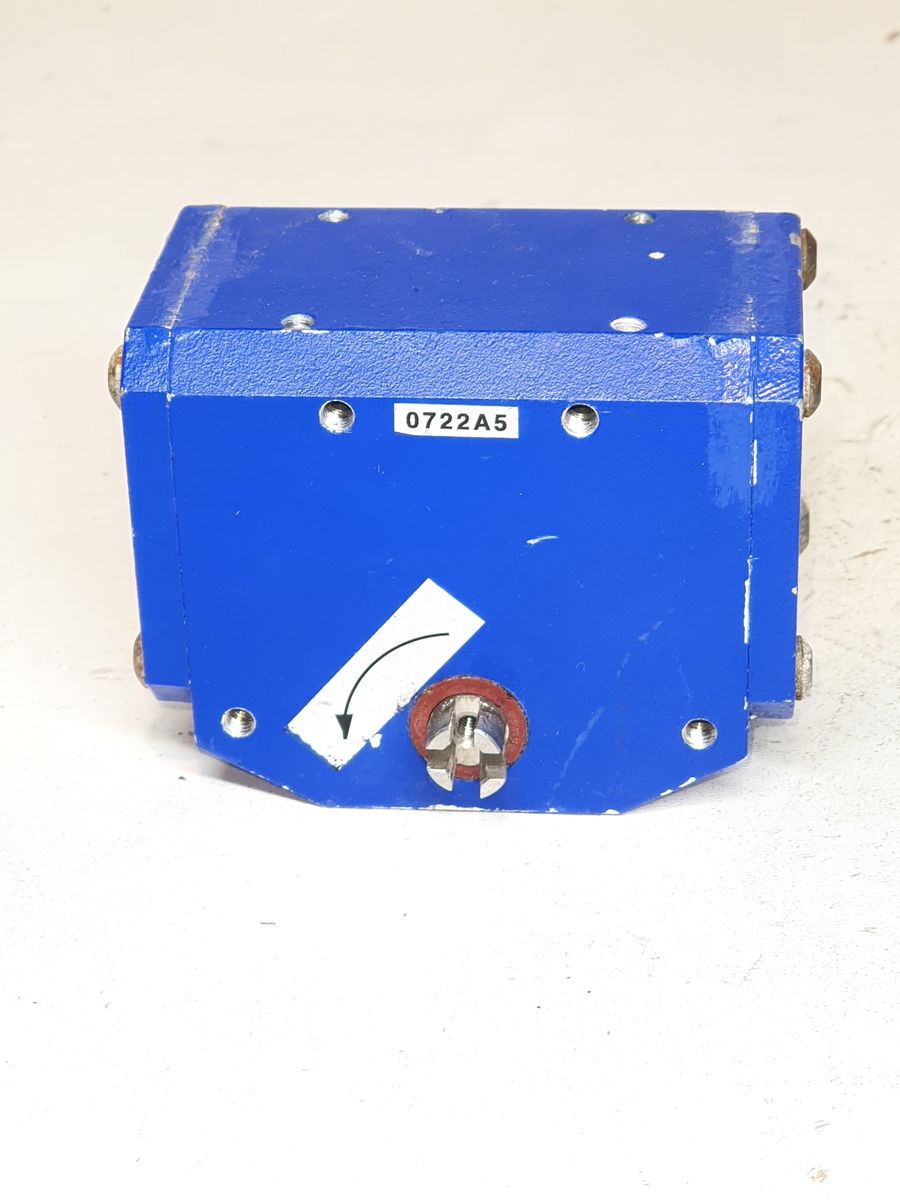

Hoke 0722A5

Specification	Value
Housing Material	Polyurethane coated aluminum
Maximum Operating Pressure	125 psig (9 bar)
Air Supply Connection*	1/8 Female NPT
Operating Temperature Range A4 Actuators	0° to 250° F (-18° to 121° C)
Operating Temperature Range A5 Actuators	0° to 400° F (-18° to 204° C)
Cycle time**	1 second (dependent on air supply)
Cycle Life	250,000 cycles minimum
Weight	1.7 lbs. (0.75 kg)

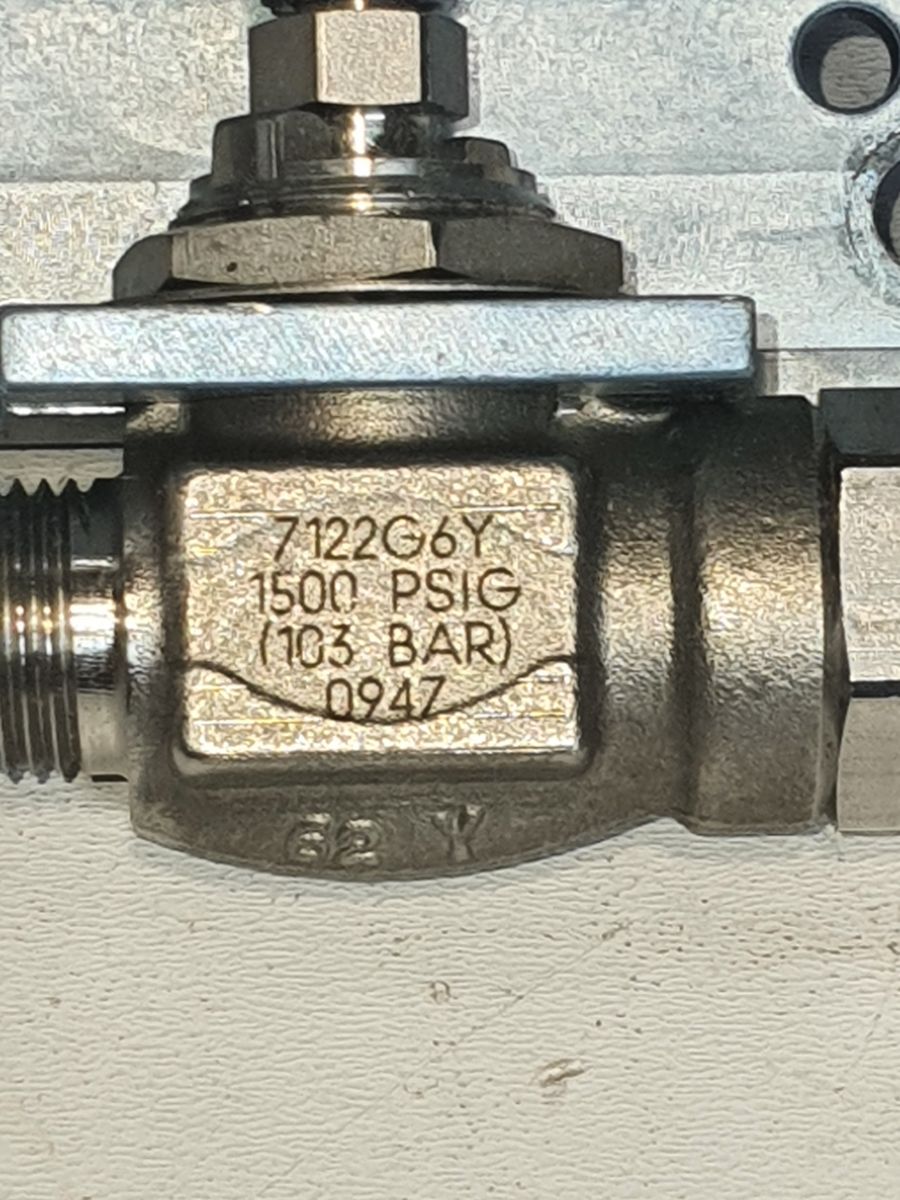

Hoke 7122G6Y

	Connections - Inlet	3/8" Gyrolok
Connections - Outlet	3/8" Gyrolok
Body Material	316 Stainless Steel
Operating Pressure Range	1500 psig at 70° F (103 bar at 21° C)
Operating Temperature Range	-40 to +350 ºF-40 to +176 ºC
Orifice	0.25 in6.40 mm
Cv	1.40
C	1.75 in45 mm
E	3 1/4 in83 mm
H	1/2 in13 mm
H1	7/16 in11 mm
Panel Hole	49/64 in19 mm
Panel Thickness	1/4 in6.0 mm
Features & Benefits	Quarter turn handle provides a visual indication of on/off valve position, improving safety. Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability. Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions. Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value. A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi tting option for the application. Special High Tolerance NPT Thread
