Gommer BV Pressure Gauge model E180224

Description:

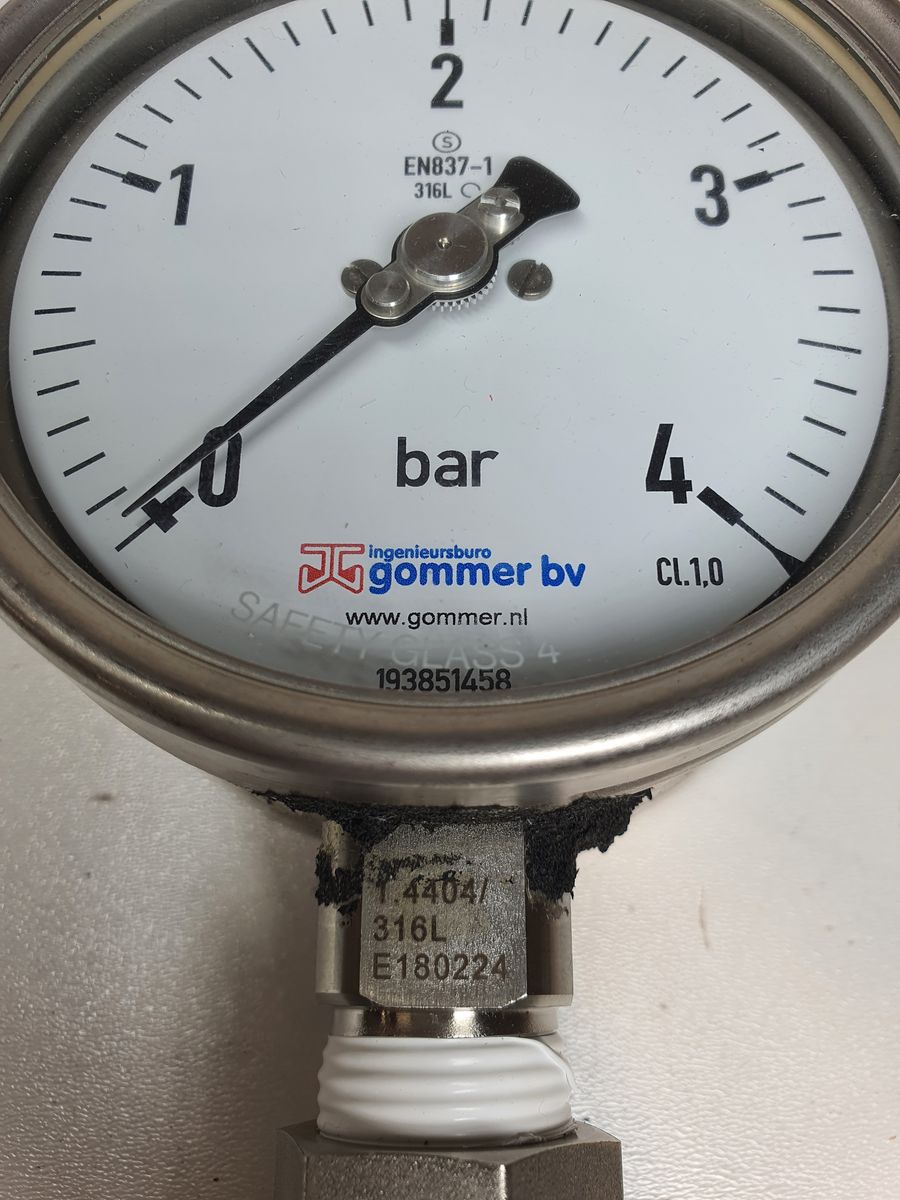

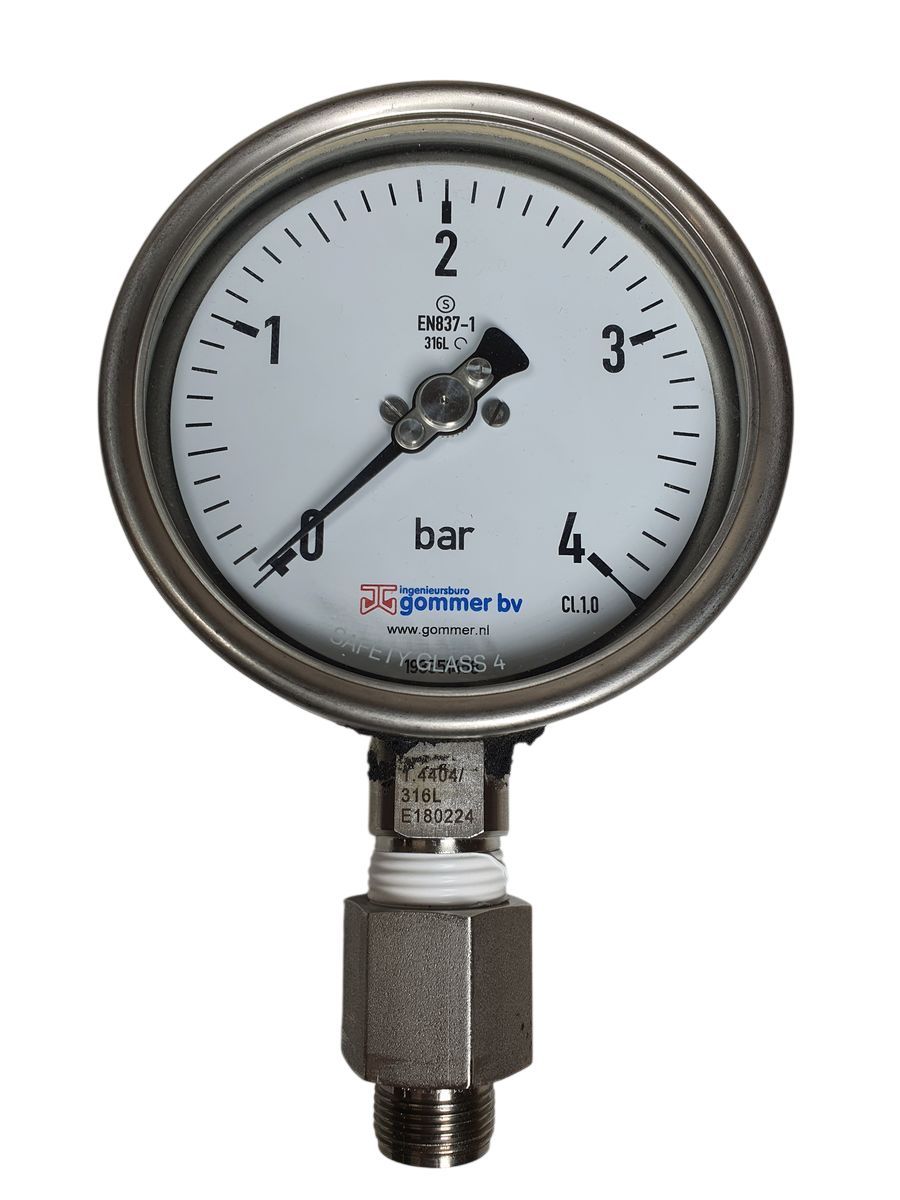

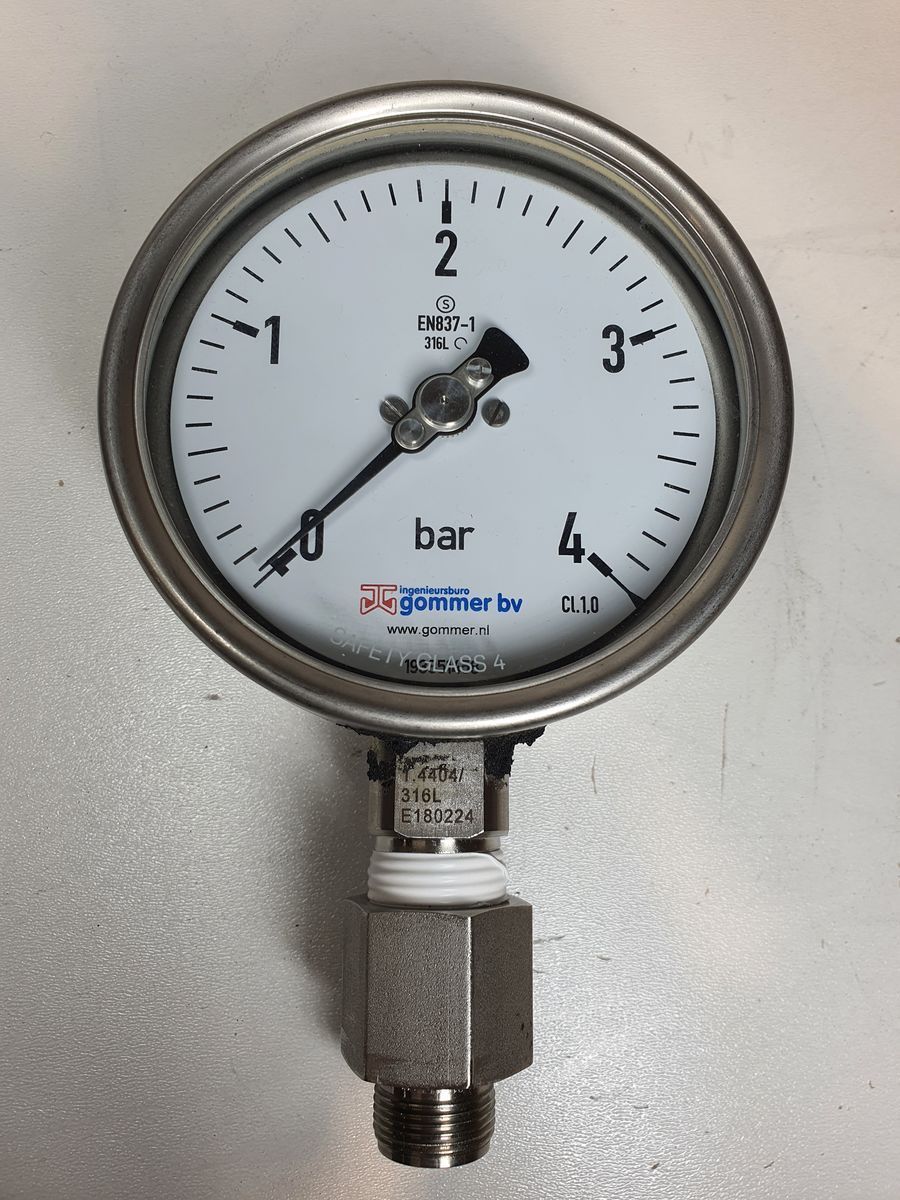

The product is a high‑quality industrial pressure indicator designed for reliable measurement of low pressures up to 4 bar. Constructed to the EN 837‑1 standard for bourdon tube pressure gauges, it features 316L stainless steel wetted parts (Bourdon tube, socket and connection) for excellent corrosion resistance in challenging environments. The 100 mm nominal dial offers clear, easy‑to‑read measurement, while the laminated safety glass window ensures operator protection under overpressure conditions. The gauge is supplied with a lower mounted threaded connection (typically G 1/2B) for straightforward installation on pipes, vessels or process equipment. EN 837‑1 gauges like this are widely used to visually monitor process pressure in liquids and gases where robust construction and accuracy class CL 1.0 are required.

Key Features:
- Standard Compliance: Designed and manufactured in accordance with EN 837‑1 pressure gauge standard for bourdon tube gauges.
- Corrosion‑Resistant Wetted Parts: All internal wetted components in stainless steel 316L (1.4404) for high resistance to aggressive media.
- Nominal Size: 100 mm dial diameter for clear visibility at a distance.
- Range & Accuracy: 0 to 4 bar range with Class 1.0 accuracy as per EN 837‑1.
- Safety Glass Window: Laminated safety glass (Type 4) protects the dial and pointer and provides operator safety
- Connection: Lower mount, threaded process connection — typically G 1/2B male fitting for standard compatibility.
- Robust Construction: Suitable for demanding industrial environments (vibration, cycles) when optionally liquid filled or used with safety features.
- Bourdon Tube Mechanism: Reliable mechanical pressure sensing element for long service life.

Specification:
- Model: Gommer BV E180224
- Standard: EN 837‑1
- Nominal Size (Dial Diameter): 100 mm
- Measuring Range: 0–4 bar
- Accuracy Class: 1.0 (±1% of full scale)
- Wetted Parts Material: Stainless steel 316L (1.4404)
- Case / Housing: Stainless steel, robust industrial design
- Window: Laminated safety glass (Type 4)
- Connection Type: Lower mount, threaded, typically G 1/2B
- Pressure Element: Bourdon tube (stainless steel)
- Ambient Temperature Range: –20 °C to +60 °C (typical)
- Medium Temperature Range: Consult manufacturer; depends on application
- Protection: Varies by design; optional safety features available
- Mounting: Bottom (lower) threaded connection

Typical Applications: Chemical, petrochemical, hydraulic systems, pumps and compressors, water treatment, boiler systems, OEM equipment, and hygienic processing if applicable.
