FLOWSERVE 080037-IP
SKU: 7043
Niet op voorraad

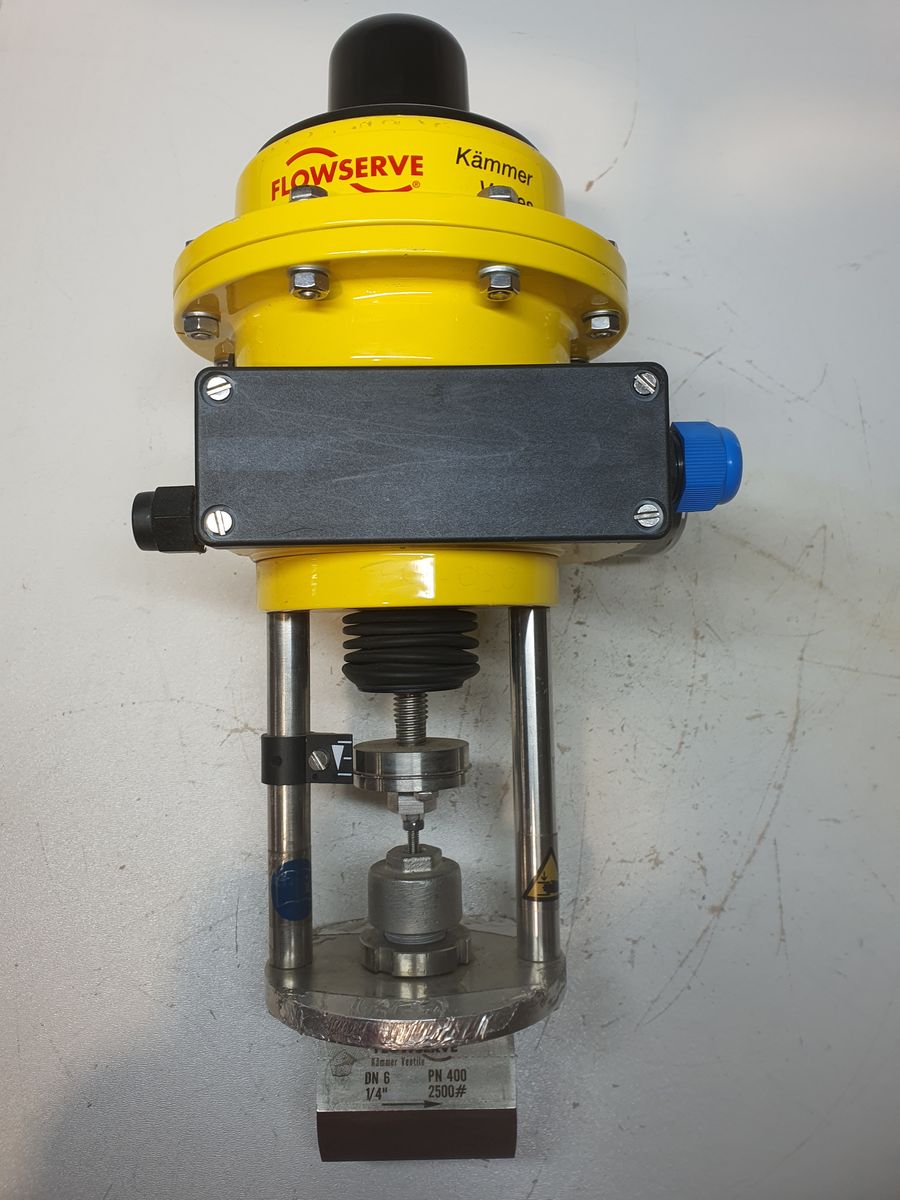

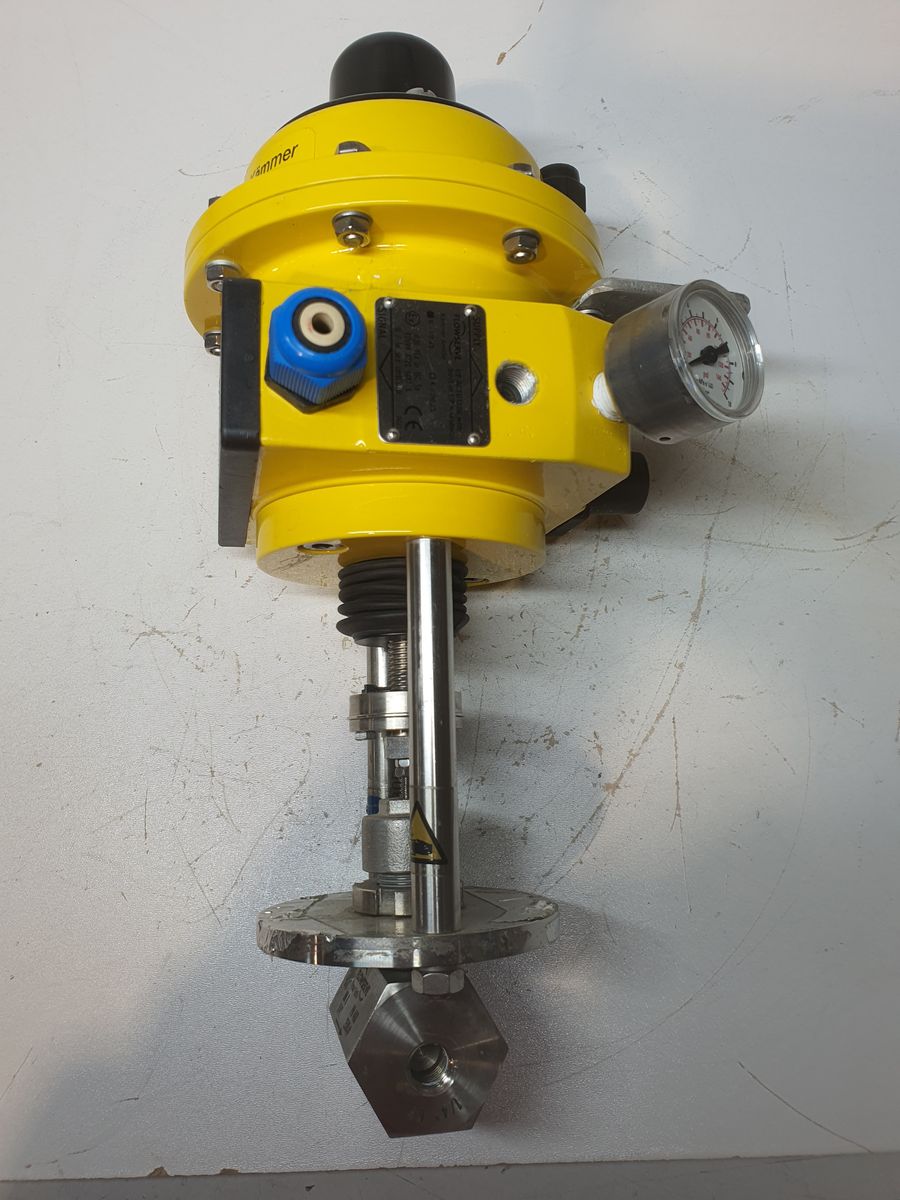

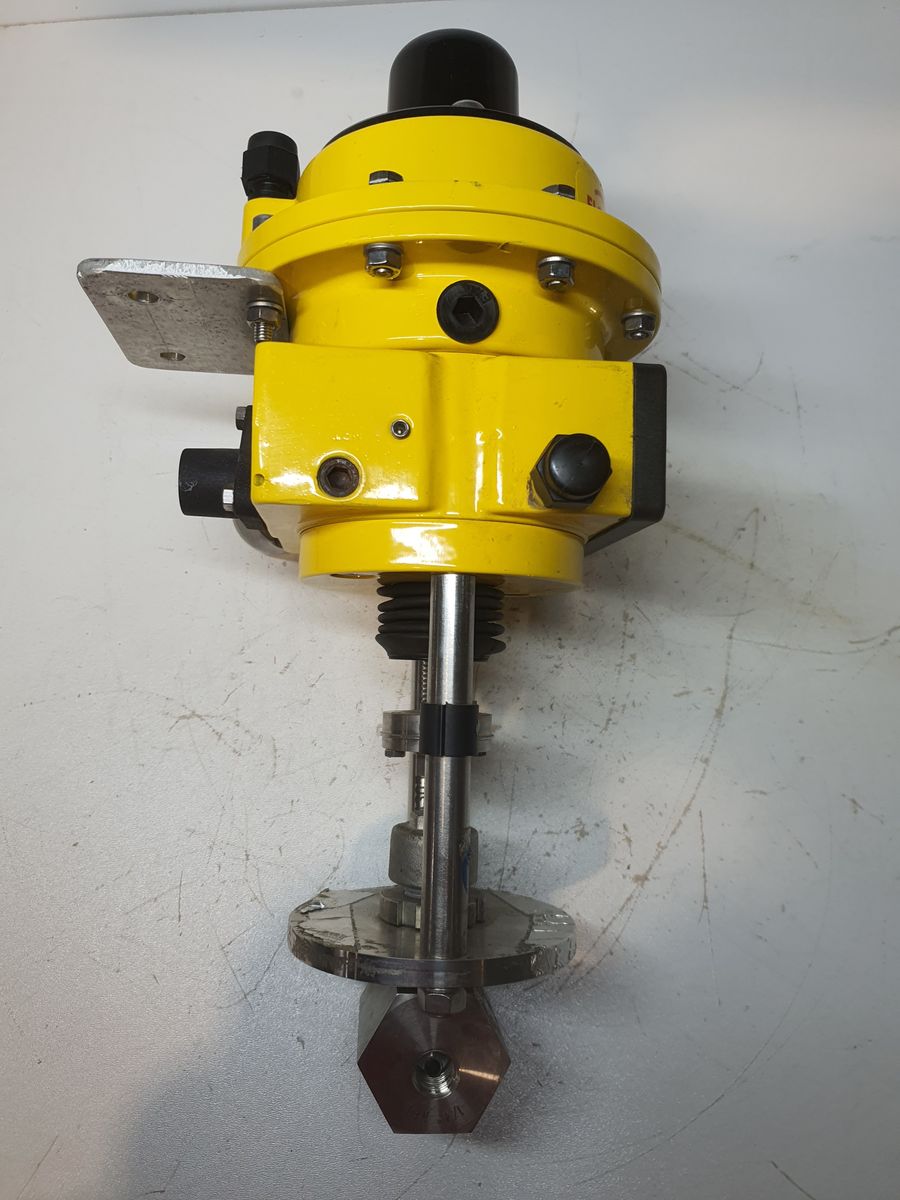

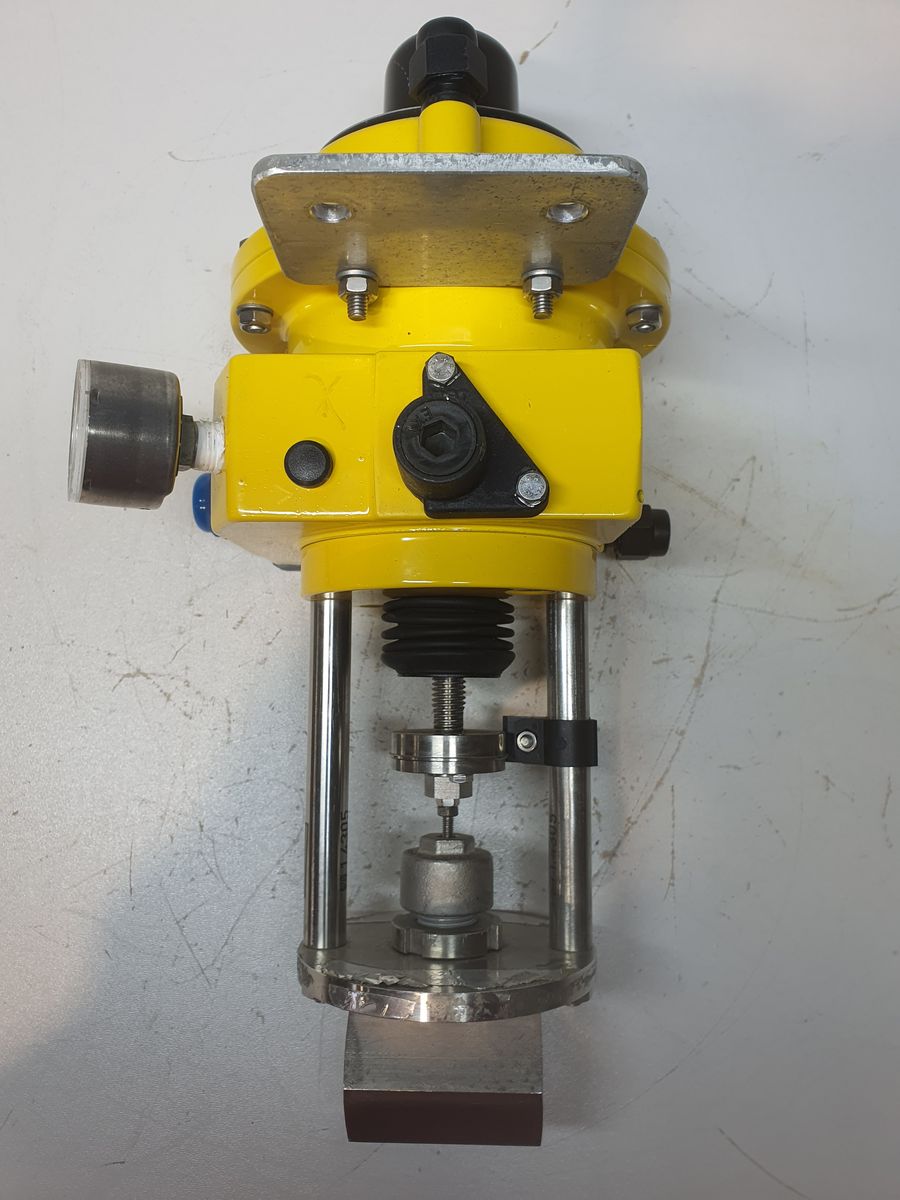

Control Valve by FLOWSERVE
| Parameter | Specification |
|---|---|
| Manufacturer | Flowserve |
| Model | 080037-IP |
| Valve Type | Control Valve (Micro-flow / Globe type) |
| Nominal Size | 1/4" (DN 8 approx.) |
| Pressure Rating | Class 2500 (≈ PN 420) |
| Stroke | 10 mm |
| Control Signal | 4–20 mA |

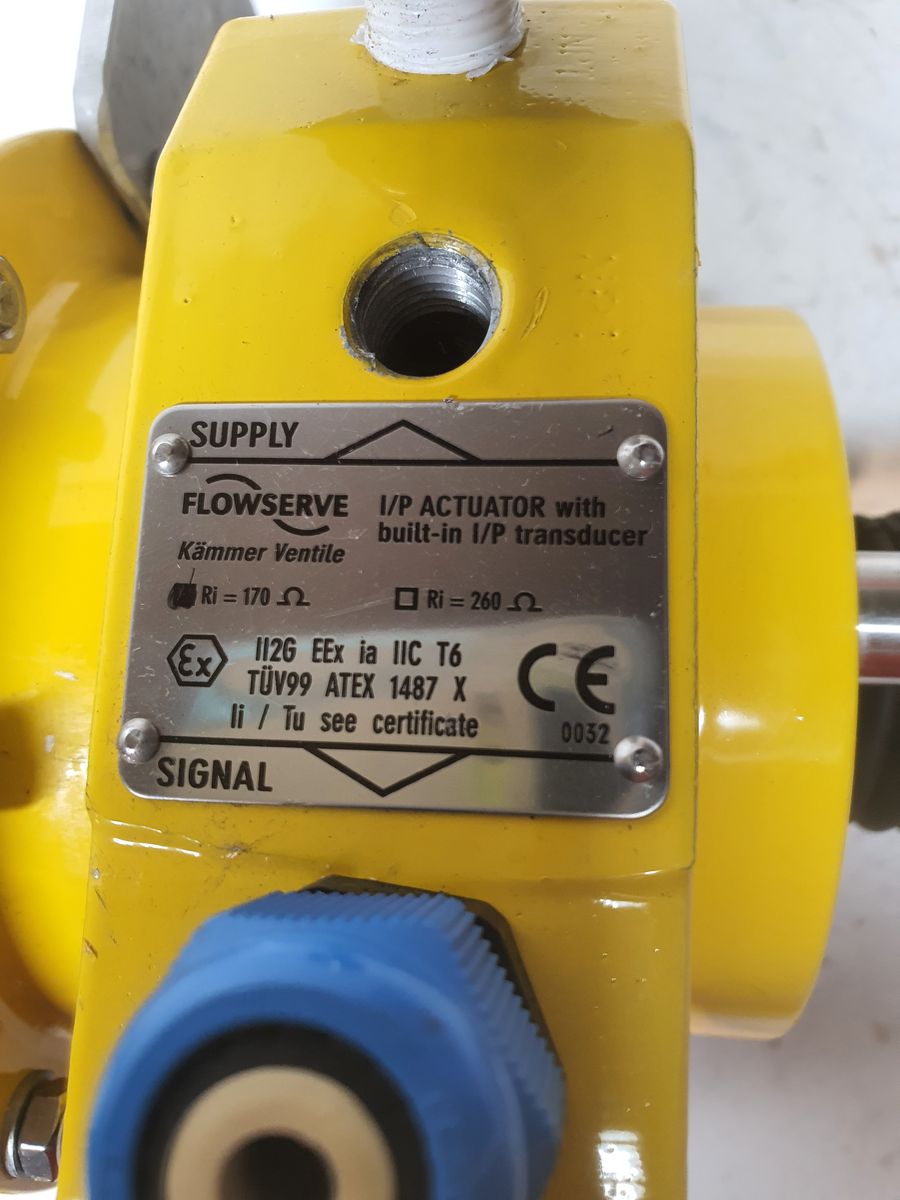

| Actuation Type | Electro-pneumatic (I/P positioner) |
| Supply Pressure | 2.4 bar |
| Spring Range | 1.0 – 2.2 bar |
| Flow Coefficient (Kv) | 0.0025 |
| Flow Characteristic | Linear / Micro-flow (very fine control) |
| Valve Plug Material | Alloy 6 (Stellite) |
| Seat Ring Material | 1.4122 (AISI 420 Stainless Steel) |
| Service Type | High-pressure, low-flow applications |
| Typical Applications | Chemical dosing, sampling, instrumentation |
| Status | Discontinued model |
×
![]()
