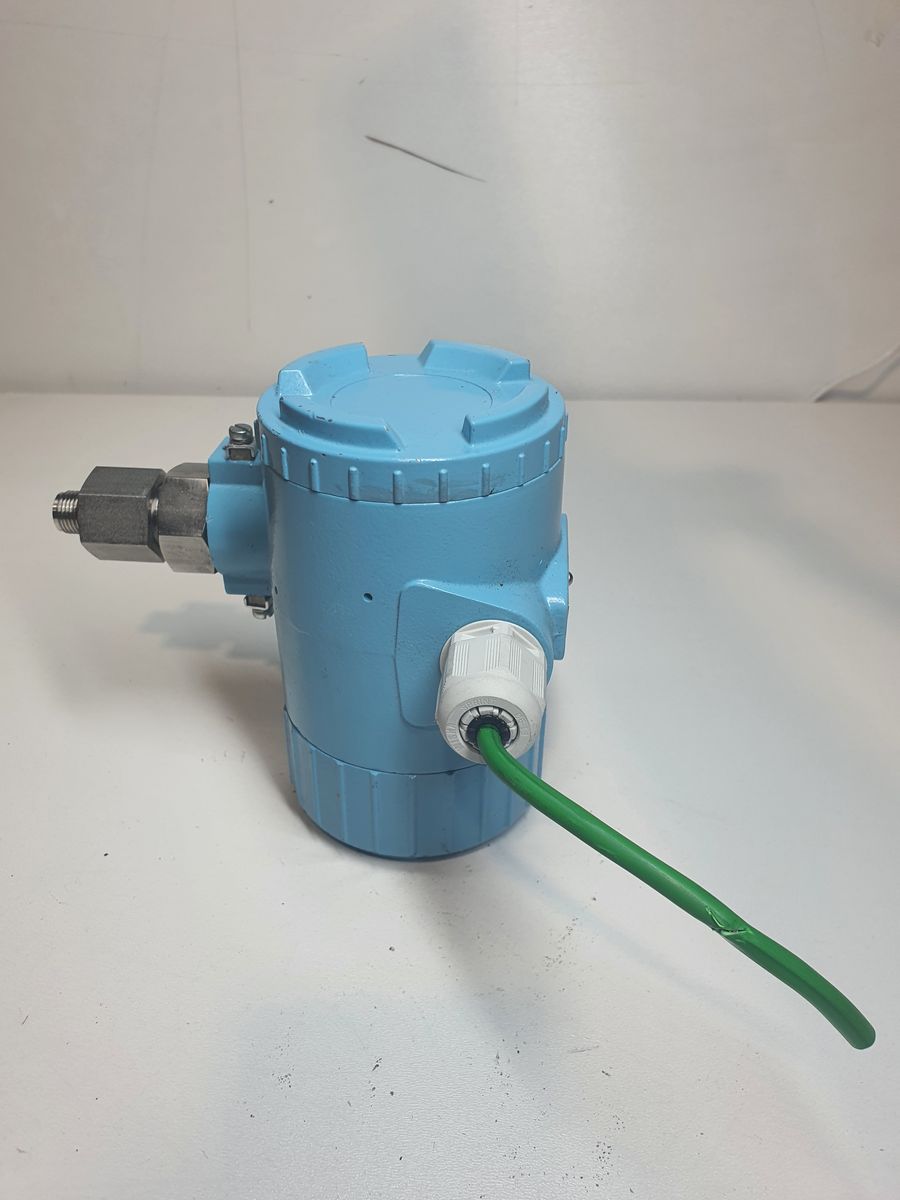

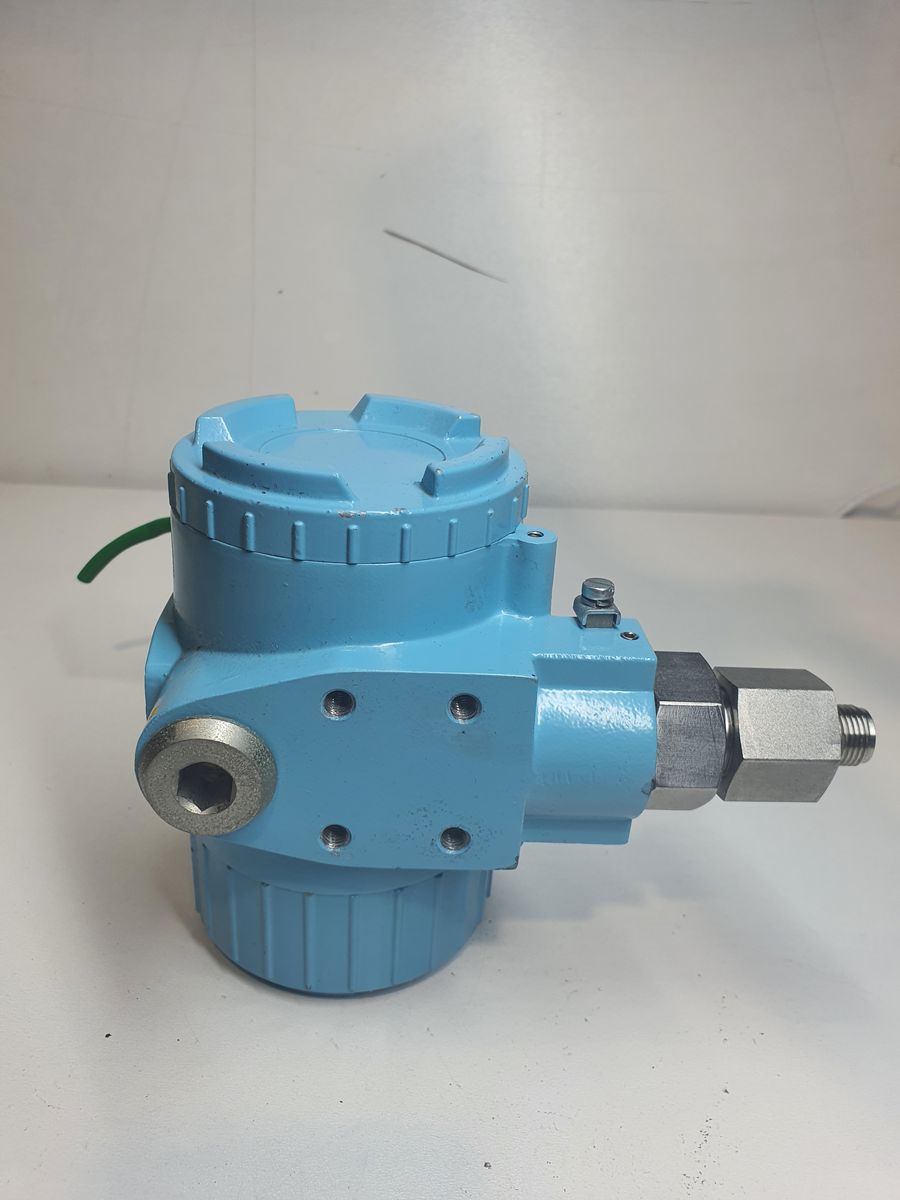

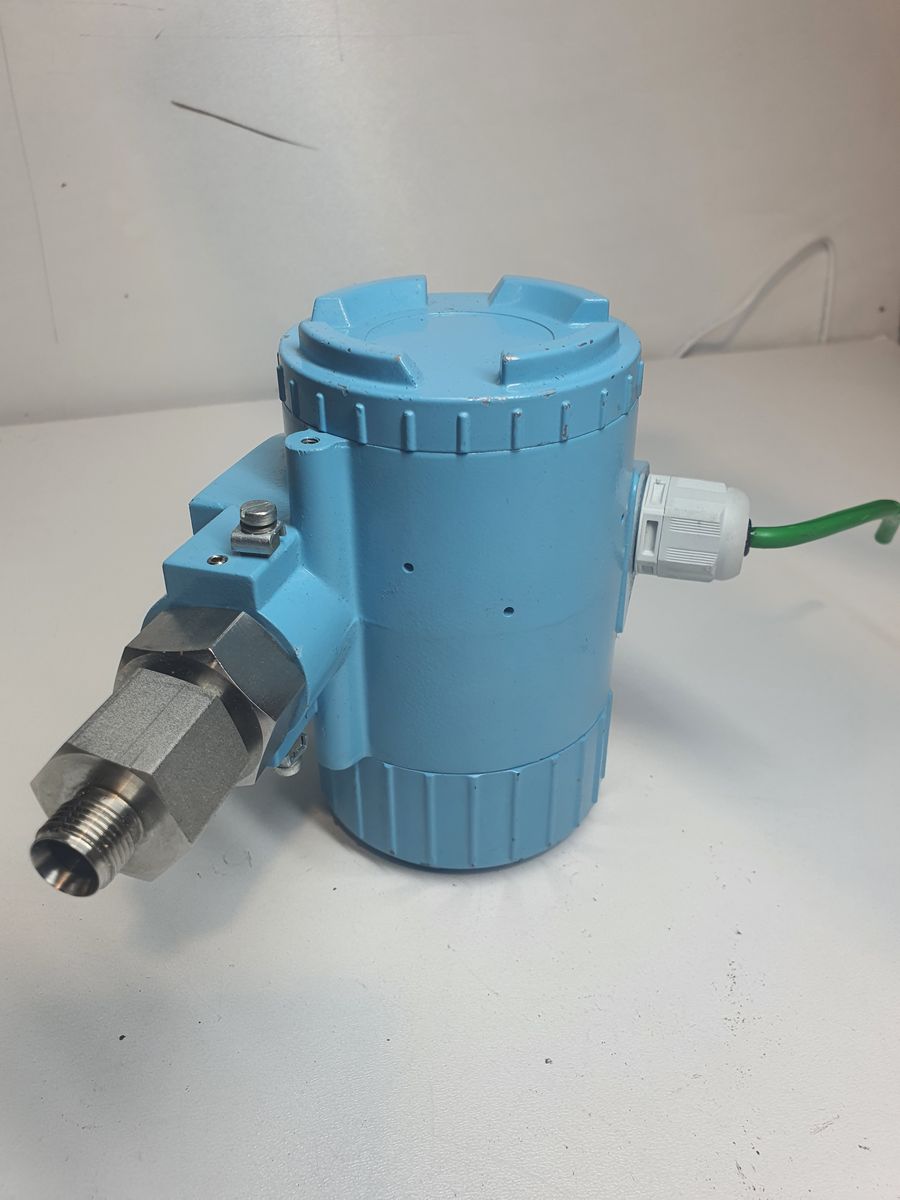

Druck RTX 1000A 13-G-3-M-0-0-LA Pressure Transmitter

Description:
The Druck RTX 1000A is a high-performance industrial pressure transmitter designed to measure liquid, gas, or vapor pressure and convert it into a stable 4–20 mA analog output signal. Originally manufactured by GE Druck (now part of Baker Hughes), the RTX 1000A is widely used in process control applications requiring accuracy, durability, and flexibility. This model features user-rangeable capability, allowing the output span to be configured within a defined turndown ratio of its upper range limit using internal pushbuttons.

Key Features:
- Versatile pressure measurement for liquids, gases, and vapors
- User-rangeable output via internal pushbuttons
- High accuracy performance (up to ±0.15% of span)
- Two-wire 4–20 mA output, suitable for long cable runs
- Robust wetted materials for broad media compatibility
- Compact and rugged housing for industrial environments
- Manufactured by GE Druck / Baker Hughes, a trusted name in pressure instrumentation

Specifications:
- General

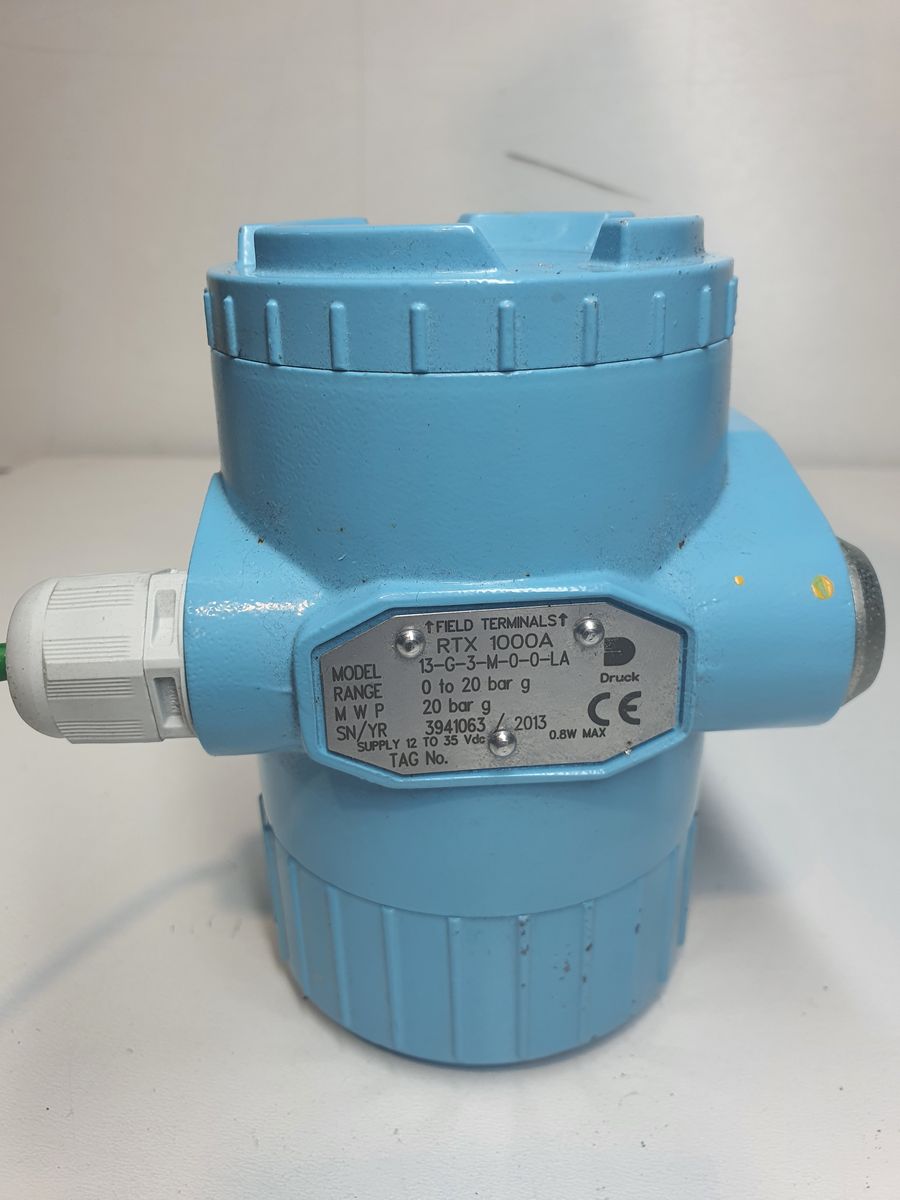

Manufacturer: GE Druck (Baker Hughes)
Model: RTX 1000A
Pressure Type: Gauge pressure
Manufacture Year: 2013 (Serial No.: 3941063 / 2013)
- Pressure
Pressure Range: 0 to 20 bar g
Maximum Working Pressure (MWP): 20 bar g
- Electrical
Supply Voltage: 12 to 35 Vdc
Output Signal: 4–20 mA (2-wire loop powered)
- Performance
Accuracy: ±0.15% of span (Model “A” accuracy class)
- Materials
Diaphragm: Hastelloy® C276
Pressure Port: 316L Stainless Steel
Housing: Low-copper aluminum alloy with epoxy paint coating
- Configuration
Rangeability: User-configurable 4–20 mA output span within a defined ratio of the upper range limit using internal pushbuttons

Typical Applications
Industrial process pressure monitoring
Oil and gas systems
Chemical and petrochemical processing
Water and wastewater treatment
Power generation and utilities
General factory automation and control panels
