Debietmeter

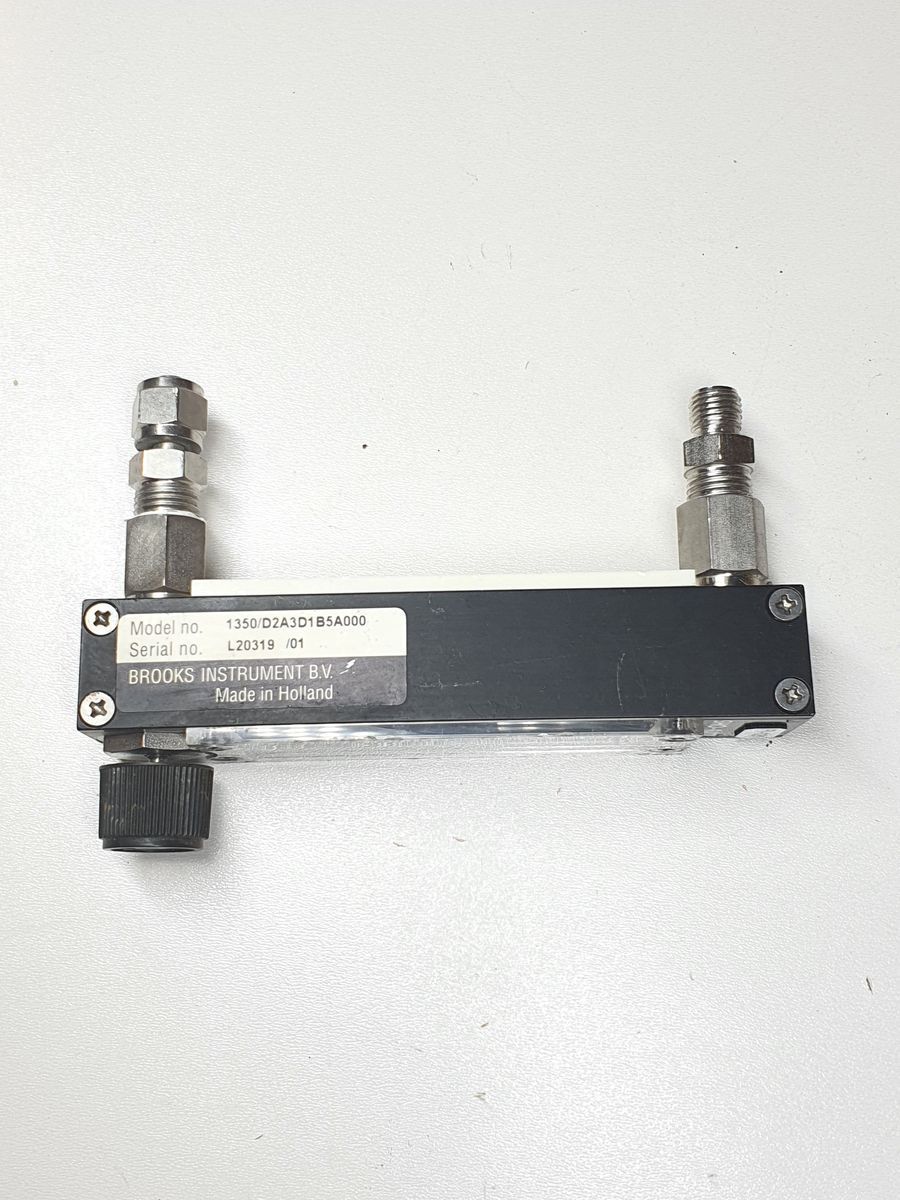

Brooks Instrument 1350/D2A3D1B5A000 (2-12 ln/h)

SKU: 3010

Niet op voorraad

Prijs op aanvraag

Wij zijn geen geautoriseerde distributeur, vertegenwoordiger of partner van enig fabrikant of merk dat op deze website wordt vermeld

Beschrijving

Brooks Sho-Rate™ Flowmeter

Manufacturer: Brooks Instrument
Product Family: Sho-Rate™
Model:1350/D2A3D1B5A00
Product Type: Variable Area Flowmeter (Rotameter) with Needle Valve
Tube Identification: Brooks Tube 6-65

Feature	Value / Meaning
Model	1350/D2A3D1B5A000
Flow Type	Variable-area (rotameter), direct reading
Measured Medium	Nitrogen (N₂)
Flow Range	2–12 ln/h N₂ at 50 °C
Accuracy	±5 % of full scale
Repeatability	Excellent, stable measurements
Operating Temperature (Calibration)	50 °C
Inlet Pressure (Pe)	1.013 bar (standard)
Indication	Float position in glass tube
Installation	Vertical mounting
Connections	1/8″ or 1/4″ NPT (depends on model)
Mounting	Panel mount, optional rear or side connections
