Circuitonderbrekers

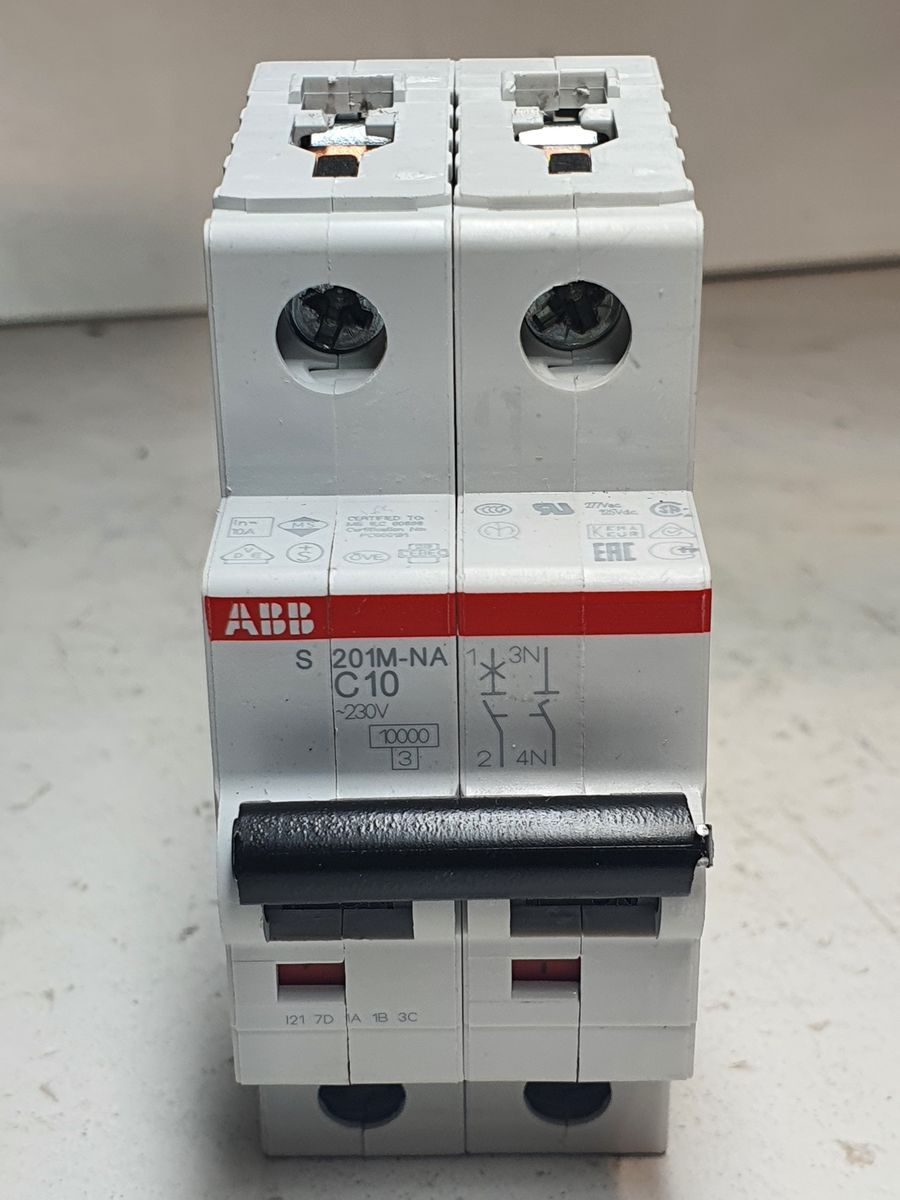

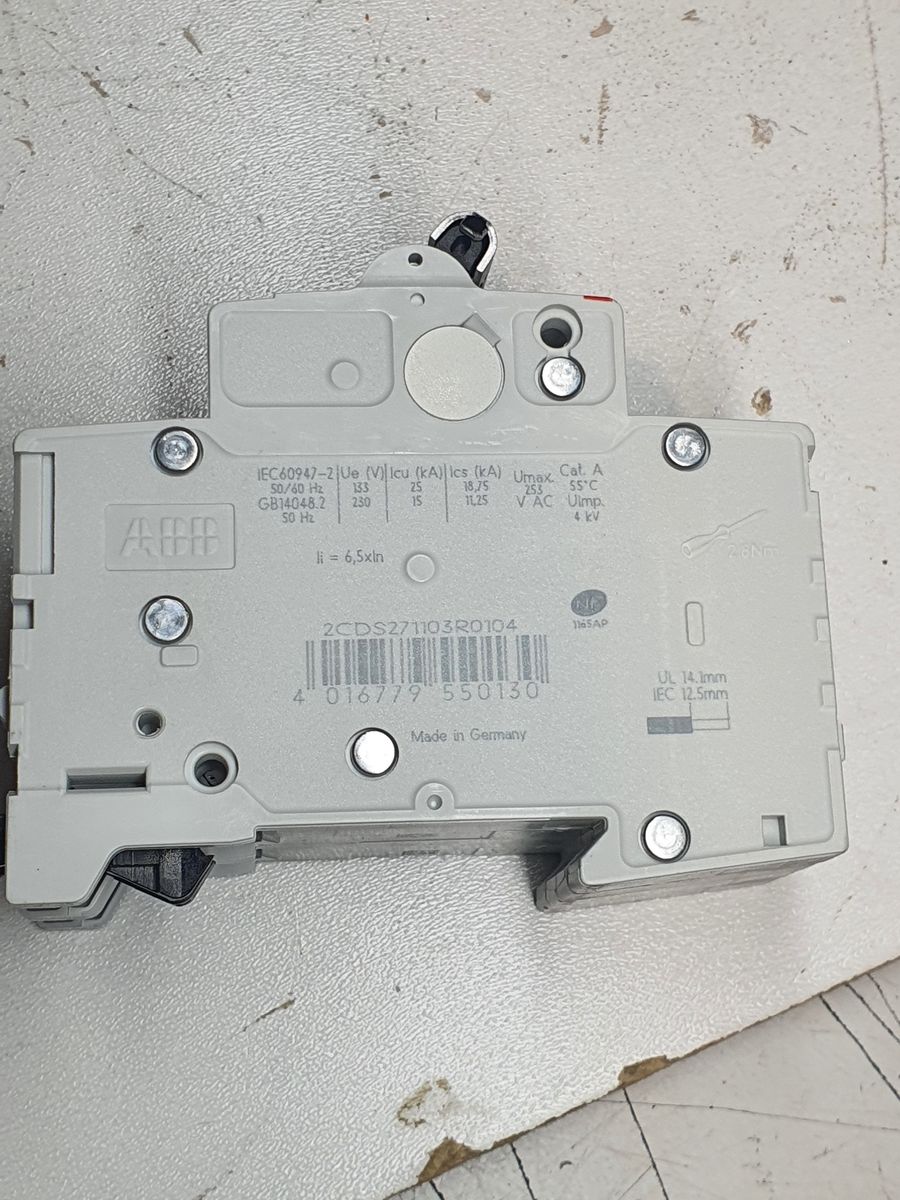

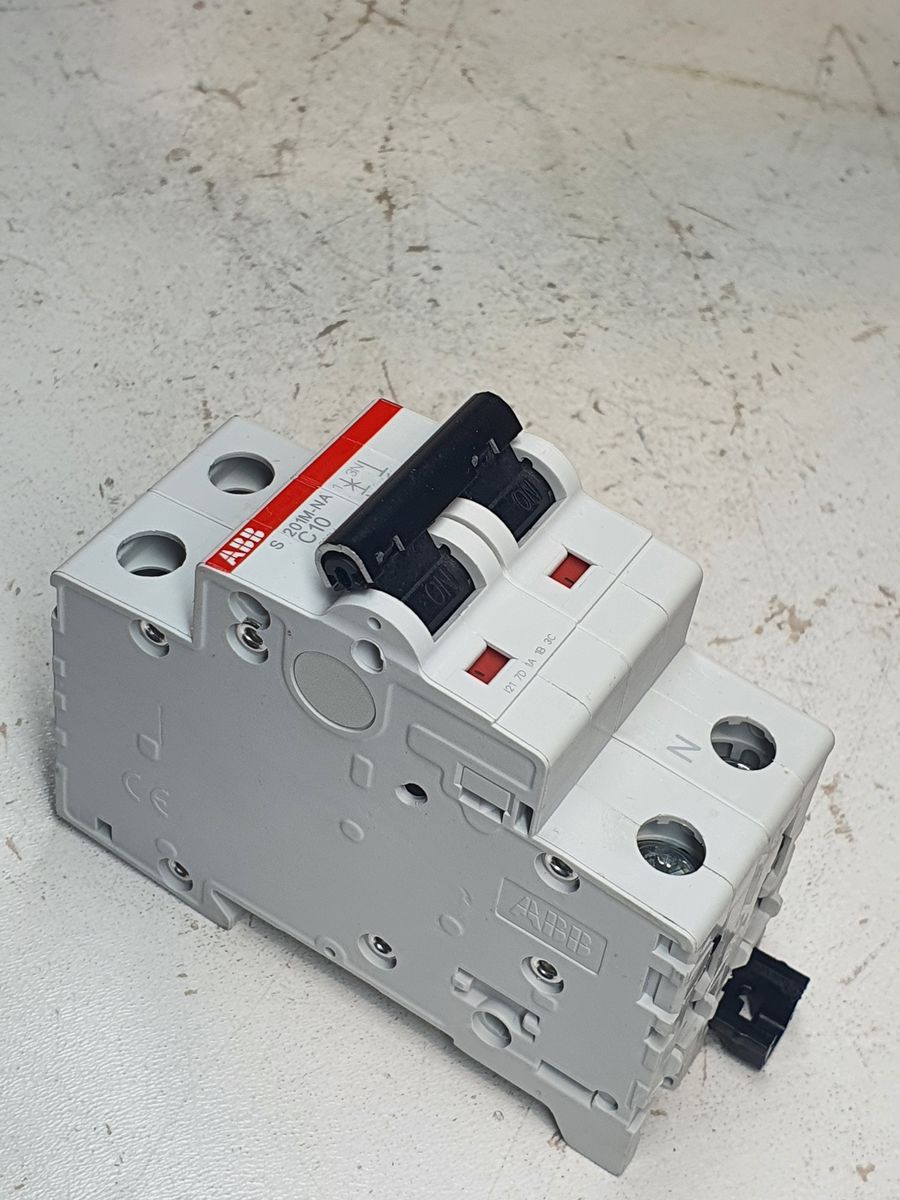

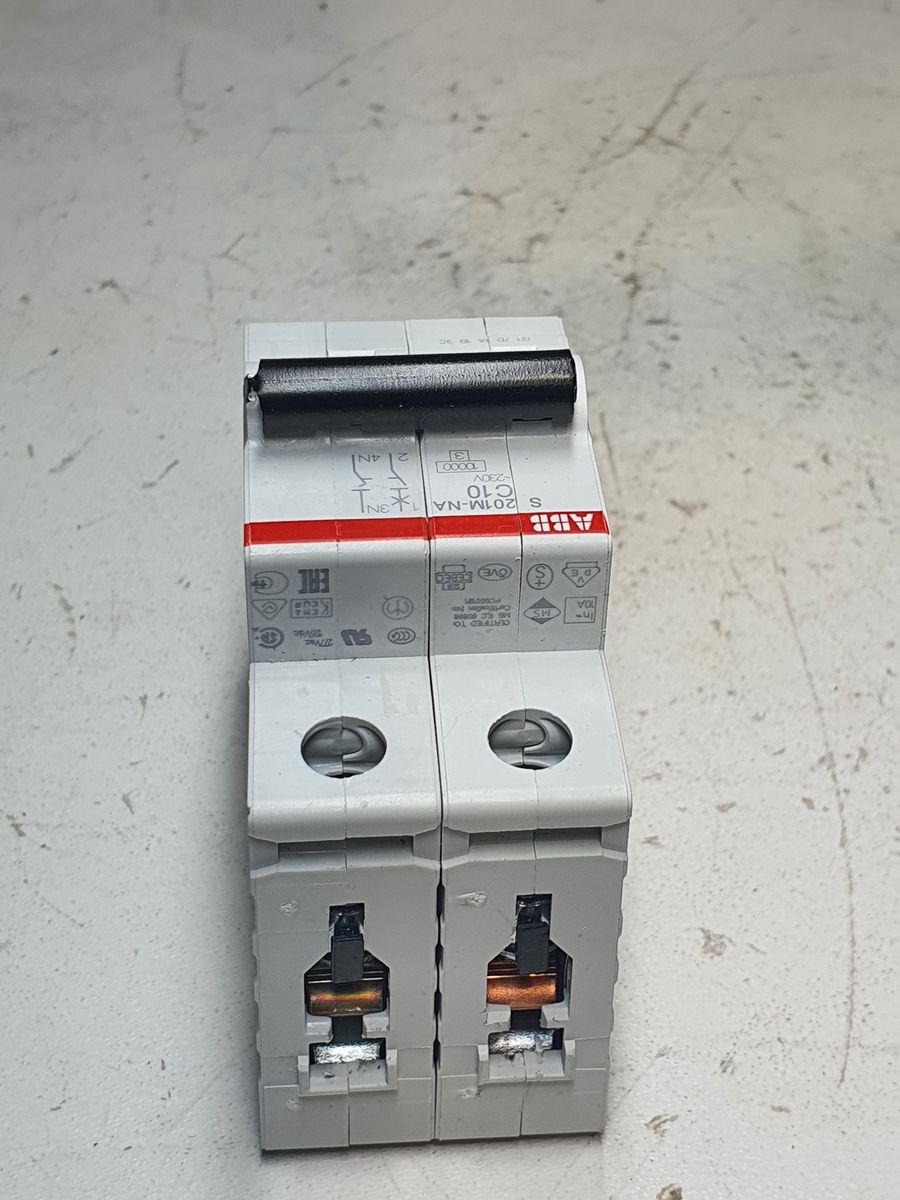

ABB S201M-NA C10

SKU: 7030

Op voorraad

Selecteer Conditie

Gebruikt
Werkend gedemonteerd

Excl. BTW: €7,00 (1 beschikbaar)

Incl. BTW: €8,47

Prijzen zijn exclusief BTW. Neem contact met ons op voor groothandel prijzen of aangepaste configuraties.

Warranty Information

Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

Garantieperiodes per Conditie

Nieuw 12 maanden

Gereviseerd 6 maanden

Gebruikt 3 maanden

Wij zijn geen geautoriseerde distributeur, vertegenwoordiger of partner van enig fabrikant of merk dat op deze website wordt vermeld

Beschrijving

Miniature Circuit Breaker - S200M - 1P+N - 10 A - C - (AC) 10 kA
Model S201M-NA C10
Brand ABB

Specifications:

Parameter	Specification
Rated Current (In)	10 A
Input Voltage Type	AC
Frequency	50 Hz
Rated Frequency	50 / 60 Hz
Dielectric Test Voltage	2 kV (50 / 60 Hz, 1 min)
Rated Impulse Withstand Voltage (Uimp)	4 kV
Uimp at 2000 m	5 kV
Uimp at Sea Level	6.2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	25 kA @ 133 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)	18.8 kA @ 133 V AC
	7.5 kA @ 230 V AC
Rated Short-Circuit Capacity	10 kA (AC)
	6 kA @ 230 V AC
Rated Conditional Short-Circuit Current (Inc)	15 kA @ 230 V
Energy Limiting Class	Class 3
Electrical Endurance	20,000 AC cycles
Mechanical Endurance	20,000 cycles
Number of Poles	1P + N
Number of Protected Poles	1
Neutral Terminal Position	Right
Contact Position Indicator	Red ON / Green OFF
Power Supply Connection	Arbitrary
Terminal Type	Screw terminals
Screw Terminal Type	Failsafe bi-directional cylinder-lift
Tightening Torque	2.8 N·m
Actuator Type	Toggle
Actuator Marking	I / O
Actuator Material	Insulation Group II, black, sealable
Recommended Screwdriver	Pozidriv 2
Accessories Available	Yes
Connecting Capacity – Busbar	10 / 10 mm²
Connecting Capacity – Flexible (with ferrule)	0.75 … 25 mm²
Connecting Capacity – Flexible	0.75 … 25 mm²
Connecting Capacity – Rigid	0.75 … 35 mm²
Connecting Capacity – Stranded	0.75 … 35 mm²
Installation Size	According to DIN 43880-1
Power Loss	4.2 W
Power Loss per Pole	2.1 W
Ambient Temperature (Operation)	−25 … +55 °C
Ambient Temperature (Storage)	−40 … +70 °C
Reference Ambient Temperature	30 °C
Product Net Width	35 mm
Product Net Height	88 mm
Product Net Depth / Length	69 mm
Built-In Depth (t2)	69 mm
Product Net Weight	0.217 kg
Pole Net Weight	0.125 kg
