Circuitonderbrekers
ABB S201M-NA B16
SKU: 7016
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

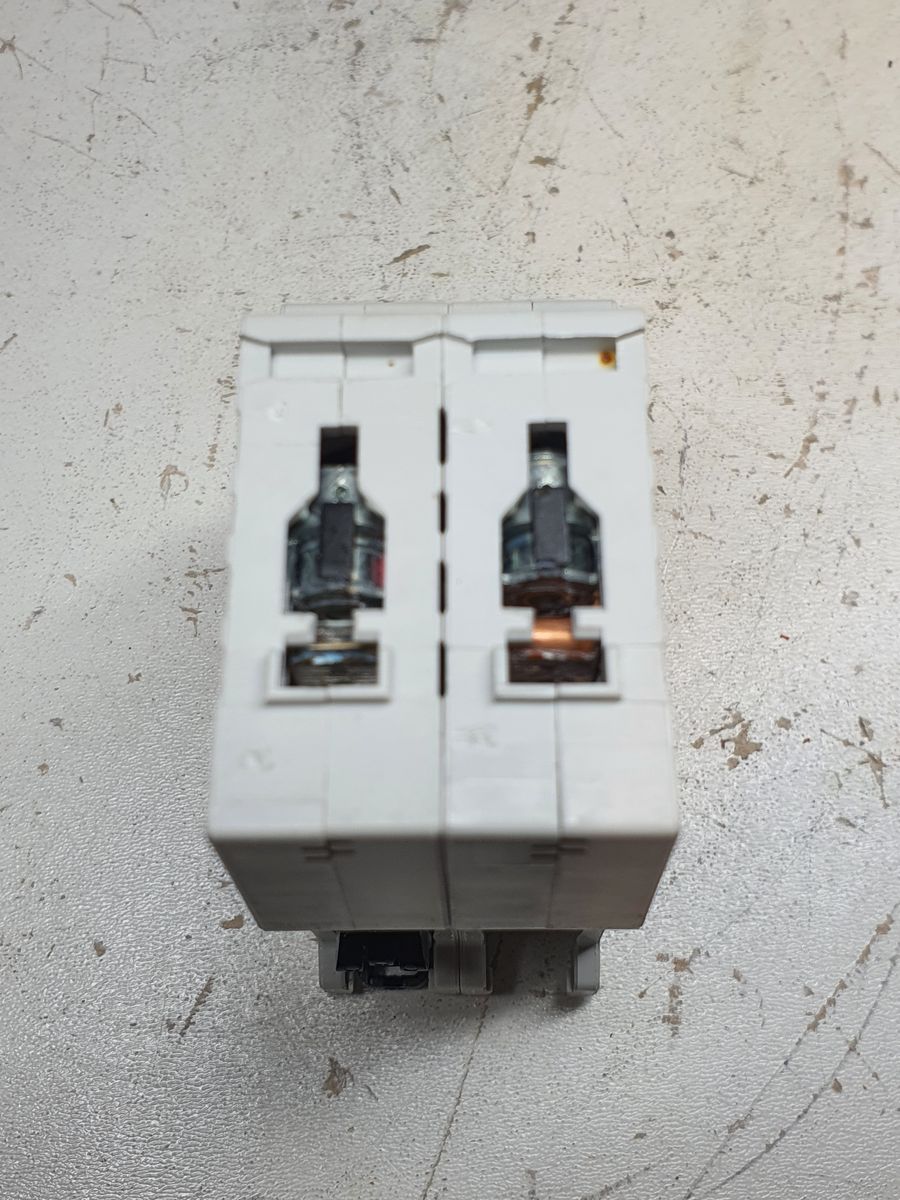

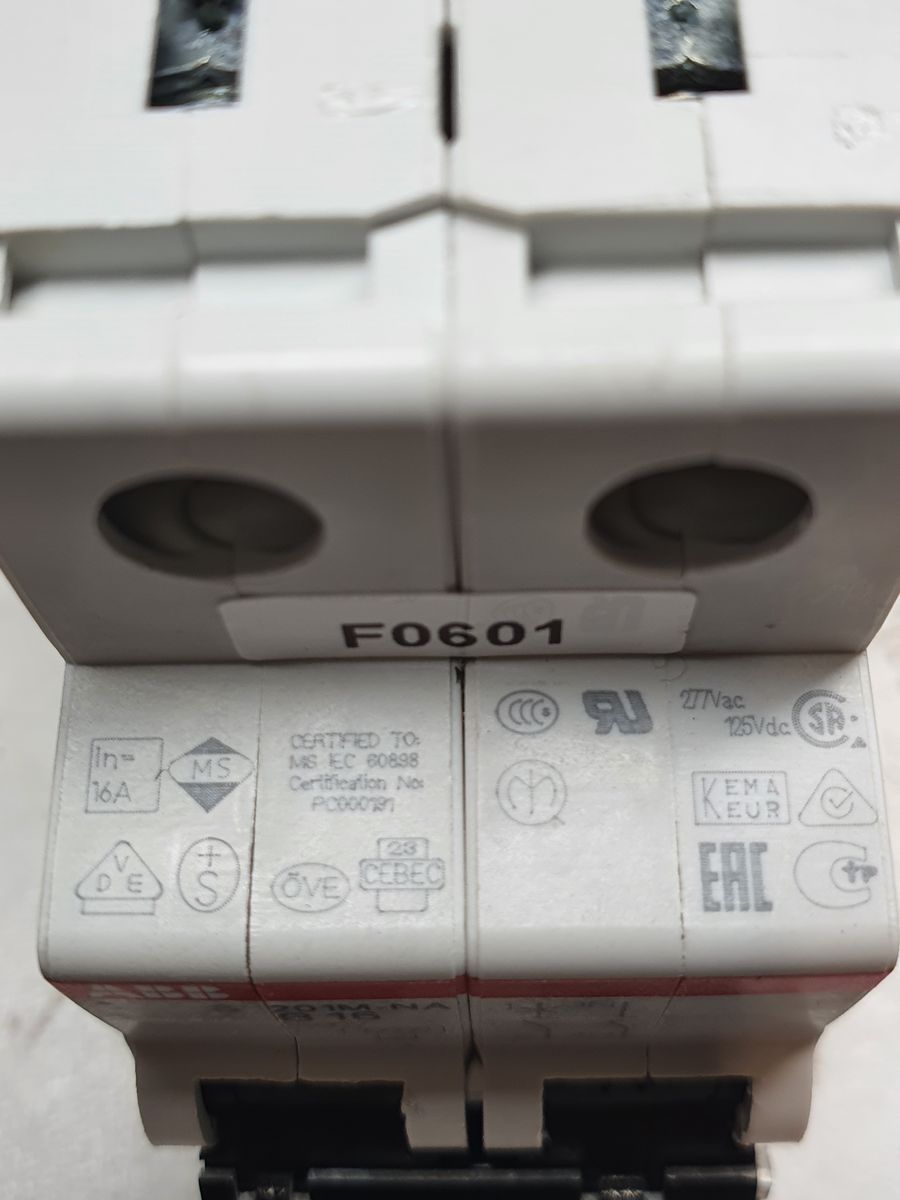

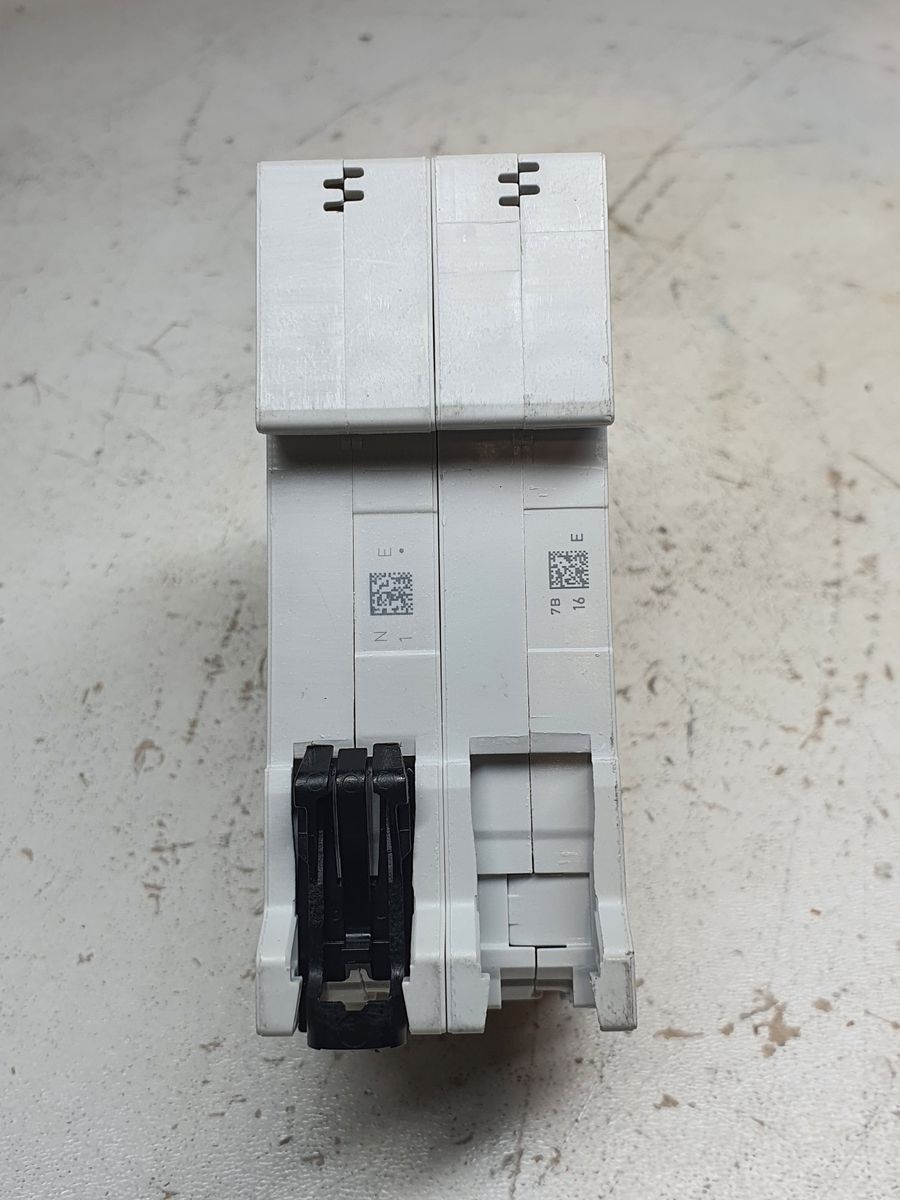

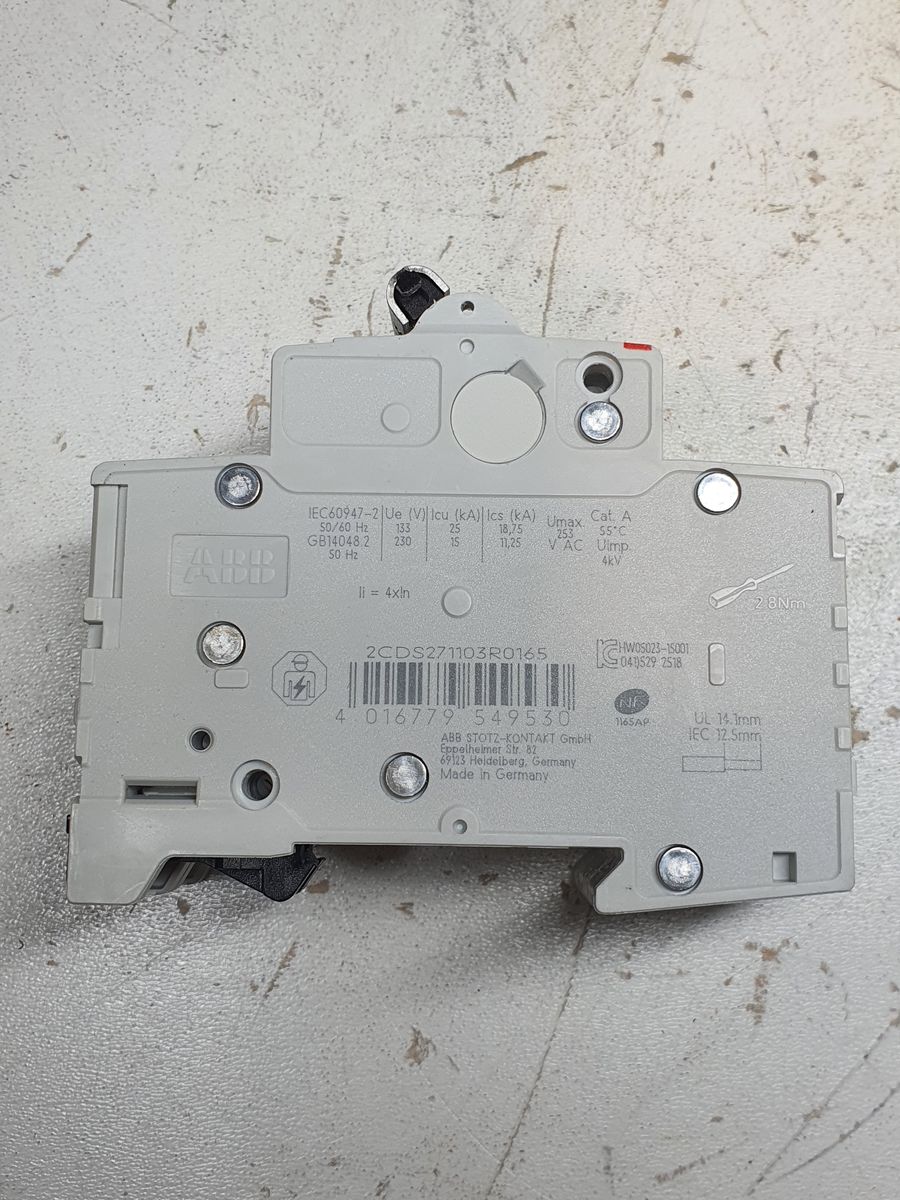

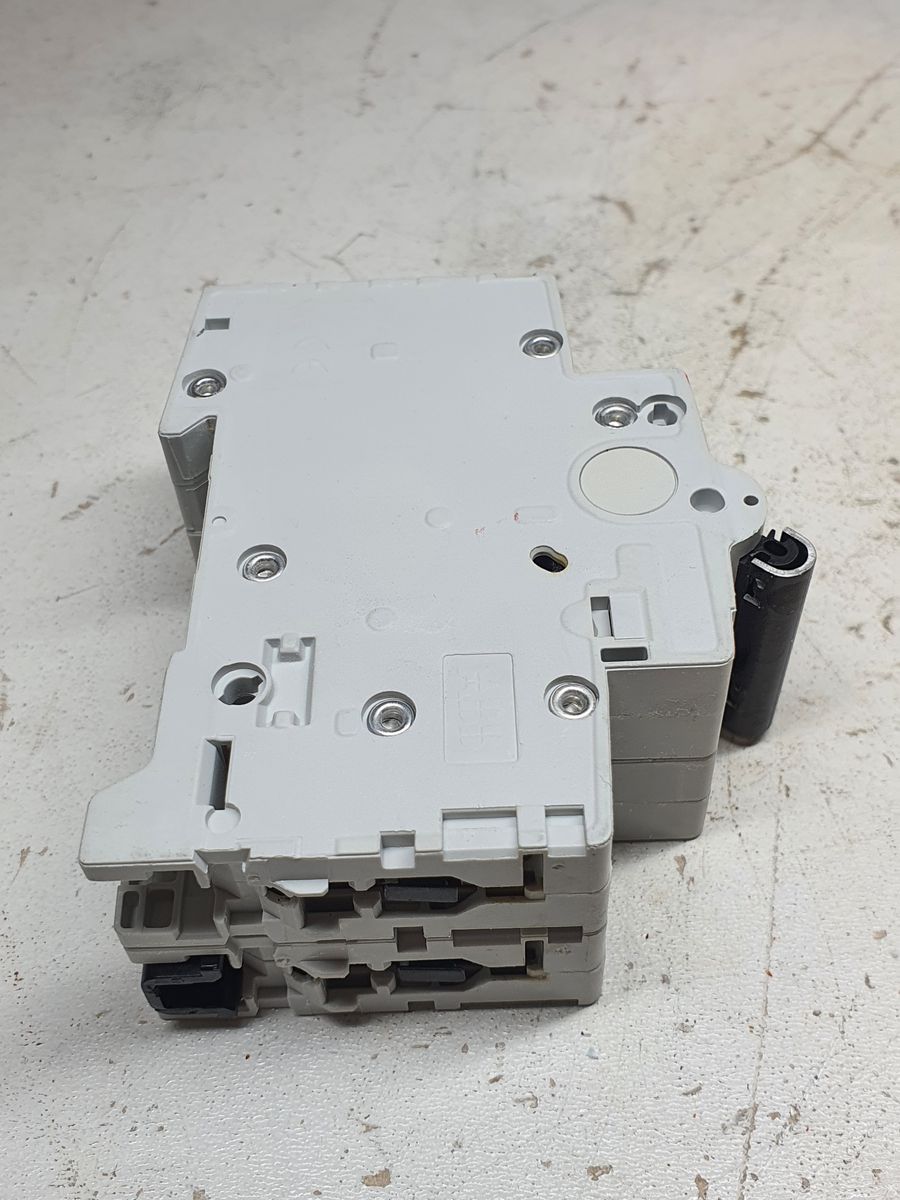

ABB S201M-NA B16 - No Serial
Specifications – S201M-NA B16
| Parameter | Specification |
|---|---|
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (133 V AC) 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (133 V AC) 18.8 kA (230 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Short-Circuit Capacity | (AC) 10 kA (230 V AC) 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 15 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.22 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
×
![]()
