Circuitonderbrekers

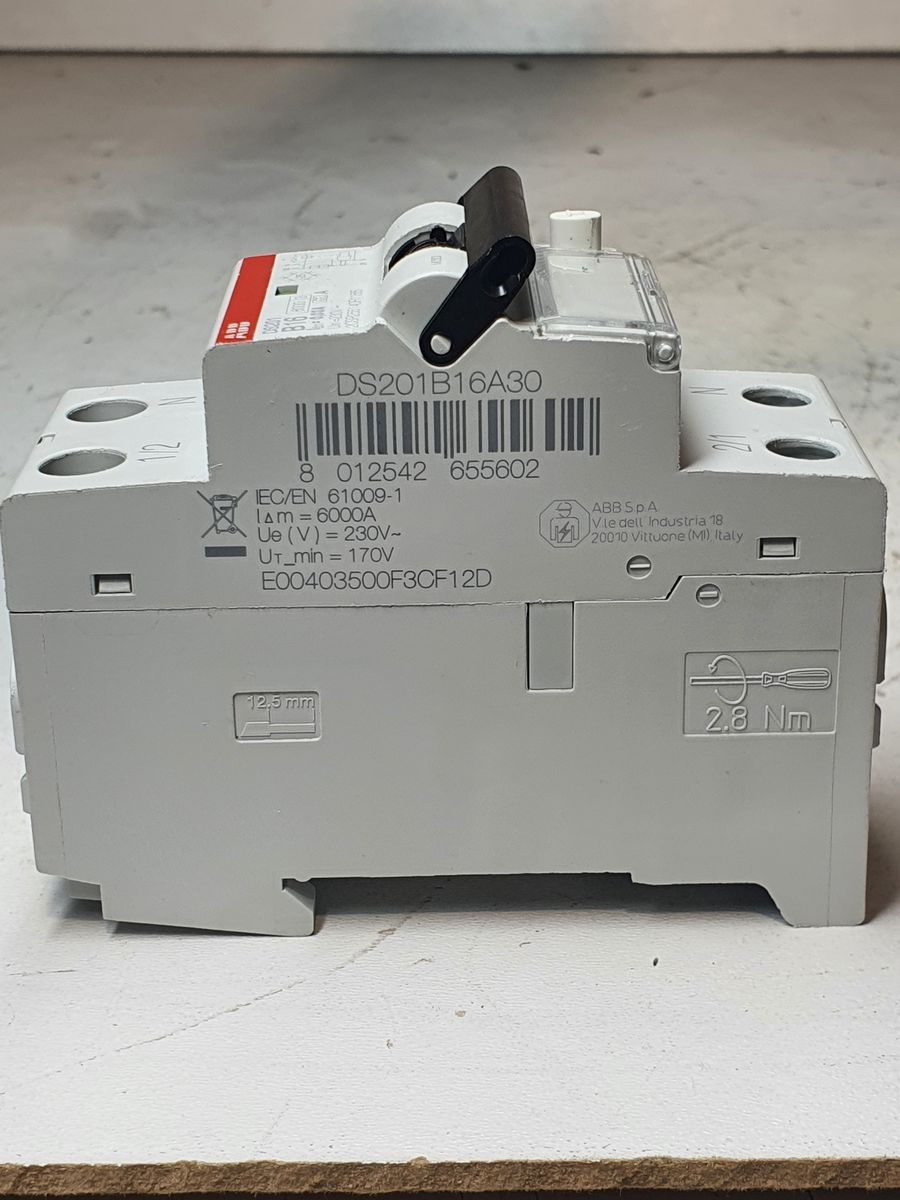

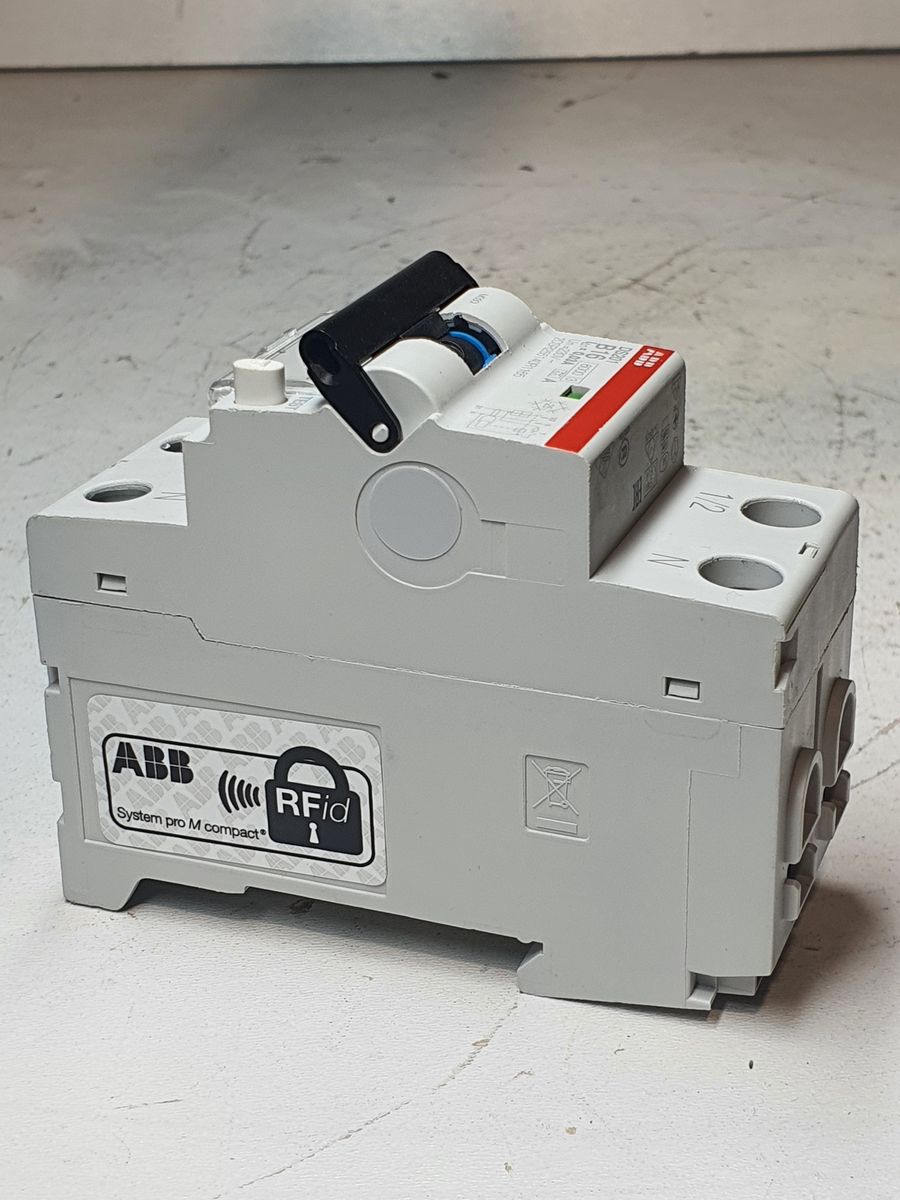

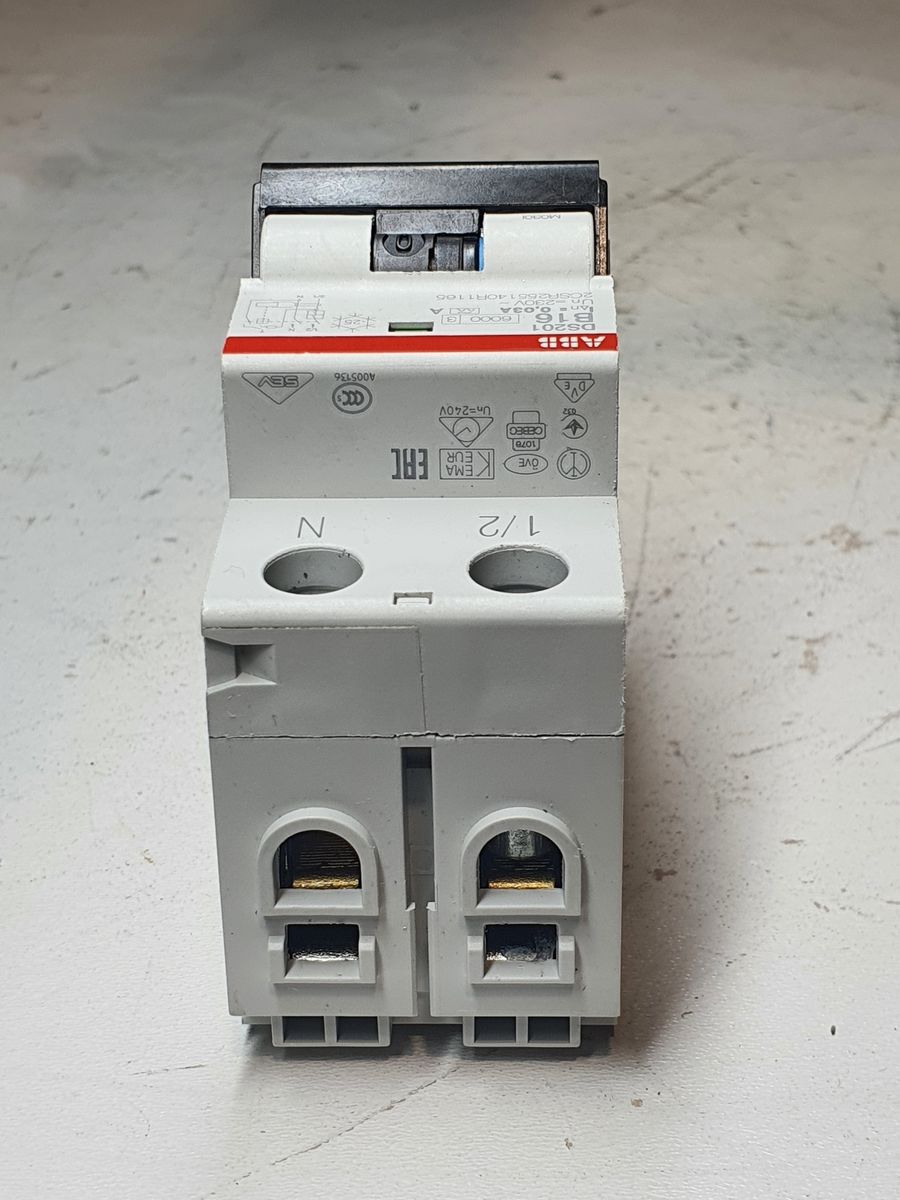

ABB DS201 B16 A30
SKU: 7032
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.
Residual Current Circuit Breaker with Overcurrent Protection DS201 - 1P+N - 30 mA - 16 A - B - Type A
Model DS201 B16 A30
Brand ABB
Specification:
| Parameter | Specification |
|---|---|
| Device Type | RCBO (Residual Current Circuit Breaker with Overcurrent Protection) |
| Residual Current Type | Type A |
| Rated Current (In) | 16 A |
| Rated Residual Current | 30 mA |
| Input Voltage Type | AC |
| Nominal Frequency | 50 / 60 Hz |
| Test Voltage (Ut) | 170 – 264 V |
| Dielectric Test Voltage | 2 kV |
| Rated Ultimate Short-Circuit Capacity (Icu) | 10 kA |
| Rated Service Short-Circuit Capacity (Ics) | 7.5 kA |
| Nominal Short-Circuit Capacity | 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Residual Breaking Capacity (IΔm) | 6000 A (EN/IEC 61009-1) |
| Energy Limiting Class | Class 3 |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Operating Characteristic | Instantaneous |
| Earth Fault Type | Undelayed |
| Number of Poles | 1P + N |
| Number of Protected Poles | 1 |
| Width in Modular Units | 2 |
| Number of Module Units (DIN Rail) | 2 |
| Neutral Terminal Position | Right |
| Status Indicator | Red ON / Green OFF |
| Fault Indication | Blue flag on toggle |
| Power Connection | Arbitrary |
| Terminal Type | Screw |
| Screw Clamp Type | Failsafe bi-directional cylinder-lift |
| Tightening Torque | 2.8 N·m |
| Cable Strip Length | 12 mm |
| Connection Capacity – Busbar | 10 … 10 mm² |
| Connection Capacity – Stranded | 0.75 … 25 mm² |
| Connection Capacity – Flexible | 0.75 … 16 mm² |
| Connection Capacity – Flexible with Ferrule | 0.75 … 16 mm² |
| Nominal Cross Section – Solid | 0.75 … 25 mm² |
| Nominal Cross Section – Multi-wire | 0.75 … 16 mm² |
| Actuator Type | Toggle – Insulation Group II, Black RAL 9005, sealable ON/OFF |
| Housing Type | Insulation Group I–II, RAL 7035 |
| Available Accessories | Auxiliary contact, signal contact, shunt trip, bottom auxiliary contact, overvoltage release, motor operating device |
| Number of Batteries | 0 |
| Power Loss (Average per Pole) | 2.3 W |
| Power Loss – Phase Pole | 3.4 W |
| Power Loss – Neutral Pole | 1.2 W |
| Total Power Loss | 4.5 W |
| Ambient Temperature (Operation) | −25 … +55 °C |
| Reference Ambient Temperature | 30 °C |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth | 69 mm |
| Installation Depth (t2) | 69 mm |
| Product Net Weight | 200 g |
×
![]()
