Flow Meter
1350/D2F1D1A6H020 (50-200 bar)
SKU: 3013
In Stock
24/7 DELIVERY POSSIBLE
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

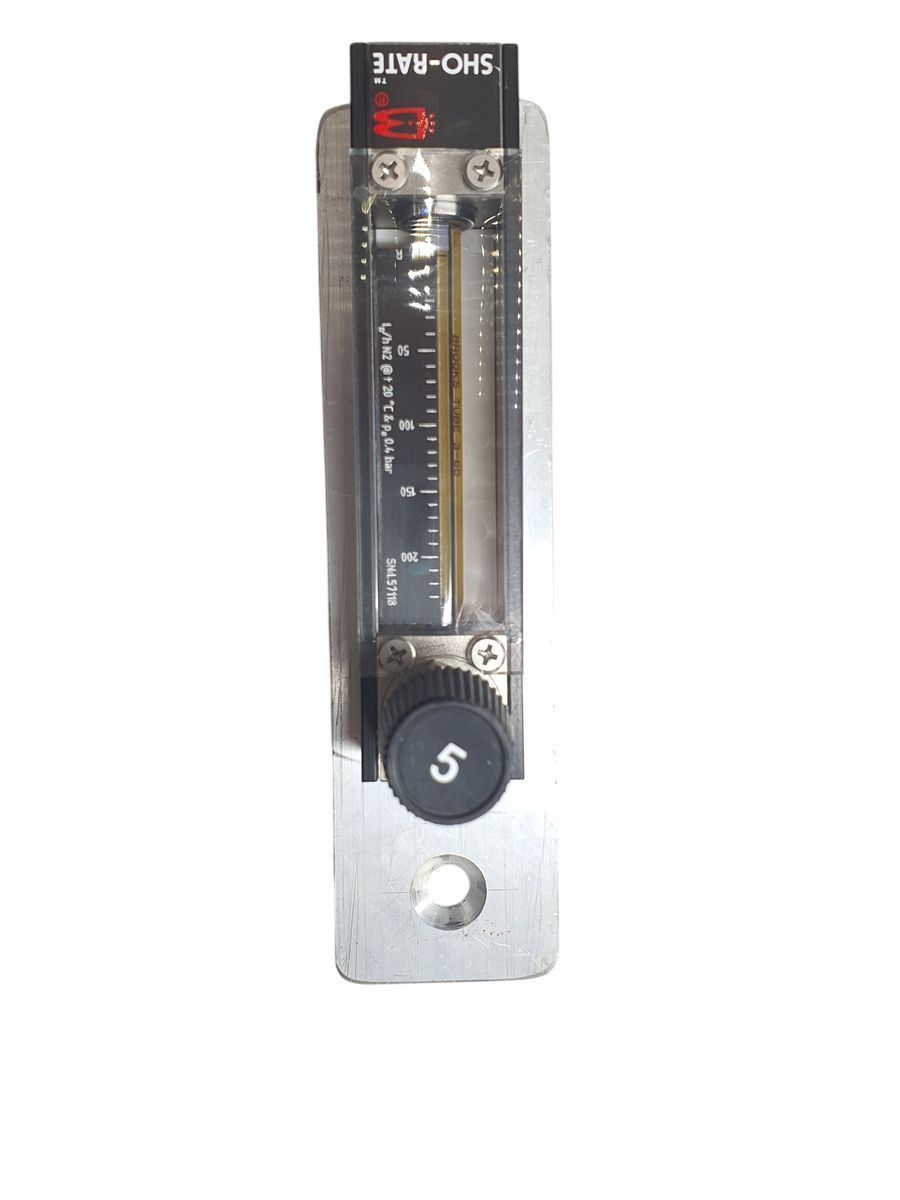

Brooks Sho-Rate™ 1350 Flow meter
Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

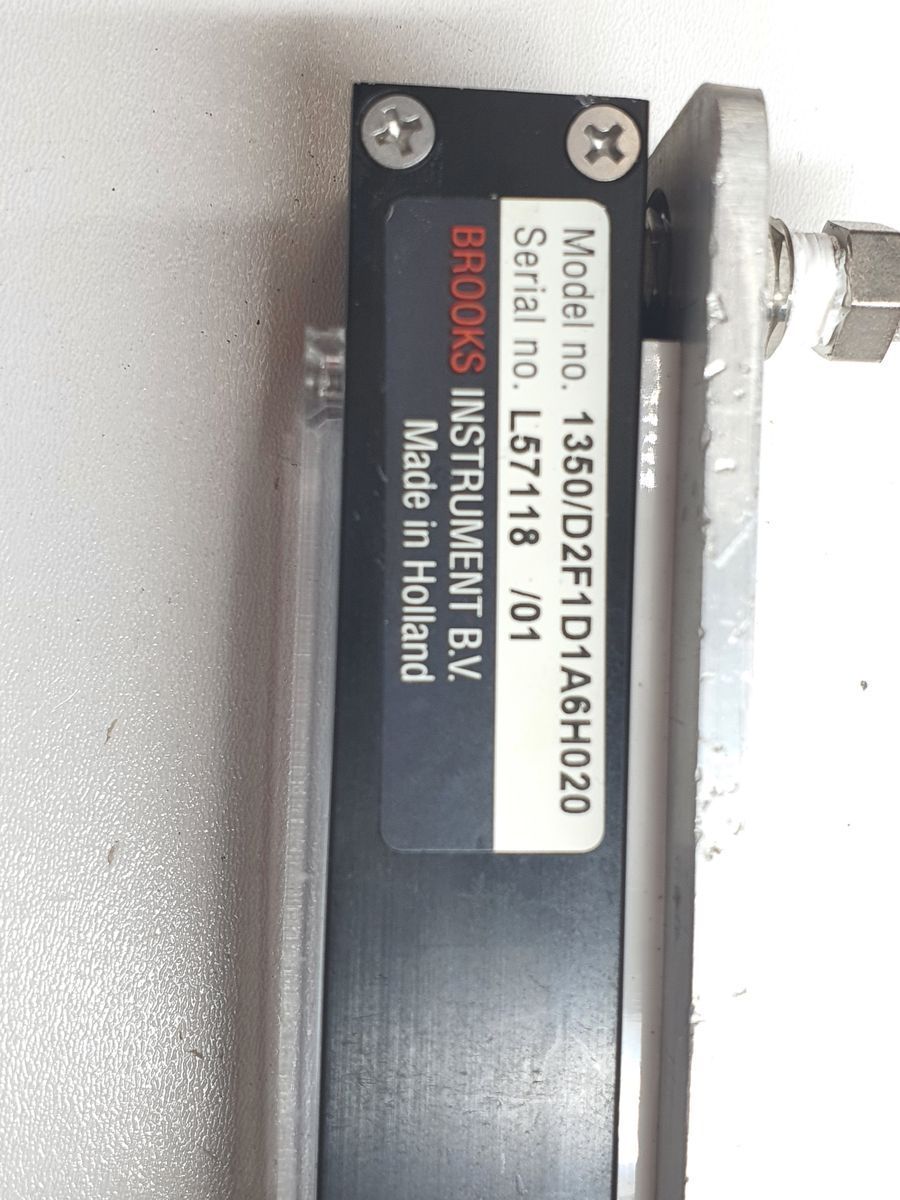

Model: 1350/D2F1D1A6H020
Product Type: Variable Area Flowmeter (Rotameter)
| Parameter | Specification |
|---|---|
| Measurement principle | Float position (variable area) |
| Indication | Direct visual indication |
| Measured medium | Nitrogen (N₂) |
| Flow range | ln/h N₂ at 20 °C (per F1/D1 tube configuration) |
| Accuracy | Typically ±5% of full scale |
| Repeatability | Excellent repeatability (typically ±0.5% FS) |
| Calibration temperature | 20 °C |
| Operating temperature range | 1 °C to 121 °C |
| Inlet pressure (Pe) | 0.4 bar |
| Operating pressure range | 50–200 bar |
| Maximum allowable pressure | 200 bar |
| Metering tube material | Borosilicate glass |
| Float material | Stainless steel |
| Body / frame material | Aluminum |
| Seals | Viton® |
| Installation orientation | Vertical |
| Mounting | Panel mounting |
| Process connections | 1/8" or 1/4" NPT (model dependent) |
| Connection location | Rear or side |
| Country of manufacture | Netherlands |
| PED compliance | SEP (Sound Engineering Practice) |
×
![]()
