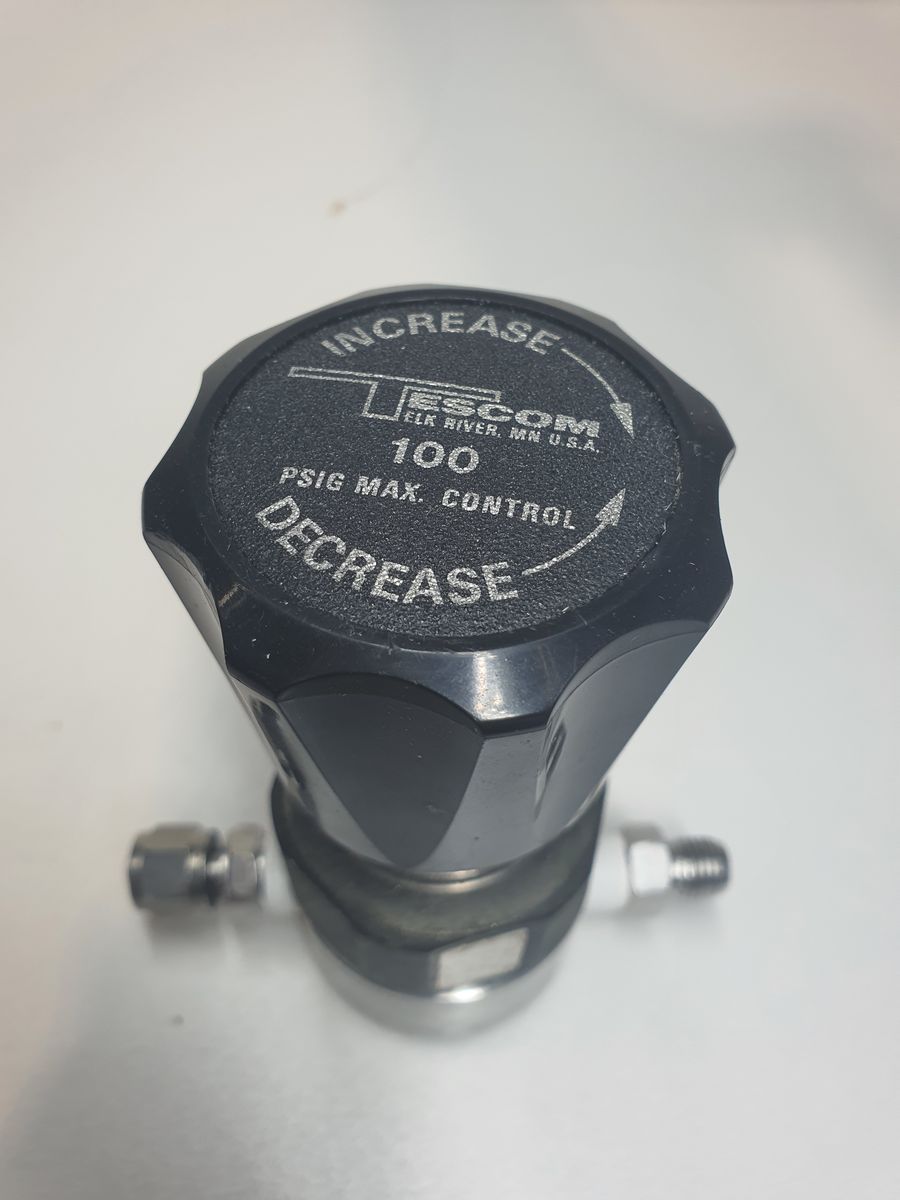

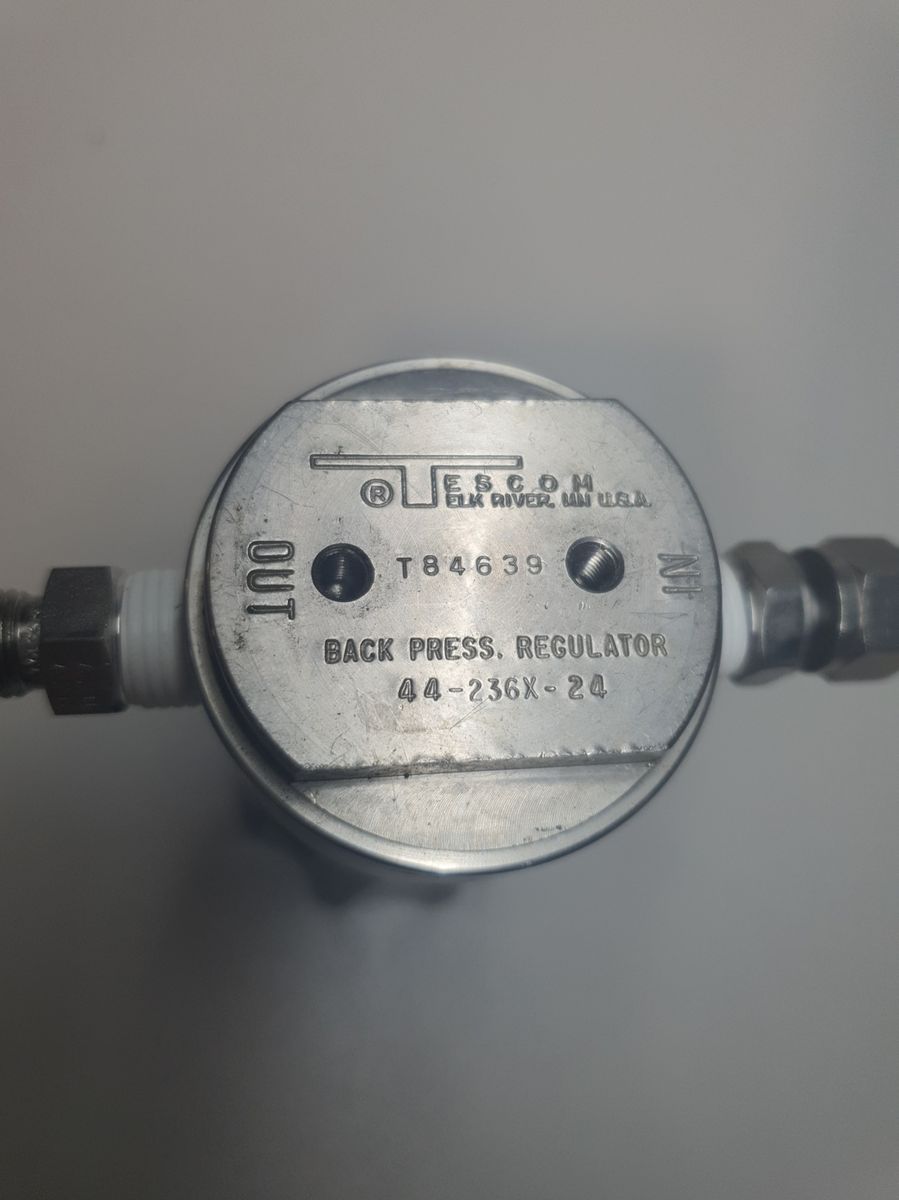

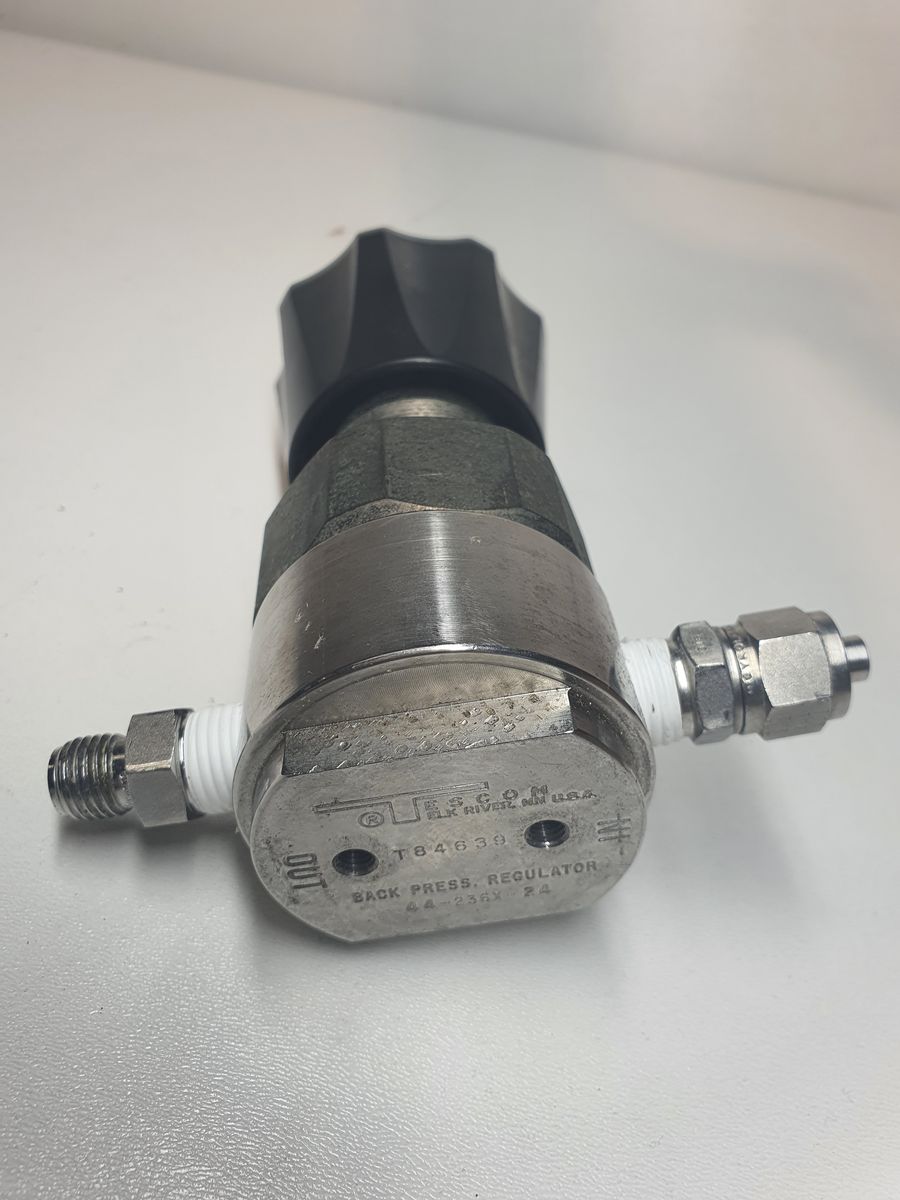

Tescom 44-236X-24 Back Pressure Regulator

Description:
The product is a single-stage backpressure regulator engineered to maintain stable upstream pressure in gas or fluid systems. Designed for industrial, analytical, and laboratory environments, this regulator uses a metal diaphragm sensing element to deliver accurate, repeatable backpressure control. Its compact and robust construction ensures long service life, while internal sealing and leakage control make it suitable for use with corrosive and non-corrosive media.

Key Features:
Designed for precise backpressure control in fluid and gas systems
Metal diaphragm sensing for high accuracy and stability
Maintains consistent upstream pressure with minimal drift
Low hysteresis and repeatability for sensitive applications
Compact, lightweight design for easy integration
Suitable for OEM, industrial automation, and analytical technology
Optional panel mounting and accessory configurations available

Specifications:
Brand: Tescom (Emerson)
Series: 44-2300 Single-Stage Backpressure Regulator
Model: 44-236X-24
Regulator Type: Single-stage backpressure regulator
Control Pressure Range: 0–100 psig (0–6.9 bar)
Flow Capacity (Cv): 0.08
Port Size & Type: 1/4″ NPTF inlet and outlet
Design Proof Pressure: 150 % of maximum rated pressure
Leakage Performance: Internal bubble-tight; external leak rate < 2 × 10⁻⁸ atm cc/sec He
Operating Temperature Range: −40 °F to +140 °F (−40 °C to +60 °C)
Body Material: 316 stainless steel
Bonnet Material: 316 stainless steel
Seat Material: CTFE / PCTFE
Diaphragm Material: 316 stainless steel or Elgiloy®
Weight: Approx. 2 lb (0.9 kg)

Typical Applications:
Analytical instrumentation requiring stable gas pressure
Gas sampling and delivery systems
Pilot plants and small process control loops
OEM process equipment and automation systems
Laboratory gas distribution and control panels
Research and development setups needing precise backpressure regulation
