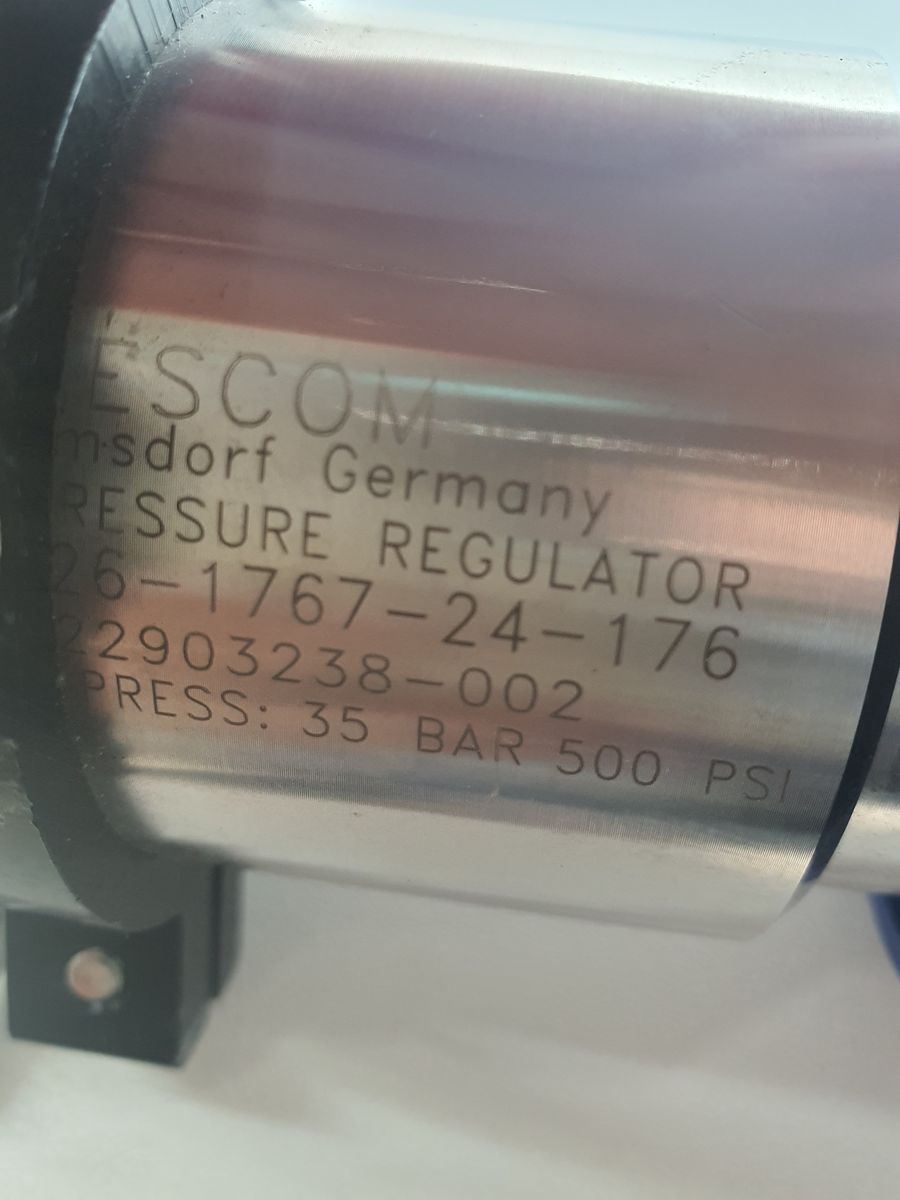

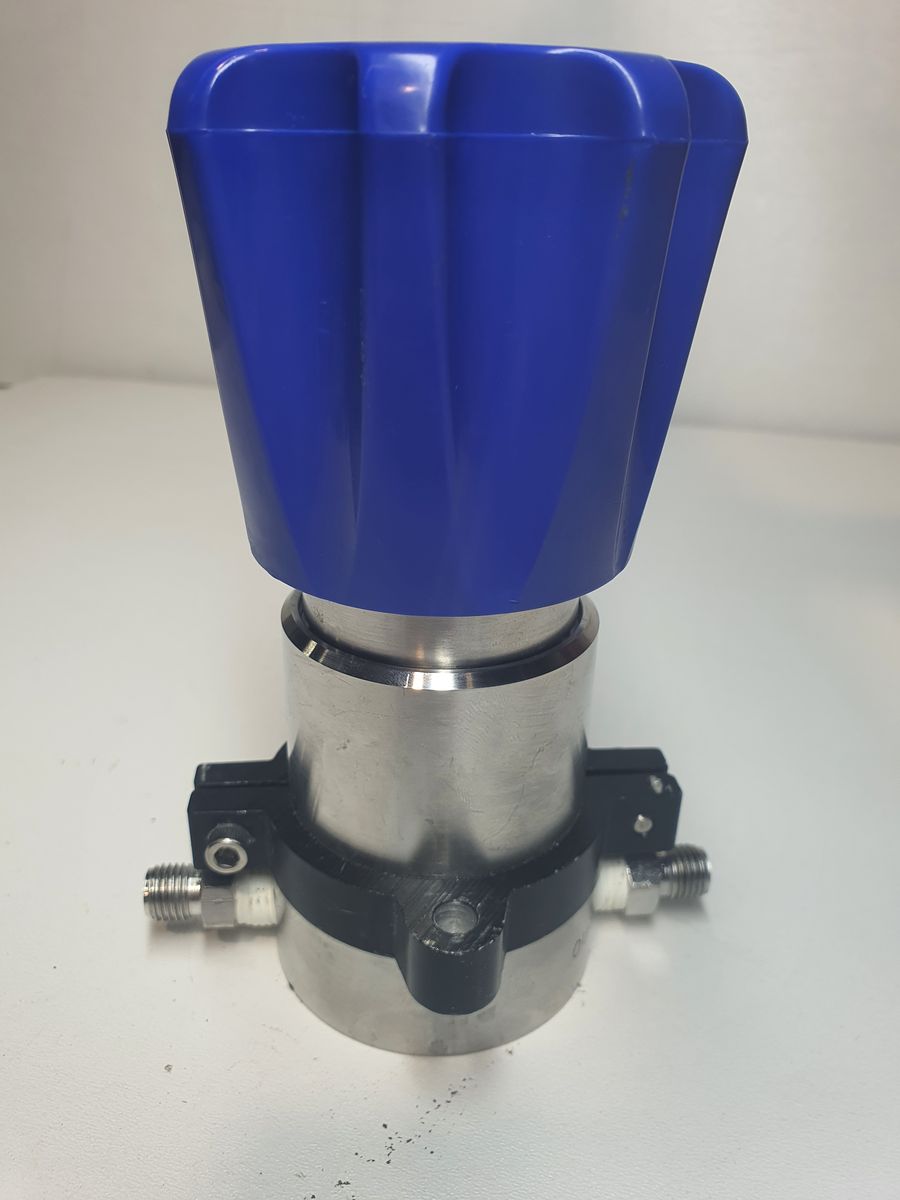

Tescom Selmsdorf Germany 26-1767-24-176 Pressure Regulator

Description:
This high-performance control pressure regulator is engineered to provide precise and stable pressure control in demanding high-pressure applications. It reliably reduces very high inlet pressures to a controlled medium-pressure output, ensuring consistent performance while protecting sensitive downstream equipment. Constructed with a robust stainless steel body, it delivers excellent durability, corrosion resistance, and long service life even in harsh industrial environments. The bubble-tight shutoff design minimizes leakage, enhancing system safety and reducing operating costs. Its compact form and standard threaded connections allow for easy installation in space-limited systems and OEM assemblies, making it an ideal choice for applications that require accurate regulation, high reliability, and low maintenance.

Key Features:
- High-pressure control capability allows safe regulation of extremely high inlet pressures while maintaining stable downstream pressure
- Precise control pressure performance ensures consistent and repeatable outlet pressure within the 5–500 psi range
- Robust 316 stainless steel construction provides excellent durability and corrosion resistance in harsh industrial environments
- Bubble-tight shutoff minimizes leakage, improving safety and reducing media loss
- Compact and space-efficient design enables easy integration into tight installations and control panels
- Smooth pressure adjustment provides accurate control without pressure spikes or instability
- Internal sealing and trim materials are selected for reliability and long-term performance
- Suitable for continuous-duty operation in critical control and process systems

Specifications:
- Regulator type: Control pressure reducing regulator
- Series: TESCOM 26-1700
- Model: 26-1767-24-176
- Maximum inlet pressure: 10,000 psig (689 bar)
- Controlled outlet pressure range: 5–500 psig (0.35–34.5 bar)
- Body material: 316 stainless steel
- Internal trim material: 300 series stainless steel
- Seat material: CTFE
- Seal material: CTFE
- O-rings: Buna-N (Nitrile)
- Backup rings: PTFE (Teflon®)
- Port size: 1/4 inch
- Port type: NPTF
- Operating temperature range: -40°F to +165°F (-40°C to +74°C)
- Flow coefficient (Cv): approximately 0.14
- Leakage: Bubble-tight shutoff
- Proof pressure: 150% of maximum rated pressure
- Typical weight: approximately 5 lb (2.2 kg)

Typical applications
High-pressure gas pressure control systems
Industrial process control and pressure regulation
Instrumentation and analyzer pressure protection
Pump discharge pressure control
Reactor and vessel pressure control systems
Laboratory and test bench pressure regulation
OEM skid-mounted systems
Compressed gas distribution systems
Applications requiring precise control of medium outlet pressures from high-pressure sources
Systems using inert and compatible industrial gases or fluids
