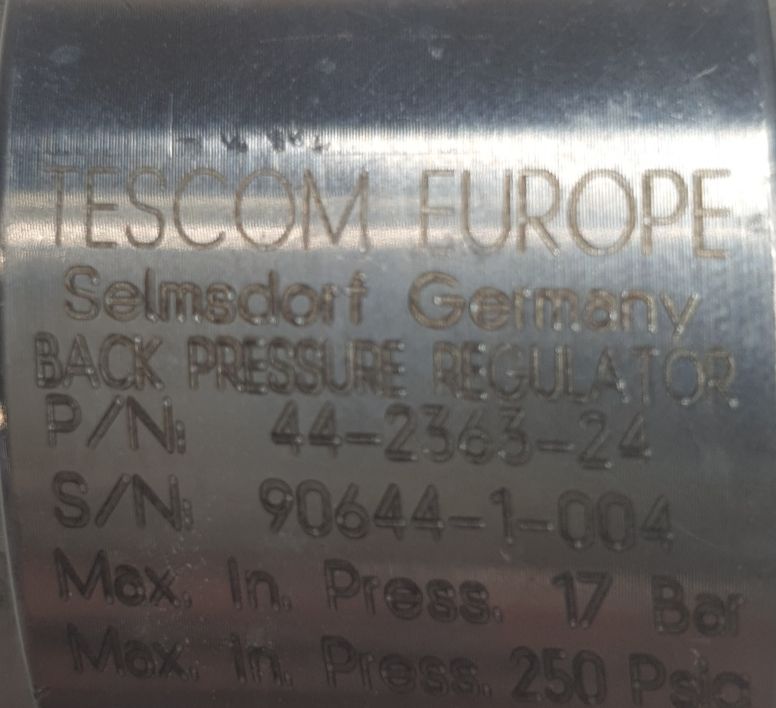

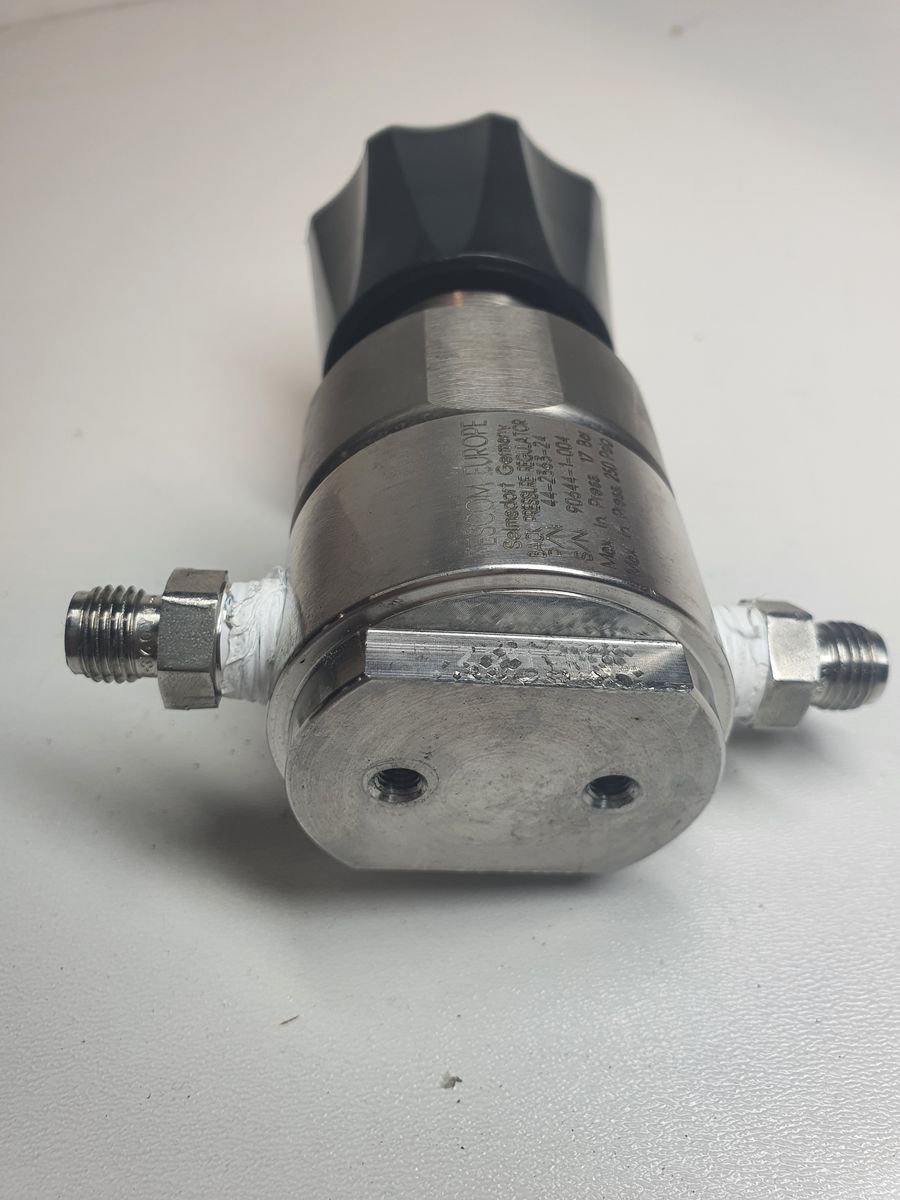

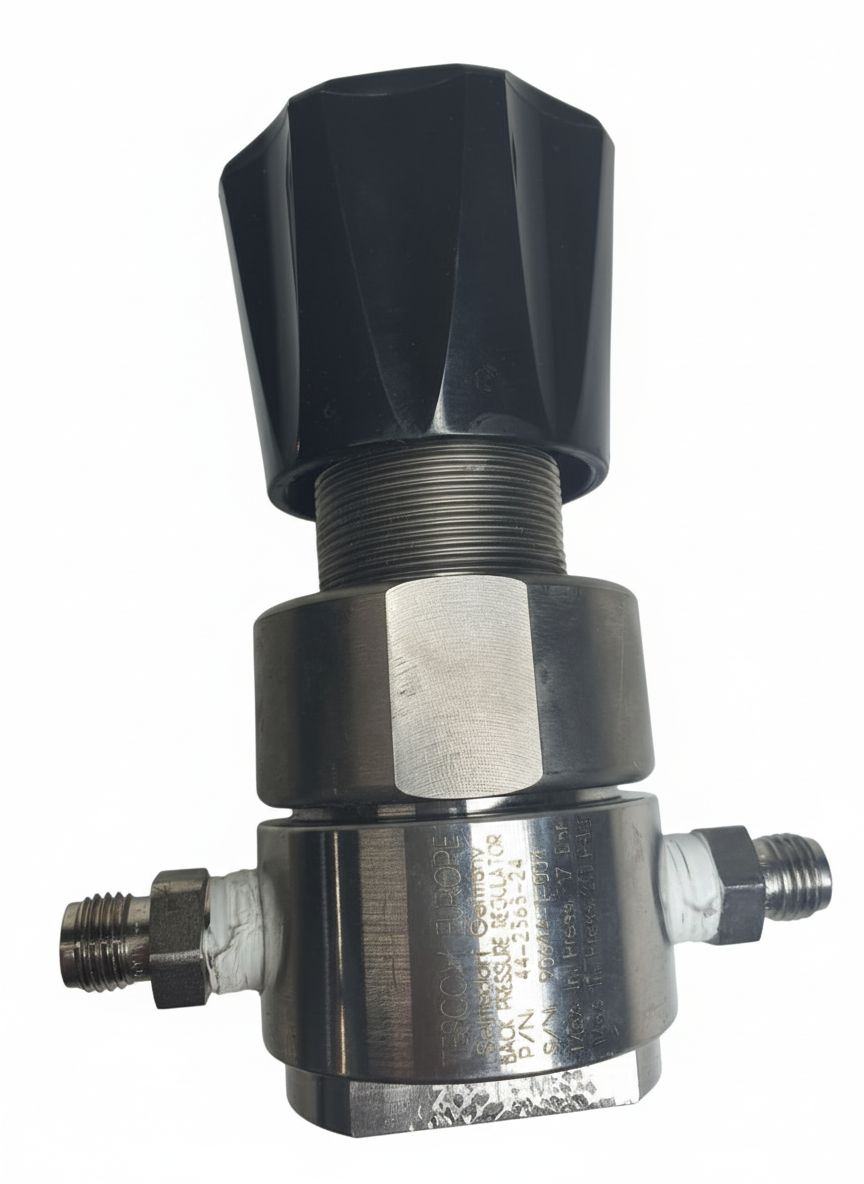

Tescom 44-2363-24 is a single-stage backpressure regulator

Description:
The product is from the TESCOM™ 44-2300 Series designed to provide precise and reliable control of low-flow gas pressure in specialty, industrial, and analytical applications. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity while maintaining stable regulated pressure. The unit’s compact, lightweight design makes it ideal for installation in systems where space is limited yet reliable pressure control is required.

Key Features:
- Reduces contamination and ensures accurate regulation of corrosive and non-corrosive gases.
- Convoluted metal-to-metal sealed diaphragm maintains gas purity and structural integrity.
- Close pressure differential between crack and reseat for precise pressure control.
- Compact and economical design suitable for OEM and laboratory systems.
- Optional dome loading for enhanced outlet pressure control.
- Panel mounting available for easy installation.

Specifications:
- Brand: Tescom (Emerson)
- Series: 44-2300 Single Stage Backpressure Regulator
- Model: 44-2363-24
- Regulator Type: Single-stage backpressure / relief regulator
- Controlled Pressure Range: 0–250 psig (0–17.2 bar)
- Design Proof Pressure: 150% of maximum rated pressure
- Leakage: Internal bubble-tight; external designed to meet < 2 × 10⁻⁸ atm cc/sec He
- Operating Temperature Range: -40 °C to +60 °C (-40 °F to +140 °F)
- Flow Capacity: Cv = 0.08
- Maximum Operating Torque: 30 in-lbs / 3.4 N·m
- Port Size & Type: 1/4″ NPTF (inlet and outlet)
- Body Material: 316 Stainless Steel, Brass, or Monel (depending on configuration)
- Bonnet Material: 300 Series Stainless Steel or Brass
- Seat Material: PCTFE (CTFE)
- Diaphragm Material: 316 Stainless Steel or Elgiloy® (Cobalt-Chrome-Nickel Alloy)
- Remaining Parts: 316 Stainless Steel or Monel (for Monel-body variants)
- Cleaning Standards: CGA 4.1 and ASTM G93 (for ultra-clean applications)
- Weight (without gauges): approx. 0.9 kg / 2 lb

Typical Applications:
Analytical systems requiring precise gas pressure control (e.g., chromatography or instrumentation).
Gas sampling and delivery systems where purity is critical.
Pilot plants and small-scale process control installations.
OEM equipment packages in industrial automation.
R&D laboratories and testing systems requiring stable backpressure control.
Low-flow, specialty, and flammable gas systems (< 4 SCFM / 113 SLPM) where precision and safety matter

https://www.emerson.com/documents/automation/catalog-series-44-2300-single-stage-backpressure-regulator-tescom-en-5322280.pdf
