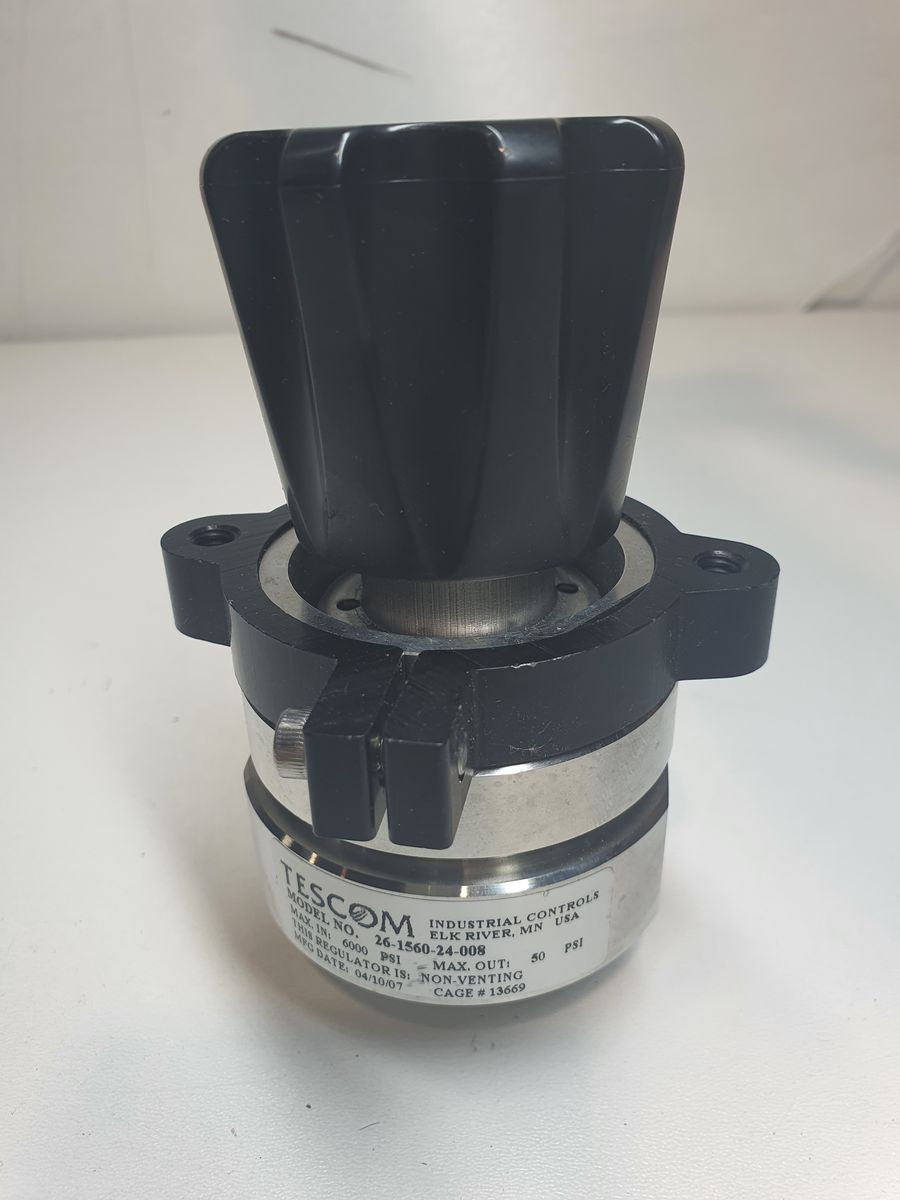

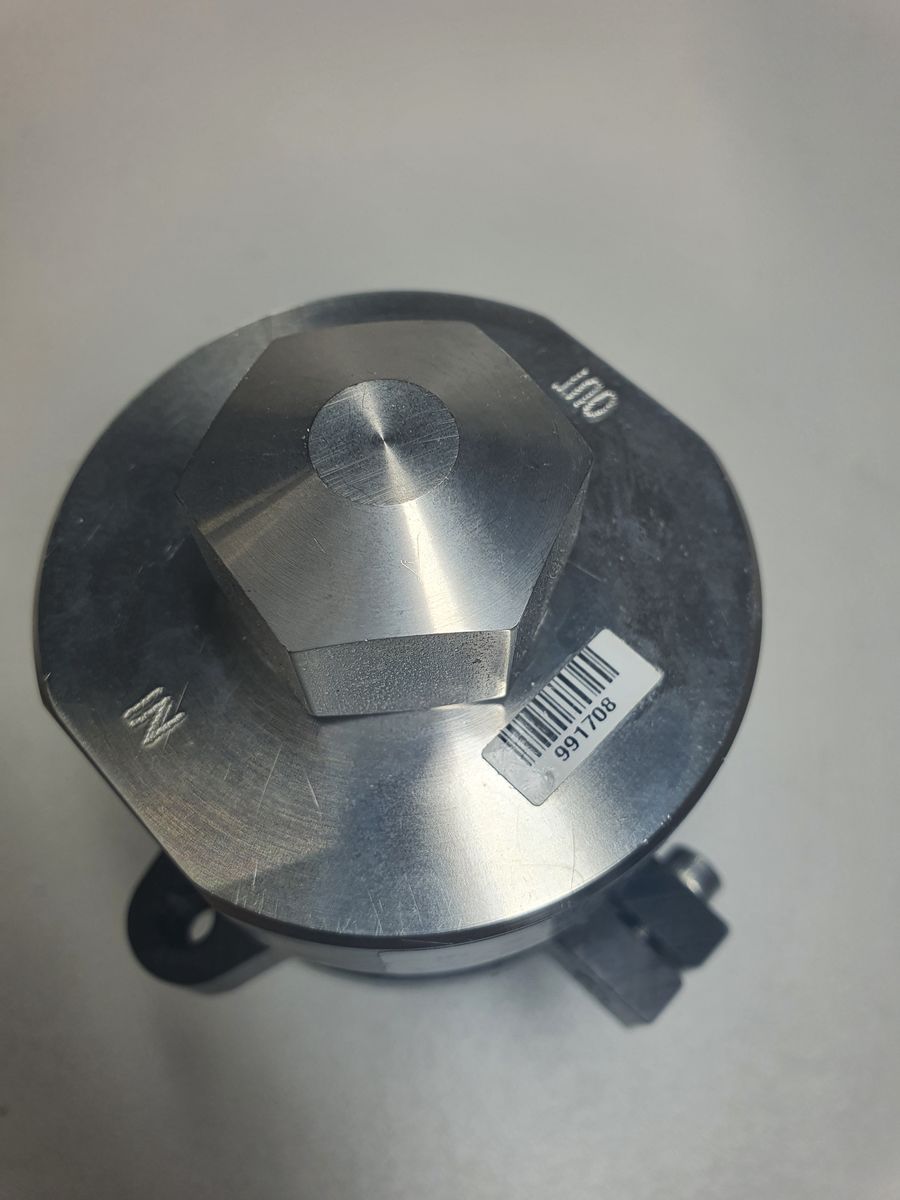

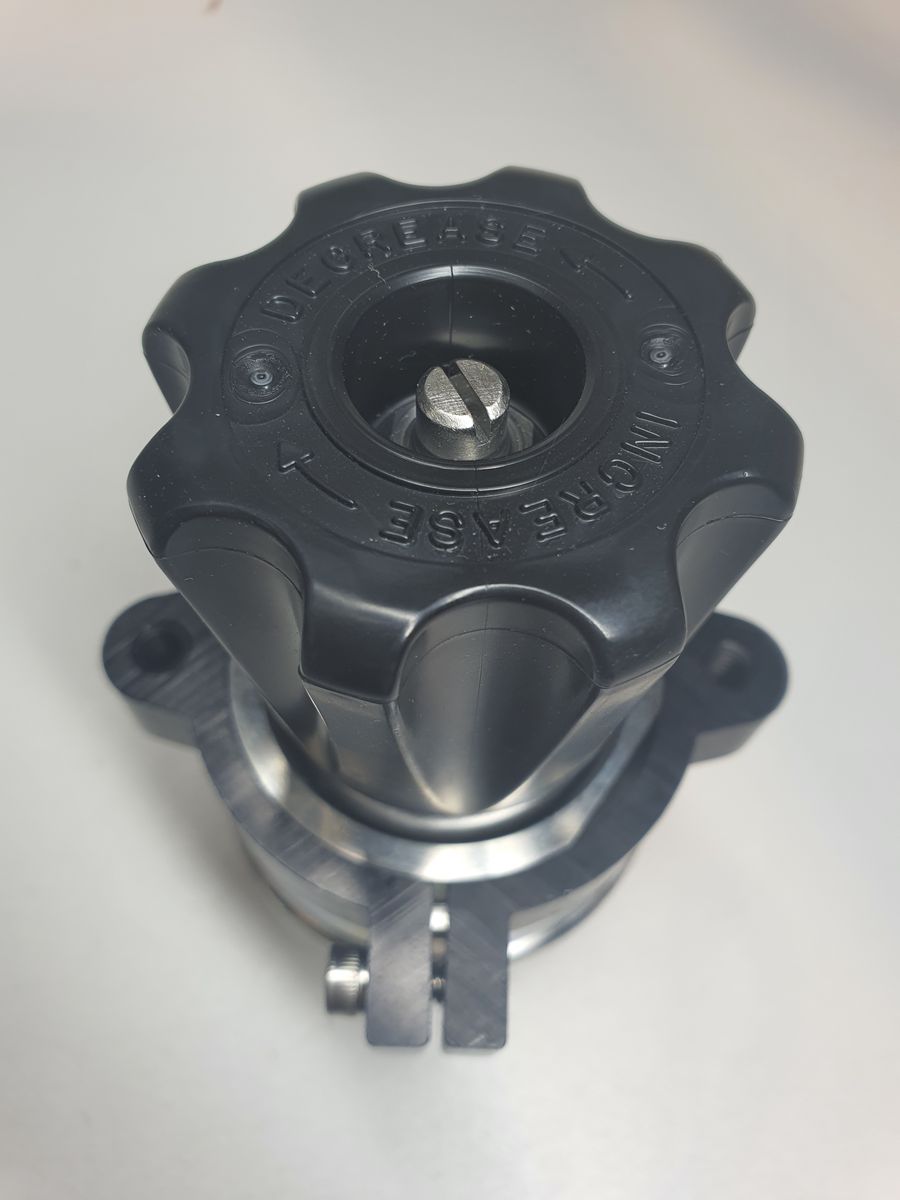

Tescom 26-1560-24-008 Pressure Reducing Regulator

Desciptions:
The product is a high-pressure, single-stage pressure reducing regulator designed to deliver stable and accurate downstream pressure control for gases and compatible liquids. It is built with a 316 stainless steel body for high strength and corrosion resistance, making it suitable for demanding industrial and process applications. The regulator is configured for precise low-pressure control with compact 1/4" NPTF connections and bubble-tight shutoff to protect downstream equipment. This model is commonly used in point-of-use and instrumentation systems where reliability, safety, and repeatable pressure control are required.

Key Features:
- High-pressure capability allows safe operation in systems with very high upstream supply pressures while protecting downstream equipment
- Precision pressure reduction ensures stable and repeatable outlet pressure, improving process control and instrument accuracy
- Robust 316 stainless steel construction provides excellent resistance to corrosion, wear, and mechanical stress, extending service life in harsh environments
- Bubble-tight shutoff minimizes leakage, enhancing safety, reducing gas loss, and maintaining system integrity
- Compact and lightweight design makes installation easy in tight spaces and panel-mounted or OEM systems
- Smooth and responsive adjustment allows fine control of outlet pressure, even at low flow rates
- Internal filtration protects critical internal components from particulate contamination, increasing reliability and reducing maintenance
- Versatile design supports use with a wide range of industrial gases and compatible liquids
- Proven TESCOM regulator design delivers long-term reliability with minimal drift or performance degradation
- Suitable for continuous-duty operation in critical process, analytical, and instrumentation applications

Specifications:
- Regulator type: Pressure reducing regulator
- Body material: 316 stainless steel
- Bonnet material: 300 series stainless steel
- Maximum inlet pressure: 6000 psig (414 bar)
- Outlet pressure range: 0–50 psig (0–3.4 bar)
- Design proof pressure: 150% of maximum rated pressure
- Operating temperature range: -40°F to +165°F (-40°C to +74°C)
- Port size: 1/4"
- Port type: NPTF
- Typical flow coefficient (Cv): 0.08
- Seat material: CTFE
- O-rings and diaphragm material: Buna-N
- Filter: 40 micron stainless steel
- Leakage: Bubble-tight
- Configuration suffix: “008” (factory option, typically gauge-related)

Typical applications
Industrial gas pressure regulation
Instrumentation and analyzer systems
Cylinder and bulk gas supply systems
Point-of-use pressure control
OEM skid-mounted systems
Test benches and laboratory equipment
Semiconductor and specialty gas systems
Air, nitrogen, argon, helium, hydrogen, and compatible non-corrosive gases
Compatible liquid service where seal materials are suitable

https://www.emerson.com/documents/automation/catalog-series-26-1500-non-venting-pressure-regulator-tescom-en-5322154.pdf
