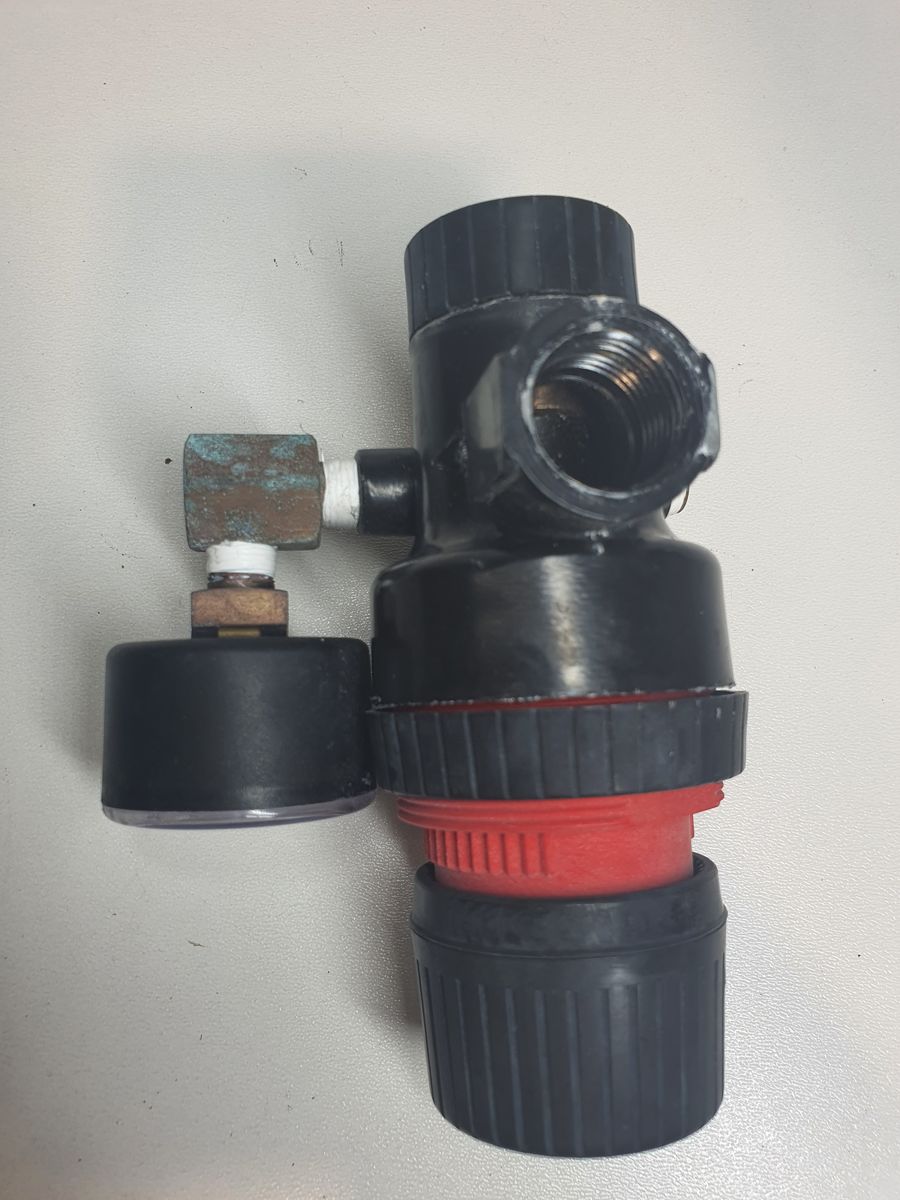

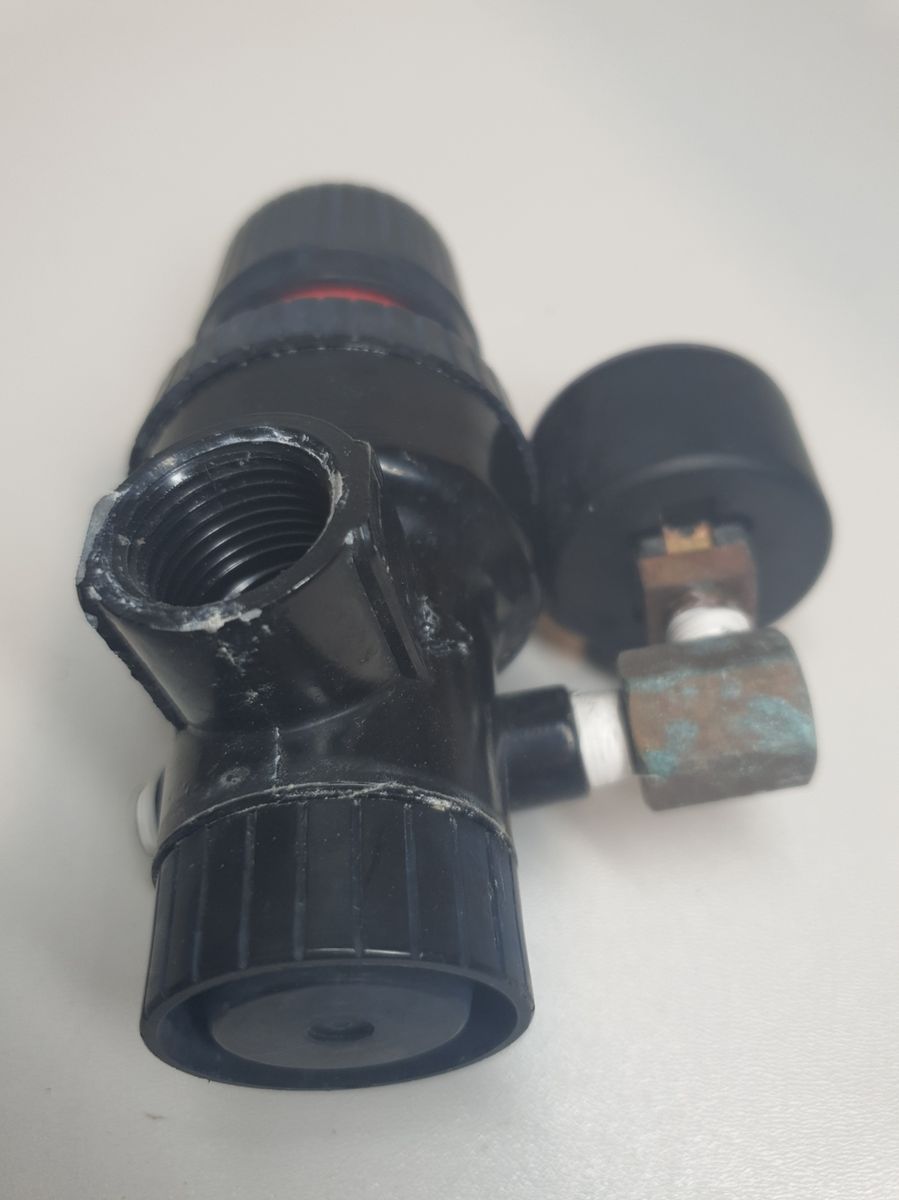

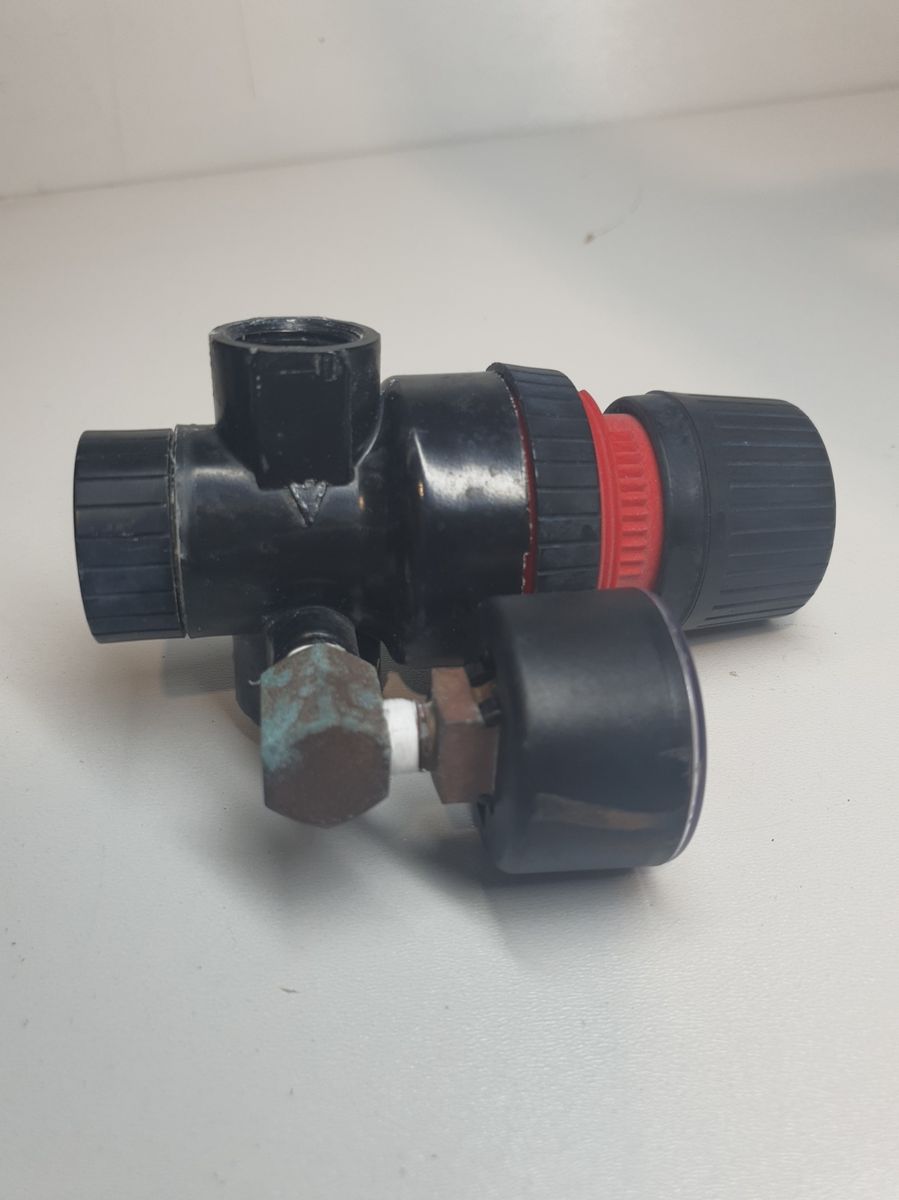

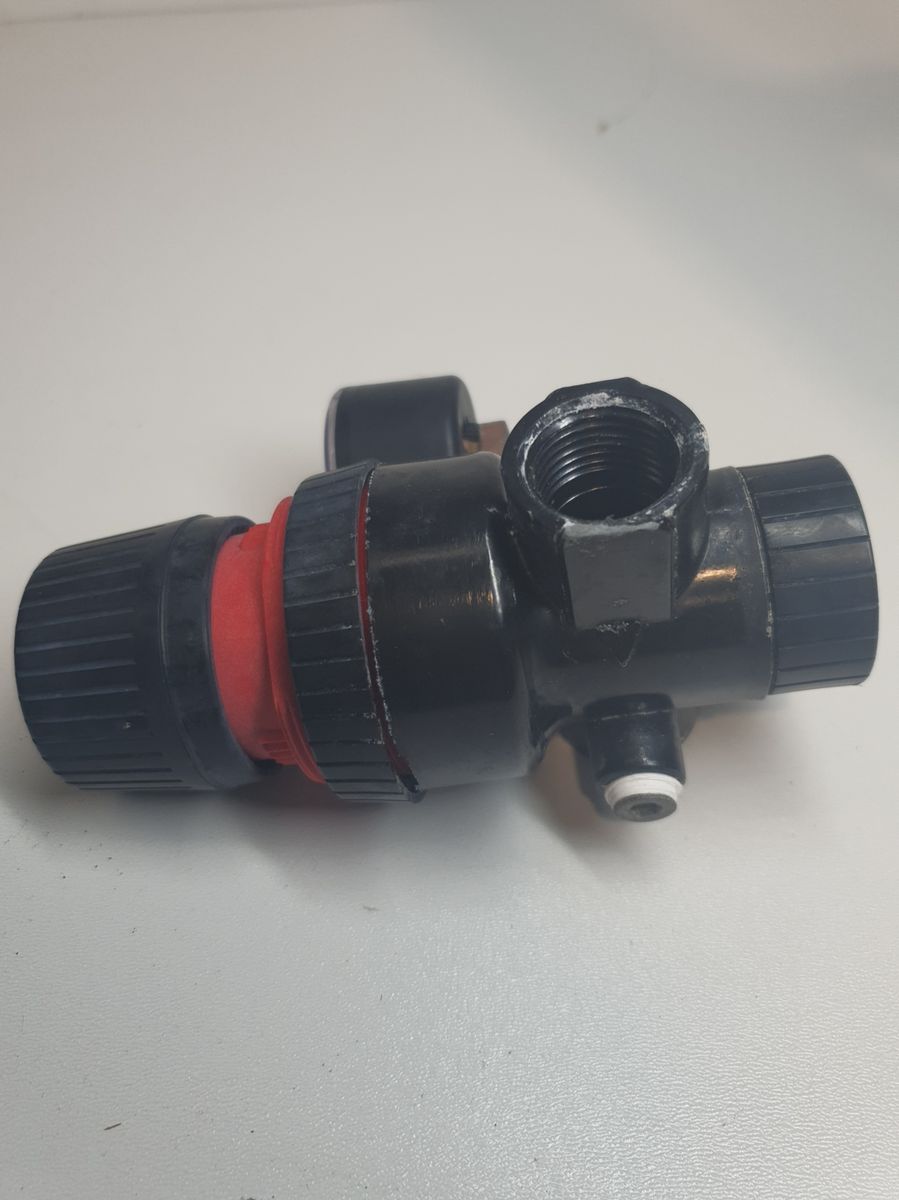

Monnier Pira AR2000 Series Air Pressure Regulator with Gauge

Description:
The product is a compact and rugged pneumatic regulator designed to control and stabilise compressed air pressure in industrial and automation systems. With an oversized integrated pressure gauge and adjustable pressure range, it ensures accurate monitoring and smooth regulation of line pressure — protecting downstream equipment and improving the reliability of pneumatic tools and machinery.

Key Features:
- Precise pressure regulation up to 10 bar

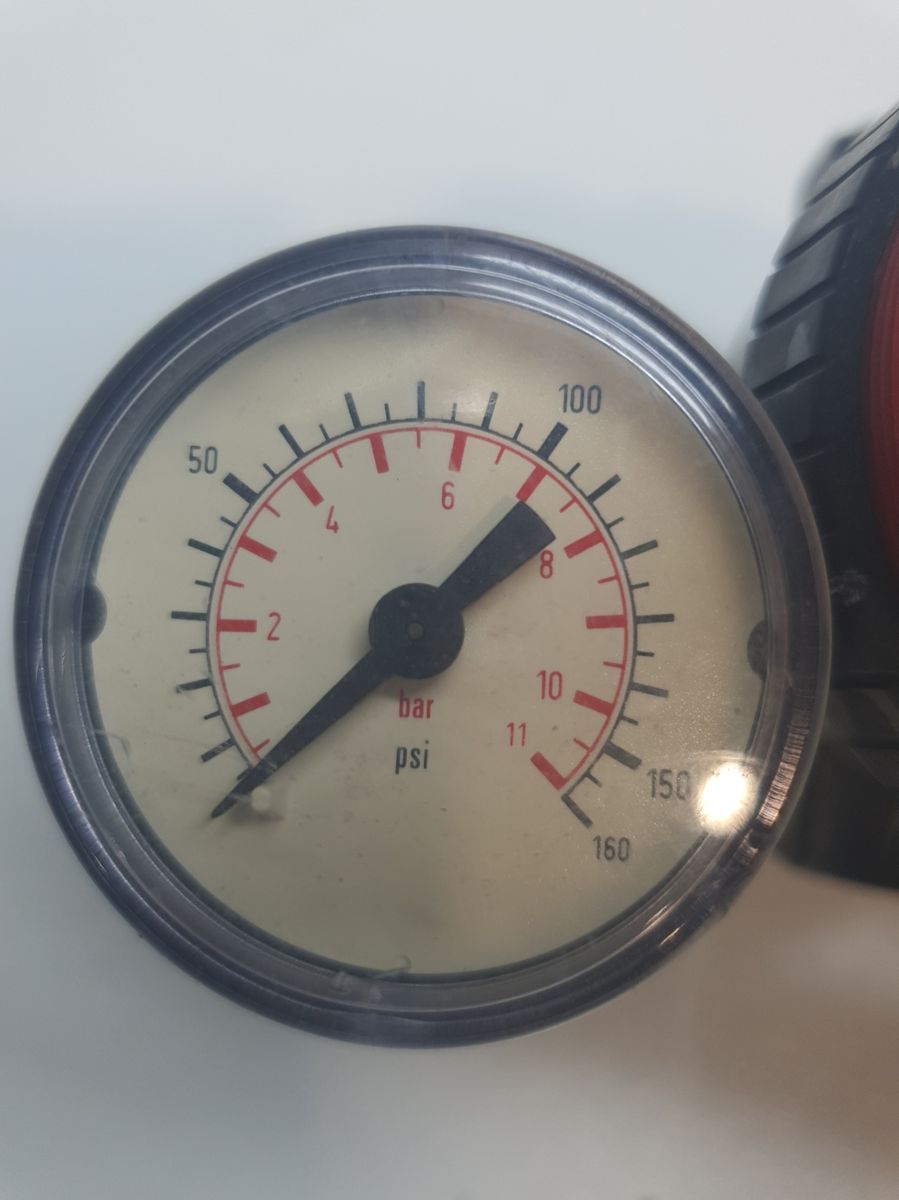

- Integrated, easy-to-read pressure gauge
- Adjustable pressure range (typically ~0.5–8.5 bar)
- Standard G1/4″ port size for broad compatibility
- Durable aluminium body with good corrosion resistance
- Compact and lightweight for easy installation
- Suitable for automated pneumatic systems and industrial air lines

Specifications:
- Brand: Monnier Pira / AR series
- Model: AR2000-02 (G1/4″)
- Product Type: Air Pressure Regulator with Gauge
- Medium: Compressed air
- Maximum Operating Pressure: 10 bar (1.0 MPa)
- Adjustable Pressure Range: ~0.5–8.5 bar (0.05–0.85 MPa)
- Port Size: G1/4″ (female)
- Rated Flow: ~550 L/min (typical for AR2000)
- Operating Temperature Range: ~5–60 °C
- Material: Aluminium alloy body
- Weight: ~0.2 kg
- Seal/Valve Type: Relief/overflow type regulator (automatic venting when pressure is reduced)

Typical Applications:
Regulation of compressed air supply in pneumatic control systems
Pressure control for air tools and automation equipment
Protection of pneumatic cylinders, valves, and actuators from overpressure
Factory and workshop air lines
OEM pneumatic machinery and general compressed air systems
