Tescom 26-1761-24-286
SKU: 8014
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

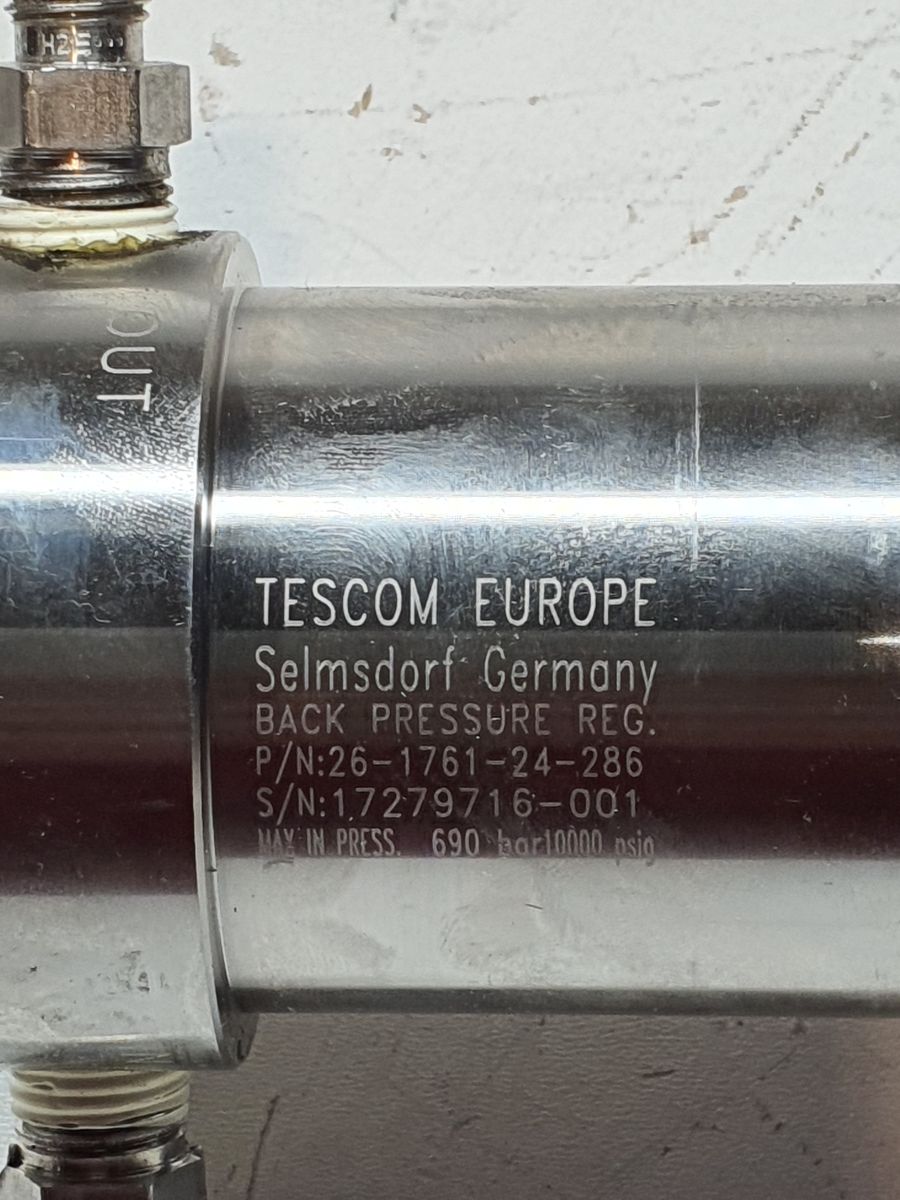

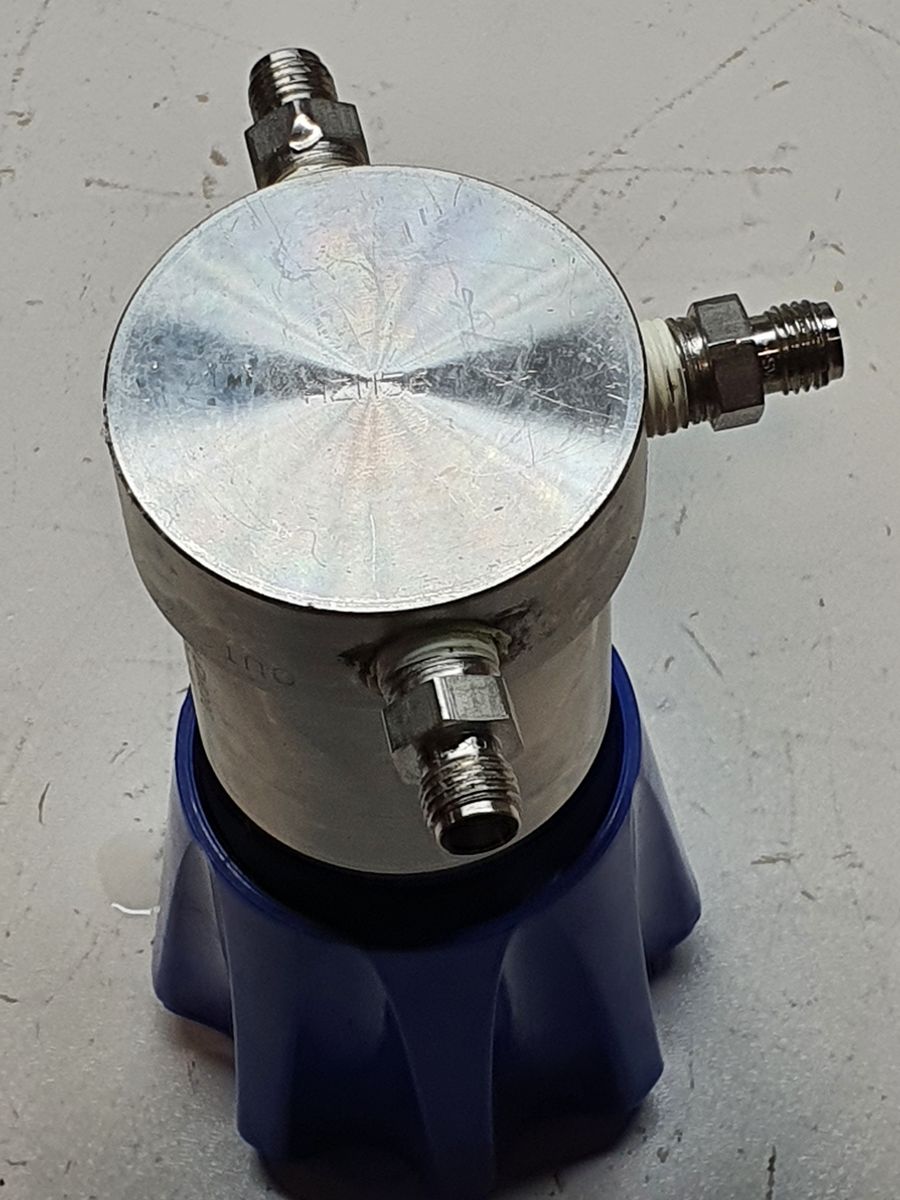

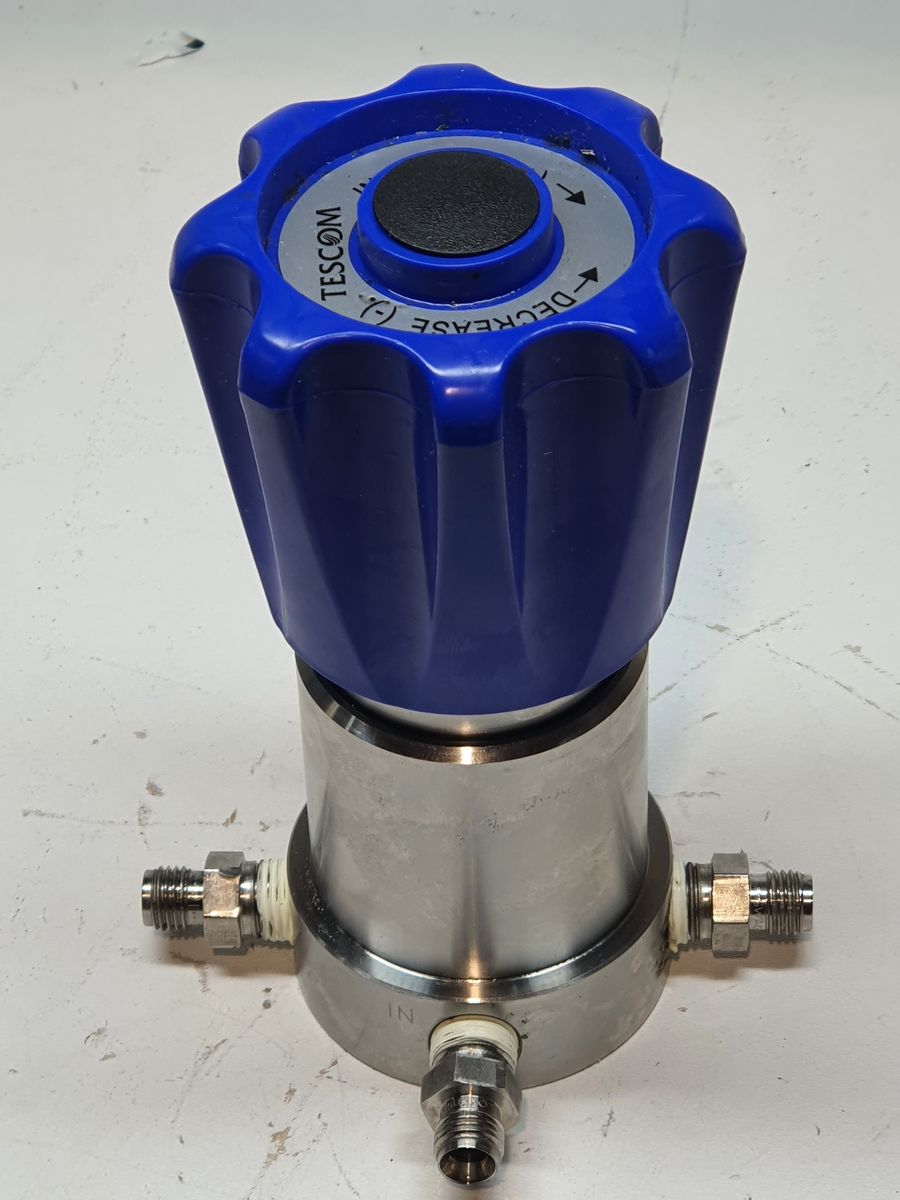

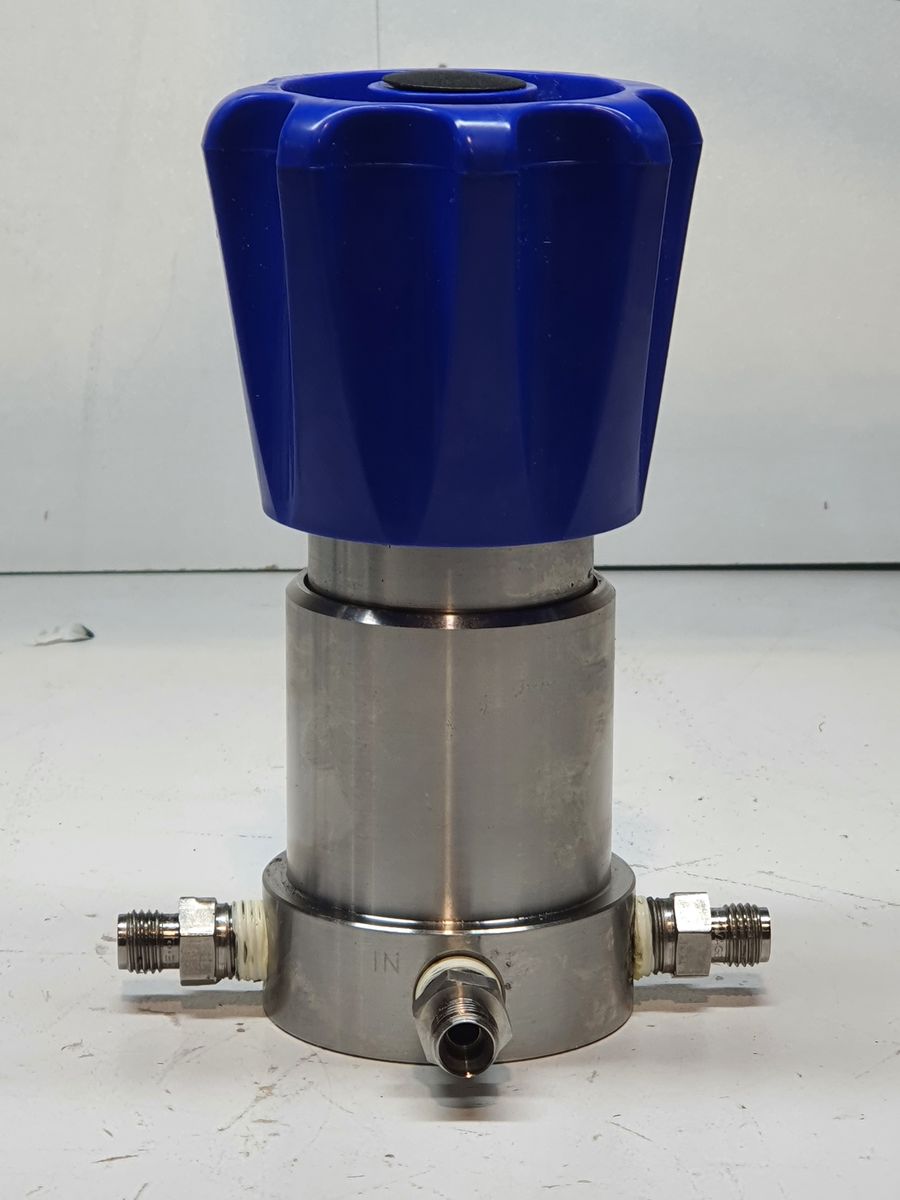

Emerson/TESCOM 26-1761-24-286 Control Pressure Regulator 3-way
A precision pressure regulator designed to control and stabilize gas or fluid pressure downstream from a high-pressure source. Tescom regulators are commonly used in industrial process control, instrumentation, testing systems, and fluid power applications where accurate pressure regulation is required.
Specification
| Attribute | Details |
|---|---|
| Series | 26-1700 |
| Type | Control Pressure Regulator (spring-loaded, manual) |
| Maximum Inlet Pressure | 690 bar /10000 psi |
| Control (Outlet) Pressure Ranges Available | 200-10,000 psig 13.8-689 bar |
| Operating Temperature | –40 °F to 165 °F (–40 °C to 74 °C) |
| Proof Pressure | 150 % of maximum rated pressure |
| Leakage | Bubble-tight shut-off |
| Accuracy | ±1 % of central pressure range |
| Body Material | 316 Stainless Steel |
| Seal Material | CTFE / PTFE depending on variant |
| O-ring | Buna-N / Nitrile |
| Trim Material | 300 Series Stainless Steel |
| Flow Capacity (Cv) | Typically Cv = 0.10 or Cv = 0.14 (model dependent) |
| Connection Options | SAE / NPTF / MS33649 / High or Medium Pressure fittings; flange options available |
| Maximum Torque for Adjustment | ~40 in-lbs / 4.5 N·m |
| Weight | ~5 lbs / ~2.2 kg |
| Applications | Pump discharge pressure control, reactor pressure control, over-pressurization relief |
×
![]()
