Phoenix Contact UPS-BAT/VRLA/24DC/3.4AH
SKU: 7018
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

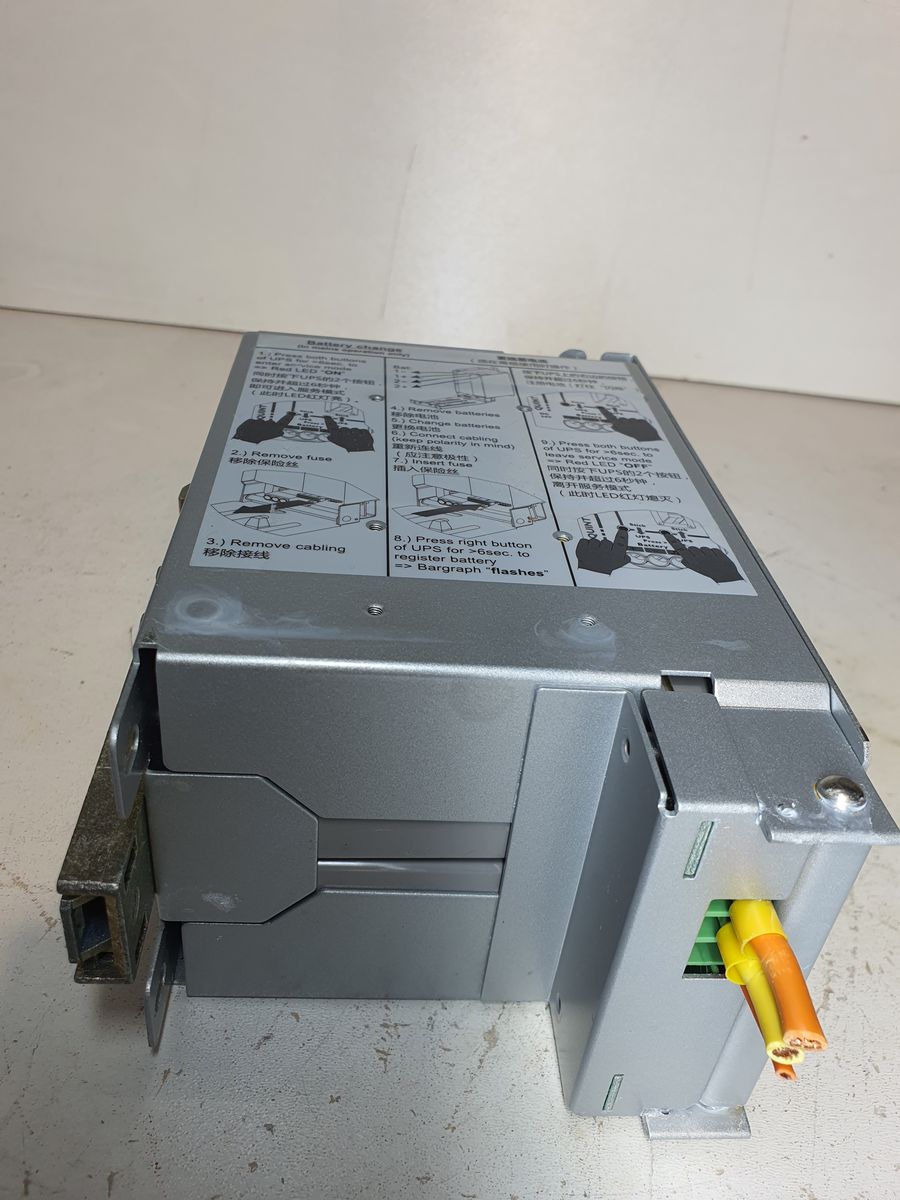

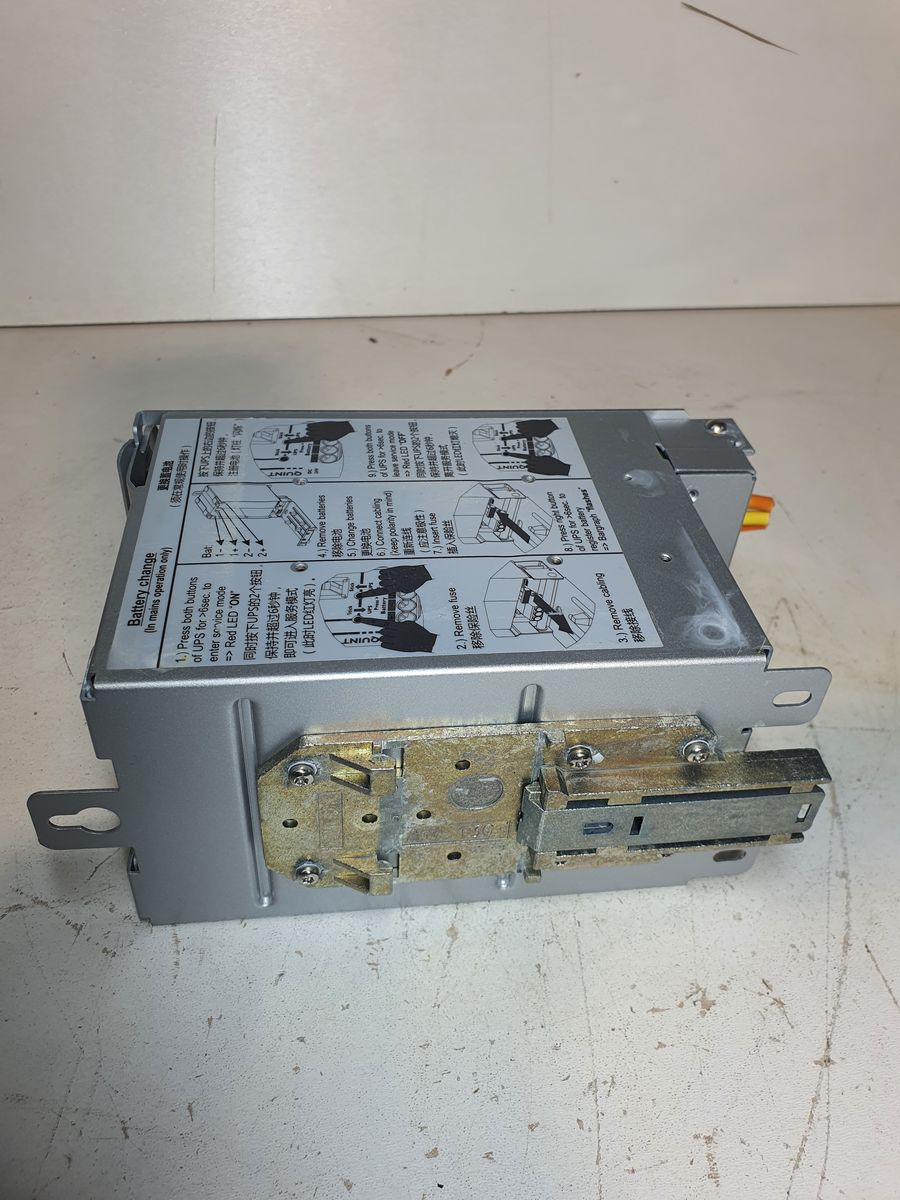

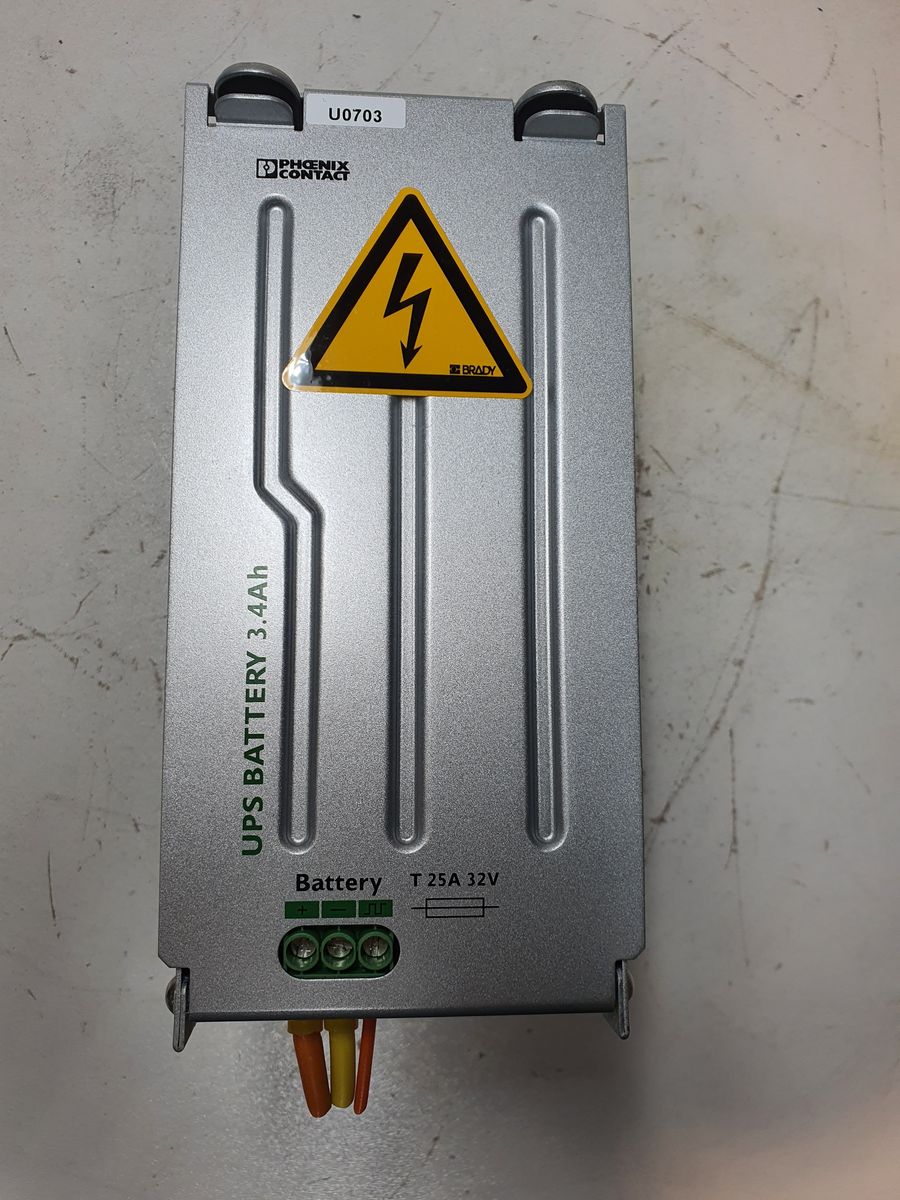

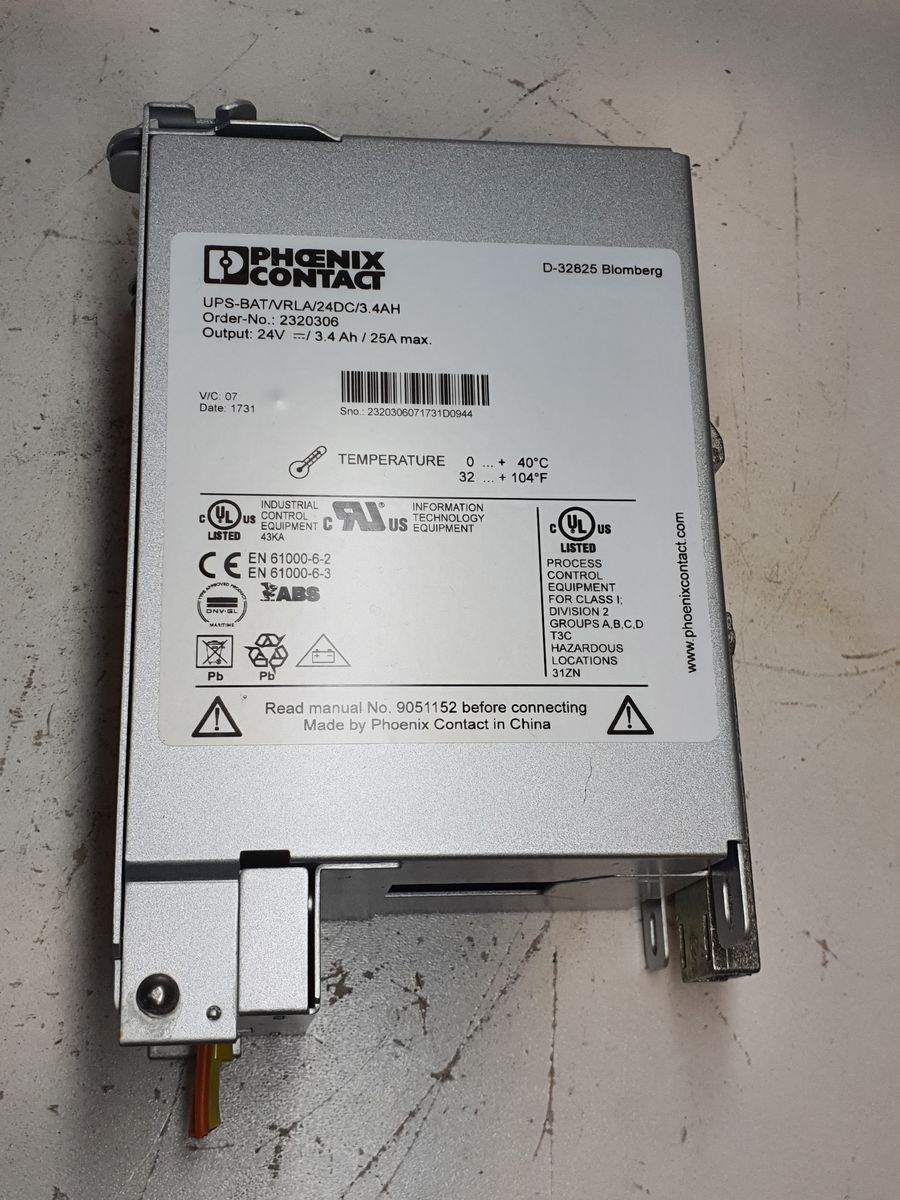

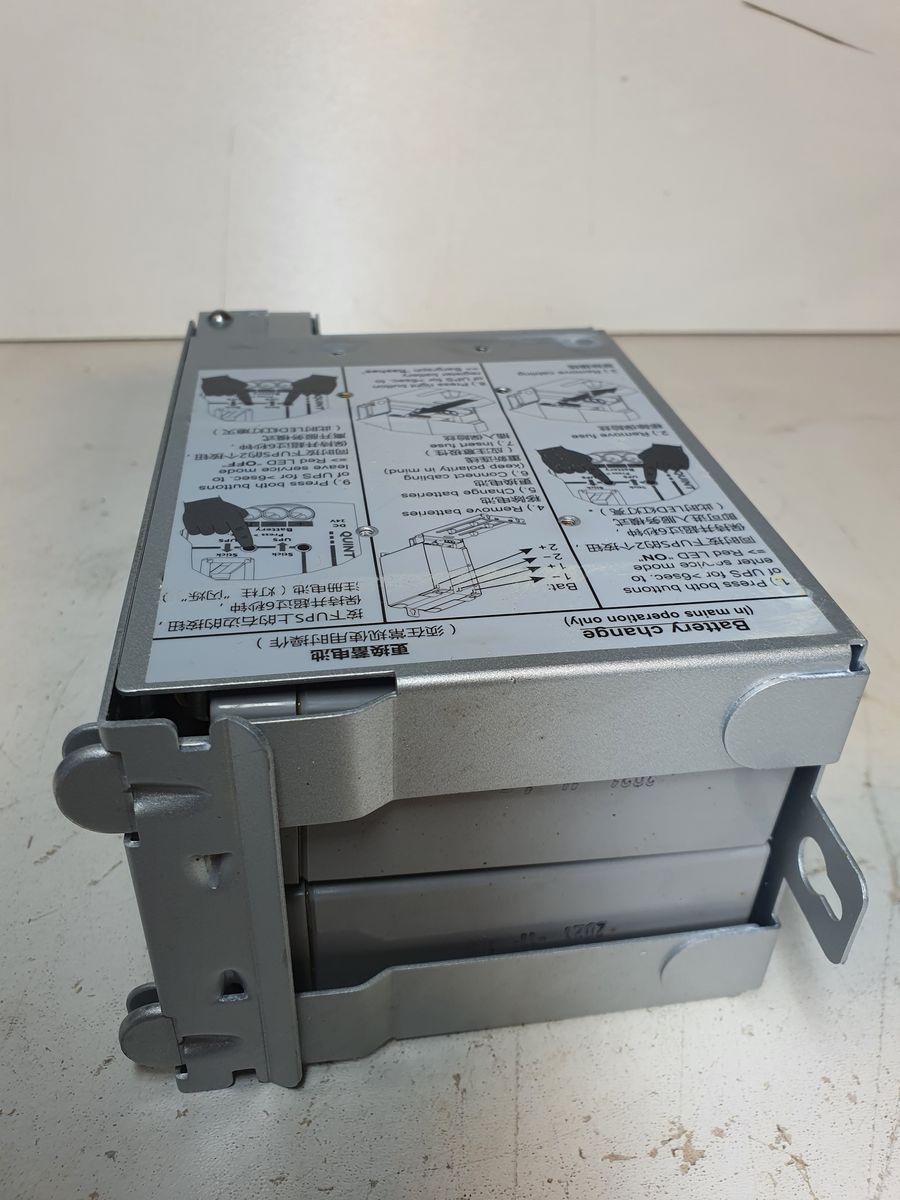

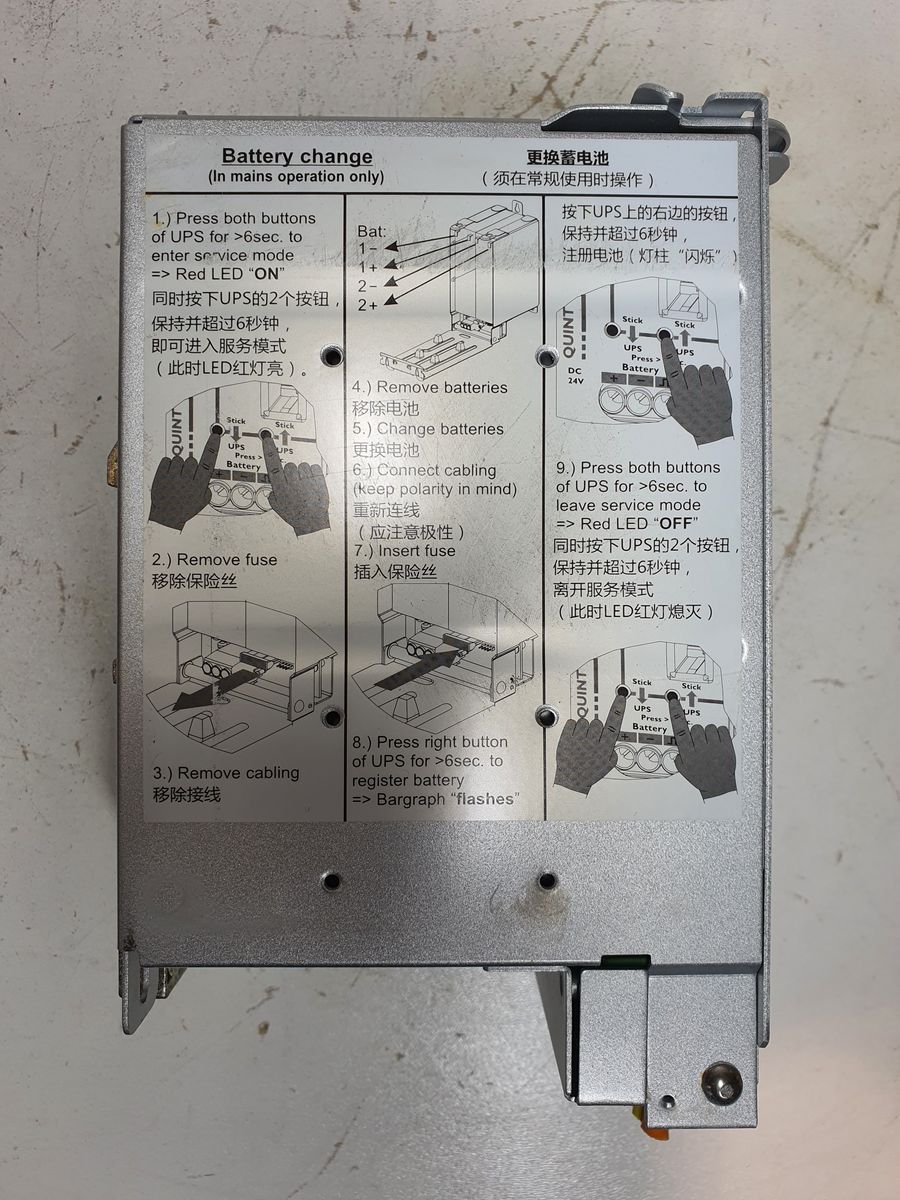

Phoenix Contact UPS-BAT/VRLA/24DC/3.4AH
Specifications
| Specification | Value |
|---|---|
| Input voltage | 24 V DC |
| Buffer period | 4.5 min (20 A) 3 min (25 A) |
| Nominal output voltage | 24 V DC |
| Output current Imax | 25 A |
| Output fuse | 1x 25 A |
| Connection in parallel | 5 |
| Connection in series | no |
| Battery operation | |
| Nominal output voltage | 24 V DC |
| Nominal output current (IN) | 25 A |
| End-of-charge voltage | 27.6 V (20 °C) |
| Charging current | 1.36 A |
| Nominal capacity | 3.4 Ah |
| Width | 85 mm |
| Height | 191 mm |
| Depth | 110 mm |
×
![]()
