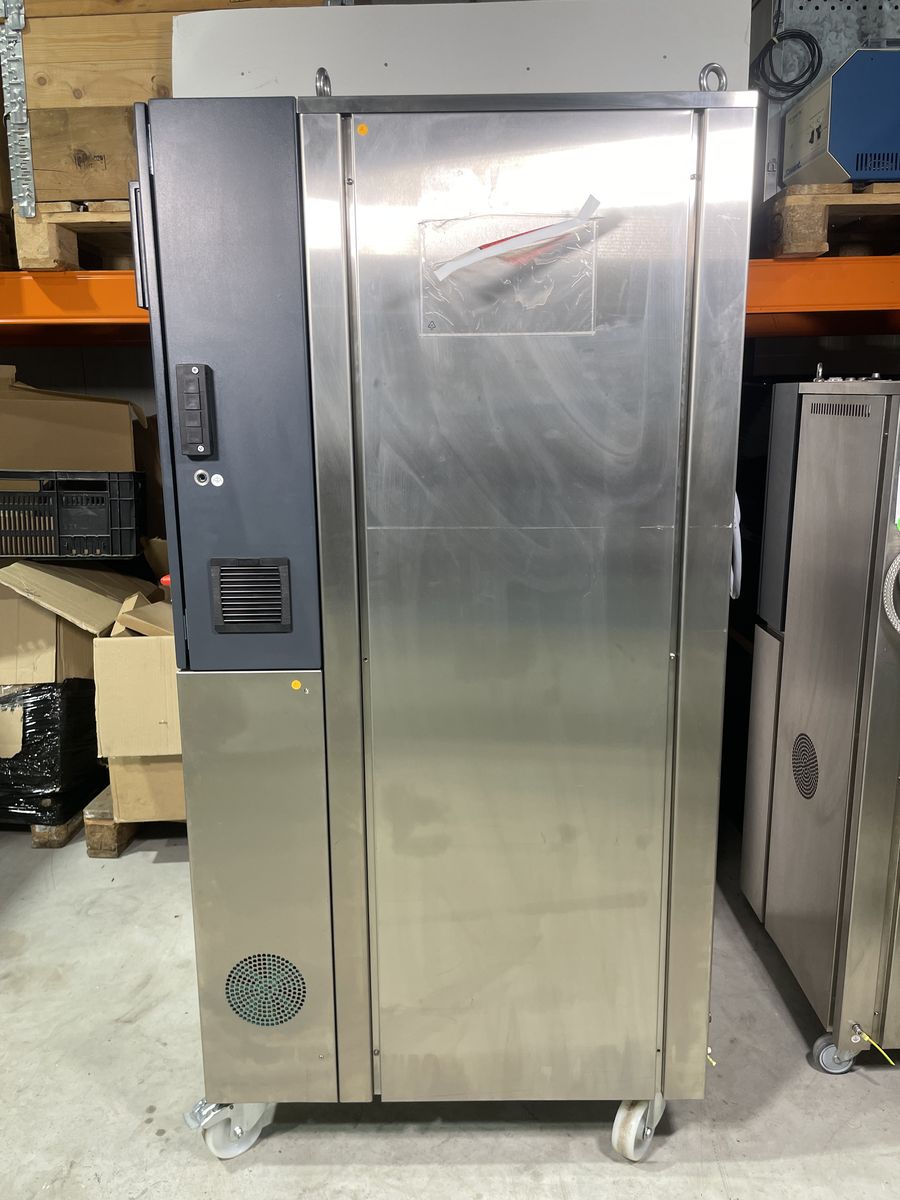

Huber Unichiller 260Tw-H eo
SKU: 11004
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

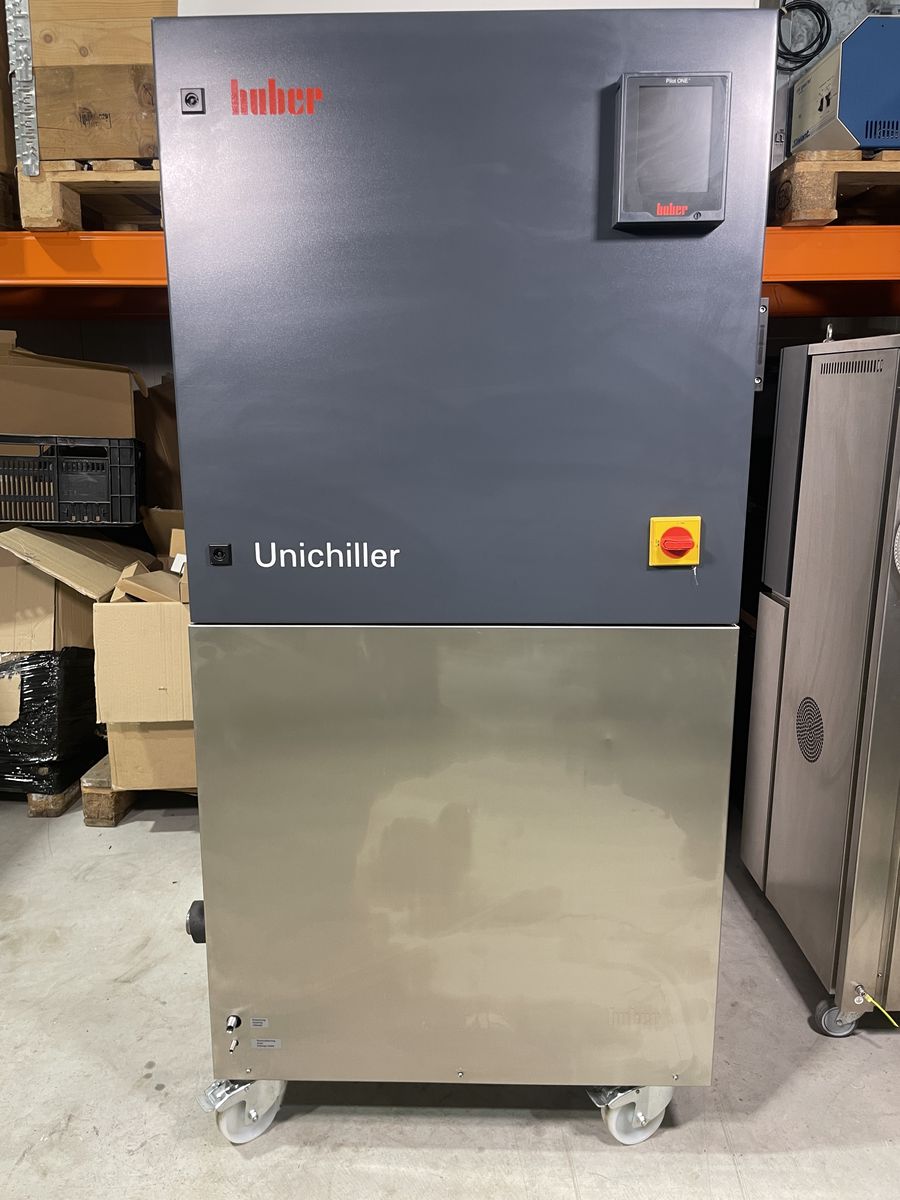

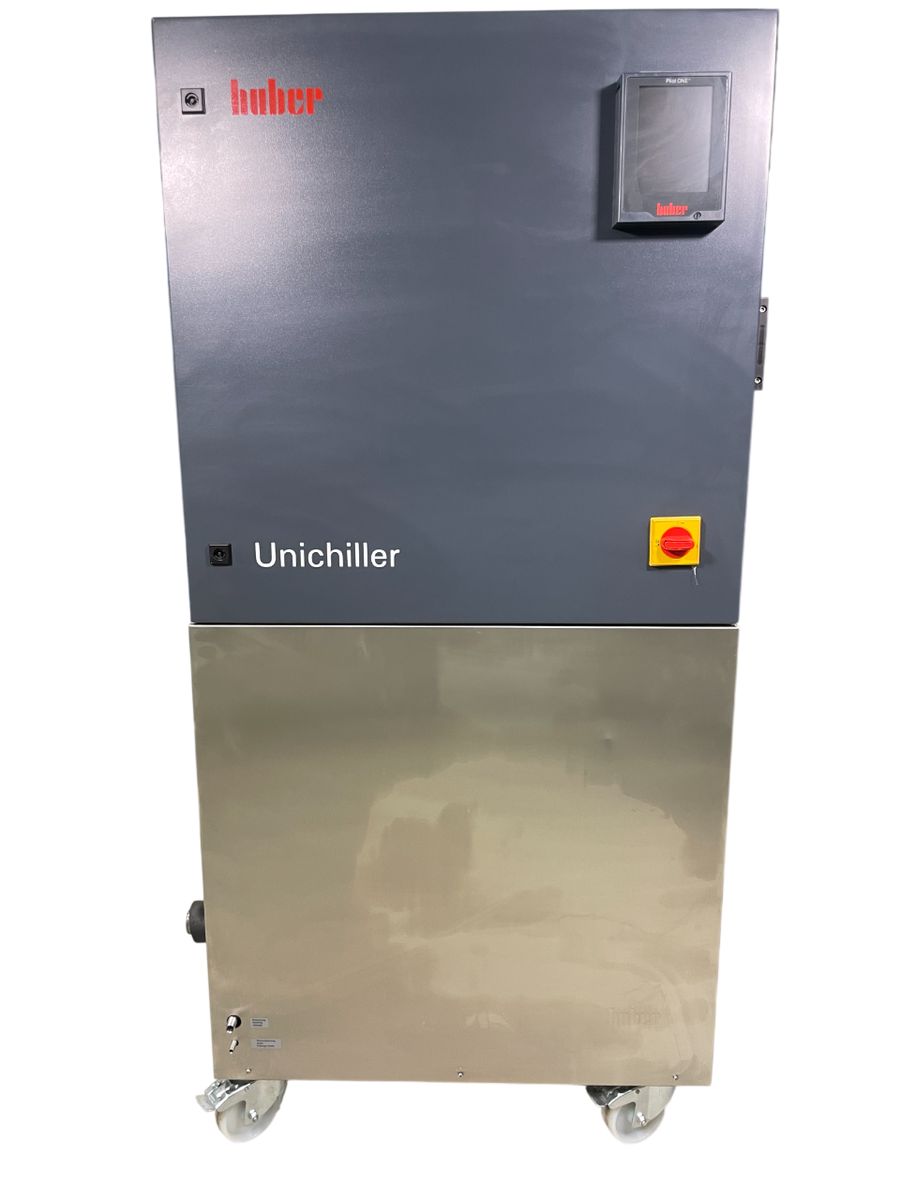

About this Huber Unichiller 260Tw-H4 eo
This is a premium, high-power "eo" (Externally Open) model, specifically engineered for both high-end reactor cooling and open-bath applications. Unlike standard chillers, the 260Tw-H4 features an integrated heater and sophisticated level management for external systems.
his particular unit was recently decommissioned from a renowned global laboratory facility where it was maintained under a strict professional service contract.
General & Temperature Control
| Temperature range | -20...100 °C |
| Temperature stability | ±0,2 K |
| Controller | Pilot ONE |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 760 x 800 x 1615 mm |
Heating / cooling capacity
| Heating capacity | 2 kW | ||||||||||
| Cooling capacity |
|
||||||||||
| Refrigeration machine | water-cooled, CFC- and HCFC-free | ||||||||||

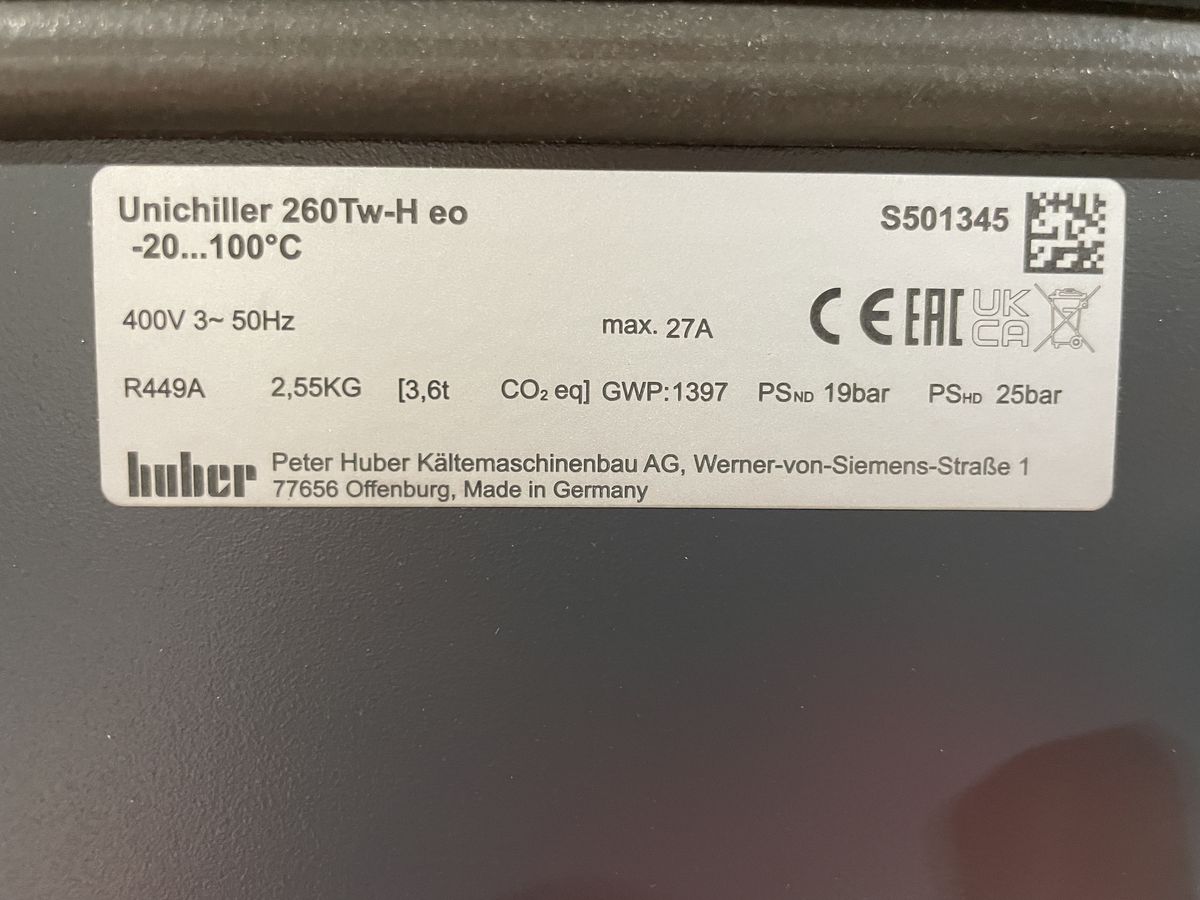

| Refrigerant 1st stage | R-449A (A1, H280) |
Circulation pump
| Delivery capacity pressure pump max. | 210 l/min; 4,7 bar |
| Pump connection | G1 1/4 AG male |
| Pump speed adjustable | no |
| Pump type | D3 |
| Pump characteristics | Pressure pump, speed not variable |
Connections
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
Operating data
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 15 l |
| Expansion volume | 22 l |
| Cooling water connection | G3/4 male |
| Cooling water differential pressure min. | 1 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 400V 3~ 50Hz |
×
![]()
