TEMP
G-DOK IND FOOTMASTER GD-80
SKU: 7006
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

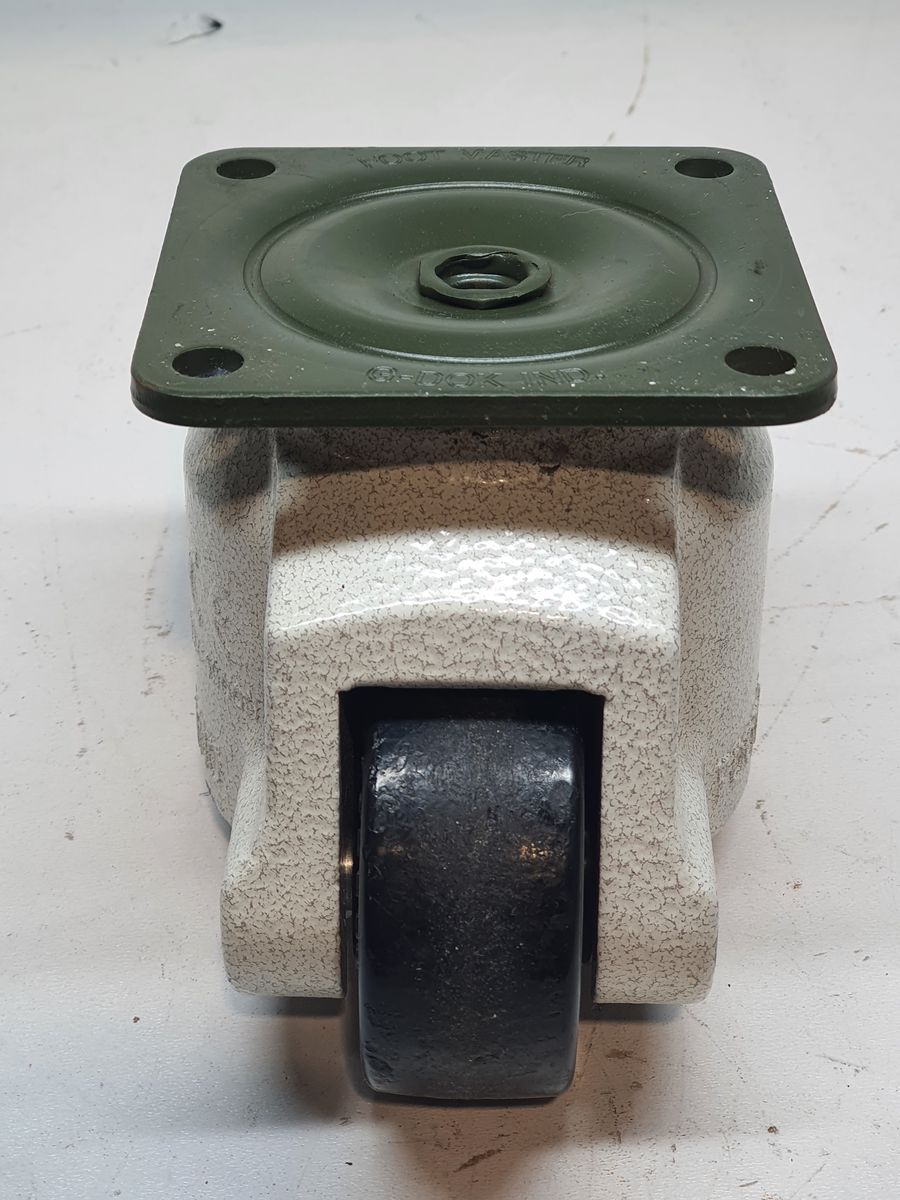

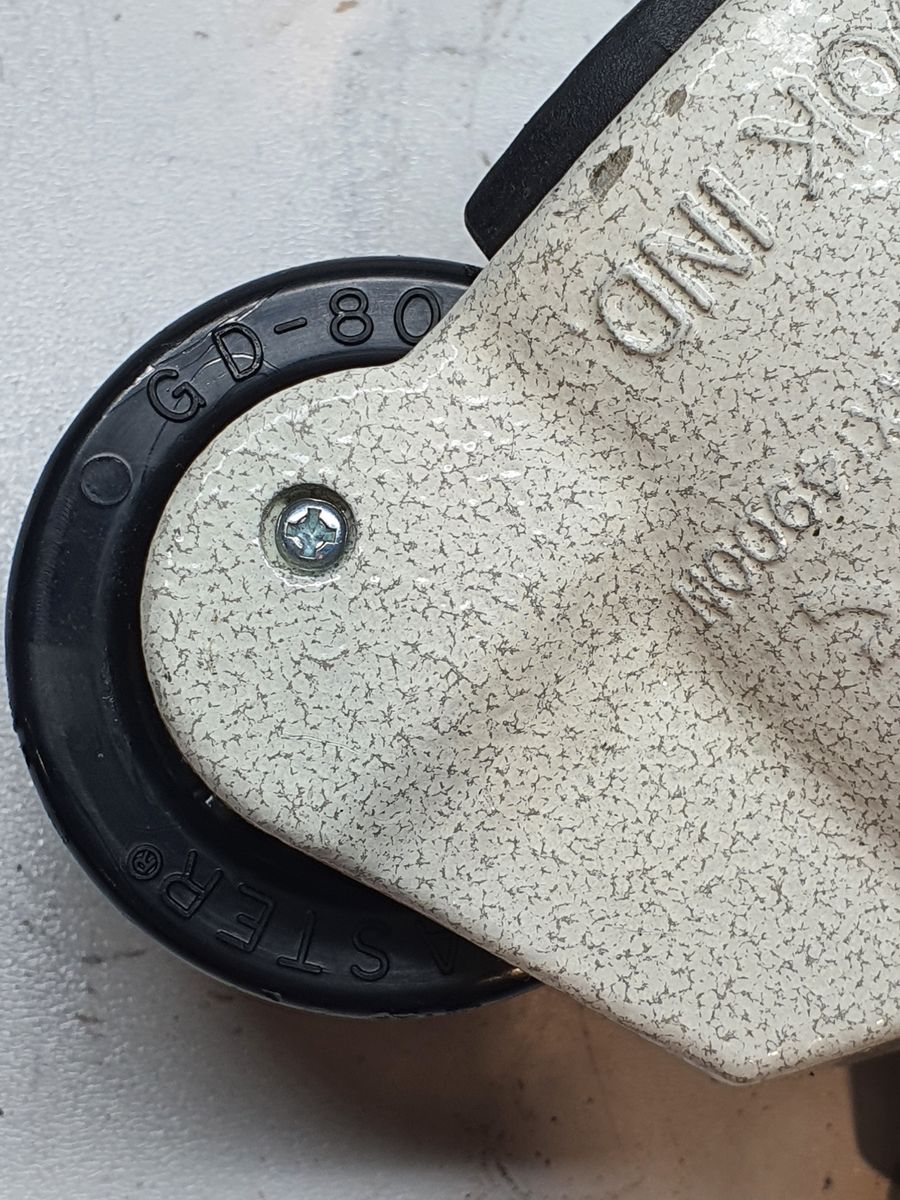

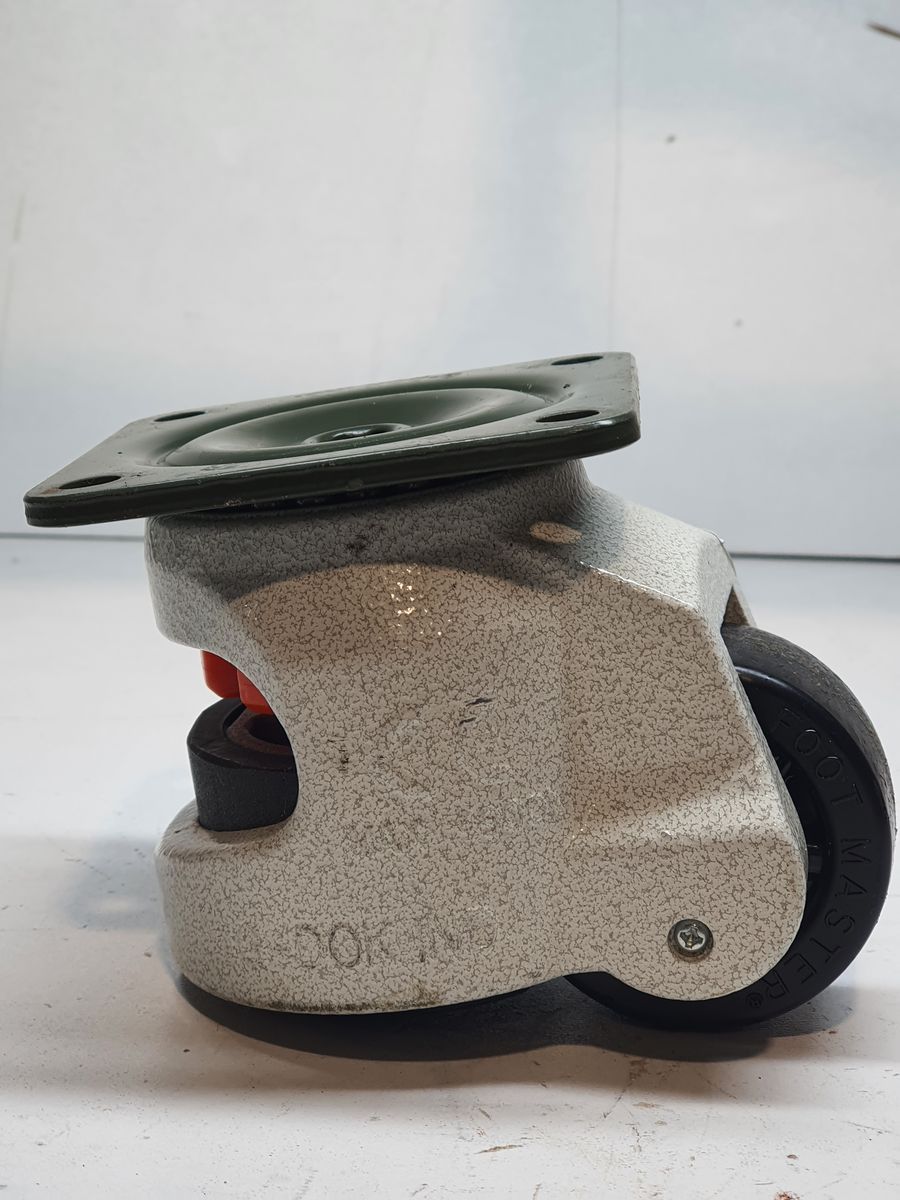

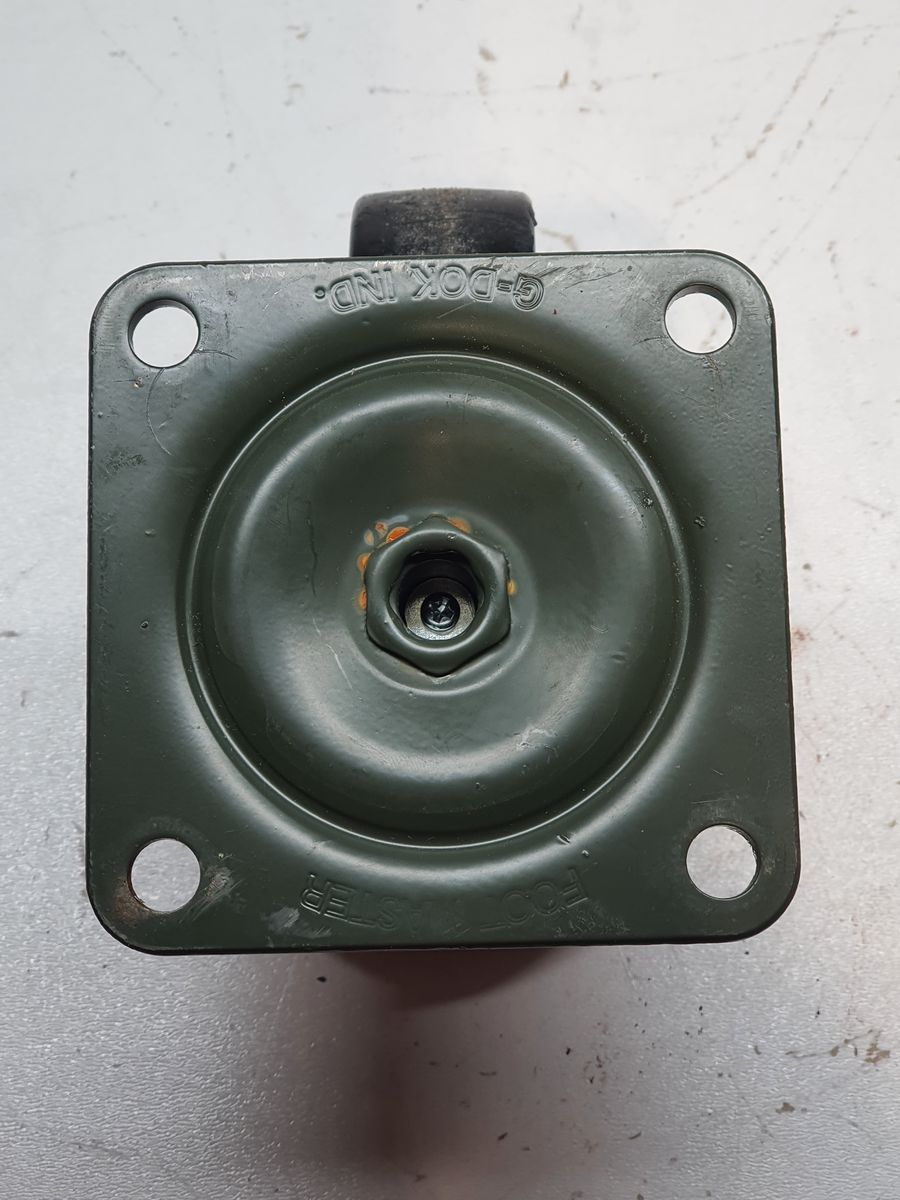

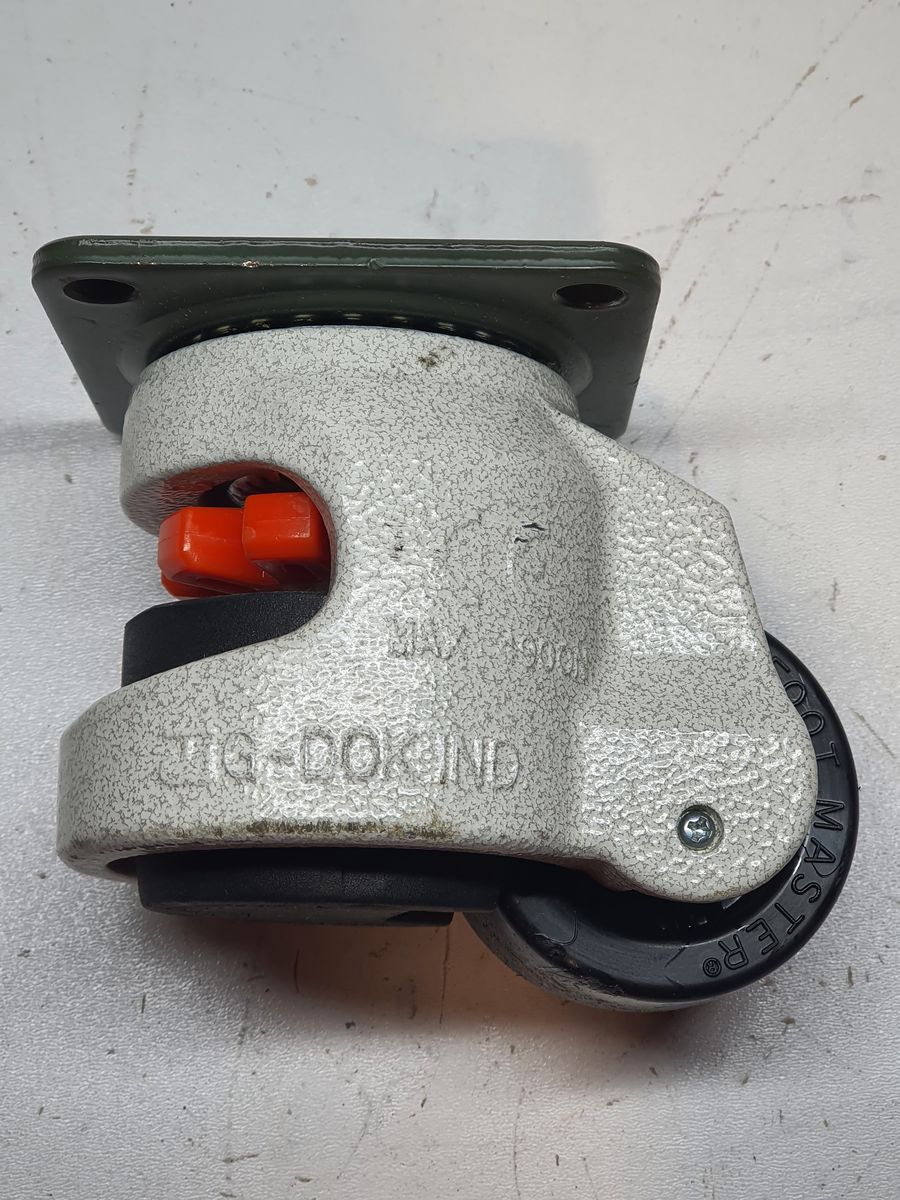

Footmaster GD80
| Specification | Value (Imperial) | Value (Metric) |
|---|---|---|
| Manufacture Series | GD Series | — |
| Country of Origin | South Korea | — |
| CE Mark | Yes | — |
| NSF Certified | No | — |
| Rig Material | Aluminum Diecast | — |
| Rig Construction | Cast Aluminum | — |
| Rig Finish / Coating | Powder Coat – Ivory | — |
| Swivel Type | Swivel | — |
| Swivel Construction | Kingpin Construction | — |
| Swivel Lock | No | — |
| Brake | Yes | — |
| Greasable Axle | No | — |
| Stem Features | Customizable Stems Available | — |
| Adjustment Style | Manual Thumb Wheel / Nut (Open-ended wrench) | — |
| Leveling Height | 0.591 in | 15.01 mm |
| Overall Height | 4.055 in | 102.997 mm |
| Caster Swivel Radius | 3.05 in | 77.47 mm |
| Plate Width | 3.53 in | 89.66 mm |
| Plate Length | 3.53 in | 89.66 mm |
| Plate Thickness | 0.20 in | 5.08 mm |
| Plate Bolt Hole Pattern (C-C) | 2.75 × 2.75 in | 69.85 × 69.85 mm |
| Plate Bolt Size | 0.30 in | 7.62 mm |
| Plate Bolt Holes | 4 | — |
| Plate Drilled / Tapped | Drilled | — |
| Wheel Count | 1 | — |
| Wheel Diameter | 2.48 in | 62.99 mm |
| Wheel Width | 1.10 in | 27.94 mm |
| Wheel Tread Category | Plastic / Nylon | — |
| Wheel Tread Material | Nylon | — |
| Wheel Properties | High Strength Nylon 6 | — |
| Wheel Durometer | 70D | — |
| Wheel Face | Flat | — |
| Wheel (Non-Marking) | Yes | — |
| Wheel Tread Color | Black | — |
| Wheel Hub Color | Black | — |
| Wheel Hub Type | Solid | — |
| Wheel Hub Material | Nylon | — |
| Wheel Bearing | Plain Bore | — |
| Capacity – Dynamic | 1,100 lbs | 500 kg |
| Capacity – Static | 1,100 lbs | 500 kg |
| Capacity – Recommended (4 Casters) | 2,200 lbs | 1,000 kg |
| Temperature Minimum | 14 °F | -10 °C |
| Temperature Maximum | 194 °F | 90 °C |
| Carton Weight | 62 lbs | 28.18 kg |
| Carton Length | 19 in | 482.6 mm |
| Carton Width | 14 in | 355.6 mm |
| Carton Height | 14 in | 355.6 mm |
×
![]()
