Druktransmitter
Endress+Hauser Cerabar T PMP131-A4401A70
SKU: 7008
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

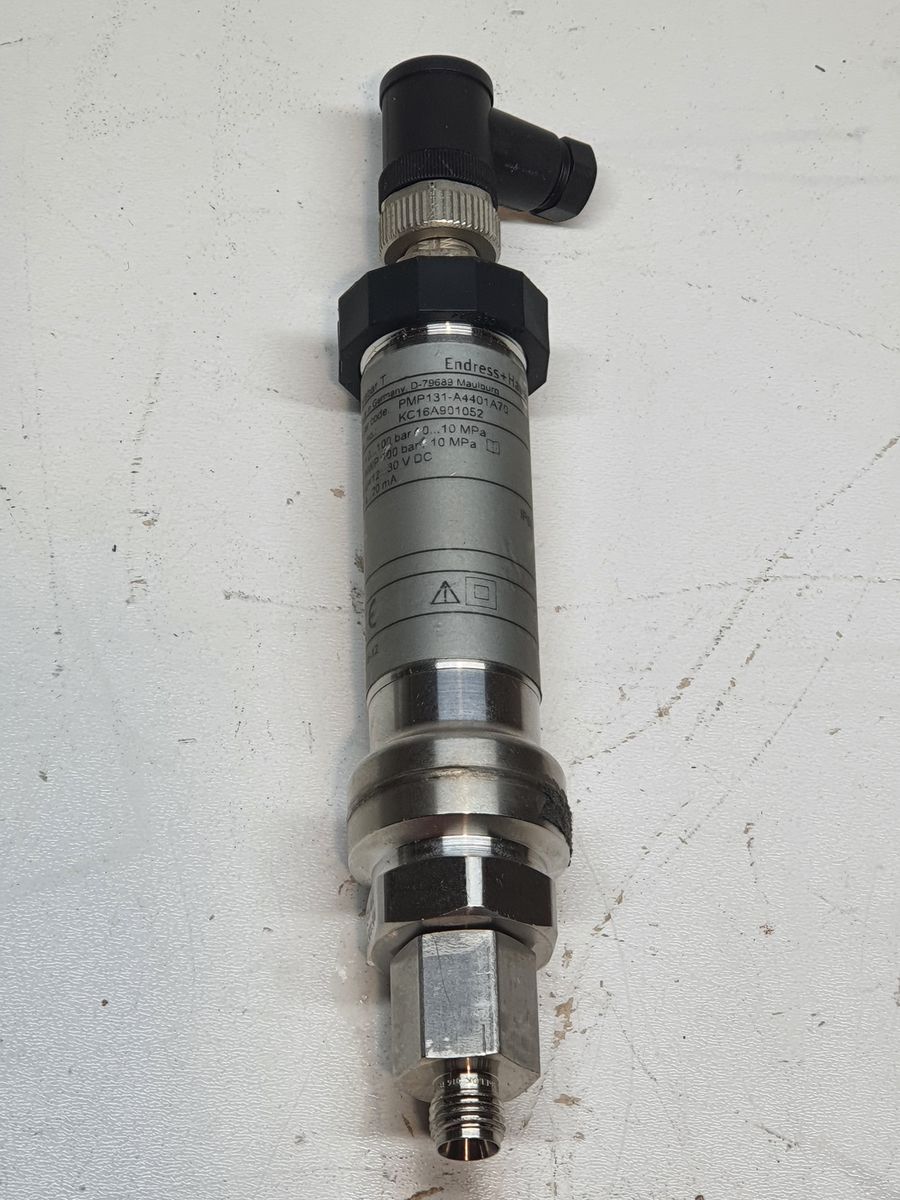

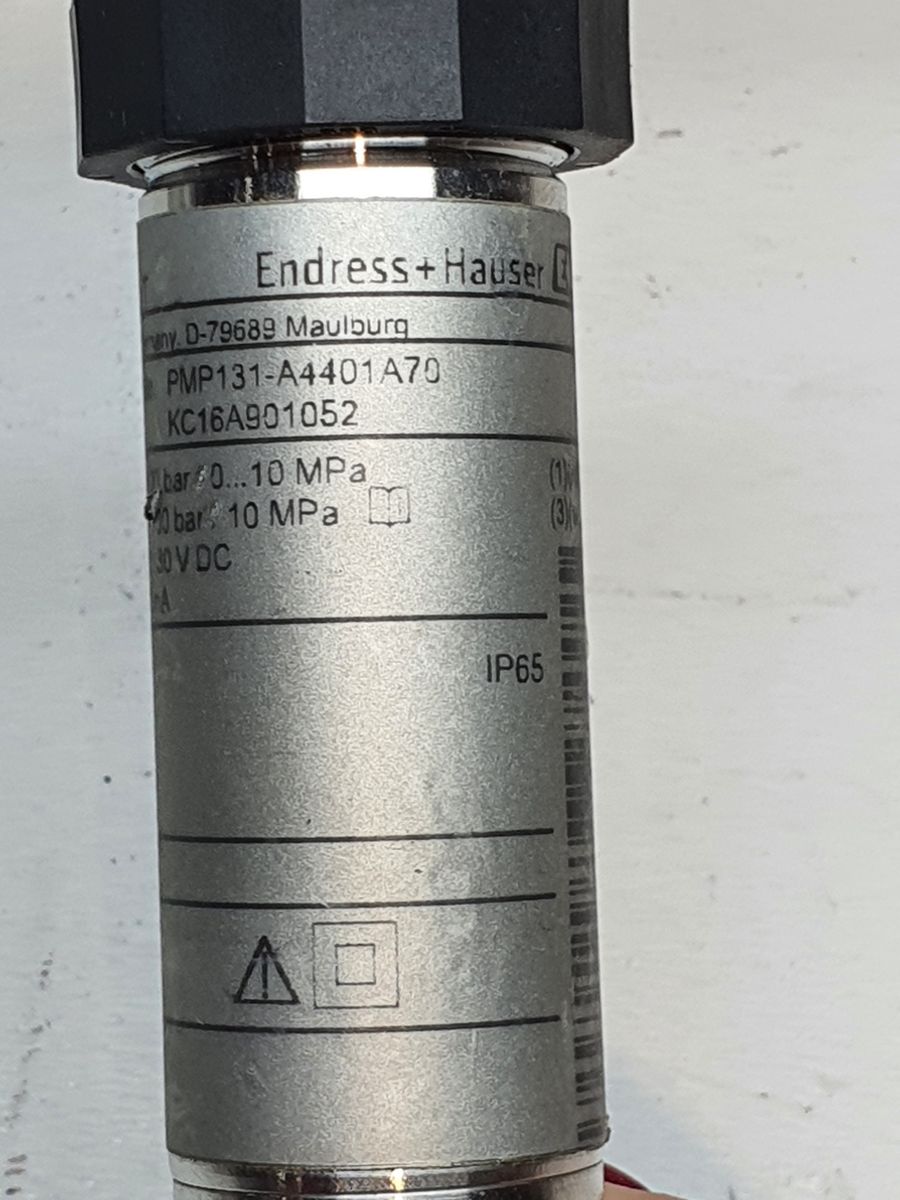

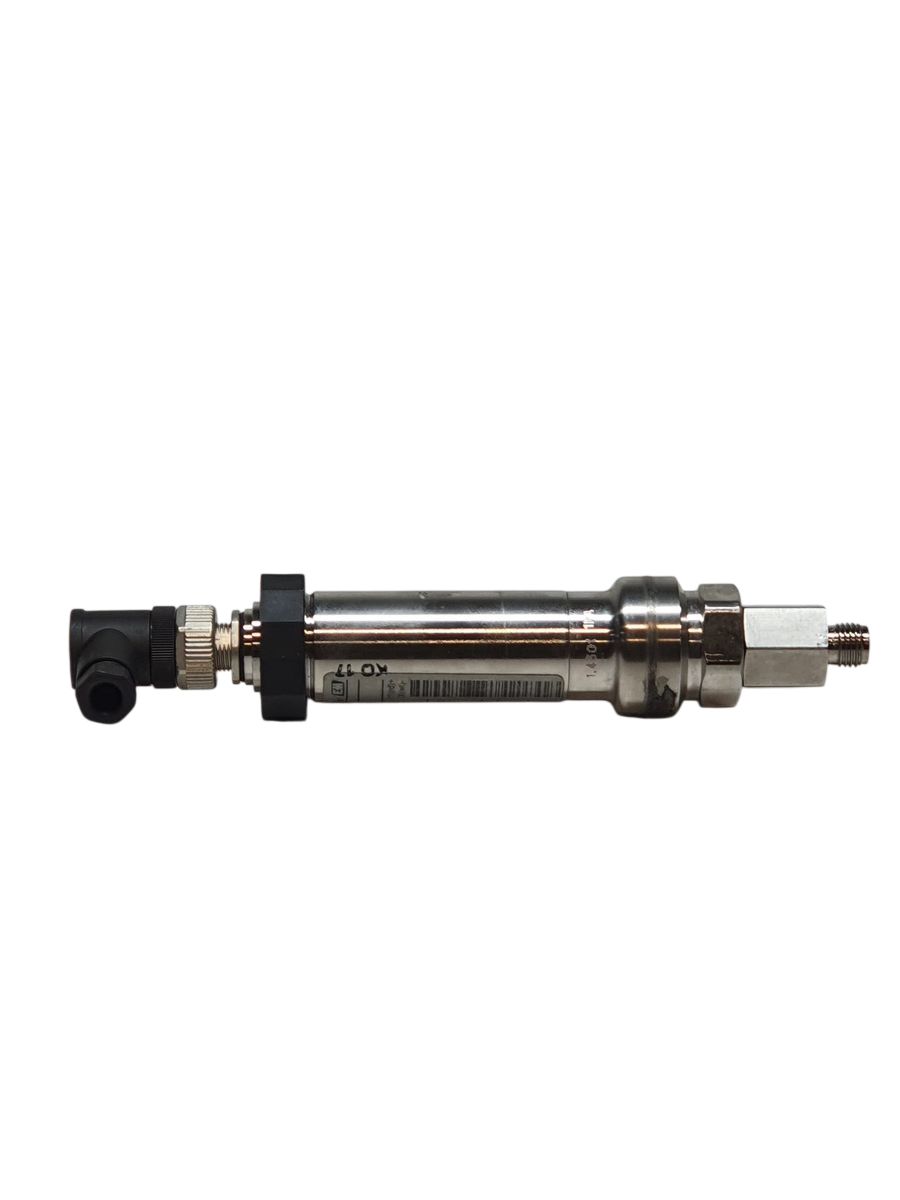

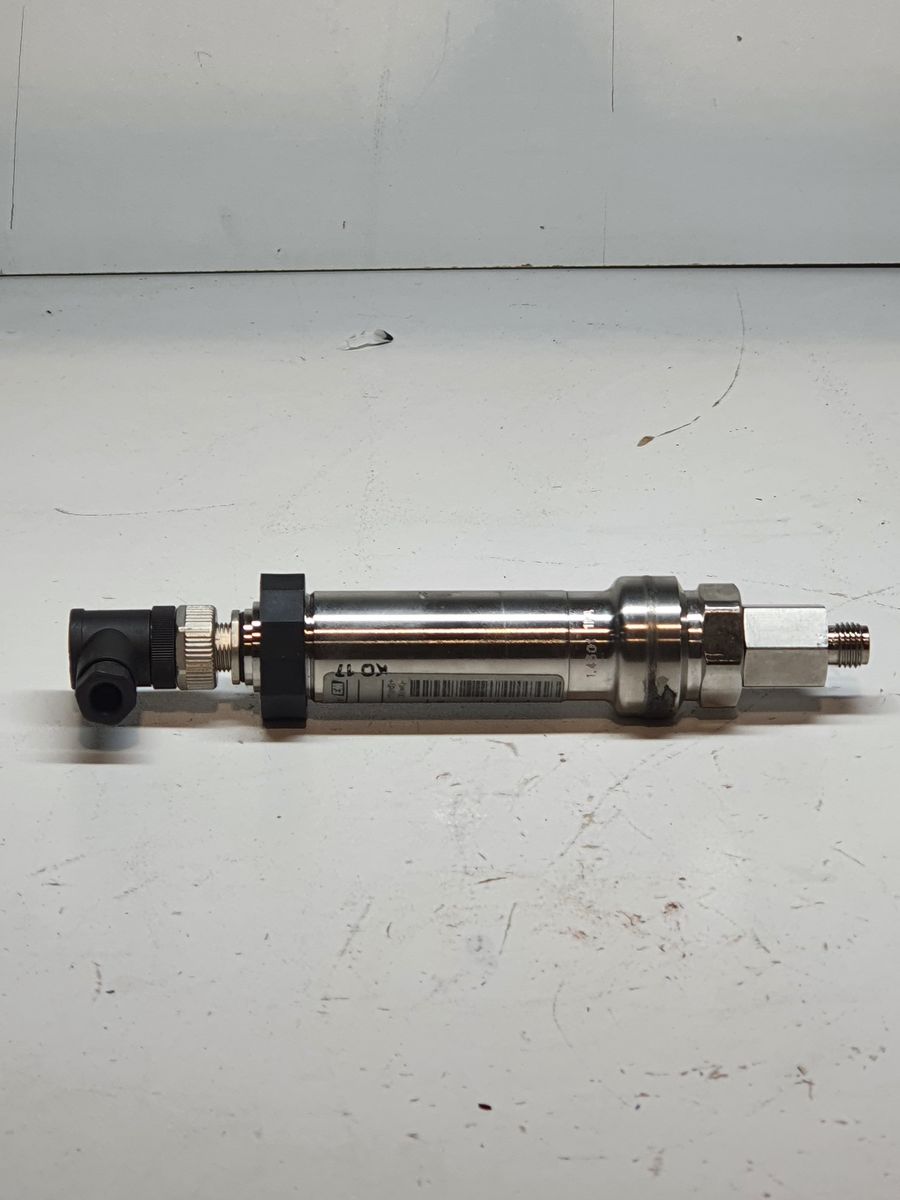

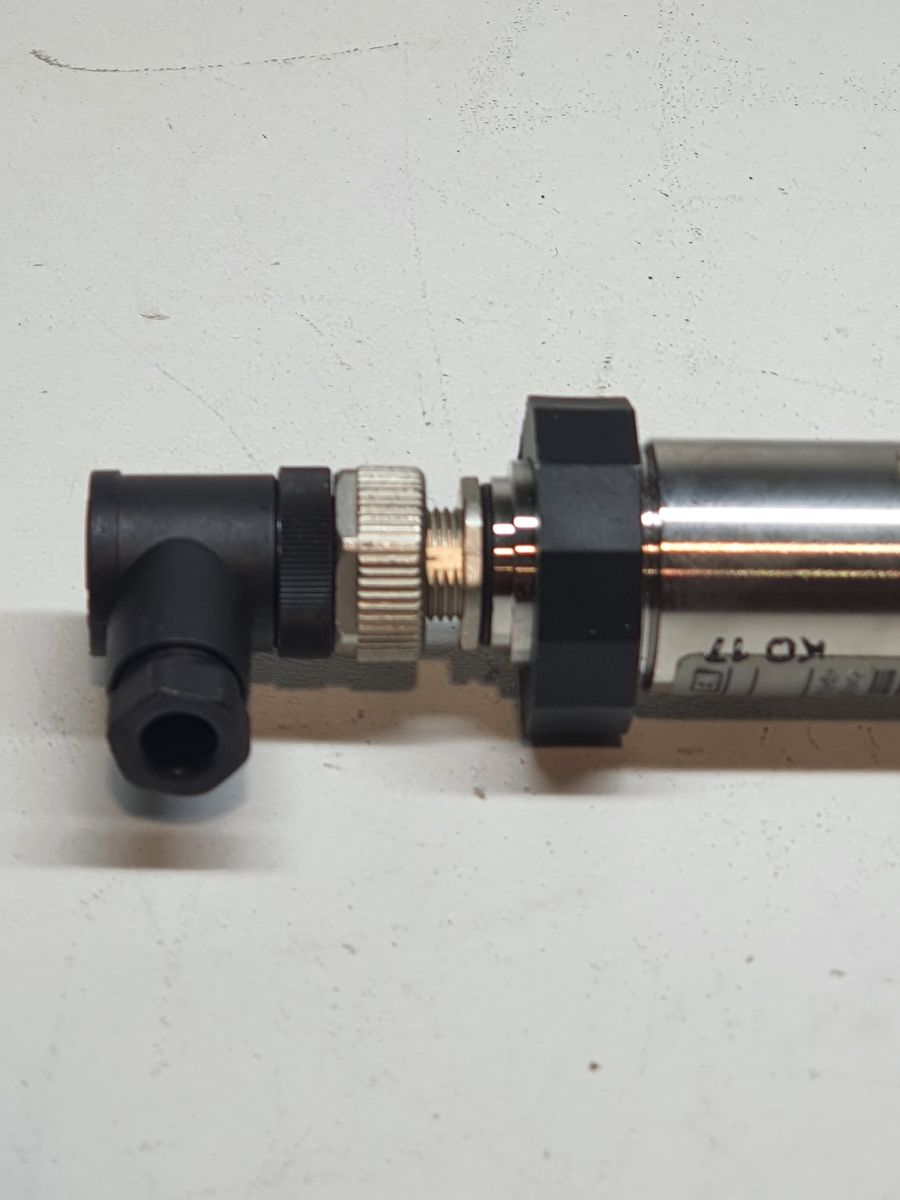

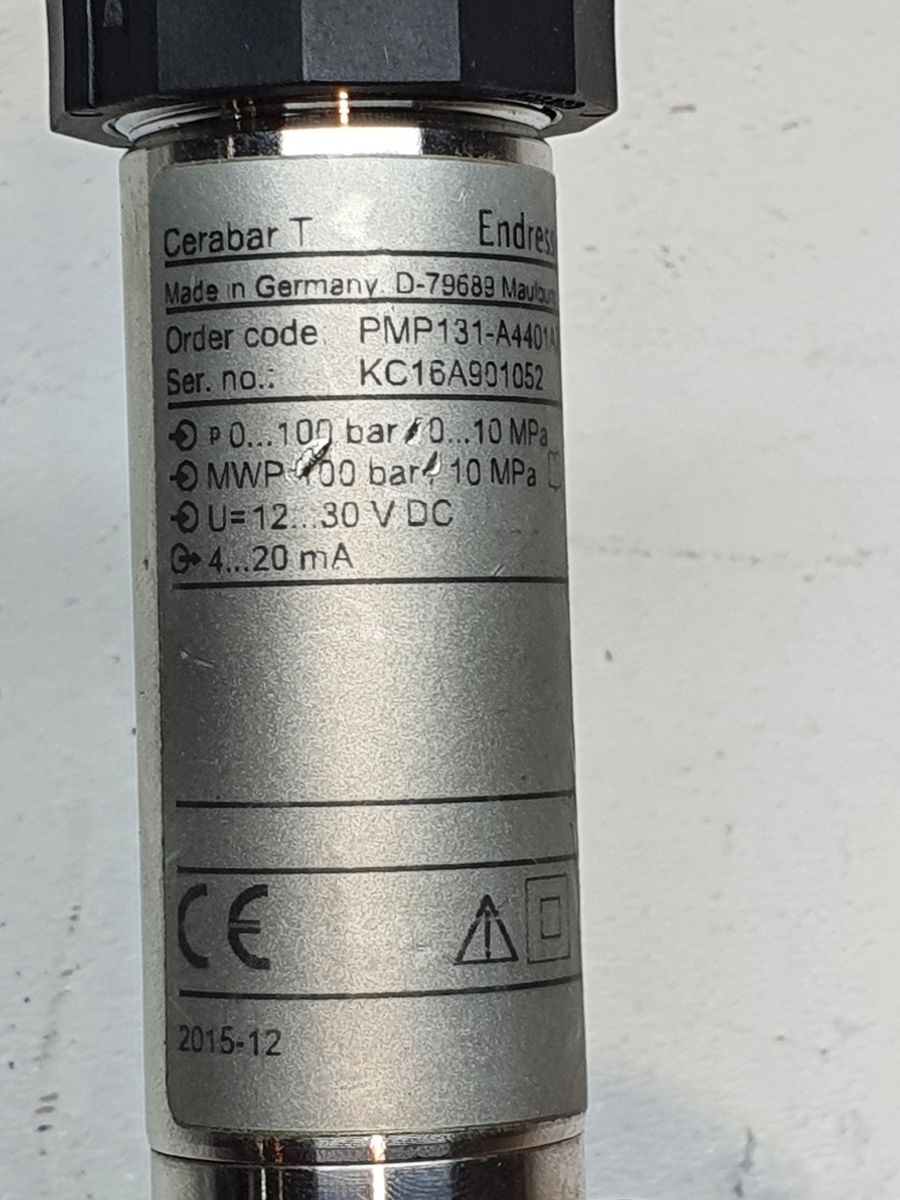

Endress+Hauser Cerabar T (PMP131)
It is a compact pressure transmitter used to measure liquid or gas pressure in industrial processes. It converts pressure up to 100 bar (10 MPa) into a standard 4–20 mA analog signal for transmission to control systems such as PLCs or DCS. The device operates on 12–30 V DC, is designed for reliable operation in industrial environments, and is commonly used in process automation, hydraulics, water treatment, and general pressure monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Endress+Hauser |
| Product Name | Cerabar T |
| Made In | Germany |
| Manufacturing Location | D-79689 Maulburg |
| Order Code | PMP131-A4401A70 |
| Measuring Range (p) | 0…100 bar |
| Measuring Range (Metric) | 0…10 MPa |
| Maximum Working Pressure (MWP) | 100 bar |
| Maximum Working Pressure (Metric) | 10 MPa |
| Supply Voltage | 12…30 V DC |
| Output Signal | 4…20 mA |
| Pressure Type | Gauge Pressure |
| Compliance | CE |
| Safety / Warning Markings | General warning symbol |
| Date Code | 2015-12 |
×
![]()
